Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
381LX122M200K042CAP ALUM 1200UF 20% 200V SNAP TH |
891 |
|
Datasheet |
381LX | Bulk | Active | 1200 µF | ±20% | 200 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.3 A @ 120 Hz | 3.2 A @ 20 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|

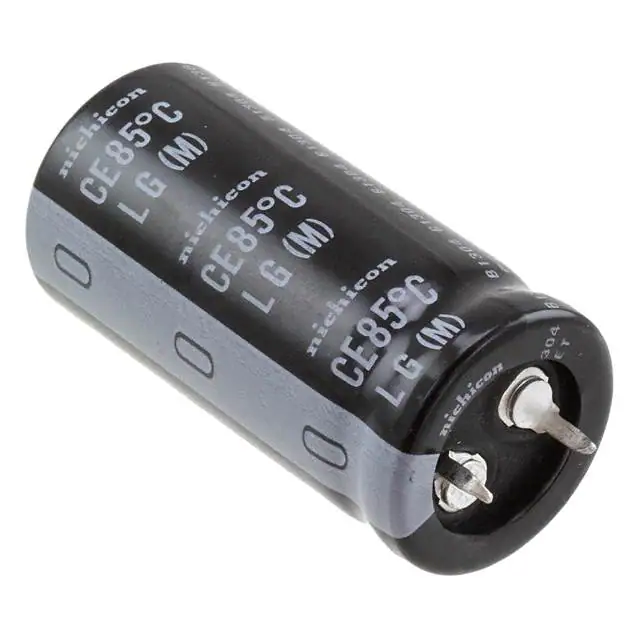

LLG2G331MELZ45CAP ALUM 330UF 20% 400V SNAP TH |
250 |
|
Datasheet |
LLG | Bulk | Active | 330 µF | ±20% | 400 V | - | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 1.7 A @ 120 Hz | 2.431 A @ 50 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
EGPD101ELL621MM30HCAP ALUM 620UF 20% 100V RADIAL |
208 |
|
Datasheet |
GPD | Bulk | Active | 620 µF | ±20% | 100 V | 37mOhm @ 100kHz | 2000 Hrs @ 135°C | -40°C ~ 135°C | Polar | AEC-Q200 | Automotive | 1.96 A @ 120 Hz | 3.92 A @ 100 kHz | - | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.240" (31.50mm) | - | Through Hole | |
|
450MXG180MEFCSN25X35CAP ALUM 180UF 20% 450V SNAP TH |
194 |
|
Datasheet |
MXG | Bulk | Active | 180 µF | ±20% | 450 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.27 A @ 120 Hz | 1.778 A @ 10 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
ETXH451VSN271MR45SCAP ALUM 270UF 20% 450V SNAP TH |
186 |
|
Datasheet |
TXH | Bulk | Active | 270 µF | ±20% | 450 V | - | 10000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.19 A @ 120 Hz | 1.7017 A @ 100 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
381LX153M025A022CAP ALUM 15000UF 20% 25V SNAP TH |
632 |
|
Datasheet |
381LX | Bulk | Active | 15000 µF | ±20% | 25 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.6 A @ 120 Hz | 4.1 A @ 20 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
400LXW150MEFR16X40CAP ALUM 150UF 20% 400V RADIAL |
203 |
|
Datasheet |
LXW | Bulk | Active | 150 µF | ±20% | 400 V | - | 12000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.01 A @ 120 Hz | 2.02 A @ 100 kHz | - | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
381LR101M450J022CAP ALUM 100UF 20% 450V SNAP TH |
2,969 |
|
Datasheet |
381LR | Bulk | Active | 100 µF | ±20% | 450 V | 1.326Ohm @ 120Hz | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 910 mA @ 120 Hz | 1.3 A @ 20 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
MAL225625153E3CAP ALUM 15000UF 20% 16V SNAP TH |
350 |
|
Datasheet |
256 PMG-SI | Bulk | Active | 15000 µF | ±20% | 16 V | 44mOhm @ 120Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.2 A @ 120 Hz | - | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
LQSW6181MELB25CAP ALUM 180UF 20% 420V SNAP TH |
199 |
|
Datasheet |
LQS | Bulk | Active | 180 µF | ±20% | 420 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 910 mA @ 120 Hz | 1.3013 A @ 50 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
LGU2F391MELBCAP ALUM 390UF 20% 315V SNAP TH |
134 |
|
Datasheet |
LGU | Bulk | Active | 390 µF | ±20% | 315 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.47 A @ 120 Hz | 2.1021 A @ 50 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
380LQ271M400K022CAP ALUM 270UF 20% 400V SNAP TH |
1,197 |
|
Datasheet |
380LQ | Bulk | Active | 270 µF | ±20% | 400 V | 737mOhm @ 120Hz | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 1.67 A @ 120 Hz | 2.34 A @ 20 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
EKMQ161VSN152MQ45SCAP ALUM 1500UF 20% 160V SNAP TH |
200 |
|
Datasheet |
KMQ | Bulk | Active | 1500 µF | ±20% | 160 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 2.5 A @ 120 Hz | 3.75 A @ 50 kHz | - | 0.394" (10.00mm) | 1.000" Dia (25.40mm) | 1.850" (47.00mm) | - | Through Hole | |
|
ESMQ351VSN681MA35SCAP ALUM 680UF 20% 350V SNAP TH |
176 |
|
Datasheet |
SMQ | Bulk | Active | 680 µF | ±20% | 350 V | - | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 2.96 A @ 120 Hz | 4.233 A @ 50 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.378" (35.00mm) | - | Through Hole | |
|
B43544E2687M000CAP ALUM 680UF 20% 250V SNAP TH |
456 |
|
Datasheet |
B43544 | Tray | Active | 680 µF | ±20% | 250 V | 110mOhm @ 100Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.07 A @ 100 Hz | - | 150 mOhms | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
381LX562M035K012CAP ALUM 5600UF 20% 35V SNAP TH |
772 |
|
Datasheet |
381LX | Bulk | Active | 5600 µF | ±20% | 35 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.8 A @ 120 Hz | - | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
381LX271M450A032CAP ALUM 270UF 20% 450V SNAP TH |
750 |
|
Datasheet |
381LX | Bulk | Active | 270 µF | ±20% | 450 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.2 A @ 120 Hz | 1.7 A @ 20 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
B43501C5107M000CAP ALUM 100UF 20% 450V SNAP TH |
1,058 |
|
Datasheet |
B43501 | Bulk | Not For New Designs | 100 µF | ±20% | 450 V | 1.33Ohm @ 100Hz | 10000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 900 mA @ 100 Hz | - | 1.6 Ohms | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
MAL224651222E3CAP ALUM 2200UF 20% 50V RADIAL |
175 |
|
Datasheet |
246 RTI-V | Box | Active | 2200 µF | ±20% | 50 V | - | 6000 Hrs @ 125°C | -55°C ~ 125°C | Polar | AEC-Q200 | Automotive | 1.5 A @ 100 Hz | 3 A @ 100 kHz | 22 mOhms | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.476" (37.50mm) | - | Through Hole | |
|
LQS2V331MELZ45CAP ALUM 330UF 20% 350V SNAP TH |
248 |
|
Datasheet |
LQS | Bulk | Active | 330 µF | ±20% | 350 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.2 A @ 120 Hz | 1.716 A @ 50 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.850" (47.00mm) | - | Through Hole |
Aluminum Electrolytic Capacitors Electronic Components
Explore Aluminum Electrolytic Capacitors electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
