Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
400HXW180MEFR16X45CAP ALUM 180UF 20% 400V RADIAL |
299 |
|
Datasheet |
HXW | Bulk | Active | 180 µF | ±20% | 400 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.14 A @ 120 Hz | 1.8 A @ 10 kHz | - | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
420MXK180MEFCSN22X30CAP ALUM 180UF 20% 420V SNAP TH |
210 |
|
Datasheet |
MXK | Tray | Active | 180 µF | ±20% | 420 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.2 A @ 120 Hz | 1.68 A @ 10 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
MAL224699711E3CAP ALUM 330UF 20% 80V SMD |
250 |
|
Datasheet |
246 CTI-V | Tape & Reel (TR) | Active | 330 µF | ±20% | 80 V | - | 2500 Hrs @ 125°C | -55°C ~ 125°C | Polar | AEC-Q200 | Automotive, High Temperature Reflow | 540 mA @ 100 Hz | 900 mA @ 100 kHz | 160 mOhms | - | 0.709" Dia (18.00mm) | 0.689" (17.50mm) | 0.748" L x 0.748" W (19.00mm x 19.00mm) | Surface Mount | |
|
UPZ2D391MHD6CAP ALUM 390UF 20% 200V RADIAL |
233 |
|
Datasheet |
UPZ | Bulk | Active | 390 µF | ±20% | 200 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | - | - | General Purpose | 1.12 A @ 120 Hz | 1.568 A @ 10 kHz | - | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.476" (37.50mm) | - | Through Hole | |
|

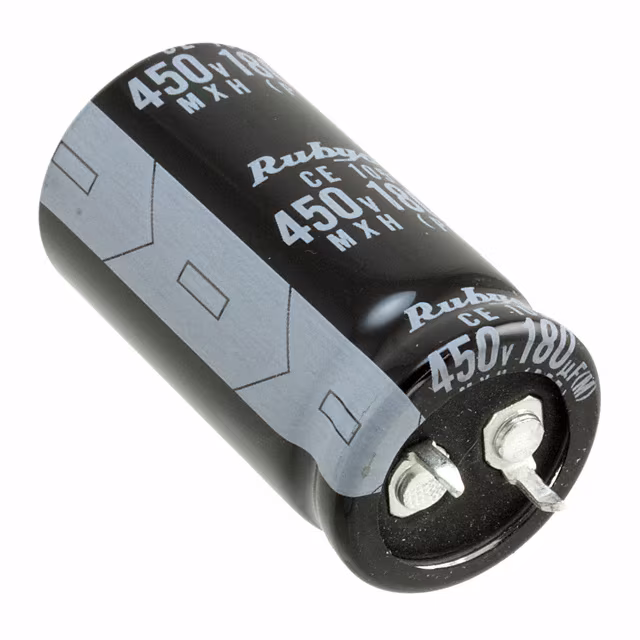

450MXH180MEFCSN22X40CAP ALUM 180UF 20% 450V SNAP TH |
168 |
|
Datasheet |
MXH | Bulk | Active | 180 µF | ±20% | 450 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.28 A @ 120 Hz | 1.792 A @ 10 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
LGN2P681MELZ45CAP ALUM 680UF 20% 220V SNAP TH |
244 |
|
Datasheet |
LGN | Bulk | Active | 680 µF | ±20% | 220 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.78 A @ 120 Hz | 2.67 A @ 50 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
ESMQ351VSN681MR45SCAP ALUM 680UF 20% 350V SNAP TH |
147 |
|
Datasheet |
SMQ | Bulk | Active | 680 µF | ±20% | 350 V | - | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 2.96 A @ 120 Hz | 4.2328 A @ 50 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
LGG2Z102MELA35CAP ALUM 1000UF 20% 180V SNAP TH |
250 |
|
Datasheet |
LGG | Bulk | Active | 1000 µF | ±20% | 180 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.05 A @ 120 Hz | 3.075 A @ 50 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
LLS2W181MELACAP ALUM 180UF 20% 450V SNAP TH |
155 |
|
Datasheet |
LLS | Bulk | Active | 180 µF | ±20% | 450 V | - | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 1.4 A @ 120 Hz | 2.002 A @ 50 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.378" (35.00mm) | - | Through Hole | |
|
500MXK82MEFCSN22X30CAP ALUM 82UF 20% 500V SNAP TH |
192 |
|
Datasheet |
MXK | Bulk | Active | 82 µF | ±20% | 500 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 830 mA @ 120 Hz | 1.162 A @ 10 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
EKMQ451VSN331MR40SCAP ALUM 330UF 20% 450V SNAP TH |
165 |
|
Datasheet |
KMQ | Bulk | Active | 330 µF | ±20% | 450 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | - | - | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
|
420LXW120MEFR14.5X45CAP ALUM 120UF 20% 420V RADIAL |
500 |
|
Datasheet |
LXW | Bulk | Active | 120 µF | ±20% | 420 V | - | 12000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 860 mA @ 120 Hz | 1.72 A @ 100 kHz | - | 0.295" (7.50mm) | 0.571" Dia (14.50mm) | 1.850" (47.00mm) | - | Through Hole | |
|
LQS2W151MELA30CAP ALUM 150UF 20% 450V SNAP TH |
335 |
|
Datasheet |
LQS | Bulk | Active | 150 µF | ±20% | 450 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 790 mA @ 120 Hz | 1.1297 A @ 50 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
LGUW6271MELBCAP ALUM 270UF 20% 420V SNAP TH |
203 |
|
Datasheet |
LGU | Bulk | Active | 270 µF | ±20% | 420 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.22 A @ 120 Hz | 1.7446 A @ 50 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.575" (40.00mm) | - | Through Hole | |
|
MAL225753221E3CAP ALUM 220UF 20% 250V SNAP TH |
701 |
|
Datasheet |
257 PRM-SI | Box | Active | 220 µF | ±20% | 250 V | 540mOhm @ 100Hz | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.32 A @ 100 Hz | 1.848 A @ 10 kHz | 360 mOhms | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
LLG2W181MELA30CAP ALUM 180UF 20% 450V SNAP TH |
179 |
|
Datasheet |
LLG | Bulk | Active | 180 µF | ±20% | 450 V | - | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 1.3 A @ 120 Hz | 1.859 A @ 50 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
380LX333M025K052CAP ALUM 33000UF 20% 25V SNAP TH |
1,711 |
|
Datasheet |
380LX | Bulk | Active | 33000 µF | ±20% | 25 V | 20mOhm @ 120Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 6.8 A @ 120 Hz | - | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
LQS2V331MELA40CAP ALUM 330UF 20% 350V SNAP TH |
246 |
|
Datasheet |
LQS | Bulk | Active | 330 µF | ±20% | 350 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.2 A @ 120 Hz | 1.716 A @ 50 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
AFK228M25P44VT-FCAP ALUM 2200UF 20% 25V SMD |
105 |
|
Datasheet |
AFK_V | Tape & Reel (TR) | Active | 2200 µF | ±20% | 25 V | 35mOhm @ 100kHz | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive, Bypass, Decoupling | 1.35 A @ 120 Hz | - | 35 mOhms | - | 0.630" Dia (16.00mm) | 0.748" (19.00mm) | 0.669" L x 0.669" W (17.00mm x 17.00mm) | Surface Mount | |
|
MAL224656472E3CAP ALUM 4700UF 20% 25V RADIAL |
897 |
|
Datasheet |
246 RTI-V | Box | Active | 4700 µF | ±20% | 25 V | - | 6000 Hrs @ 125°C | -55°C ~ 125°C | Polar | AEC-Q200 | Automotive | 2.24 A @ 100 Hz | 3.2 A @ 100 kHz | 18 mOhms | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.476" (37.50mm) | - | Through Hole |
