Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EGVD800ELL821MM30HCAP ALUM 820UF 20% 80V RADIAL TH |
294 |
|
Datasheet |
GVD | Bulk | Active | 820 µF | ±20% | 80 V | 29mOhm @ 100kHz | 2000 Hrs @ 135°C | -40°C ~ 135°C | Polar | AEC-Q200 | Automotive | 2.358 A @ 120 Hz | 3.93 A @ 100 kHz | - | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.240" (31.50mm) | - | Through Hole | |
|
ESMQ401VSN331MP50SCAP ALUM 330UF 20% 400V SNAP TH |
175 |
|
Datasheet |
SMQ | Bulk | Active | 330 µF | ±20% | 400 V | - | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 1.9 A @ 120 Hz | 2.717 A @ 50 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.969" (50.00mm) | - | Through Hole | |
|
LGN2P561MELB25CAP ALUM 560UF 20% 220V SNAP TH |
510 |
|
Datasheet |
LGN | Bulk | Active | 560 µF | ±20% | 220 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.61 A @ 120 Hz | 2.415 A @ 50 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
UCX1E332MNS1MSCAP ALUM 3300UF 20% 25V SMD |
150 |
|
Datasheet |
UCX | Tape & Reel (TR) | Not For New Designs | 3300 µF | ±20% | 25 V | 35mOhm | 2000 Hrs @ 135°C | -40°C ~ 135°C | Polar | AEC-Q200 | General Purpose | 1.1 A @ 120 Hz | 2.2 A @ 100 kHz | - | - | 0.709" Dia (18.00mm) | 0.866" (22.00mm) | 0.752" L x 0.752" W (19.10mm x 19.10mm) | Surface Mount | |
|
380LQ122M200K032CAP ALUM 1200UF 20% 200V SNAP TH |
153 |
|
Datasheet |
380LQ | Bulk | Active | 1200 µF | ±20% | 200 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
380LQ561M250J022CAP ALUM 560UF 20% 250V SNAP TH |
4,517 |
|
Datasheet |
380LQ | Bulk | Active | 560 µF | ±20% | 250 V | 355mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.2 A @ 120 Hz | 3.08 A @ 20 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
B43548B9227M060CAP ALUM 220UF 20% 400V SNAP TH |
409 |
|
Datasheet |
B43548 | Bulk | Active | 220 µF | ±20% | 400 V | 390mOhm @ 100Hz | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.88 A @ 100 Hz | - | 580 mOhms | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
450HXW120MEFR14.5X50CAP ALUM 120UF 20% 450V RADIAL |
394 |
|
Datasheet |
HXW | Bulk | Active | 120 µF | ±20% | 450 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 930 mA @ 120 Hz | 1.395 A @ 10 kHz | - | 0.295" (7.50mm) | 0.571" Dia (14.50mm) | 2.047" (52.00mm) | - | Through Hole | |
|
LAS2W680MELZ25CAP ALUM 68UF 20% 450V SNAP TH |
236 |
|
Datasheet |
LAS | Bulk | Active | 68 µF | ±20% | 450 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 600 mA @ 120 Hz | 690 mA @ 10 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
ESMR401VSN331MP45SCAP ALUM 330UF 20% 400V SNAP TH |
200 |
|
Datasheet |
SMR | Bulk | Active | 330 µF | ±20% | 400 V | - | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 2.15 A @ 120 Hz | 3.0745 A @ 50 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.870" (47.50mm) | - | Through Hole | |
|
LGNW6151MELA30CAP ALUM 150UF 20% 420V SNAP TH |
225 |
|
Datasheet |
LGN | Bulk | Active | 150 µF | ±20% | 420 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 840 mA @ 120 Hz | 1.2012 A @ 50 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|

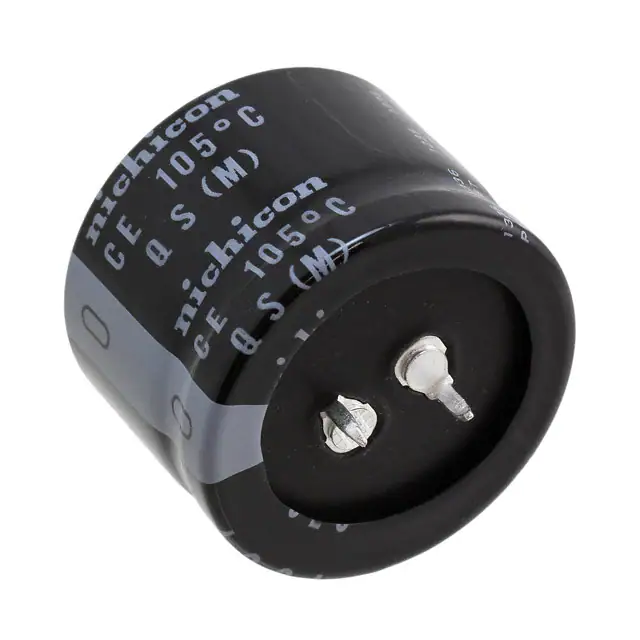

LQSW6271MELC25CAP ALUM 270UF 20% 420V SNAP TH |
204 |
|
Datasheet |
LQS | Bulk | Active | 270 µF | ±20% | 420 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.25 A @ 120 Hz | 1.7875 A @ 50 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
|
LGN2Z821MELB25CAP ALUM 820UF 20% 180V SNAP TH |
200 |
|
Datasheet |
LGN | Bulk | Active | 820 µF | ±20% | 180 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2 A @ 120 Hz | 3 A @ 50 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
|
LGN2Z122MELB35CAP ALUM 1200UF 20% 180V SNAP TH |
195 |
|
Datasheet |
LGN | Bulk | Active | 1200 µF | ±20% | 180 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.3 A @ 120 Hz | 3.45 A @ 50 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
B43545A5107M000CAP ALUM 100UF 20% 450V SNAP TH |
520 |
|
Datasheet |
B43545 | Bulk | Active | 100 µF | ±20% | 450 V | 910mOhm @ 100Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 820 mA @ 100 Hz | - | 1.37 Ohms | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
860241381006CAP ALUM 68UF 20% 400V RADIAL TH |
154 |
|
Datasheet |
WCAP-AT1H | Cut Tape (CT) | Active | 68 µF | ±20% | 400 V | - | 10000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 730 mA @ 120 Hz | 1.46 A @ 100 kHz | - | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.319" (33.50mm) | - | Through Hole | |
|
500D156M040BA2ACAP ALUM 15UF 20% 40V AXIAL TH |
543 |
|
Datasheet |
500D | Bulk | Active | 15 µF | ±20% | 40 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | - | - | General Purpose | - | - | - | - | 0.248" Dia x 0.512" L (6.30mm x 13.00mm) | - | - | Through Hole | |
|
LAS2W101MELZ30CAP ALUM 100UF 20% 450V SNAP TH |
246 |
|
Datasheet |
LAS | Bulk | Active | 100 µF | ±20% | 450 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 710 mA @ 120 Hz | 816.5 mA @ 10 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
MAL225099017E3CAP ALUM 2200UF 20% 35V SMD |
585 |
|
Datasheet |
250 RMI-V | Tape & Reel (TR) | Active | - | ±20% | - | - | - | -55°C ~ 105°C | Polar | AEC-Q200 | Audio, Automotive | - | - | - | - | 0.709" Dia (18.00mm) | 0.866" (22.00mm) | 0.748" L x 0.748" W (19.00mm x 19.00mm) | Surface Mount | |
|
ESMH451VNN271MR40UCAP ALUM 270UF 20% 450V SNAP TH |
200 |
|
Datasheet |
SMH | Bulk | Active | 270 µF | ±20% | 450 V | - | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | - | - | - | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.654" (42.00mm) | - | Through Hole |
Aluminum Electrolytic Capacitors Electronic Components
Explore Aluminum Electrolytic Capacitors electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
