Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B41231A7828M000CAP ALUM 8200UF 20% 35V SNAP TH |
1,280 |
|
Datasheet |
B41231 | Bulk | Active | 8200 µF | ±20% | 35 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 4.13 A @ 120 Hz | - | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
EEU-FS0J752SCAP ALUM 7500UF 20% 6.3V RADIAL |
750 |
|
Datasheet |
FS-A | Bulk | Active | 7500 µF | ±20% | 6.3 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.64 A @ 120 Hz | 3.3 A @ 100 kHz | 17 mOhms | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 0.866" (22.00mm) | - | Through Hole | |
|
UCZ2A151MNQ1MSCAP ALUM 150UF 20% 100V SMD |
273 |
|
Datasheet |
UCZ | Tape & Reel (TR) | Not For New Designs | 150 µF | ±20% | 100 V | 190mOhm @ 100kHz | 3500 Hrs @ 125°C | -40°C ~ 125°C | Polar | - | General Purpose | 500 mA @ 120 Hz | 1 A @ 100 kHz | - | - | 0.630" Dia (16.00mm) | 0.689" (17.50mm) | 0.673" L x 0.673" W (17.10mm x 17.10mm) | Surface Mount | |
|
EEU-ED2C151SCAP ALUM 150UF 20% 160V RADIAL |
244 |
|
Datasheet |
ED-A | Bulk | Active | 150 µF | ±20% | 160 V | - | 10000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 630 mA @ 120 Hz | 1.4 A @ 100 kHz | - | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 0.787" (20.00mm) | - | Through Hole | |
|
UHW0J682MHD6CAP ALUM 6800UF 20% 6.3V RADIAL |
170 |
|
Datasheet |
UHW | Bulk | Active | 6800 µF | ±20% | 6.3 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.86 A @ 120 Hz | 3.795 A @ 100 kHz | 14 mOhms | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 0.866" (22.00mm) | - | Through Hole | |
|
860010380028CAP ALUM 8200UF 20% 16V RADIAL |
250 |
|
Datasheet |
WCAP-ATG8 | Cut Tape (CT) | Active | 8200 µF | ±20% | 16 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.893 A @ 120 Hz | 3.70304 A @ 100 kHz | - | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
80ZLJ330M12.5X30CAP ALUM 330UF 20% 80V RADIAL TH |
595 |
|
Datasheet |
ZLJ | Bulk | Active | 330 µF | ±20% | 80 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.32 A @ 120 Hz | - | 42 mOhms | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.260" (32.00mm) | - | Through Hole | |
|
160TXW150MEFR10X40CAP ALUM 150UF 20% 160V RADIAL |
369 |
|
Datasheet |
TXW | Bulk | Not For New Designs | 150 µF | ±20% | 160 V | - | 12000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 670 mA @ 120 Hz | 938 mA @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 1.673" (42.50mm) | - | Through Hole | |
|
UCZ1K271MNS1MSCAP ALUM 270UF 20% 80V SMD |
363 |
|
Datasheet |
UCZ | Tape & Reel (TR) | Active | 270 µF | ±20% | 80 V | 190mOhm @ 100kHz | 3500 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | General Purpose | 500 mA @ 120 Hz | 1 A @ 100 kHz | - | - | 0.630" Dia (16.00mm) | 0.689" (17.50mm) | 0.673" L x 0.673" W (17.10mm x 17.10mm) | Surface Mount | |
|
UCX1H821MNJ1MSCAP ALUM 820UF 20% 50V SMD |
245 |
|
Datasheet |
UCX | Tape & Reel (TR) | Active | 820 µF | ±20% | 50 V | 70mOhm | 2000 Hrs @ 135°C | -40°C ~ 135°C | Polar | AEC-Q200 | General Purpose | 600 mA @ 120 Hz | 1.2 A @ 100 kHz | - | - | 0.709" Dia (18.00mm) | 0.689" (17.50mm) | 0.752" L x 0.752" W (19.10mm x 19.10mm) | Surface Mount | |
|

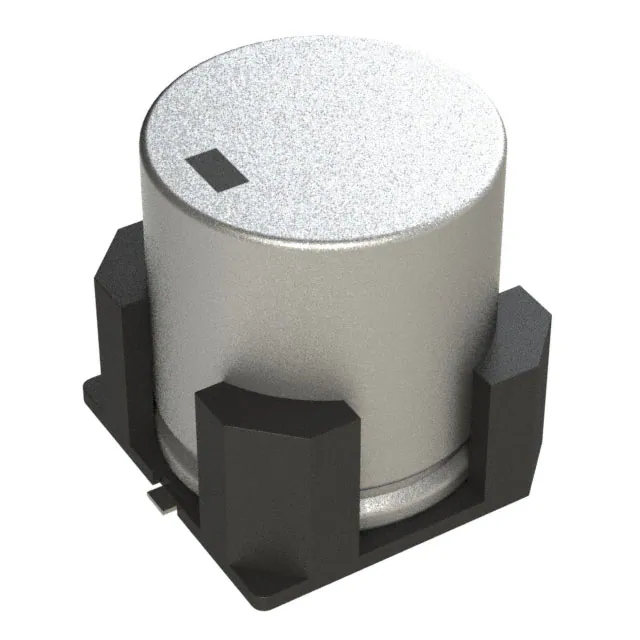

EEV-FK1C152VCAP ALUM 1500UF 20% 16V SMD |
868 |
|
Datasheet |
FK, Anti-Vibration | Tape & Reel (TR) | Active | 1500 µF | ±20% | 16 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 825 mA @ 120 Hz | 1.1 A @ 100 kHz | 60 mOhms | - | 0.492" Dia (12.50mm) | 0.543" (13.80mm) | 0.531" L x 0.531" W (13.50mm x 13.50mm) | Surface Mount | |
|
EKYB500ELL122MK40SCAP ALUM 1200UF 20% 50V RADIAL |
721 |
|
Datasheet |
KYB | Bulk | Active | 1200 µF | ±20% | 50 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.86 A @ 120 Hz | 3.1 A @ 100 kHz | 19 mOhms | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.634" (41.50mm) | - | Through Hole | |
|
UPT2D181MHDCAP ALUM 180UF 20% 200V RADIAL |
462 |
|
Datasheet |
UPT | Bulk | Active | 180 µF | ±20% | 200 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 700 mA @ 120 Hz | 1.12 A @ 10 kHz | - | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.634" (41.50mm) | - | Through Hole | |
|
URZ2C151MHD1TNCAP ALUM 150UF 20% 160V RADIAL |
226 |
|
Datasheet |
URZ | Cut Tape (CT) | Active | 150 µF | ±20% | 160 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 510 mA @ 120 Hz | 816 mA @ 10 kHz | - | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
UBC1E102MNS1MSCAP ALUM 1000UF 20% 25V SMD |
124 |
|
Datasheet |
UBC | Tape & Reel (TR) | Not For New Designs | 1000 µF | ±20% | 25 V | - | 1000 Hrs @ 150°C | -55°C ~ 150°C | Polar | AEC-Q200 | Automotive | 670 mA @ 120 Hz | 1 A @ 100 kHz | - | - | 0.630" Dia (16.00mm) | 0.886" (22.50mm) | 0.673" L x 0.673" W (17.10mm x 17.10mm) | Surface Mount | |
|
LGJ2G470MELA15CAP ALUM 47UF 20% 400V SNAP TH |
250 |
|
Datasheet |
LGJ | Bulk | Active | 47 µF | ±20% | 400 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 350 mA @ 120 Hz | 350 mA @ 50 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 0.669" (17.00mm) | - | Through Hole | |
|
ELXY500ELL821ML25SCAP ALUM 820UF 20% 50V RADIAL TH |
500 |
|
Datasheet |
LXY | Bulk | Active | 820 µF | ±20% | 50 V | - | 8000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 1.128 A @ 120 Hz | 1.88 A @ 100 kHz | 34 mOhms | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.043" (26.50mm) | - | Through Hole | |
|
860020580023CAP ALUM 2700UF 20% 35V RADIAL |
246 |
|
Datasheet |
WCAP-ATG5 | Cut Tape (CT) | Active | 2700 µF | ±20% | 35 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.48 A @ 120 Hz | 1.8944 A @ 100 kHz | - | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.299" (33.00mm) | - | Through Hole | |
|
EPAG201ELL181MK35SCAP ALUM 180UF 20% 200V RADIAL |
195 |
|
Datasheet |
PAG | Bulk | Active | 180 µF | ±20% | 200 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 750 mA @ 120 Hz | 1.125 A @ 100 kHz | - | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.457" (37.00mm) | - | Through Hole | |
|
EGXF250ELL272MK25SCAP ALUM 2700UF 20% 25V RADIAL |
1,000 |
|
Datasheet |
GXF | Bulk | Active | 2700 µF | ±20% | 25 V | 30mOhm @ 100kHz | 3000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive | 1.71 A @ 120 Hz | - | - | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.043" (26.50mm) | - | Through Hole |
Aluminum Electrolytic Capacitors Electronic Components
Explore Aluminum Electrolytic Capacitors electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
