Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EMHJ250ARA331MJA0GCAP ALUM 330UF 20% 25V SMD |
368 |
|
Datasheet |
Alchip™- MHJ | Tape & Reel (TR) | Active | 330 µF | ±20% | 25 V | 120mOhm @ 100kHz | 2000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive | 275 mA @ 120 Hz | 550 mA @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.406" (10.30mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | |
|
UPA1V152MHD6TNCAP ALUM 1500UF 20% 35V RADIAL |
226 |
|
Datasheet |
UPA | Cut Tape (CT) | Active | 1500 µF | ±20% | 35 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 1.981 A @ 120 Hz | 2.33 A @ 100 kHz | 26 mOhms | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 0.866" (22.00mm) | - | Through Hole | |
|
EEE-TK1A102AQCAP ALUM 1000UF 20% 10V SMD |
990 |
|
Datasheet |
TK | Tape & Reel (TR) | Active | 1000 µF | ±20% | 10 V | 120mOhm @ 100kHz | 2000 Hrs @ 125°C | -40°C ~ 125°C | Polar | - | General Purpose | 600 mA @ 120 Hz | 800 mA @ 100 kHz | - | - | 0.492" Dia (12.50mm) | 0.531" (13.50mm) | 0.531" L x 0.531" W (13.50mm x 13.50mm) | Surface Mount | |
|
EGQB250ELL112MK20HCAP ALUM 1100UF 20% 25V RADIAL |
990 |
|
Datasheet |
GQB | Bulk | Active | 1100 µF | ±20% | 25 V | 120mOhm @ 100kHz | 1000 Hrs @ 150°C | -40°C ~ 150°C | Polar | AEC-Q200 | Automotive | 1.572 A @ 120 Hz | 2.62 A @ 100 kHz | - | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 0.846" (21.50mm) | - | Through Hole | |
|
UCZ1J151MNS1MSCAP ALUM 150UF 20% 63V SMD |
950 |
|
Datasheet |
UCZ | Tape & Reel (TR) | Active | 150 µF | ±20% | 63 V | 200mOhm @ 100kHz | 3000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | General Purpose | 500 mA @ 120 Hz | 1 A @ 100 kHz | - | - | 0.492" Dia (12.50mm) | 0.571" (14.50mm) | 0.535" L x 0.535" W (13.60mm x 13.60mm) | Surface Mount | |
|
UEP1V471MHDCAP ALUM 470UF 20% 35V RADIAL TH |
798 |
|
Datasheet |
UEP | Bulk | Not For New Designs | 470 µF | ±20% | 35 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Bi-Polar | - | General Purpose | 465 mA @ 120 Hz | - | - | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.063" (27.00mm) | - | Through Hole | |
|
|
EEE-TK1E331AQCAP ALUM 330UF 20% 25V SMD |
400 |
|
Datasheet |
TK | Tape & Reel (TR) | Active | 330 µF | ±20% | 25 V | 120mOhm @ 100kHz | 2000 Hrs @ 125°C | -40°C ~ 125°C | Polar | - | General Purpose | 600 mA @ 120 Hz | 800 mA @ 100 kHz | - | - | 0.492" Dia (12.50mm) | 0.531" (13.50mm) | 0.531" L x 0.531" W (13.50mm x 13.50mm) | Surface Mount | |
|
|
EEE-TK1K470AQCAP ALUM 47UF 20% 80V SMD |
400 |
|
Datasheet |
TK | Tape & Reel (TR) | Active | 47 µF | ±20% | 80 V | 420mOhm @ 100kHz | 2000 Hrs @ 125°C | -40°C ~ 125°C | Polar | - | General Purpose | 187.5 mA @ 120 Hz | 250 mA @ 100 kHz | - | - | 0.492" Dia (12.50mm) | 0.531" (13.50mm) | 0.531" L x 0.531" W (13.50mm x 13.50mm) | Surface Mount | |
|
16ZLJ3300M16X20CAP ALUM 3300UF 20% 16V RADIAL |
363 |
|
Datasheet |
ZLJ | Bulk | Active | 3300 µF | ±20% | 16 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.331 A @ 120 Hz | 3.33 A @ 100 kHz | 21 mOhms | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 0.866" (22.00mm) | - | Through Hole | |
|
EEE-FT0J222GVCAP ALUM 2200UF 20% 6.3V SMD |
781 |
|
Datasheet |
FT, Anti-Vibration | Tape & Reel (TR) | Active | 2200 µF | ±20% | 6.3 V | 60mOhm @ 100kHz | 3000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive, High Temperature Reflow | 833 mA @ 120 Hz | 1.19 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.425" (10.80mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | |
|
EGPA800ELL471MM20SCAP ALUM 470UF 20% 80V RADIAL TH |
407 |
|
Datasheet |
GPA | Bulk | Active | 470 µF | ±20% | 80 V | 70mOhm @ 100kHz | 3000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive | 955 mA @ 120 Hz | 1.91 A @ 100 kHz | - | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 0.846" (21.50mm) | - | Through Hole | |
|
UHD1H821MHDCAP ALUM 820UF 20% 50V RADIAL TH |
382 |
|
Datasheet |
UHD | Bulk | Not For New Designs | 820 µF | ±20% | 50 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.22 A @ 120 Hz | 2.96 A @ 100 kHz | 19 mOhms | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.476" (37.50mm) | - | Through Hole | |
|
UPJ1K561MHD6CAP ALUM 560UF 20% 80V RADIAL TH |
290 |
|
Datasheet |
UPJ | Bulk | Not For New Designs | 560 µF | ±20% | 80 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 1.21 A @ 120 Hz | 1.49 A @ 10 kHz | 72 mOhms | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.299" (33.00mm) | - | Through Hole | |
|
25TGV820M12.5X16CAP ALUM 820UF 20% 25V SMD |
202 |
|
Datasheet |
TGV | Tape & Reel (TR) | Active | 820 µF | ±20% | 25 V | 74mOhm @ 100kHz | 5000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive | 600 mA @ 120 Hz | 1 A @ 100 kHz | - | - | 0.492" Dia (12.50mm) | 0.650" (16.50mm) | 0.512" L x 0.512" W (13.00mm x 13.00mm) | Surface Mount | |
|
UPM2W100MHD1TNCAP ALUM 10UF 20% 450V RADIAL TH |
174 |
|
Datasheet |
UPM | Cut Tape (CT) | Not For New Designs | 10 µF | ±20% | 450 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | AEC-Q200 | Automotive | 90 mA @ 120 Hz | 144 mA @ 10 kHz | - | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
UPJ1K391MHD6CAP ALUM 390UF 20% 80V RADIAL TH |
502 |
|
Datasheet |
UPJ | Bulk | Not For New Designs | 390 µF | ±20% | 80 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 908 mA @ 120 Hz | 1.17 A @ 10 kHz | 89 mOhms | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 0.846" (21.50mm) | - | Through Hole | |
|

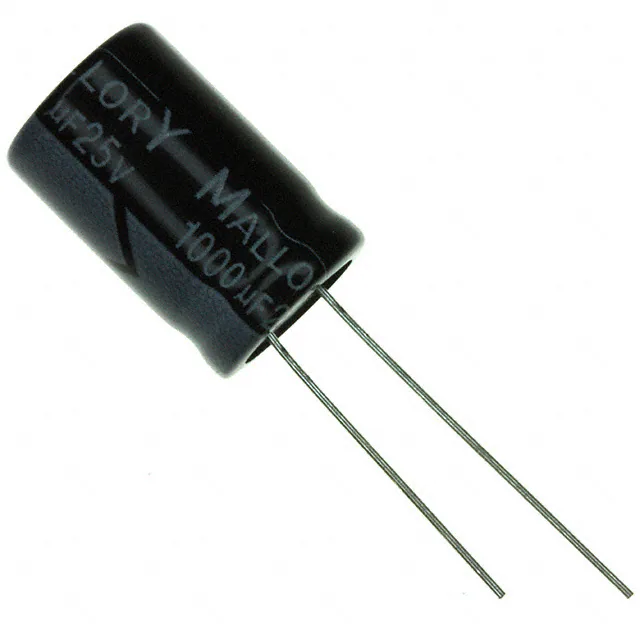

SK222M016STCAP ALUM 2200UF 20% 16V RADIAL |
2,159 |
|
Datasheet |
SK | Bulk | Active | 2200 µF | ±20% | 16 V | 140mOhm | 2000 Hrs @ 85°C | -40°C ~ 85°C | - | - | General Purpose | - | - | - | 0.197" (5.00mm) | 0.512" Dia (13.00mm) | 0.906" (23.00mm) | - | Through Hole | |
|
16TGV1000M12.5X16CAP ALUM 1000UF 20% 16V SMD |
1,276 |
|
Datasheet |
TGV | Tape & Reel (TR) | Active | 1000 µF | ±20% | 16 V | 74mOhm @ 100kHz | 5000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive | 600 mA @ 120 Hz | 1 A @ 100 kHz | - | - | 0.492" Dia (12.50mm) | 0.650" (16.50mm) | 0.512" L x 0.512" W (13.00mm x 13.00mm) | Surface Mount | |
|
|
EKYC160ELL752ML25SCAP ALUM 7500UF 20% 16V RADIAL |
843 |
|
Datasheet |
KYC | Bulk | Active | 7500 µF | ±20% | 16 V | 31mOhm @ 100kHz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 2.754 A @ 120 Hz | 3.24 A @ 100 kHz | - | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.043" (26.50mm) | - | Through Hole | |
|
EKZE160ELL332MK35SCAP ALUM 3300UF 20% 16V RADIAL |
498 |
|
Datasheet |
KZE | Bulk | Active | 3300 µF | ±20% | 16 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.55 A @ 120 Hz | 3.4 A @ 100 kHz | 15 mOhms | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.437" (36.50mm) | - | Through Hole |
Aluminum Electrolytic Capacitors Electronic Components
Explore Aluminum Electrolytic Capacitors electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
