Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

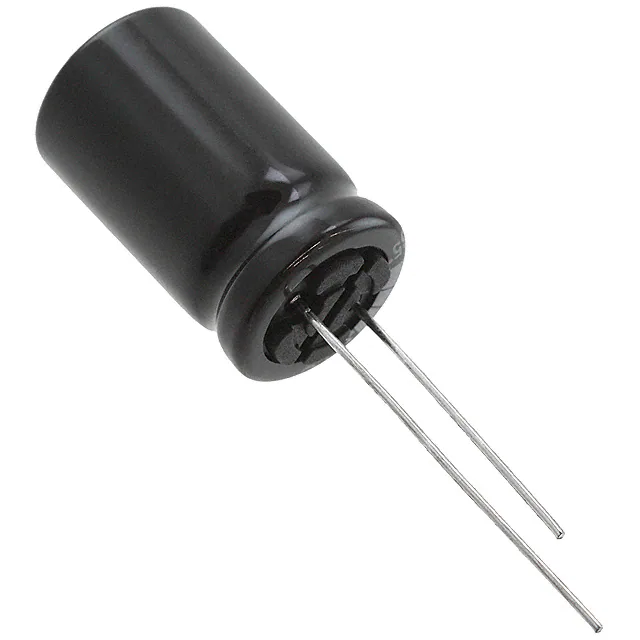

EEU-TP1E122BCAP ALUM 1200UF 20% 25V RADIAL |
1,295 |
|
Datasheet |
TP-A | Cut Tape (CT) | Active | 1200 µF | ±20% | 25 V | - | 4000 Hrs @ 125°C | -40°C ~ 135°C | Polar | AEC-Q200 | Automotive | 1.488 A @ 120 Hz | 1.49 A @ 100 kHz | - | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 0.866" (22.00mm) | - | Through Hole | |
|
10ZLJ5600M12.5X35CAP ALUM 5600UF 20% 10V RADIAL |
482 |
|
Datasheet |
ZLJ | Bulk | Active | 5600 µF | ±20% | 10 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.884 A @ 120 Hz | 4.12 A @ 100 kHz | 16 mOhms | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.457" (37.00mm) | - | Through Hole | |
|
860010580022CAP ALUM 2700UF 20% 35V RADIAL |
410 |
|
Datasheet |
WCAP-ATG8 | Cut Tape (CT) | Active | 2700 µF | ±20% | 35 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.178 A @ 120 Hz | 2.78784 A @ 100 kHz | - | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.299" (33.00mm) | - | Through Hole | |
|
URS1A103MHD1TNCAP ALUM 10000UF 20% 10V RADIAL |
235 |
|
Datasheet |
URS | Cut Tape (CT) | Active | 10000 µF | ±20% | 10 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.35 A @ 120 Hz | 2.7025 A @ 10 kHz | - | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.043" (26.50mm) | - | Through Hole | |
|
EEU-TA1E102SBCAP ALUM 1000UF 20% 25V RADIAL |
205 |
|
Datasheet |
TA | Cut Tape (CT) | Active | 1000 µF | ±20% | 25 V | - | 2000 Hrs @ 125°C | -40°C ~ 125°C | Polar | - | General Purpose | 1.35 A @ 120 Hz | 1.8 A @ 100 kHz | 42 mOhms | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 0.650" (16.50mm) | - | Through Hole | |
|
UUJ1C222MNJ6MSCAP ALUM 2200UF 20% 16V SMD |
181 |
|
Datasheet |
UUJ | Tape & Reel (TR) | Active | 2200 µF | ±20% | 16 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | General Purpose | 930 mA @ 120 Hz | 1.0695 A @ 10 kHz | - | - | 0.630" Dia (16.00mm) | 0.886" (22.50mm) | 0.673" L x 0.673" W (17.10mm x 17.10mm) | Surface Mount | |
|
UCP2G330MPDCAP ALUM 33UF 20% 400V RADIAL TH |
964 |
|
Datasheet |
UCP | Bulk | Active | 33 µF | ±20% | 400 V | - | 10000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 330 mA @ 120 Hz | 495 mA @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 1.319" (33.50mm) | - | Through Hole | |
|
|
UCZ1E821MNJ1MSCAP ALUM 820UF 20% 25V SMD |
783 |
|
Datasheet |
UCZ | Tape & Reel (TR) | Active | 820 µF | ±20% | 25 V | 60mOhm @ 100kHz | 3000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | General Purpose | 850 mA @ 120 Hz | 1.7 A @ 100 kHz | - | - | 0.492" Dia (12.50mm) | 0.571" (14.50mm) | 0.535" L x 0.535" W (13.60mm x 13.60mm) | Surface Mount | |
|
860160478033CAP ALUM 2200UF 20% 25V RADIAL |
188 |
|
Datasheet |
WCAP-ATLL | Cut Tape (CT) | Active | 2200 µF | ±20% | 25 V | - | 7000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | - | 2.592 A @ 100 kHz | 52 mOhms | 0.197" (5.00mm) | 0.512" Dia (13.00mm) | 1.240" (31.50mm) | - | Through Hole | |
|
EEU-FK0J562SCAP ALUM 5600UF 20% 6.3V RADIAL |
876 |
|
Datasheet |
FK | Bulk | Active | 5600 µF | ±20% | 6.3 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 1.864 A @ 120 Hz | 2.33 A @ 100 kHz | 26 mOhms | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 0.866" (22.00mm) | - | Through Hole | |
|
10YXS6800MEFC18X20CAP ALUM 6800UF 20% 10V RADIAL |
490 |
|
Datasheet |
YXS | Bulk | Active | 6800 µF | ±20% | 10 V | - | 6000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.002 A @ 120 Hz | 2.86 A @ 100 kHz | 26 mOhms | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 0.866" (22.00mm) | - | Through Hole | |
|
UPJ1V182MHD6TNCAP ALUM 1800UF 20% 35V RADIAL |
243 |
|
Datasheet |
UPJ | Cut Tape (CT) | Not For New Designs | 1800 µF | ±20% | 35 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 2.06 A @ 120 Hz | 2.29 A @ 10 kHz | 34 mOhms | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.043" (26.50mm) | - | Through Hole | |
|
UCX1E331MCS1GSCAP ALUM 330UF 20% 25V SMD |
880 |
|
Datasheet |
UCX | Tape & Reel (TR) | Not For New Designs | 330 µF | ±20% | 25 V | 150mOhm @ 100kHz | 2000 Hrs @ 135°C | -40°C ~ 135°C | Polar | AEC-Q200 | General Purpose | 250 mA @ 120 Hz | 500 mA @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.425" (10.80mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | |
|
400HXW82MEFR14.5X30CAP ALUM 82UF 20% 400V RADIAL TH |
477 |
|
Datasheet |
HXW | Bulk | Active | 82 µF | ±20% | 400 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 710 mA @ 120 Hz | 1.496 A @ 10 kHz | - | 0.295" (7.50mm) | 0.571" Dia (14.50mm) | 1.260" (32.00mm) | - | Through Hole | |
|
URS1C682MHD1TNCAP ALUM 6800UF 20% 16V RADIAL |
173 |
|
Datasheet |
URS | Cut Tape (CT) | Active | 6800 µF | ±20% | 16 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.17 A @ 120 Hz | 2.4955 A @ 10 kHz | - | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
EGQB350ELL561MK20HCAP ALUM 560UF 20% 35V RADIAL TH |
1,000 |
|
Datasheet |
GQB | Bulk | Active | 560 µF | ±20% | 35 V | 150mOhm @ 100kHz | 1000 Hrs @ 150°C | -40°C ~ 150°C | Polar | AEC-Q200 | Automotive | 1.115 A @ 120 Hz | 2.23 A @ 100 kHz | - | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 0.846" (21.50mm) | - | Through Hole | |
|
UHE1V182MHD6TNCAP ALUM 1800UF 20% 35V RADIAL |
742 |
|
Datasheet |
UHE | Cut Tape (CT) | Active | 1800 µF | ±20% | 35 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.344 A @ 120 Hz | 2.93 A @ 100 kHz | 21 mOhms | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
860020480025CAP ALUM 3900UF 20% 25V RADIAL |
248 |
|
Datasheet |
WCAP-ATG5 | Cut Tape (CT) | Active | 3900 µF | ±20% | 25 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.67 A @ 120 Hz | 2.1376 A @ 100 kHz | - | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.299" (33.00mm) | - | Through Hole | |
|
|
UHE1J821MHDCAP ALUM 820UF 20% 63V RADIAL TH |
204 |
|
Datasheet |
UHE | Bulk | Active | 820 µF | ±20% | 63 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.238 A @ 120 Hz | 1.65 A @ 100 kHz | 54 mOhms | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.240" (31.50mm) | - | Through Hole | |
|
UPM2D330MHD1TNCAP ALUM 33UF 20% 200V RADIAL TH |
128 |
|
Datasheet |
UPM | Cut Tape (CT) | Not For New Designs | 33 µF | ±20% | 200 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 180 mA @ 120 Hz | 288 mA @ 10 kHz | - | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.063" (27.00mm) | - | Through Hole |
