Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
35YXS2700MEFC18X25CAP ALUM 2700UF 20% 35V RADIAL |
481 |
|
Datasheet |
YXS | Bulk | Active | 2700 µF | ±20% | 35 V | - | 6000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.198 A @ 120 Hz | 3.14 A @ 100 kHz | 19 mOhms | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
100TXW150MEFC8X50CAP ALUM 150UF 20% 100V RADIAL |
468 |
|
Datasheet |
TXW | Bulk | Active | 150 µF | ±20% | 100 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.2 A @ 120 Hz | 2.41 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
UHW0J103MHDCAP ALUM 10000UF 20% 6.3V RADIAL |
148 |
|
Datasheet |
UHW | Bulk | Active | 10000 µF | ±20% | 6.3 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.048 A @ 120 Hz | 3.81 A @ 100 kHz | 13 mOhms | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
UCX1H561MNJ1MSCAP ALUM 560UF 20% 50V SMD |
361 |
|
Datasheet |
UCX | Tape & Reel (TR) | Active | 560 µF | ±20% | 50 V | 70mOhm | 2000 Hrs @ 135°C | -40°C ~ 135°C | Polar | AEC-Q200 | General Purpose | 500 mA @ 120 Hz | 1 A @ 100 kHz | - | - | 0.630" Dia (16.00mm) | 0.689" (17.50mm) | 0.673" L x 0.673" W (17.10mm x 17.10mm) | Surface Mount | |
|

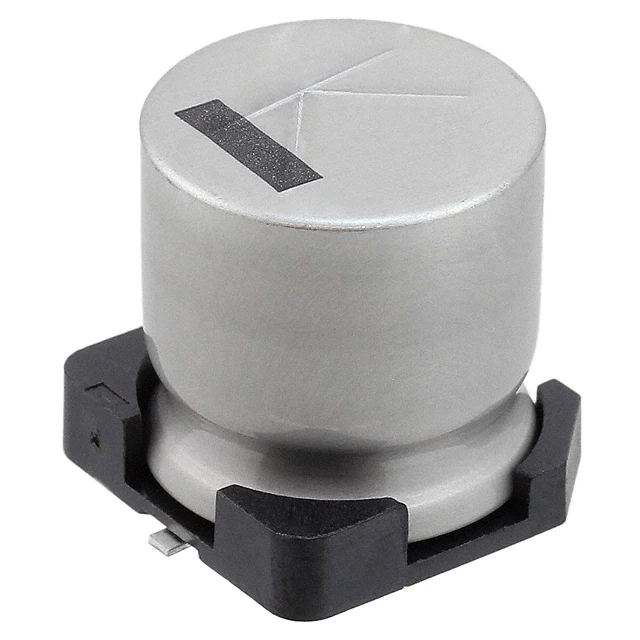

25TLV1500M16X16.5CAP ALUM 1500UF 20% 25V SMD |
1,658 |
|
Datasheet |
TLV | Tape & Reel (TR) | Active | 1500 µF | ±20% | 25 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 1.08 A @ 120 Hz | 1.8 A @ 100 kHz | 45 mOhms | - | 0.630" Dia (16.00mm) | 0.669" (17.00mm) | 0.669" L x 0.669" W (17.00mm x 17.00mm) | Surface Mount | |
|

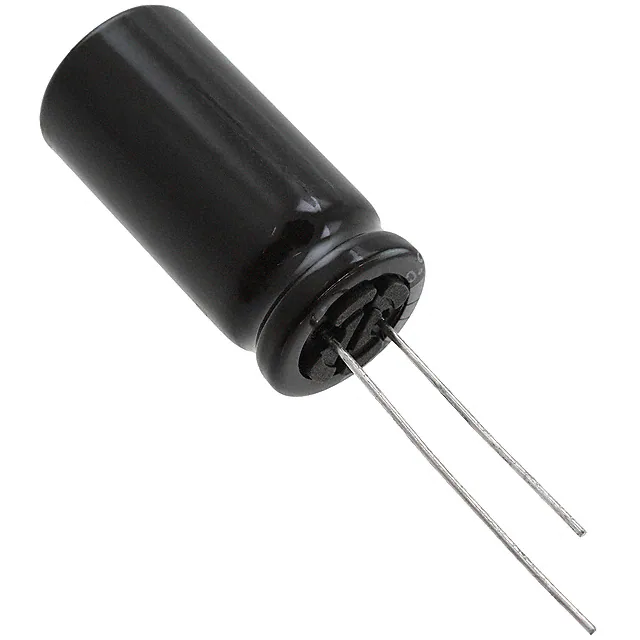

EEU-TP1E182BCAP ALUM 1800UF 20% 25V RADIAL |
1,478 |
|
Datasheet |
TP-A | Cut Tape (CT) | Active | 1800 µF | ±20% | 25 V | - | 4000 Hrs @ 125°C | -40°C ~ 135°C | Polar | AEC-Q200 | Automotive | 1.744 A @ 120 Hz | 1.75 A @ 100 kHz | - | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.063" (27.00mm) | - | Through Hole | |
|
|
6.3TLV4700M16X16.5CAP ALUM 4700UF 20% 6.3V SMD |
1,151 |
|
Datasheet |
TLV | Tape & Reel (TR) | Active | 4700 µF | ±20% | 6.3 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 1.08 A @ 120 Hz | 1.8 A @ 100 kHz | 45 mOhms | - | 0.630" Dia (16.00mm) | 0.669" (17.00mm) | 0.669" L x 0.669" W (17.00mm x 17.00mm) | Surface Mount | |
|
860021380016CAP ALUM 56UF 20% 400V RADIAL TH |
150 |
|
Datasheet |
WCAP-ATG5 | Cut Tape (CT) | Active | 56 µF | ±20% | 400 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 360 mA @ 120 Hz | 550.8 mA @ 100 kHz | - | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.043" (26.50mm) | - | Through Hole | |
|
EEU-FK1A682CAP ALUM 6800UF 20% 10V RADIAL |
826 |
|
Datasheet |
FK | Bulk | Active | 6800 µF | ±20% | 10 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 2.208 A @ 120 Hz | 2.76 A @ 100 kHz | 19 mOhms | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
ELXY500ELL152ML40SCAP ALUM 1500UF 20% 50V RADIAL |
277 |
|
Datasheet |
LXY | Bulk | Active | 1500 µF | ±20% | 50 V | - | 8000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 1.524 A @ 120 Hz | 2.54 A @ 100 kHz | 24 mOhms | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.634" (41.50mm) | - | Through Hole | |
|
860080580026CAP ALUM 1800UF 20% 35V RADIAL |
250 |
|
Datasheet |
WCAP-ATLI | Cut Tape (CT) | Active | 1800 µF | ±20% | 35 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | - | 3.67 A @ 100 kHz | 16 mOhms | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.299" (33.00mm) | - | Through Hole | |
|
25YXS3900MEFC16X31.5CAP ALUM 3900UF 20% 25V RADIAL |
124 |
|
Datasheet |
YXS | Bulk | Active | 3900 µF | ±20% | 25 V | - | 6000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.527 A @ 120 Hz | 3.61 A @ 100 kHz | 17 mOhms | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.319" (33.50mm) | - | Through Hole | |
|
|
UCX1E102MNJ1MSCAP ALUM 1000UF 20% 25V SMD |
399 |
|
Datasheet |
UCX | Tape & Reel (TR) | Active | 1000 µF | ±20% | 25 V | 70mOhm | 2000 Hrs @ 135°C | -40°C ~ 135°C | Polar | AEC-Q200 | General Purpose | 375 mA @ 120 Hz | 750 mA @ 100 kHz | - | - | 0.492" Dia (12.50mm) | 0.571" (14.50mm) | 0.535" L x 0.535" W (13.60mm x 13.60mm) | Surface Mount | |
|
100TXW220MEFC8X60CAP ALUM 220UF 20% 100V RADIAL |
974 |
|
Datasheet |
TXW | Bulk | Active | 220 µF | ±20% | 100 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.4 A @ 120 Hz | 2.8 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 2.441" (62.00mm) | - | Through Hole | |
|
UHW1A472MHDCAP ALUM 4700UF 20% 10V RADIAL |
760 |
|
Datasheet |
UHW | Bulk | Active | 4700 µF | ±20% | 10 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.036 A @ 120 Hz | 3.795 A @ 100 kHz | 12 mOhms | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.319" (33.50mm) | - | Through Hole | |
|
EPAG401ELL680MU30SCAP ALUM 68UF 20% 400V RADIAL TH |
300 |
|
Datasheet |
PAG | Bulk | Active | 68 µF | ±20% | 400 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 480 mA @ 120 Hz | 864 mA @ 100 kHz | - | 0.295" (7.50mm) | 0.571" Dia (14.50mm) | 1.260" (32.00mm) | - | Through Hole | |
|
400HXG82MEFCSN22X25CAP ALUM 82UF 20% 400V SNAP TH |
189 |
|
Datasheet |
HXG | Bulk | Active | 82 µF | ±20% | 400 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.07 A @ 120 Hz | - | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
|
UHW1C392MHDCAP ALUM 3900UF 20% 16V RADIAL |
147 |
|
Datasheet |
UHW | Bulk | Active | 3900 µF | ±20% | 16 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.681 A @ 120 Hz | 3.795 A @ 100 kHz | 12 mOhms | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.319" (33.50mm) | - | Through Hole | |
|
UCS2G470MHD1TNCAP ALUM 47UF 20% 400V RADIAL TH |
872 |
|
Datasheet |
UCS | Cut Tape (CT) | Active | 47 µF | ±20% | 400 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 590 mA @ 120 Hz | 1.18 A @ 100 kHz | - | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.043" (26.50mm) | - | Through Hole | |
|
UBW1K471MHD1TNCAP ALUM 470UF 20% 80V RADIAL TH |
413 |
|
Datasheet |
UBW | Cut Tape (CT) | Active | 470 µF | ±20% | 80 V | - | 3000 Hrs @ 135°C | -55°C ~ 135°C | Polar | - | Automotive | 750 mA @ 120 Hz | 1.5 A @ 100 kHz | 110 mOhms | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.063" (27.00mm) | - | Through Hole |
