Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SLP471M200C5P3CAP ALUM 470UF 20% 200V SNAP TH |
0 |
|
Datasheet |
SLP0712TE (750W) | Bulk | Active | 470 µF | ±20% | 200 V | 423mOhm | 3000 Hrs @ 105°C | -25°C ~ 105°C | - | - | General Purpose | - | - | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.378" (35.00mm) | - | Through Hole | |
|
UCYW6330MHD3CAP ALUM 33UF 20% 420V RADIAL TH |
600 |
|
Datasheet |
UCY | Bulk | Active | 33 µF | ±20% | 420 V | - | 12000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | General Purpose | 385 mA @ 120 Hz | 770 mA @ 100 kHz | - | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 0.846" (21.50mm) | - | Through Hole | |
|
EEU-FC1V182SBCAP ALUM 1800UF 20% 35V RADIAL |
469 |
|
Datasheet |
FC | Cut Tape (CT) | Active | 1800 µF | ±20% | 35 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 1.992 A @ 120 Hz | 2.49 A @ 100 kHz | 28 mOhms | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 0.866" (22.00mm) | - | Through Hole | |
|
ESMG101ELL331MK25SCAP ALUM 330UF 20% 100V RADIAL |
179 |
|
Datasheet |
SMG | Bulk | Active | 330 µF | ±20% | 100 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 760 mA @ 120 Hz | 1.14 A @ 100 kHz | - | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.043" (26.50mm) | - | Through Hole | |
|
25YXS3300MEFC18X20CAP ALUM 3300UF 20% 25V RADIAL |
129 |
|
Datasheet |
YXS | Bulk | Active | 3300 µF | ±20% | 25 V | - | 6000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.002 A @ 120 Hz | 2.86 A @ 100 kHz | 26 mOhms | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 0.866" (22.00mm) | - | Through Hole | |
|
EEU-FP1E152BCAP ALUM 1500UF 20% 25V RADIAL |
4,941 |
|
Datasheet |
FP | Cut Tape (CT) | Active | 1500 µF | ±20% | 25 V | 38mOhm @ 100kHz | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 2.1125 A @ 120 Hz | 3.25 A @ 100 kHz | - | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 0.866" (22.00mm) | - | Through Hole | |
|
UPJ1K471MHD6TNCAP ALUM 470UF 20% 80V RADIAL TH |
721 |
|
Datasheet |
UPJ | Cut Tape (CT) | Not For New Designs | 470 µF | ±20% | 80 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 1.06 A @ 120 Hz | - | 80 mOhms | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.043" (26.50mm) | - | Through Hole | |
|
LGU1E562MELZCAP ALUM 5600UF 20% 25V SNAP TH |
248 |
|
Datasheet |
LGU | Bulk | Active | 5600 µF | ±20% | 25 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.8 A @ 120 Hz | 2.07 A @ 50 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
338CKE035MCAP ALUM 3300UF 20% 35V RADIAL |
3,014 |
|
Datasheet |
CKE | Bulk | Active | 3300 µF | ±20% | 35 V | 90.5mOhm @ 120Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | Bypass, Decoupling | 1.82 A @ 120 Hz | 2.548 A @ 100 kHz | - | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.437" (36.50mm) | - | Through Hole | |
|
UHV1C392MHDCAP ALUM 3900UF 20% 16V RADIAL |
437 |
|
Datasheet |
UHV | Bulk | Not For New Designs | 3900 µF | ±20% | 16 V | - | 6000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.944 A @ 120 Hz | 3.925 A @ 100 kHz | 11 mOhms | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.476" (37.50mm) | - | Through Hole | |
|
UVZ2G330MHDCAP ALUM 33UF 20% 400V RADIAL TH |
265 |
|
Datasheet |
UVZ | Bulk | Active | 33 µF | ±20% | 400 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 215 mA @ 120 Hz | 344 mA @ 10 kHz | - | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.299" (33.00mm) | - | Through Hole | |
|
16ZLH3900MEFC12.5X35CAP ALUM 3900UF 20% 16V RADIAL |
440 |
|
Datasheet |
ZLH | Bulk | Active | 3900 µF | ±20% | 16 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.499 A @ 120 Hz | 3.57 A @ 100 kHz | 12 mOhms | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.457" (37.00mm) | - | Through Hole | |
|
UCZ1K271MNQ1MSCAP ALUM 270UF 20% 80V SMD |
291 |
|
Datasheet |
UCZ | Tape & Reel (TR) | Not For New Designs | 270 µF | ±20% | 80 V | 190mOhm @ 100kHz | 3500 Hrs @ 125°C | -40°C ~ 125°C | Polar | - | General Purpose | 500 mA @ 120 Hz | 1 A @ 100 kHz | - | - | 0.630" Dia (16.00mm) | 0.689" (17.50mm) | 0.673" L x 0.673" W (17.10mm x 17.10mm) | Surface Mount | |
|
400LXW68MEFR10X45CAP ALUM 68UF 20% 400V RADIAL TH |
994 |
|
Datasheet |
LXW | Bulk | Active | 68 µF | ±20% | 400 V | - | 12000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 610 mA @ 120 Hz | 1.342 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
URZ2E680MHD1TNCAP ALUM 68UF 20% 250V RADIAL TH |
247 |
|
Datasheet |
URZ | Cut Tape (CT) | Active | 68 µF | ±20% | 250 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 350 mA @ 120 Hz | - | - | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 0.866" (22.00mm) | - | Through Hole | |
|
EEU-FR1J561SBCAP ALUM 560UF 20% 63V RADIAL TH |
230 |
|
Datasheet |
FR-A | Cut Tape (CT) | Active | 560 µF | ±20% | 63 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.615 A @ 120 Hz | 2.153 A @ 100 kHz | 29 mOhms | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 0.866" (22.00mm) | - | Through Hole | |
|
URZ2D101MHD1TNCAP ALUM 100UF 20% 200V RADIAL |
201 |
|
Datasheet |
URZ | Cut Tape (CT) | Active | 100 µF | ±20% | 200 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 420 mA @ 120 Hz | - | - | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
EEU-FS0J752SBCAP ALUM 7500UF 20% 6.3V RADIAL |
973 |
|
Datasheet |
FS-A | Cut Tape (CT) | Active | 7500 µF | ±20% | 6.3 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.64 A @ 120 Hz | 3.3 A @ 100 kHz | 17 mOhms | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 0.866" (22.00mm) | - | Through Hole | |
|

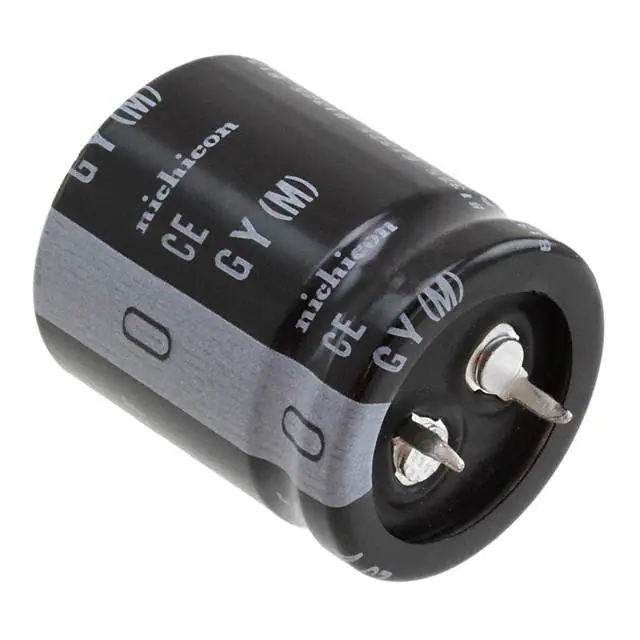

LGY1E822MELA30CAP ALUM 8200UF 20% 25V SNAP TH |
289 |
|
Datasheet |
LGY | Bulk | Active | 8200 µF | ±20% | 25 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.1 A @ 120 Hz | 2.415 A @ 50 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
UPM1K561MHD6CAP ALUM 560UF 20% 80V RADIAL TH |
227 |
|
Datasheet |
UPM | Bulk | Not For New Designs | 560 µF | ±20% | 80 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 1.43 A @ 120 Hz | 1.75 A @ 10 kHz | 72 mOhms | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.319" (33.50mm) | - | Through Hole |
Aluminum Electrolytic Capacitors Electronic Components
Explore Aluminum Electrolytic Capacitors electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
