Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ELXY500ELL681MK35SCAP ALUM 680UF 20% 50V RADIAL TH |
487 |
|
Datasheet |
LXY | Bulk | Active | 680 µF | ±20% | 50 V | - | 7000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 1.134 A @ 120 Hz | 1.89 A @ 100 kHz | 33 mOhms | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.437" (36.50mm) | - | Through Hole | |
|
400CXW33MEFR8X45CAP ALUM 33UF 20% 400V RADIAL TH |
450 |
|
Datasheet |
CXW | Bulk | Active | 33 µF | ±20% | 400 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 290 mA @ 120 Hz | 435 mA @ 10 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
UKL2A331MHDCAP ALUM 330UF 20% 100V RADIAL |
264 |
|
Datasheet |
UKL | Bulk | Not For New Designs | 330 µF | ±20% | 100 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 730 mA @ 120 Hz | 1.095 A @ 10 kHz | - | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.299" (33.00mm) | - | Through Hole | |
|
EEU-EE2V470CAP ALUM 47UF 20% 350V RADIAL TH |
215 |
|
Datasheet |
EE-A | Bulk | Active | 47 µF | ±20% | 350 V | - | 10000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 374.5 mA @ 120 Hz | 1.07 A @ 100 kHz | - | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
860080780026CAP ALUM 680UF 20% 63V RADIAL TH |
105 |
|
Datasheet |
WCAP-ATLI | Cut Tape (CT) | Active | 680 µF | ±20% | 63 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | - | 2.6 A @ 100 kHz | 35 mOhms | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.299" (33.00mm) | - | Through Hole | |
|

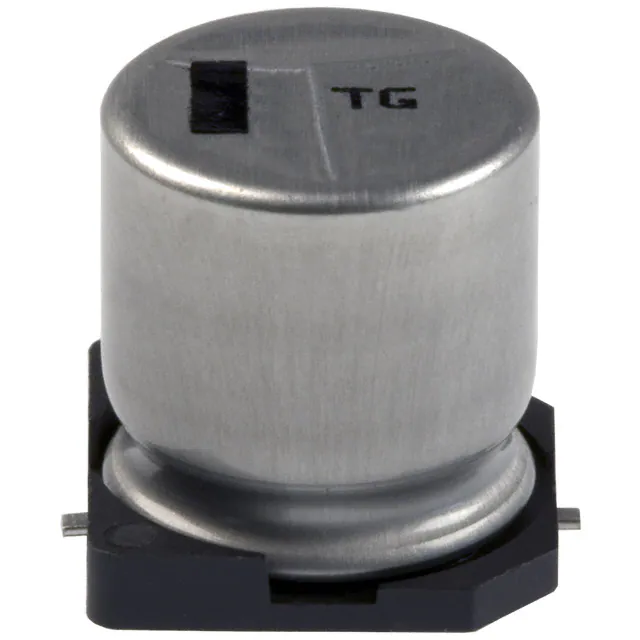

EEV-TG1A102QCAP ALUM 1000UF 20% 10V SMD |
1,223 |
|
Datasheet |
TG | Tape & Reel (TR) | Active | 1000 µF | ±20% | 10 V | 120mOhm @ 100kHz | 2000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive | 520 mA @ 120 Hz | 800 mA @ 100 kHz | - | - | 0.492" Dia (12.50mm) | 0.531" (13.50mm) | 0.531" L x 0.531" W (13.50mm x 13.50mm) | Surface Mount | |
|
EEU-FS1A562LCAP ALUM 5600UF 20% 10V RADIAL |
978 |
|
Datasheet |
FS-A | Bulk | Active | 5600 µF | ±20% | 10 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.904 A @ 120 Hz | 3.63 A @ 100 kHz | 13 mOhms | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.260" (32.00mm) | - | Through Hole | |
|
UVY2D101MHDCAP ALUM 100UF 20% 200V RADIAL |
794 |
|
Datasheet |
UVY | Bulk | Active | 100 µF | ±20% | 200 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 320 mA @ 120 Hz | 368 mA @ 10 kHz | - | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
|
EEU-FS1C362LCAP ALUM 3600UF 20% 16V RADIAL |
731 |
|
Datasheet |
FS-A | Bulk | Active | 3600 µF | ±20% | 16 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.904 A @ 120 Hz | 3.63 A @ 100 kHz | 13 mOhms | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.260" (32.00mm) | - | Through Hole | |
|
50ZLH820MEFC12.5X35CAP ALUM 820UF 20% 50V RADIAL TH |
600 |
|
Datasheet |
ZLH | Bulk | Active | 820 µF | ±20% | 50 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.776 A @ 120 Hz | - | 19 mOhms | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.457" (37.00mm) | - | Through Hole | |
|
UPM1C272MHDCAP ALUM 2700UF 20% 16V RADIAL |
470 |
|
Datasheet |
UPM | Bulk | Not For New Designs | 2700 µF | ±20% | 16 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 2 A @ 120 Hz | 2.23 A @ 10 kHz | 25 mOhms | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.476" (37.50mm) | - | Through Hole | |
|
UCZ1J751MNQ1MSCAP ALUM 750UF 20% 63V SMD |
291 |
|
Datasheet |
UCZ | Tape & Reel (TR) | Not For New Designs | 750 µF | ±20% | 63 V | 68mOhm @ 100kHz | 4000 Hrs @ 125°C | -40°C ~ 125°C | Polar | - | General Purpose | 1.3 A @ 120 Hz | 2.6 A @ 100 kHz | - | - | 0.709" Dia (18.00mm) | 0.886" (22.50mm) | 0.752" L x 0.752" W (19.10mm x 19.10mm) | Surface Mount | |
|
|
UVY2D101MHD1TNCAP ALUM 100UF 20% 200V RADIAL |
203 |
|
Datasheet |
UVY | Cut Tape (CT) | Active | 100 µF | ±20% | 200 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 320 mA @ 120 Hz | 368 mA @ 10 kHz | - | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
UUJ1J471MNJ1MSCAP ALUM 470UF 20% 63V SMD |
4,847 |
|
Datasheet |
UUJ | Tape & Reel (TR) | Active | 470 µF | ±20% | 63 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | General Purpose | 590 mA @ 120 Hz | 885 mA @ 10 kHz | - | - | 0.709" Dia (18.00mm) | 0.886" (22.50mm) | 0.752" L x 0.752" W (19.10mm x 19.10mm) | Surface Mount | |
|
EKZN500ELL821MK30SCAP ALUM 820UF 20% 50V RADIAL TH |
970 |
|
Datasheet |
KZN | Bulk | Active | 820 µF | ±20% | 50 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.022 A @ 120 Hz | 3.37 A @ 100 kHz | 23 mOhms | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.240" (31.50mm) | - | Through Hole | |
|
|
860080480025CAP ALUM 2700UF 20% 25V RADIAL |
248 |
|
Datasheet |
WCAP-ATLI | Cut Tape (CT) | Active | 2700 µF | ±20% | 25 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | - | 3.48 A @ 100 kHz | 18 mOhms | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.299" (33.00mm) | - | Through Hole | |
|
UPM1A472MHD6TNCAP ALUM 4700UF 20% 10V RADIAL |
230 |
|
Datasheet |
UPM | Cut Tape (CT) | Not For New Designs | 4700 µF | ±20% | 10 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 2.11 A @ 120 Hz | 2.35 A @ 10 kHz | 26 mOhms | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
UUE1C222MNS1MSCAP ALUM 2200UF 20% 16V SMD |
210 |
|
Datasheet |
UUE | Tape & Reel (TR) | Active | 2200 µF | ±20% | 16 V | - | 5000 Hrs @ 125°C | -55°C ~ 125°C | Polar | AEC-Q200 | Automotive | 1.044 A @ 120 Hz | 1.2 A @ 100 kHz | - | - | 0.709" Dia (18.00mm) | 0.689" (17.50mm) | 0.752" L x 0.752" W (19.10mm x 19.10mm) | Surface Mount | |
|
EEE-TP1V221AVCAP ALUM 220UF 20% 35V SMD |
14,876 |
|
Datasheet |
TP, Anti-Vibration | Tape & Reel (TR) | Active | 220 µF | ±20% | 35 V | 150mOhm @ 100kHz | 3000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive, High Temperature Reflow | 325 mA @ 120 Hz | 500 mA @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.425" (10.80mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | |
|
UCYW6390MHDCAP ALUM 39UF 20% 420V RADIAL TH |
600 |
|
Datasheet |
UCY | Bulk | Active | 39 µF | ±20% | 420 V | - | 12000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | General Purpose | 430 mA @ 120 Hz | 860 mA @ 100 kHz | - | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.299" (33.00mm) | - | Through Hole |
