Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
UHE1J271MHD3CAP ALUM 270UF 20% 63V RADIAL TH |
272 |
|
Datasheet |
UHE | Bulk | Active | 270 µF | ±20% | 63 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 626.5 mA @ 120 Hz | 895 mA @ 100 kHz | 140 mOhms | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 0.591" (15.00mm) | - | Through Hole | |
|
UPZ2G560MHDCAP ALUM 56UF 20% 400V RADIAL TH |
271 |
|
Datasheet |
UPZ | Bulk | Active | 56 µF | ±20% | 400 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 420 mA @ 120 Hz | - | - | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.476" (37.50mm) | - | Through Hole | |
|
EEE-FN1H181UVCAP ALUM 180UF 20% 50V SMD |
175 |
|
Datasheet |
FN, Anti-Vibration | Tape & Reel (TR) | Active | 180 µF | ±20% | 50 V | 340mOhm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 227.5 mA @ 120 Hz | 350 mA @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.425" (10.80mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
|

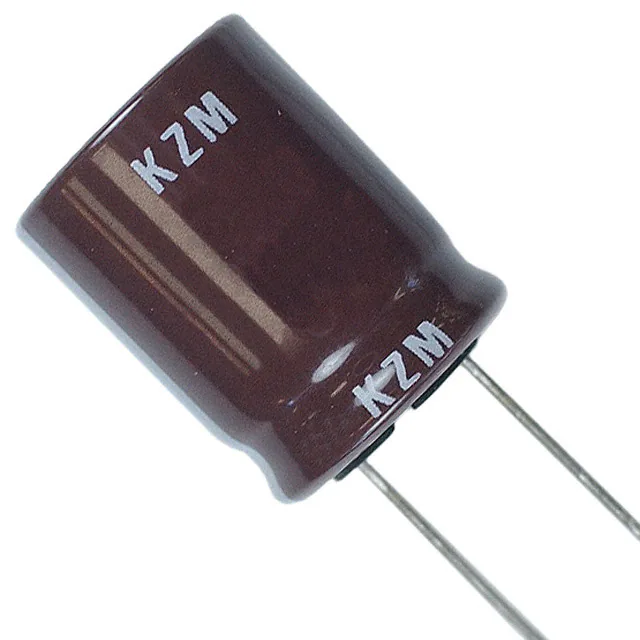

EKZM100ELL222MJ25SCAP ALUM 2200UF 20% 10V RADIAL |
1,000 |
|
Datasheet |
KZM | Bulk | Active | 2200 µF | ±20% | 10 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.6875 A @ 120 Hz | 2.25 A @ 100 kHz | 18 mOhms | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 1.043" (26.50mm) | - | Through Hole | |
|
EKWA421ELL390MJ35SCAP ALUM 39UF 20% 420V RADIAL TH |
1,000 |
|
Datasheet |
KWA | Bulk | Active | 39 µF | ±20% | 420 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 370 mA @ 120 Hz | 666 mA @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
|
EEE-FN0J152VCAP ALUM 1500UF 20% 6.3V SMD |
994 |
|
Datasheet |
FN, Anti-Vibration | Tape & Reel (TR) | Active | 1500 µF | ±20% | 6.3 V | 80mOhm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 595 mA @ 120 Hz | 850 mA @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.425" (10.80mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | |
|
400LXW47MEFR10X35CAP ALUM 47UF 20% 400V RADIAL TH |
356 |
|
Datasheet |
LXW | Bulk | Active | 47 µF | ±20% | 400 V | - | 12000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 480 mA @ 120 Hz | 1.056 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
UVR1A682MHD1TNCAP ALUM 6800UF 20% 10V RADIAL |
214 |
|
Datasheet |
UVR | Cut Tape (CT) | Active | 6800 µF | ±20% | 10 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.25 A @ 120 Hz | 2.5875 A @ 10 kHz | - | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
|
EEE-FN2A330VCAP ALUM 33UF 20% 100V SMD |
180 |
|
Datasheet |
FN, Anti-Vibration | Tape & Reel (TR) | Active | 33 µF | ±20% | 100 V | 700mOhm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 130 mA @ 120 Hz | 200 mA @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.425" (10.80mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | |
|
UVK2D101MHD1TNCAP ALUM 100UF 20% 200V RADIAL |
1,494 |
|
Datasheet |
UVK | Cut Tape (CT) | Active | 100 µF | ±20% | 200 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 450 mA @ 120 Hz | 720 mA @ 10 kHz | - | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
EKMG630EC3102ML25SCAP ALUM 1000UF 20% 63V RADIAL |
995 |
|
Datasheet |
KMG | Bulk | Active | 1000 µF | ±20% | 63 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 930 mA @ 120 Hz | 1.395 A @ 100 kHz | - | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.043" (26.50mm) | - | Through Hole | |
|
UBW1E331MPDCAP ALUM 330UF 20% 25V RADIAL TH |
256 |
|
Datasheet |
UBW | Bulk | Active | 330 µF | ±20% | 25 V | - | 2000 Hrs @ 135°C | -55°C ~ 135°C | Polar | AEC-Q200 | Automotive | 472.5 mA @ 120 Hz | 945 mA @ 100 kHz | 75 mOhms | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.709" (18.00mm) | - | Through Hole | |
|
|
UUJ1C102MNJ6MSCAP ALUM 1000UF 20% 16V SMD |
645 |
|
Datasheet |
UUJ | Tape & Reel (TR) | Active | 1000 µF | ±20% | 16 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | General Purpose | 630 mA @ 120 Hz | 724.5 mA @ 10 kHz | - | - | 0.630" Dia (16.00mm) | 0.689" (17.50mm) | 0.673" L x 0.673" W (17.10mm x 17.10mm) | Surface Mount | |
|
UPM1E102MHD6TNCAP ALUM 1000UF 20% 25V RADIAL |
549 |
|
Datasheet |
UPM | Cut Tape (CT) | Not For New Designs | 1000 µF | ±20% | 25 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 1.31 A @ 120 Hz | 1.52 A @ 10 kHz | 43 mOhms | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 0.669" (17.00mm) | - | Through Hole | |
|
865080362017CAP ALUM 1500UF 20% 16V SMD |
147 |
|
Datasheet |
WCAP-ASLI | Tape & Reel (TR) | Active | 1500 µF | ±20% | 16 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 715 mA @ 120 Hz | 1.1 A @ 100 kHz | 80 mOhms | - | 0.492" Dia (12.50mm) | 0.551" (14.00mm) | 0.531" L x 0.531" W (13.50mm x 13.50mm) | Surface Mount | |
|
EKXJ401ELL330MJ35SCAP ALUM 33UF 20% 400V RADIAL TH |
980 |
|
Datasheet |
KXJ | Bulk | Active | 33 µF | ±20% | 400 V | - | 12000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 300 mA @ 120 Hz | 750 mA @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 1.437" (36.50mm) | - | Through Hole | |
|
EEE-FK1H181SVCAP ALUM 180UF 20% 50V SMD |
833 |
|
Datasheet |
FKS, Anti-Vibration | Tape & Reel (TR) | Not For New Designs | 180 µF | ±20% | 50 V | 340mOhm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive, High Temperature Reflow | 227.5 mA @ 120 Hz | 350 mA @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.425" (10.80mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
|
10ZLH5600MEFC12.5X35CAP ALUM 5600UF 20% 10V RADIAL |
474 |
|
Datasheet |
ZLH | Bulk | Active | 5600 µF | ±20% | 10 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.499 A @ 120 Hz | 3.57 A @ 100 kHz | 12 mOhms | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.457" (37.00mm) | - | Through Hole | |
|
|
EEE-FK2A220VCAP ALUM 22UF 20% 100V SMD |
310 |
|
Datasheet |
FK, Anti-Vibration | Tape & Reel (TR) | Active | 22 µF | ±20% | 100 V | 1.3Ohm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 97.5 mA @ 120 Hz | 130 mA @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.425" (10.80mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
|
UPW1C272MHD6TNCAP ALUM 2700UF 20% 16V RADIAL |
133 |
|
Datasheet |
UPW | Cut Tape (CT) | Not For New Designs | 2700 µF | ±20% | 16 V | - | 8000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 1.879 A @ 120 Hz | 2.21 A @ 100 kHz | 29 mOhms | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 0.866" (22.00mm) | - | Through Hole |
Aluminum Electrolytic Capacitors Electronic Components
Explore Aluminum Electrolytic Capacitors electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
