Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
UVP0J332MHD1TNCAP ALUM 3300UF 20% 6.3V RADIAL |
497 |
|
Datasheet |
UVP | Cut Tape (CT) | Not For New Designs | 3300 µF | ±20% | 6.3 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Bi-Polar | - | General Purpose | 1.57 A @ 120 Hz | 1.8055 A @ 10 kHz | - | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
EGXF350ELL112ML15SCAP ALUM 1100UF 20% 35V RADIAL |
305 |
|
Datasheet |
GXF | Bulk | Active | 1100 µF | ±20% | 35 V | 63mOhm @ 100kHz | 3000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive | 858 mA @ 120 Hz | - | - | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 0.650" (16.50mm) | - | Through Hole | |
|
10RX302200MCE12.5X25CAP ALUM 2200UF 20% 10V RADIAL |
245 |
|
Datasheet |
RX30 | Bulk | Active | 2200 µF | ±20% | 10 V | - | 4000 Hrs @ 130°C | -40°C ~ 130°C | Polar | AEC-Q200 | Automotive | 1.144 A @ 120 Hz | 1.43 A @ 100 kHz | 40 mOhms | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.063" (27.00mm) | - | Through Hole | |
|
UVY2V330MHDCAP ALUM 33UF 20% 350V RADIAL TH |
241 |
|
Datasheet |
UVY | Bulk | Active | 33 µF | ±20% | 350 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 170 mA @ 120 Hz | 195.5 mA @ 10 kHz | - | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.063" (27.00mm) | - | Through Hole | |
|
UHE1J561MHDCAP ALUM 560UF 20% 63V RADIAL TH |
218 |
|
Datasheet |
UHE | Bulk | Active | 560 µF | ±20% | 63 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 855 mA @ 120 Hz | 1.14 A @ 100 kHz | 83 mOhms | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.398" (35.50mm) | - | Through Hole | |
|

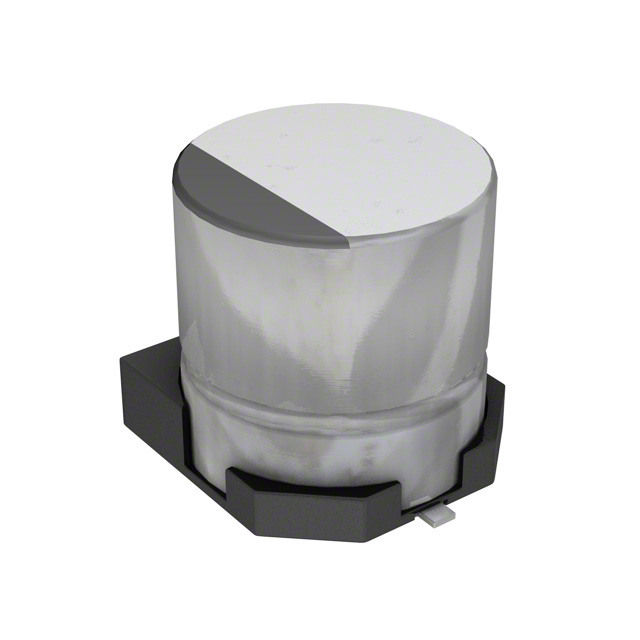

AVS107M63G24T-FCAP ALUM 100UF 20% 63V SMD |
164 |
|
Datasheet |
AVS | Tape & Reel (TR) | Not For New Designs | 100 µF | ±20% | 63 V | 3Ohm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | AEC-Q200 | Automotive, Bypass, Decoupling | 60 mA @ 120 Hz | 102 mA @ 10 kHz | - | - | 0.394" Dia (10.00mm) | 0.402" (10.20mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | |
|
UBT2E330MHD8TOCAP ALUM 33UF 20% 250V RADIAL TH |
152 |
|
Datasheet |
UBT | Cut Tape (CT) | Active | 33 µF | ±20% | 250 V | - | 2000 Hrs @ 125°C | -40°C ~ 125°C | Polar | - | Automotive | 171 mA @ 120 Hz | 307.8 mA @ 100 kHz | - | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.063" (27.00mm) | - | Through Hole | |
|
UKW1C222MHD1TOCAP ALUM 2200UF 20% 16V RADIAL |
111 |
|
Datasheet |
UKW | Cut Tape (CT) | Not For New Designs | 2200 µF | ±20% | 16 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 1.25 A @ 120 Hz | 1.4375 A @ 10 kHz | - | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 0.866" (22.00mm) | - | Through Hole | |
|
AFK227M10E16T-FCAP ALUM 220UF 20% 10V SMD |
2,750 |
|
Datasheet |
AFK | Tape & Reel (TR) | Active | 220 µF | ±20% | 10 V | 260mOhm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive, Bypass, Decoupling | 225 mA @ 120 Hz | 300 mA @ 100 kHz | 260 mOhms | - | 0.315" Dia (8.00mm) | 0.256" (6.50mm) | 0.327" L x 0.374" W (8.30mm x 9.50mm) | Surface Mount | |
|
337SML035MCAP ALUM 330UF 20% 35V SMD |
1,139 |
|
Datasheet |
SML | Tape & Reel (TR) | Active | 330 µF | ±20% | 35 V | 703mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 360 mA @ 120 Hz | - | - | - | 0.394" Dia (10.00mm) | 0.417" (10.60mm) | 0.394" L x 0.394" W (10.00mm x 10.00mm) | Surface Mount | |
|
UCY2D820MHD9TOCAP ALUM 82UF 20% 200V RADIAL TH |
864 |
|
Datasheet |
UCY | Cut Tape (CT) | Active | 82 µF | ±20% | 200 V | - | 12000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 645 mA @ 120 Hz | 1.29 A @ 100 kHz | - | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 0.846" (21.50mm) | - | Through Hole | |
|
10YXS5600MEFC16X20CAP ALUM 5600UF 20% 10V RADIAL |
600 |
|
Datasheet |
YXS | Bulk | Active | 5600 µF | ±20% | 10 V | - | 6000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.778 A @ 120 Hz | 2.54 A @ 100 kHz | 21 mOhms | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 0.866" (22.00mm) | - | Through Hole | |
|
UPM2A151MHD6CAP ALUM 150UF 20% 100V RADIAL |
395 |
|
Datasheet |
UPM | Bulk | Not For New Designs | 150 µF | ±20% | 100 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 640 mA @ 120 Hz | 917 mA @ 10 kHz | 120 mOhms | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 0.669" (17.00mm) | - | Through Hole | |
|
|
UHE0J472MHDCAP ALUM 4700UF 20% 6.3V RADIAL |
386 |
|
Datasheet |
UHE | Bulk | Active | 4700 µF | ±20% | 6.3 V | - | 8000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.12 A @ 120 Hz | 2.65 A @ 100 kHz | 24 mOhms | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.240" (31.50mm) | - | Through Hole | |
|
EKZN250ELL122MJ25SCAP ALUM 1200UF 20% 25V RADIAL |
374 |
|
Datasheet |
KZN | Bulk | Active | 1200 µF | ±20% | 25 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.74 A @ 120 Hz | 2.9 A @ 100 kHz | 26 mOhms | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 1.043" (26.50mm) | - | Through Hole | |
|
EEE-FK0J102AVCAP ALUM 1000UF 20% 6.3V SMD |
345 |
|
Datasheet |
FK, Anti-Vibration | Tape & Reel (TR) | Active | 1000 µF | ±20% | 6.3 V | 160mOhm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive, High Temperature Reflow | 420 mA @ 120 Hz | 600 mA @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.425" (10.80mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
|
|
EEE-FK1V151AVCAP ALUM 150UF 20% 35V SMD |
180 |
|
Datasheet |
FK, Anti-Vibration | Tape & Reel (TR) | Active | 150 µF | ±20% | 35 V | 160mOhm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive, High Temperature Reflow | 390 mA @ 120 Hz | 600 mA @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.425" (10.80mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
|
EEU-TP1E471CAP ALUM 470UF 20% 25V RADIAL TH |
1,718 |
|
Datasheet |
TP-A | Bulk | Active | 470 µF | ±20% | 25 V | - | 3000 Hrs @ 125°C | -40°C ~ 135°C | Polar | AEC-Q200 | Automotive | 825 mA @ 120 Hz | 945 mA @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.689" (17.50mm) | - | Through Hole | |
|

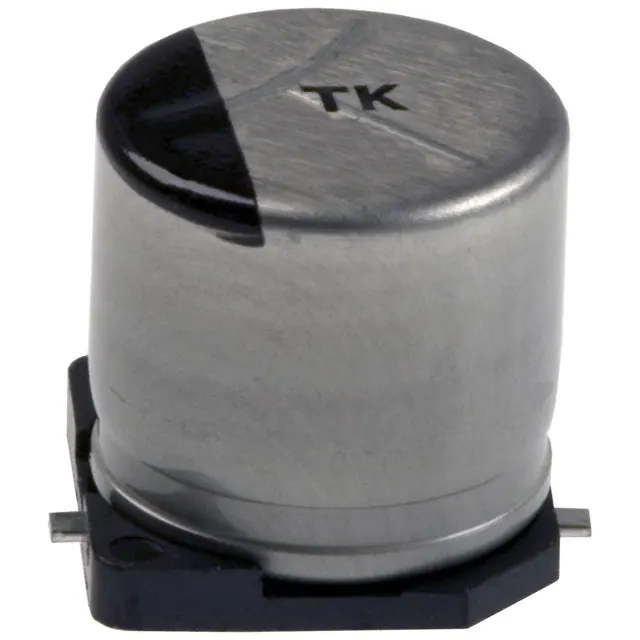

EEE-TK1C221PCAP ALUM 220UF 20% 16V SMD |
1,172 |
|
Datasheet |
TK | Tape & Reel (TR) | Active | 220 µF | ±20% | 16 V | 200mOhm @ 100kHz | 3000 Hrs @ 125°C | -40°C ~ 125°C | Polar | - | General Purpose | 175.5 mA @ 120 Hz | 270 mA @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.402" (10.20mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | |
|
UHW1J331MPD1TDCAP ALUM 330UF 20% 63V RADIAL TH |
973 |
|
Datasheet |
UHW | Cut Tape (CT) | Active | 330 µF | ±20% | 63 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 995 mA @ 120 Hz | 1.99 A @ 100 kHz | 72 mOhms | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 1.063" (27.00mm) | - | Through Hole |
Aluminum Electrolytic Capacitors Electronic Components
Explore Aluminum Electrolytic Capacitors electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
