Trimmers, Variable Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Capacitance Range | Adjustment Type | Voltage - Rated | Dielectric Material | Q @ Freq | Size / Dimension | Height - Seated (Max) | Operating Temperature | Mounting Type | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LXRW0YV900-053CAP TRIMMER 45-90PF 50V SMD |
23 |
|
Datasheet |
- | Tape & Reel (TR) | Active | 45 ~ 90pF | - | 50 V | - | - | 0.024" L x 0.024" W (0.60mm x 0.60mm) | 0.012" (0.30mm) | -30°C ~ 85°C | Surface Mount | Voltage Tuning |
|
JR500HVCAP TRIMMER 8-50PF 350V SMD |
0 |
|
Datasheet |
JR | Bulk | Active | 8 ~ 50pF | Top | 350 V | Ceramic | 200 @ 1MHz | 0.138" L x 0.122" W (3.50mm x 3.10mm) | 0.045" (1.15mm) | -40°C ~ 85°C | Surface Mount | General Purpose |
|
A1M4CAP TRIMMER 0.45-4PF 250V SMD |
4 |
|
Datasheet |
- | Bulk | Active | 0.45 ~ 4pF | Top | 250 V | Polytetrafluoroethylene (PTFE) | 4000 @ 100MHz | 0.160" Dia (4.06mm) | 0.260" (6.60mm) | -65°C ~ 125°C | Surface Mount | General Purpose |
|
|
KM10HVCAP TRIMMER 1-9PF 1000V SMD |
0 |
|
Datasheet |
K_HV | Bulk | Active | 1 ~ 9pF | Top | 1000 V | Polytetrafluoroethylene (PTFE) | 2000 @ 100MHz | 0.200" Dia (5.08mm) | 0.470" (11.94mm) | -65°C ~ 125°C | Surface Mount | General Purpose |
|
|
BFC280800016CAP TRIMMER 2-18PF 250V TH |
0 |
|
Datasheet |
BFC2 808 | Bulk | Active | 2 ~ 18pF | Top and Bottom | 250 V | Polytetrafluoroethylene (PTFE) | - | 0.299" Dia (7.60mm) | 0.394" (10.00mm) | -40°C ~ 85°C | Through Hole | General Purpose |
|
9813SLCAP TRIMMER 6-35PF 250V SMD |
0 |
|
Datasheet |
Seal-Trim® | Bulk | Active | 6 ~ 35pF | Top | 250 V | - | 200 @ 100MHz | 0.270" Dia (6.86mm) | 0.110" (2.79mm) | -55°C ~ 125°C | Surface Mount | Sealed |
|
AJ15HVCAP TRIMMER 1-16PF 1000V SMD |
0 |
|
Datasheet |
- | Bulk | Active | 1 ~ 16pF | Side | 1000 V | Polytetrafluoroethylene (PTFE) | 2000 @ 100MHz | 0.250" Dia (6.35mm) | 0.500" (12.70mm) | -65°C ~ 125°C | Surface Mount | General Purpose |
|
9410-1CAP TRIMMER 2.5-10PF 250V SMD |
0 |
|
Datasheet |
Thin-Trim® | Bulk | Active | 2.5 ~ 10pF | Top | 250 V | - | 1000 @ 100MHz | 0.225" Dia (5.72mm) | 0.060" (1.52mm) | -55°C ~ 125°C | Surface Mount | General Purpose |
|
2320-1CAP TRIMMER 1-5PF 250V SMD |
0 |
|
Datasheet |
Cera-Trim® | Bulk | Active | 1 ~ 5pF | Top | 250 V | Ceramic | 1000 @ 100MHz | 0.180" L x 0.167" W (4.57mm x 4.24mm) | 0.086" (2.18mm) | -55°C ~ 125°C | Surface Mount | Sealed |
|
27271-3-009CAP TRIMMER |
5 |
|
Datasheet |
Giga-Trim® | Bulk | Active | - | - | - | Sapphire | 3000 @ 250MHz | 0.140" Dia (3.56mm) | - | -65°C ~ 125°C | - | - |
|
AM4HVCAP TRIMMER 1-4PF 1000V SMD |
0 |
|
Datasheet |
- | Bulk | Active | 1 ~ 4pF | Top | 1000 V | Polytetrafluoroethylene (PTFE) | 2000 @ 100MHz | 0.250" Dia (6.35mm) | 0.480" (12.19mm) | -65°C ~ 125°C | Surface Mount | General Purpose |
|
AT10CAP TRIMMER 1-10PF 250V PNL MNT |
0 |
|
Datasheet |
A | Bulk | Active | 1 ~ 10pF | Top | 250 V | Air | 5000 @ 100MHz | 0.300" Dia (7.62mm) | 0.480" (12.19mm) | -65°C ~ 125°C | Panel Mount | General Purpose |
|

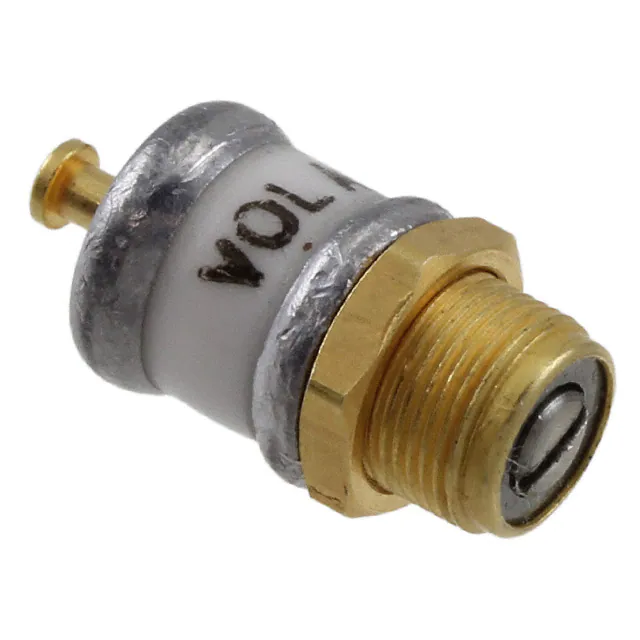

AT14CAP TRIMMER 1-14PF 125V PNL MNT |
0 |
|
Datasheet |
- | Bulk | Active | 1 ~ 14pF | Top | 125 V | Polytetrafluoroethylene (PTFE) | 3000 @ 100MHz | 0.280" Dia (7.11mm) | 0.480" (12.19mm) | -65°C ~ 125°C | Panel Mount | General Purpose |
|

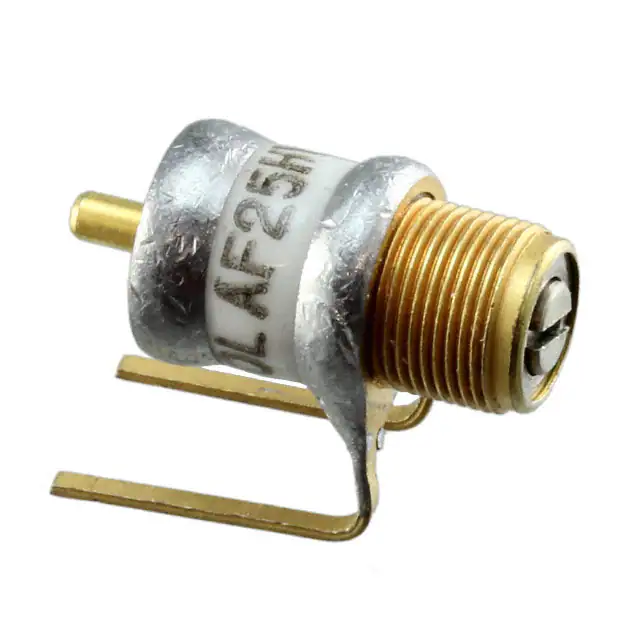

AF25HVCAP TRIMMER 1-23PF 750V TH |
0 |
|
Datasheet |
- | Bulk | Active | 1 ~ 23pF | Top | 750 V | Polytetrafluoroethylene (PTFE) | 2000 @ 100MHz | 0.220" Dia (5.59mm) | 0.480" (12.19mm) | -65°C ~ 125°C | Through Hole | General Purpose |
|
|
NMAJ30CAP TRIMMER 1.5-30PF 250V SMD |
0 |
|
Datasheet |
A_HV | Bulk | Active | 1.5 ~ 30pF | Side | 250 V | Polytetrafluoroethylene (PTFE) | - | 0.300" Dia (7.62mm) | 0.500" (12.70mm) | -65°C ~ 125°C | Surface Mount | Non-Magnetic |
|
NMNT48-4CAP TRIM 1.5-48PF 2500V PNL MNT |
1 |
|
Datasheet |
NMNT | Bulk | Active | 1.5 ~ 48pF | Top | 2500 V | Polytetrafluoroethylene (PTFE) | - | 0.310" Dia (7.87mm) | 2.250" (57.15mm) | - | Panel Mount | Non-Magnetic |
|
|
2322-1GCAP CER TRIM SMD |
0 |
|
Datasheet |
- | Bulk | Active | 1 ~ 5pF | Top | 250 V | Ceramic | 1000 @ 100MHz | 0.180" L x 0.167" W (4.57mm x 4.24mm) | 0.086" (2.18mm) | -55°C ~ 125°C | Surface Mount | Sealed |
|
|
9826SLCAP FILM TRIM |
0 |
|
Datasheet |
- | Bulk | Active | 8.5 ~ 25pF | Top | 250 V | - | 300 @ 100MHz | 0.180" Dia (4.57mm) | 0.090" (2.29mm) | -55°C ~ 125°C | Surface Mount | Sealed |
|
|
AF14CAP TRIMMER 1-14PF 125V TH |
0 |
|
Datasheet |
A | Bulk | Active | 1 ~ 14pF | Top | 125 V | Air | 3000 @ 100MHz | 0.300" Dia (7.62mm) | 0.480" (12.19mm) | -65°C ~ 125°C | Through Hole | General Purpose |
|
|
KM8CAP TRIMMER 0.6-8PF 250V SMD |
5 |
|
Datasheet |
K | Bulk | Active | 0.6 ~ 8pF | Top | 250 V | Air | 5000 @ 100MHz | 0.230" Dia (5.84mm) | 0.470" (11.94mm) | -65°C ~ 125°C | Surface Mount | Sealed |
