Trimmers, Variable Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Capacitance Range | Adjustment Type | Voltage - Rated | Dielectric Material | Q @ Freq | Size / Dimension | Height - Seated (Max) | Operating Temperature | Mounting Type | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CTZ3E-05A-W1CAP TRIMMER 1.5-5PF 25V SMD |
0 |
|
Datasheet |
CTZ, Kyocera | Tape & Reel (TR) | Obsolete | 1.5 ~ 5pF | Top | 25 V | Ceramic | 300 @ 1MHz | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.071" (1.80mm) | -40°C ~ 85°C | Surface Mount | Low Profile |
|
|
CTZ2E-20C-W2CAP TRIMMER 5.5-20PF 25V SMD |
0 |
|
Datasheet |
CTZ, Kyocera | Tape & Reel (TR) | Obsolete | 5.5 ~ 20pF | Top | 25 V | Ceramic | 300 @ 1MHz | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.051" (1.30mm) | -40°C ~ 85°C | Surface Mount | Low Profile |
|
|
CTZ3E-10A-W1CAP TRIMMER 2.5-10PF 25V SMD |
0 |
|
Datasheet |
CTZ, Kyocera | Tape & Reel (TR) | Obsolete | 2.5 ~ 10pF | Top | 25 V | Ceramic | 300 @ 1MHz | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.071" (1.80mm) | -40°C ~ 85°C | Surface Mount | Low Profile |
|
|
CTZ3S-05A-W1-PFCAP TRIMMER 1.5-5PF 25V SMD |
0 |
|
Datasheet |
CTZ, Kyocera | Tape & Reel (TR) | Obsolete | 1.5 ~ 5pF | Top | 25 V | Ceramic | 300 @ 1MHz | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.071" (1.80mm) | -40°C ~ 85°C | Surface Mount | Low Profile |
|
|
CTZ3S-10A-X1-PFCAP TRIMMER 2.5-10PF 25V SMD |
0 |
|
Datasheet |
CTZ, Kyocera | Tape & Reel (TR) | Obsolete | 2.5 ~ 10pF | Top | 25 V | Ceramic | 300 @ 1MHz | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.071" (1.80mm) | -40°C ~ 85°C | Surface Mount | Low Profile |
|
|
CTZ3S-30C-W1-PFCAP TRIMMER 4.5-30PF 25V SMD |
0 |
|
Datasheet |
CTZ, Kyocera | Tape & Reel (TR) | Obsolete | 4.5 ~ 30pF | Top | 25 V | Ceramic | 300 @ 1MHz | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.071" (1.80mm) | -40°C ~ 85°C | Surface Mount | Low Profile |
|
|
CTZ3E-30C-W1-AFCAP TRIMMER 4.5-30PF 25V SMD |
0 |
|
Datasheet |
CTZ, Kyocera | Tape & Reel (TR) | Obsolete | 4.5 ~ 30pF | Top | 25 V | Ceramic | 300 @ 1MHz | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.071" (1.80mm) | -40°C ~ 85°C | Surface Mount | Low Profile |
|
|
CTZ3E-40C-X1-PFCAP TRIMMER 4.5-40PF 25V SMD |
0 |
|
Datasheet |
CTZ, Kyocera | Tape & Reel (TR) | Obsolete | 4.5 ~ 40pF | Top | 25 V | Ceramic | 300 @ 1MHz | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.071" (1.80mm) | -40°C ~ 85°C | Surface Mount | Low Profile |
|
|
CTZ3E-10A-W5-PRCAP TRIMMER 2.5-10PF 25V SMD |
0 |
|
Datasheet |
CTZ, Kyocera | Tape & Reel (TR) | Obsolete | 2.5 ~ 10pF | Top | 25 V | Ceramic | 300 @ 1MHz | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.071" (1.80mm) | -40°C ~ 85°C | Surface Mount | Low Profile |
|
|
CTZ3S-40C-W1-FCAP TRIMMER 4.5-40PF 25V SMD |
0 |
|
Datasheet |
CTZ, Kyocera | Tape & Reel (TR) | Obsolete | 4.5 ~ 40pF | Top | 25 V | Ceramic | 300 @ 1MHz | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.071" (1.80mm) | -40°C ~ 85°C | Surface Mount | Low Profile |
|
|
TZB4R500AA10R01CAP TRIMMER 7-50PF 50V SMD |
0 |
|
Datasheet |
TZB4 | Tape & Reel (TR) | Obsolete | 7 ~ 50pF | Top | 50 V | Ceramic | 300 @ 1MHz | 0.177" L x 0.157" W (4.50mm x 4.00mm) | 0.126" (3.20mm) | -25°C ~ 85°C | Surface Mount | General Purpose |
|
|
TZB4R500BA10R01CAP TRIMMER 7-50PF 50V SMD |
0 |
|
Datasheet |
TZB4 | Tape & Reel (TR) | Obsolete | 7 ~ 50pF | Top | 50 V | Ceramic | 300 @ 1MHz | 0.177" L x 0.157" W (4.50mm x 4.00mm) | 0.126" (3.20mm) | -25°C ~ 85°C | Surface Mount | General Purpose |
|
|
TZB4Z250BA10R01CAP TRIMMER 4-25PF 50V SMD |
0 |
|
Datasheet |
TZB4 | Tape & Reel (TR) | Obsolete | 4 ~ 25pF | Top | 50 V | Ceramic | 300 @ 1MHz | 0.177" L x 0.157" W (4.50mm x 4.00mm) | 0.126" (3.20mm) | -25°C ~ 85°C | Surface Mount | General Purpose |
|
|
TZB4R500AB10R01CAP TRIMMER 7-50PF 50V SMD |
0 |
|
Datasheet |
TZB4 | Tape & Reel (TR) | Obsolete | 7 ~ 50pF | Top | 50 V | Ceramic | 300 @ 1MHz | 0.177" L x 0.157" W (4.50mm x 4.00mm) | 0.126" (3.20mm) | -25°C ~ 85°C | Surface Mount | General Purpose |
|
|
TZB4R500BB10R01CAP TRIMMER 7-50PF 50V SMD |
0 |
|
Datasheet |
TZB4 | Tape & Reel (TR) | Obsolete | 7 ~ 50pF | Top | 50 V | Ceramic | 300 @ 1MHz | 0.177" L x 0.157" W (4.50mm x 4.00mm) | 0.126" (3.20mm) | -25°C ~ 85°C | Surface Mount | General Purpose |
|
|
TZB4Z250BB10R01CAP TRIMMER 4-25PF 50V SMD |
0 |
|
Datasheet |
TZB4 | Tape & Reel (TR) | Obsolete | 4 ~ 25pF | Top | 50 V | Ceramic | 300 @ 1MHz | 0.177" L x 0.157" W (4.50mm x 4.00mm) | 0.126" (3.20mm) | -25°C ~ 85°C | Surface Mount | General Purpose |
|
|
0512-000-A-5.0-25LFCAP TRIMMER 5-25PF 100V SMD |
0 |
|
Datasheet |
512 | Tape & Reel (TR) | Obsolete | 5 ~ 25pF | Top | 100 V | Ceramic | 300 @ 1MHz | 0.176" L x 0.130" W (4.47mm x 3.30mm) | 0.090" (2.28mm) | -55°C ~ 125°C | Surface Mount | General Purpose |
|

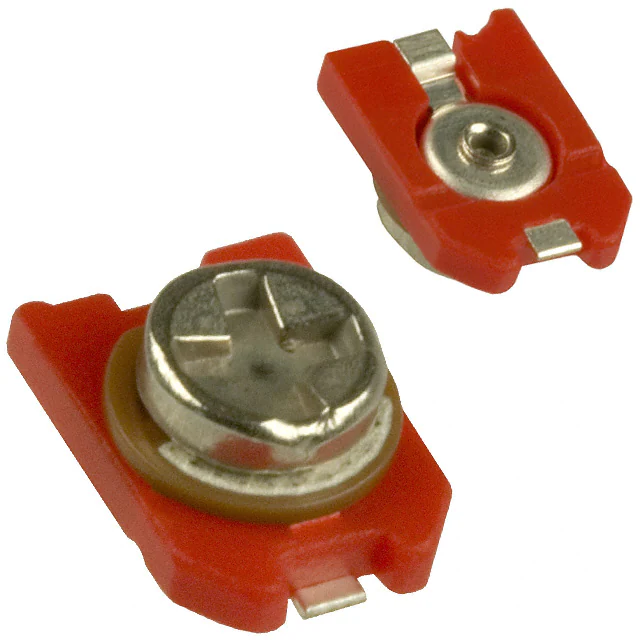

TZC3P200A310R00CAP TRIMMER 5-20PF 100V SMD |
0 |
|
Datasheet |
TZC3 | Tape & Reel (TR) | Discontinued at Digi-Key | 5 ~ 20pF | Top | 100 V | Ceramic | 300 @ 1MHz | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.067" (1.70mm) | -25°C ~ 85°C | Surface Mount | General Purpose |
|

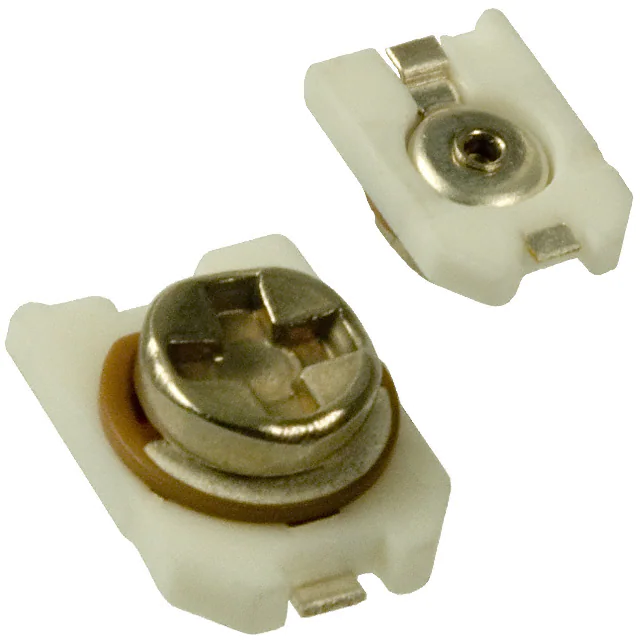

TZC3R100A310R00CAP TRIMMER 3-10PF 100V SMD |
0 |
|
Datasheet |
TZC3 | Cut Tape (CT) | Obsolete | 3 ~ 10pF | Top | 100 V | Ceramic | 500 @ 1MHz | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.067" (1.70mm) | -25°C ~ 85°C | Surface Mount | General Purpose |
|
TZY2R250AC01R00CAP TRIMMER 5.5-25PF 25V SMD |
0 |
|
Datasheet |
TZY2 | Tape & Reel (TR) | Obsolete | 5.5 ~ 25pF | Top | 25 V | Ceramic | 300 @ 1MHz | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.049" (1.25mm) | -25°C ~ 85°C | Surface Mount | General Purpose |
