Trimmers, Variable Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Capacitance Range | Adjustment Type | Voltage - Rated | Dielectric Material | Q @ Freq | Size / Dimension | Height - Seated (Max) | Operating Temperature | Mounting Type | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
GAA3R503CAP TRIM 0.35-3.5PF 250V CHAS MT |
80 |
|
Datasheet |
AIRTRIM® GAA | Bulk | Obsolete | 0.35 ~ 3.5pF | Top | 250 V | Air | 5000 @ 100MHz | 0.161" Dia (4.10mm) | 0.480" (12.20mm) | -65°C ~ 125°C | Chassis Mount | General Purpose |
|
GAA6R005CAP TRIMMER 0.6-6PF 250V |
21 |
|
Datasheet |
AIRTRIM® GAA | Bulk | Obsolete | 0.6 ~ 6pF | Side | 250 V | Air | 5000 @ 100MHz | 0.240" Dia (6.10mm) | 0.480" (12.20mm) | -65°C ~ 125°C | User Defined | General Purpose |
|
GAA3R514CAP TRIMMER 0.35-3.5PF 250V SMD |
19 |
|
Datasheet |
AIRTRIM® GAA | Bulk | Obsolete | 0.35 ~ 3.5pF | Top | 250 V | Air | 5000 @ 100MHz | 0.161" Dia (4.10mm) | 0.488" (12.40mm) | -65°C ~ 125°C | Surface Mount | General Purpose |
|
GAA10007CAP TRIMMER 1-10PF 250V TH |
93 |
|
Datasheet |
AIRTRIM® GAA | Bulk | Obsolete | 1 ~ 10pF | Top | 250 V | Air | 5000 @ 100MHz | 0.299" Dia (7.60mm) | 0.500" (12.70mm) | -65°C ~ 125°C | Through Hole | General Purpose |
|
AT 27271CAP TRIMMER 0.6-4.5PF 500V TH |
21 |
|
Datasheet |
Sapphire Trimmers | Tray | Active | 0.6 ~ 4.5pF | Top | 500 V | Sapphire | 3000 @ 250MHz | 0.118" Dia (3.00mm) | 0.315" (8.00mm) | -55°C ~ 125°C | Through Hole | General Purpose |
|
GFN36031CAP TRIMMER 1-36PF 750V SMD |
14 |
|
Datasheet |
PISTONCAP® | Bulk | Obsolete | 1 ~ 36pF | Top | 750 V | Glass | 550 @ 20MHz | 0.312" Dia (7.92mm) | 0.696" (17.70mm) | -55°C ~ 125°C | Surface Mount | General Purpose |
|
GWR2R550CAP TRIMMER 0.4-2.5PF 500V TH |
92 |
|
Datasheet |
PISTONCAP® | Bulk | Obsolete | 0.4 ~ 2.5pF | - | 500 V | Sapphire | 3000 @ 250MHz | 0.118" Dia (3.00mm) | 0.230" (5.80mm) | -55°C ~ 125°C | Through Hole | General Purpose |
|
GWR4R500CAP TRIMMER 0.6-4.5PF 500V TH |
90 |
|
Datasheet |
PISTONCAP® | Bulk | Obsolete | 0.6 ~ 4.5pF | - | 500 V | Sapphire | 2000 @ 250MHz | 0.118" Dia (3.00mm) | 0.310" (7.90mm) | -55°C ~ 125°C | Through Hole | General Purpose |
|
|
GUC1R250CAP TRIMMER 0.3-1.2PF 500V TH |
65 |
|
Datasheet |
PISTONCAP® | Bulk | Obsolete | 0.3 ~ 1.2pF | Side | 500 V | Sapphire | 4000 @ 250MHz | 0.075" Dia (1.90mm) | 0.230" (5.80mm) | -55°C ~ 125°C | Through Hole | General Purpose |
|
GWF2R500CAP TRIMMER 0.4-2.5PF 500V TH |
64 |
|
Datasheet |
PISTONCAP® | Bulk | Obsolete | 0.4 ~ 2.5pF | - | 500 V | Sapphire | 3000 @ 250MHz | 0.118" Dia (3.00mm) | 0.230" (5.80mm) | -55°C ~ 125°C | Through Hole | General Purpose |
|

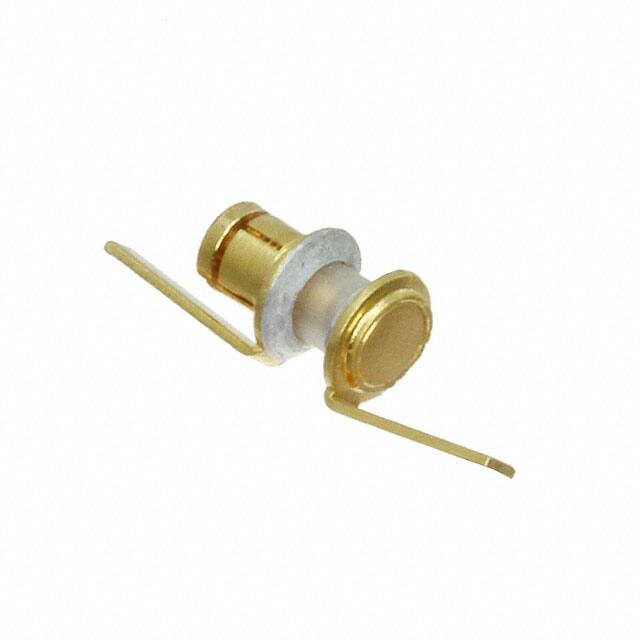

GUL1R250CAP TRIMMER 0.3-1.2PF 500V TH |
63 |
|
Datasheet |
PISTONCAP® | Bulk | Obsolete | 0.3 ~ 1.2pF | Side | 500 V | Sapphire | 4000 @ 250MHz | 0.075" Dia (1.90mm) | 0.230" (5.80mm) | -55°C ~ 125°C | Through Hole | General Purpose |
|
GWV8R000CAP TRIMMER 0.8-8PF 500V TH |
28 |
|
Datasheet |
PISTONCAP® | Bulk | Obsolete | 0.8 ~ 8pF | Top | 500 V | Sapphire | 1000 @ 250MHz | 0.118" Dia (3.00mm) | 0.470" (12.00mm) | -55°C ~ 125°C | Through Hole | General Purpose |
|
GWC2R550CAP TRIMMER 0.4-2.5PF 500V TH |
20 |
|
Datasheet |
PISTONCAP® | Bulk | Obsolete | 0.4 ~ 2.5pF | Side | 500 V | Sapphire | 3000 @ 250MHz | 0.118" Dia (3.00mm) | 0.230" (5.80mm) | -55°C ~ 125°C | Through Hole | General Purpose |
|
GWC8R000CAP TRIMMER 0.8-8PF 500V TH |
14 |
|
Datasheet |
PISTONCAP® | Bulk | Obsolete | 0.8 ~ 8pF | Side | 500 V | Sapphire | 1000 @ 250MHz | 0.118" Dia (3.00mm) | 0.470" (12.00mm) | -55°C ~ 125°C | Through Hole | General Purpose |
|
|
GWL8R050CAP TRIMMER 0.8-8PF 500V TH |
14 |
|
Datasheet |
PISTONCAP® | Bulk | Obsolete | 0.8 ~ 8pF | Side | 500 V | Sapphire | 1000 @ 250MHz | 0.118" Dia (3.00mm) | 0.470" (12.00mm) | -55°C ~ 125°C | Through Hole | General Purpose |
|
GWC4R500CAP TRIMMER 0.6-4.5PF 500V TH |
10 |
|
Datasheet |
PISTONCAP® | Bulk | Obsolete | 0.6 ~ 4.5pF | Side | 500 V | Sapphire | 2000 @ 250MHz | 0.118" Dia (3.00mm) | 0.310" (7.90mm) | -55°C ~ 125°C | Through Hole | General Purpose |
|
GGC30000CAP TRIMMER 0.8-30PF 750V TH |
8 |
|
Datasheet |
PISTONCAP® | Bulk | Obsolete | 0.8 ~ 30pF | Side | 750 V | Glass | 350 @ 20MHz | 0.312" Dia (7.92mm) | 1.609" (40.87mm) | -55°C ~ 125°C | Through Hole | General Purpose |
|
AT 27291-SLCAP TRIMMER 0.8-8PF 500V SMD |
7 |
|
Datasheet |
Sapphire Trimmers | Tray | Active | 0.8 ~ 8pF | Top | 500 V | Sapphire | 3000 @ 100MHz | 0.118" Dia (3.00mm) | 0.484" (12.30mm) | -55°C ~ 125°C | Surface Mount | General Purpose |
|
|
GQC5R500CAP TRIMMER 0.6-5.5PF 750V TH |
15 |
|
Datasheet |
PISTONCAP® | Bulk | Obsolete | 0.6 ~ 5.5pF | Side | 750 V | Quartz | 1500 @ 20MHz | 0.312" Dia (7.92mm) | 0.562" (14.27mm) | -55°C ~ 150°C | Through Hole | General Purpose |
|

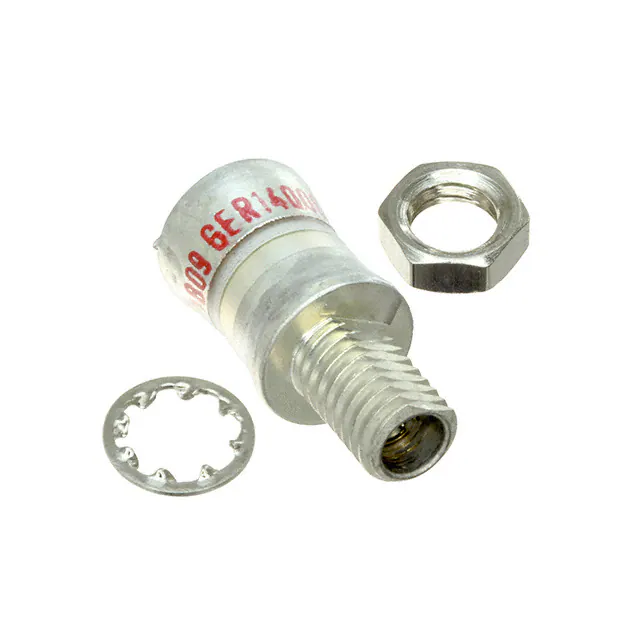

GER14000CAP TRIMMER 1-14PF 1000V |
57 |
|
Datasheet |
PISTONCAP® | Bulk | Obsolete | 1 ~ 14pF | Top | 1000 V | Glass | 500 @ 20MHz | 0.312" Dia (7.92mm) | 0.469" (11.91mm) | -55°C ~ 125°C | User Defined | General Purpose |
