Trimmers, Variable Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Capacitance Range | Adjustment Type | Voltage - Rated | Dielectric Material | Q @ Freq | Size / Dimension | Height - Seated (Max) | Operating Temperature | Mounting Type | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
GGP18000CAP TRIMMER 0.8-18PF 750V |
69 |
|
Datasheet |
PISTONCAP® | Bulk | Obsolete | 0.8 ~ 18pF | Top | 750 V | Glass | 500 @ 20MHz | 0.312" Dia (7.92mm) | 0.984" (24.99mm) | -55°C ~ 125°C | User Defined | General Purpose |
|
GGP12000CAP TRIMMER 0.8-12PF 750V |
38 |
|
Datasheet |
PISTONCAP® | Bulk | Obsolete | 0.8 ~ 12pF | Top | 750 V | Glass | 500 @ 20MHz | 0.312" Dia (7.92mm) | 0.750" (19.05mm) | -55°C ~ 125°C | User Defined | General Purpose |
|
GGP4R500CAP TRIMMER 0.8-4.5PF 750V |
14 |
|
Datasheet |
PISTONCAP® | Bulk | Obsolete | 0.8 ~ 4.5pF | Top | 750 V | Glass | 500 @ 20MHz | 0.312" Dia (7.92mm) | 0.297" (7.54mm) | -55°C ~ 125°C | User Defined | General Purpose |
|
GNN1R250CAP TRIMMER 0.3-1.2PF 500V |
74 |
|
Datasheet |
PISTONCAP® | Bulk | Obsolete | 0.3 ~ 1.2pF | - | 500 V | Sapphire | 4000 @ 250MHz | 0.075" Dia (1.90mm) | 0.230" (5.80mm) | -55°C ~ 125°C | User Defined | General Purpose |
|
GNL1R250CAP TRIMMER 0.3-1.2PF 500V SMD |
47 |
|
Datasheet |
PISTONCAP® | Bulk | Obsolete | 0.3 ~ 1.2pF | Side | 500 V | Sapphire | 4000 @ 250MHz | 0.114" Dia (2.90mm) | - | -55°C ~ 125°C | Surface Mount | General Purpose |
|
GNR1R200CAP TRIMMER 0.3-1.2PF 500V |
34 |
|
Datasheet |
PISTONCAP® | Bulk | Obsolete | 0.3 ~ 1.2pF | - | 500 V | Sapphire | 4000 @ 250MHz | 0.075" Dia (1.90mm) | 0.230" (5.80mm) | -55°C ~ 125°C | User Defined | General Purpose |
|
GNR2R500CAP TRIMMER 0.4-2.5PF 500V |
32 |
|
Datasheet |
PISTONCAP® | Bulk | Obsolete | 0.4 ~ 2.5pF | - | 500 V | Sapphire | 3000 @ 250MHz | 0.118" Dia (3.00mm) | 0.230" (5.80mm) | -55°C ~ 125°C | User Defined | General Purpose |
|
|
GNN1R200CAP TRIMMER 0.3-1.2PF 500V |
19 |
|
Datasheet |
PISTONCAP® | Bulk | Obsolete | 0.3 ~ 1.2pF | - | 500 V | Sapphire | 4000 @ 250MHz | 0.075" Dia (1.90mm) | 0.230" (5.80mm) | -55°C ~ 125°C | User Defined | General Purpose |
|
GNF4R500CAP TRIMMER 0.6-4.5PF 500V TH |
13 |
|
Datasheet |
PISTONCAP® | Bulk | Obsolete | 0.6 ~ 4.5pF | - | 500 V | Sapphire | 2000 @ 250MHz | 0.118" Dia (3.00mm) | 0.310" (7.90mm) | -55°C ~ 125°C | Through Hole | General Purpose |
|
|
GNR2R550CAP TRIMMER 0.4-2.5PF 500V |
9 |
|
Datasheet |
PISTONCAP® | Bulk | Obsolete | 0.4 ~ 2.5pF | - | 500 V | Sapphire | 3000 @ 250MHz | 0.118" Dia (3.00mm) | 0.230" (5.80mm) | -55°C ~ 125°C | User Defined | General Purpose |
|
GGW9R000CAP TRIMMER 0.7-9PF 750V |
7 |
|
Datasheet |
PISTONCAP® | Bulk | Obsolete | 0.7 ~ 9pF | Top | 750 V | Glass | 500 @ 20MHz | 0.375" Dia (9.52mm) | 0.656" (16.66mm) | -55°C ~ 125°C | User Defined | General Purpose |
|
GHW13000CAP TRIMMER 0.8-13PF 750V |
15 |
|
Datasheet |
PISTONCAP® | Bulk | Obsolete | 0.8 ~ 13pF | Top | 750 V | Glass | 900 @ 20MHz | 0.375" Dia (9.52mm) | 0.609" (15.47mm) | -55°C ~ 125°C | User Defined | General Purpose |
|
GAA14002CAP TRIMMER 1-14PF 250V |
99 |
|
Datasheet |
AIRTRIM® GAA | Bulk | Obsolete | 1 ~ 14pF | Top | 250 V | Air | 5000 @ 100MHz | 0.303" Dia (7.62mm) | 0.500" (12.70mm) | -65°C ~ 125°C | User Defined | General Purpose |
|

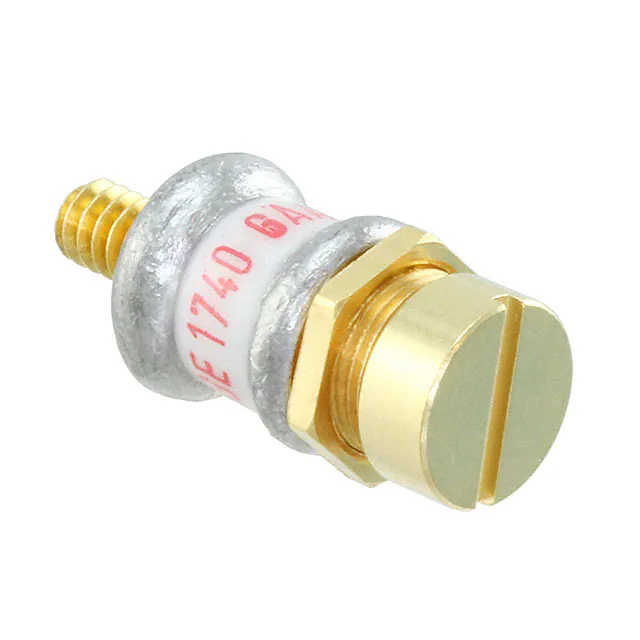

GAA10003CAP TRIMMER 1-10PF 250V CHAS MNT |
98 |
|
Datasheet |
AIRTRIM® GAA | Bulk | Obsolete | 1 ~ 10pF | Top | 250 V | Air | 5000 @ 100MHz | 0.299" Dia (7.60mm) | 0.500" (12.70mm) | -65°C ~ 125°C | Chassis Mount | General Purpose |
|

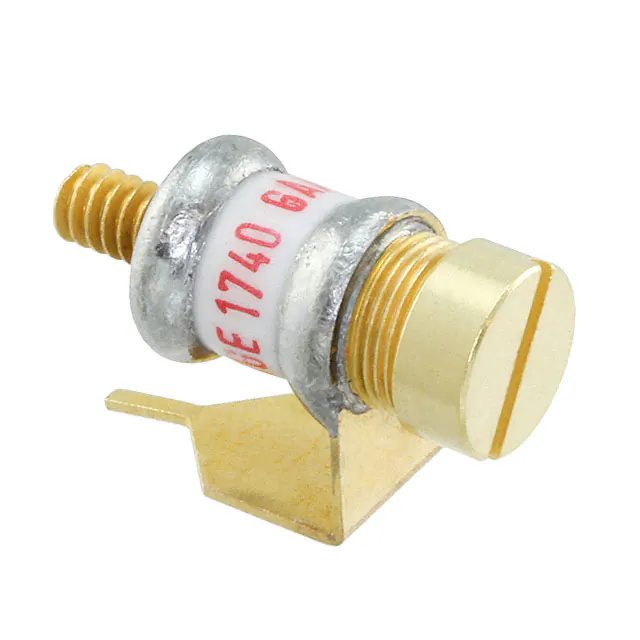

GAA14007CAP TRIMMER 1-14PF 250V |
90 |
|
Datasheet |
AIRTRIM® GAA | Bulk | Obsolete | 1 ~ 14pF | Top | 250 V | Air | 5000 @ 100MHz | 0.303" Dia (7.62mm) | 0.500" (12.70mm) | -65°C ~ 125°C | User Defined | General Purpose |
|
|
GAA14003CAP TRIMMER 1-14PF 250V CHAS MNT |
88 |
|
Datasheet |
AIRTRIM® GAA | Bulk | Obsolete | 1 ~ 14pF | Top | 250 V | Air | 5000 @ 100MHz | 0.303" Dia (7.62mm) | 0.500" (12.70mm) | -65°C ~ 125°C | Chassis Mount | General Purpose |
|
|
GAA14006CAP TRIMMER 1-14PF 250V |
88 |
|
Datasheet |
AIRTRIM® GAA | Bulk | Obsolete | 1 ~ 14pF | Top | 250 V | Air | 5000 @ 100MHz | 0.303" Dia (7.62mm) | 0.500" (12.70mm) | -65°C ~ 125°C | User Defined | General Purpose |
|
GAA3R505CAP TRIMMER 0.35-3.5PF 250V |
85 |
|
Datasheet |
AIRTRIM® GAA | Bulk | Obsolete | 0.35 ~ 3.5pF | Side | 250 V | Air | 5000 @ 100MHz | 0.161" Dia (4.10mm) | 0.488" (12.40mm) | -65°C ~ 125°C | User Defined | General Purpose |
|
GAA14008CAP TRIMMER 1-14PF 250V |
84 |
|
Datasheet |
AIRTRIM® GAA | Bulk | Obsolete | 1 ~ 14pF | Bottom | 250 V | Air | 5000 @ 100MHz | 0.303" Dia (7.62mm) | 0.500" (12.70mm) | -65°C ~ 125°C | User Defined | General Purpose |
|
GAA3R512CAP TRIMMER 0.35-3.5PF 250V TH |
83 |
|
Datasheet |
AIRTRIM® GAA | Bulk | Obsolete | 0.35 ~ 3.5pF | Top | 250 V | Air | 5000 @ 100MHz | 0.161" Dia (4.10mm) | 0.488" (12.40mm) | -65°C ~ 125°C | Through Hole | General Purpose |
