TVS Diodes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CDSOD323-T05STVS DIODE 5VWM 13.5VC SOD323 |
37,434 |
|
Datasheet |
SC-76, SOD-323 | - | Tape & Reel (TR) | Active | Zener | 1 | - | 5V | 6V | 13.5V (Typ) | 42A (8/20µs) | 500W | No | General Purpose | 350pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-323 |
|
CPDT6-24V4-HFTVS DIODE 24VWM 47VC SOT23-6 |
27,378 |
|
Datasheet |
SOT-23-6 | - | Tape & Reel (TR) | Active | Zener | - | 4 | 24V | 25V | 47V | 1A (8/20µs) | 47W | No | General Purpose | - | - | - | - | Surface Mount | SOT-23-6 |
|
1.5SMC36CATVS DIODE 30.8VWM 49.9VC DO214AB |
20,974 |
|
Datasheet |
DO-214AB, SMC | 1.5SMC | Tape & Reel (TR) | Active | Zener | - | 1 | 30.8V | 34.2V | 49.9V | 30.5A | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMCJ) |
|
PGB1010603NRTVS DIODE 24VWM 150VC 0603 |
17,762 |
|
Datasheet |
0603 (1608 Metric) | PulseGuard® PGB | Tape & Reel (TR) | Active | Zener | - | 1 | 24V | - | 150V (Typ) | - | - | No | General Purpose | - | -65°C ~ 125°C (TJ) | - | - | Surface Mount | 0603 (1608 Metric) |
|
|
1.5SMC56CATVS DIODE 47.8VWM 77VC DO214AB |
14,241 |
|
Datasheet |
DO-214AB, SMC | - | Tape & Reel (TR) | Active | Zener | - | 1 | 47.8V | 53.2V | 77V | 19.7A | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMC) |
|
1.5SMC250ATVS SMC 214V 1500W UNIDIR |
12,618 |
|
Datasheet |
DO-214AB, SMC | 1.5SMC | Tape & Reel (TR) | Active | Zener | 1 | - | 214V | 237V | 344V | 4.4A | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMCJ) |
|
SMCJ60CATVS DIODE 60VWM 96.8VC DO214AB |
3,456 |
|
Datasheet |
DO-214AB, SMC | SMCJ | Tape & Reel (TR) | Active | Zener | - | 2 | 60V | 66.7V | 96.8V | 15.5A | 1500W (1.5kW) | Yes | General Purpose | - | -55°C ~ 150°C | - | - | Surface Mount | DO-214AB (SMCJ) |
|
1.5KE43A-E3/54TVS DIODE 36.8VWM 59.3VC 1.5KE |
2,838 |
|
Datasheet |
DO-201AA, DO-27, Axial | TransZorb® | Tape & Reel (TR) | Active | Zener | 1 | - | 36.8V | 40.9V | 59.3V | 25.3A | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Through Hole | 1.5KE |
|
SMAT70A-13-FTVS DIODE 70VWM 100VC SMA |
92,313 |
|
Datasheet |
DO-214AC, SMA | - | Tape & Reel (TR) | Active | Zener | 1 | - | 70V | 77.8V | 100V | 3.5A | 400W | No | General Purpose | 140pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SMA |
|
SP1004U-ULC-04UTGTVS DIODE 9.2VC 1004/10DFN |
21,726 |
|
Datasheet |
10-XFDFN | SPA® | Tape & Reel (TR) | Active | Zener | 4 | - | - | 9V (Typ) | 9.2V (Typ) | 2A (8/20µs) | - | No | General Purpose | 0.2pF @ 1MHz | -40°C ~ 125°C | - | - | Surface Mount | 1004/10DFN (2.5x1.0) |
;;2.jpg)
|
1.5SMC480ATVS SMC 408V 1500W UNIDIR |
13,400 |
|
Datasheet |
DO-214AB, SMC | 1.5SMC | Tape & Reel (TR) | Active | Zener | 1 | - | 408V | 456V | 658V | 2.3A | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMCJ) |
|

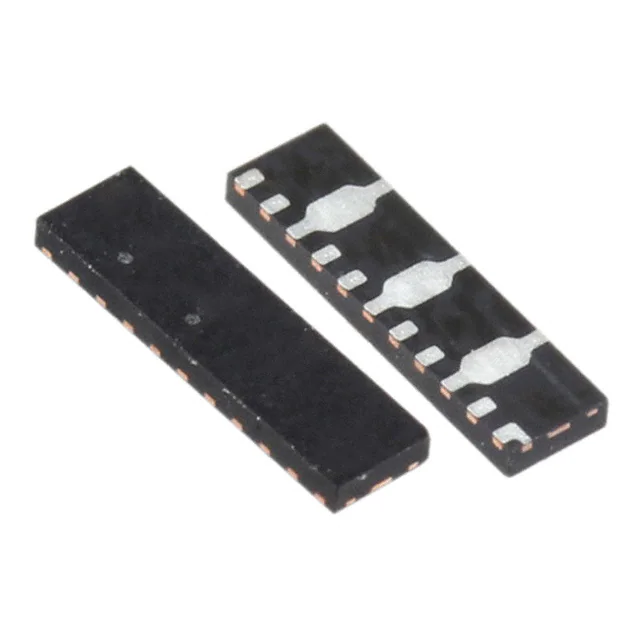

ESD8008MUTAGTVS DIODE 3.3VWM 8.1VC 14UDFN |
11,573 |
|
Datasheet |
14-UFDFN | - | Tape & Reel (TR) | Active | Zener | 8 | - | 3.3V (Max) | 5.5V | 8.1V (Typ) | 16A | - | No | General Purpose | 0.3pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | 14-UDFN (5.5x1.5) |
|
CDSOT23-SR208TVS DIODE 20VWM SOT23-6 |
9,977 |
|
Datasheet |
SOT-23-6 | - | Tape & Reel (TR) | Active | Steering (Rail to Rail) | 4 | - | 20V | - | - | - | - | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-23-6 |
|
AQ4020-01FTGTVS DIODE 3.3VWM 24.5VC SOD323 |
7,154 |
|
Datasheet |
SC-76, SOD-323 | AQ4020, SPA® | Tape & Reel (TR) | Active | Zener | 1 | - | 3.3V (Max) | 3.5V | 24.5V (Typ) | 30A (8/20µs) | 735W | No | CAN, Ethernet, USB | 2.5pF @ 1MHz | -40°C ~ 150°C (TA) | Automotive | AEC-Q101 | Surface Mount | SOD-323 |
|
VBUS054B-HSF-GS08TVS DIODE 5VWM 15VC LLP75-6L |
1,304 |
|
Datasheet |
6-UFDFN Exposed Pad | - | Tape & Reel (TR) | Active | Steering (Rail to Rail) | 4 | - | 5V (Min) | 6.9V | 15V | 3A (8/20µs) | 45W | Yes | General Purpose | - | -40°C ~ 125°C (TJ) | - | - | Surface Mount | LLP75-6L |
|
SMAJ40CATVS DIODE 40VWM 64.5VC DO214AC |
210,911 |
|
Datasheet |
DO-214AC, SMA | SMAJ | Tape & Reel (TR) | Active | Zener | - | 1 | 40V | 44.4V | 64.5V | 6.2A | 400W | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AC (SMA) |
|
|
SP4020-01FTGTVS DIODE 3.3VWM 21.8VC SOD323 |
46,460 |
|
Datasheet |
SC-76, SOD-323 | SP4020, SPA® | Tape & Reel (TR) | Active | Steering (Rail to Rail) | 1 | - | 3.3V (Max) | 3.5V | 21.8V (Typ) | 30A (8/20µs) | 750W | No | Ethernet | 2.5pF @ 1MHz | -40°C ~ 125°C (TJ) | - | - | Surface Mount | SOD-323 |
|
SMAJ45CATVS DIODE 45VWM 72.7VC DO214AC |
14,870 |
|
Datasheet |
DO-214AC, SMA | SMAJ | Tape & Reel (TR) | Active | Zener | - | 1 | 45V | 50V | 72.7V | 5.5A | 400W | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AC (SMA) |
|
SMCJ36CA-13-FTVS DIODE 36VWM 58.1VC SMC |
8,821 |
|
Datasheet |
DO-214AB, SMC | - | Tape & Reel (TR) | Active | Zener | - | 1 | 36V | 40V | 58.1V | 25.8A | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SMC |
|
TPD4E02B04DQARTVS DIODE 3.6VWM 8.8VC 10USON |
23,498 |
|
Datasheet |
10-UFDFN | - | Tape & Reel (TR) | Active | Zener | - | 4 | 3.6V (Max) | 5.5V | 8.8V (Typ) | 5A (8/20µs) | 17W | No | HDMI | 0.27pF @ 1MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 10-USON (2.5x1) |
TVS Diodes Electronic Components
Explore TVS Diodes electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
