TVS Diodes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TPSMA6L40ATVS DIODE 40VWM 64.5VC DO221AC |
20,808 |
|
Datasheet |
DO-221AC, SMA Flat Leads | TPSMA6L | Tape & Reel (TR) | Active | Zener | 1 | - | 40V | 44.4V | 64.5V | 9.3A | 600W | No | - | - | -65°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-221AC |
|
SMCJ24CATVS DIODE 24VWM 38.9VC DO214AB |
10,055 |
|
Datasheet |
DO-214AB, SMC | SMCJ | Tape & Reel (TR) | Active | Zener | - | 1 | 24V | 26.7V | 38.9V | 38.6A | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMCJ) |
|
SMCJ60ATVS DIODE 60VWM 96.8VC DO214AB |
8,448 |
|
Datasheet |
DO-214AB, SMC | SMCJ | Tape & Reel (TR) | Active | Zener | 1 | - | 60V | 66.7V | 96.8V | 15.5A | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMCJ) |
|
SMCJ26CATVS DIODE 26VWM 42.1VC DO214AB |
141,524 |
|
Datasheet |
DO-214AB, SMC | SMCJ | Tape & Reel (TR) | Active | Zener | - | 1 | 26V | 28.9V | 42.1V | 35.7A | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMCJ) |
|
UCLAMP3321ZATFTTVS DIODE 3.3V 8.5V SLP0603P2X3F |
40,324 |
|
Datasheet |
0201 (0603 Metric) | uClamp® | Tape & Reel (TR) | Active | Zener | - | 1 | 3.3V (Max) | 3.7V | 8.5V | 4A (8/20µs) | 40W | No | General Purpose | 4.2pF @ 1MHz | -40°C ~ 125°C (TJ) | - | - | Surface Mount | SLP0603P2X3F |
|
|
SMCJ28ATVS DIODE 28VWM 45.4VC DO214AB |
36,873 |
|
Datasheet |
DO-214AB, SMC | SMCJ | Tape & Reel (TR) | Active | Zener | 1 | - | 28V | 31.1V | 45.4V | 33.1A | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMCJ) |
|
TPD4E05U06QDQARQ1TVS DIODE 5.5VWM 14VC 10USON |
27,554 |
|
Datasheet |
10-UFDFN | - | Tape & Reel (TR) | Active | Steering (Rail to Rail) | 4 | - | 5.5V (Max) | 6.4V | 14V | 2.5A (8/20µs) | 40W | Yes | HDMI, USB | - | -40°C ~ 125°C (TA) | Automotive | AEC-Q101 | Surface Mount | 10-USON (2.5x1) |
|
TPD4E001QDBVRQ1TVS DIODE 5.5VWM 16VC SOT23-6 |
20,982 |
|
Datasheet |
SOT-23-6 | - | Tape & Reel (TR) | Active | Steering (Rail to Rail) | 4 | - | 5.5V (Max) | 11V | 16V (Typ) | 5.5A (8/20µs) | 100W | Yes | Ethernet | - | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | SOT-23-6 |
|
|
SMCJ30CATVS DIODE 30VWM 48.4VC DO214AB |
12,551 |
|
Datasheet |
DO-214AB, SMC | SMCJ | Tape & Reel (TR) | Active | Zener | - | 1 | 30V | 33.3V | 48.4V | 31A | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMCJ) |
|
1.5SMC18ATVS DIODE 15.3VWM 25.2VC DO214AB |
11,933 |
|
Datasheet |
DO-214AB, SMC | 1.5SMC | Tape & Reel (TR) | Active | Zener | 1 | - | 15.3V | 17.1V | 25.2V | 60.3A | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMCJ) |
|

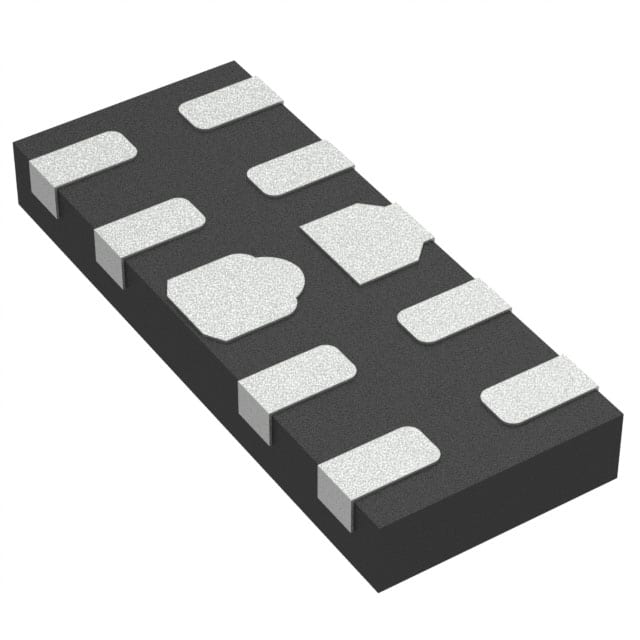

AOZ8809DI-05TVS DIODE 5VWM 9VC 10DFN |
380,049 |
|
Datasheet |
10-UFDFN | - | Tape & Reel (TR) | Not For New Designs | Steering (Rail to Rail) | 4 | - | 5V (Max) | 6V | 9V | 12A (100ns) | - | Yes | HDMI | 0.45pF @ 1MHz | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 10-DFN (2.5x1) |
|
SP1001-05JTGTVS DIODE 5.5VWM 13VC SC70-6 |
137,638 |
|
Datasheet |
6-TSSOP, SC-88, SOT-363 | SP1001, SPA® | Tape & Reel (TR) | Active | Zener | 5 | - | 5.5V (Max) | 7V | 13V | 2A (8/20µs) | - | No | - | - | -40°C ~ 125°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SC-70-6 |
|
AQ4022-01FTG-CTVS DIODE 12VWM 33VC SOD323 |
46,862 |
|
Datasheet |
SC-76, SOD-323 | AQ4022, SPA® | Tape & Reel (TR) | Active | Zener | - | 1 | 12V (Max) | 13.3V | 33V | 15A (8/20µs) | 500W | No | CAN | 1.3pF @ 1MHz | -40°C ~ 150°C (TA) | Automotive | AEC-Q101 | Surface Mount | SOD-323 |
|
|
TPSMA6L70ATVS DIODE 70VWM 113VC DO221AC |
44,910 |
|
Datasheet |
DO-221AC, SMA Flat Leads | TPSMA6L | Tape & Reel (TR) | Active | Zener | 1 | - | 70V | 77.8V | 113V | 5.3A | 600W | No | - | - | -65°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-221AC |
|
SRV05-4ATVS DIODE 5VWM 17.5VC SOT23-6 |
39,959 |
|
Datasheet |
SOT-23-6 | - | Tape & Reel (TR) | Active | Steering (Rail to Rail) | 4 | - | 5V (Max) | 6V | 17.5V | 5A (8/20µs) | - | Yes | Ethernet | 3.2pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | SOT-23-6 |
|
RCLAMP3521ZATFTTVS DIODE 3.5VWM 5V SLP0603P2X3F |
35,147 |
|
Datasheet |
0201 (0603 Metric) | - | Tape & Reel (TR) | Active | Zener | - | 1 | 3.5V (Max) | 5.5V | 5V (Typ) | 6A | 30W | No | General Purpose | 0.45pF @ 1MHz | -40°C ~ 125°C (TJ) | - | - | Surface Mount | SLP0603P2X3F |
|
SM2T6V8ATVS DIODE 5VWM 9.2VC DO216AA |
29,133 |
|
Datasheet |
DO-216AA | SM2T, TRANSIL™ | Tape & Reel (TR) | Active | Zener | 1 | - | 5V | 6.4V | 9.2V | 19.6A | 200W | No | General Purpose | - | - | - | - | Surface Mount | DO-216AA |
|
TPD6E001RSERTVS DIODE 5VWM 10UQFN |
13,541 |
|
Datasheet |
10-UFQFN | - | Tape & Reel (TR) | Active | Steering (Rail to Rail) | 6 | - | 5V (Max) | 11V | - | - | - | Yes | General Purpose | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 10-UQFN (2.0x1.5) |
|
|
SMCJ5.0CATVS DIODE 5VWM 9.2VC DO214AB |
6,340 |
|
Datasheet |
DO-214AB, SMC | SMCJ | Tape & Reel (TR) | Active | Zener | - | 1 | 5V | 6.4V | 9.2V | 163A | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMCJ) |
|
1.5KE30ATVS DIODE 25.6VWM 41.4VC DO201 |
1,103 |
|
Datasheet |
DO-201AA, DO-27, Axial | 1.5KE | Tape & Reel (TR) | Active | Zener | 1 | - | 25.6V | 28.5V | 41.4V | 36.7A | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Through Hole | DO-201 |
