TVS Diodes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SZTVS4201MR6T1GTVS DIODE 5VWM 12VC 6TSOP |
23,294 |
|
Datasheet |
SOT-23-6 Thin, TSOT-23-6 | - | Tape & Reel (TR) | Active | Steering (Rail to Rail) | 4 | - | 5V (Max) | 6V | 12V | 25A (8/20µs) | 500W | Yes | - | 3pF @ 1MHz | -40°C ~ 125°C (TJ) | Automotive | AEC-Q101 | Surface Mount | 6-TSOP |
|
SMAJ250CATVS DIODE 250VWM 405VC DO214AC |
13,533 |
|
Datasheet |
DO-214AC, SMA | SMAJ | Tape & Reel (TR) | Active | Zener | - | 2 | 250V | 279V | 405V | 1A | 400W | Yes | General Purpose | - | -55°C ~ 150°C | - | - | Surface Mount | DO-214AC (SMAJ) |
|
AXGD10603NRTVS DIODE 40VC 0603 |
26,019 |
|
Datasheet |
0603 (1608 Metric), Concave | XTREME-GUARD™ | Tape & Reel (TR) | Active | Zener | - | 1 | - | - | 40V (Typ) | - | - | No | - | 0.09pF @ 250MHz | -65°C ~ 125°C | Automotive | AEC-Q200 | Surface Mount | 0603 |
|
PGB1010603MRHFTVS DIODE 24VWM 150VC 0603 |
9,997 |
|
Datasheet |
0603 (1608 Metric) | PulseGuard® PGB | Tape & Reel (TR) | Active | Zener | - | 1 | 24V | - | 150V (Typ) | - | - | No | General Purpose | - | -65°C ~ 125°C (TJ) | - | - | Surface Mount | 0603 (1608 Metric) |
|
ESD9R3.3ST5GTVS DIODE 3.3VWM 7.8VC SOD923 |
95,299 |
|
Datasheet |
SOD-923 | - | Tape & Reel (TR) | Active | Zener | 1 | - | 3.3V (Max) | 4.8V | 7.8V | 1A (8/20µs) | - | No | General Purpose | 0.5pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | SOD-923 |
|
SESD0402X1BN-0010-098TVS DIODE 7VWM 10VC 0402 |
29,287 |
|
Datasheet |
2-XDFN | SESD, SPA® | Tape & Reel (TR) | Active | Zener | - | 1 | 7V (Max) | 9.8V (Typ) | 10V (Typ) | 2A (8/20µs) | - | No | HDMI | 0.1pF @ 3GHz | -55°C ~ 125°C (TJ) | Automotive | AEC-Q101 | Surface Mount | 0402 |
|
CDSOT23-0502BTVS DIODE 5VWM 9VC SOT23-3L |
10,603 |
|
Datasheet |
TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Active | Zener | - | 2 | 5V | 6V | 9V | 8.5A (8/20µs) | - | No | General Purpose | 15pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | SOT-23-3 |
|
SMCJ200CATVS DIODE 200VWM 324VC DO214AB |
1,748 |
|
Datasheet |
DO-214AB, SMC | SMCJ | Tape & Reel (TR) | Active | Zener | - | 2 | 200V | 224V | 324V | 4.6A | 1500W (1.5kW) | Yes | General Purpose | - | -55°C ~ 150°C | - | - | Surface Mount | DO-214AB (SMCJ) |
|
SP0502BAHTGTVS DIODE 5.5VWM 8.5VC SOT23-3 |
153,527 |
|
Datasheet |
TO-236-3, SC-59, SOT-23-3 | SP05, SPA® | Tape & Reel (TR) | Active | Zener | 2 | - | 5.5V (Max) | - | 8.5V | - | - | No | General Purpose | - | -40°C ~ 125°C | - | - | Surface Mount | SOT-23-3 |
|
SP3010-04UTGTVS DIODE 6VWM 12.3VC 10UDFN |
120,649 |
|
Datasheet |
10-UFDFN | SP3010, SPA® | Tape & Reel (TR) | Active | Steering (Rail to Rail) | 4 | - | 6V (Max) | - | 12.3V (Typ) | 3A (8/20µs) | - | Yes | General Purpose | - | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 10-µDFN (2.5x1.0) |
|
CDSOD323-T03TVS DIODE 3.3VWM 19VC SOD323 |
100,761 |
|
Datasheet |
SC-76, SOD-323 | - | Tape & Reel (TR) | Active | Zener | 1 | - | 3.3V | 4V | 19V (Typ) | 20A (8/20µs) | 350W | No | General Purpose | 3pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-323 |
|
|
CDSOD323-T05TVS DIODE 5VWM 18.3VC SOD323 |
73,778 |
|
Datasheet |
SC-76, SOD-323 | - | Tape & Reel (TR) | Active | Zener | 1 | - | 5V | 6V | 18.3V (Typ) | 17A (8/20µs) | 350W | No | General Purpose | 3pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-323 |
|

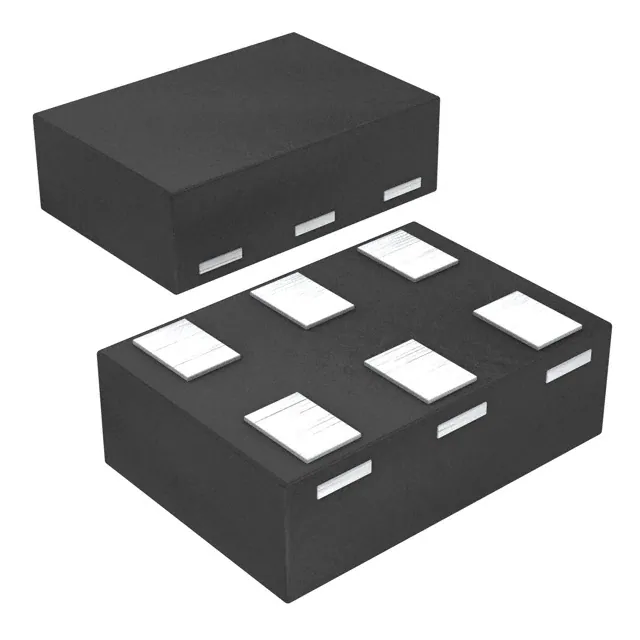

TPD4S012DRYRTVS DIODE 5.5VWM 6SON |
40,252 |
|
Datasheet |
6-UFDFN | - | Tape & Reel (TR) | Active | Steering (Rail to Rail) | 4 | - | 5.5V | 6V | - | 3A (8/20µs) | 60W | Yes | USB | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 6-SON (1.45x1) |
|
SMCJ18CA-13-FTVS DIODE 18VWM 29.2VC SMC |
36,198 |
|
Datasheet |
DO-214AB, SMC | - | Tape & Reel (TR) | Active | Zener | - | 1 | 18V | 20V | 29.2V | 51.4A | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SMC |
|
SMA6J33CA-TRTVS DIODE 33VWM 60.8VC SMA |
7,290 |
|
Datasheet |
DO-214AC, SMA | SMA6J, TRANSIL™ | Tape & Reel (TR) | Active | Zener | - | 1 | 33V | 36.7V | 60.8V | 57A (8/20µs) | 600W | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Surface Mount | DO-214AC (SMA) |
|
|
SM24CANB-02HTGTVS DIODE 24VWM 50VC SOT23-3 |
25,919 |
|
Datasheet |
TO-236-3, SC-59, SOT-23-3 | SM24CANB, SPA® | Tape & Reel (TR) | Active | Zener | - | 2 | 24V (Max) | 26.7V | 50V | 10A (8/20µs) | 500W | No | CAN | 30pF @ 1MHz | -40°C ~ 125°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOT-23-3 |
|
SP3002-04JTGTVS DIODE 6VWM 13VC SC70-6 |
1,736 |
|
Datasheet |
6-TSSOP, SC-88, SOT-363 | SP3002, SPA® | Tape & Reel (TR) | Active | Steering (Rail to Rail) | 4 | - | 6V (Max) | - | 13V | 4.5A (8/20µs) | - | Yes | General Purpose | - | -40°C ~ 125°C (TJ) | - | - | Surface Mount | SC-70-6 |
|
|
CDSOD323-T05LTVS DIODE 5VWM 18.3VC SOD323 |
108,282 |
|
Datasheet |
SC-76, SOD-323 | - | Tape & Reel (TR) | Active | Zener | 1 | - | 5V | 6V | 18.3V (Typ) | 15A (8/20µs) | 350W | No | HDMI, USB OTG | 1pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-323 |
|
SMA6J58CA-QTVS DIODE 58VWM 93.6VC SMA |
21,976 |
|
Datasheet |
DO-214AC, SMA | SMA6J-Q | Tape & Reel (TR) | Active | Zener | - | 1 | 58V | 64.4V | 93.6V | 6.5A | 600W | No | Telecom | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AC (SMA) |
|
SP0503BAHTGTVS DIODE 5.5VWM 8.5VC SOT143-4 |
21,787 |
|
Datasheet |
TO-253-4, TO-253AA | SP05, SPA® | Tape & Reel (TR) | Active | Zener | 3 | - | 5.5V (Max) | - | 8.5V | - | - | No | General Purpose | - | -40°C ~ 125°C | - | - | Surface Mount | SOT-143-4 |
TVS Diodes Electronic Components
Explore TVS Diodes electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
