TVS Diodes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

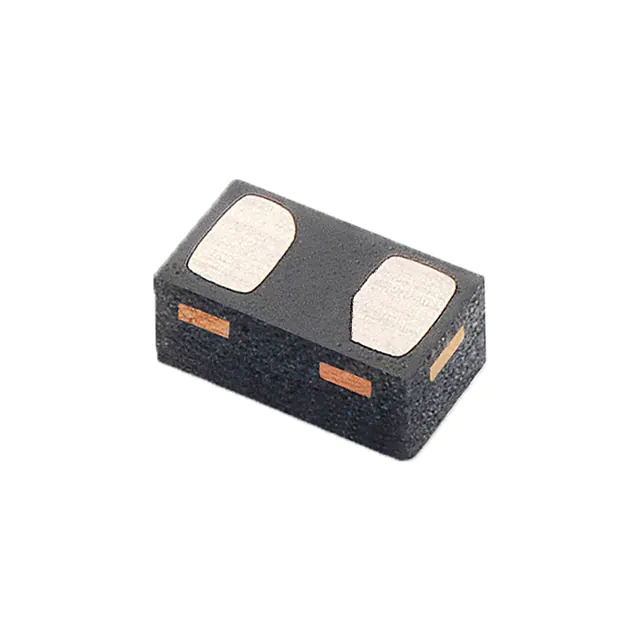

SP3213-01UTGTVS DIODE 5VWM 18VC 0201/2DFN |
6,846 |
|
Datasheet |
0201 (0603 Metric) | SPA® | Tape & Reel (TR) | Active | Zener | - | 1 | 5V (Max) | 6.2V | 18V | 2A (8/20µs) | - | No | General Purpose | 0.09pF @ 1MHz | -40°C ~ 125°C | Automotive | AEC-Q101 | Surface Mount | 0201/DFN0603 |
|
PGB1010603MRTVS DIODE 24VWM 150VC 0603 |
572,675 |
|
Datasheet |
0603 (1608 Metric) | PulseGuard® PGB | Tape & Reel (TR) | Active | Zener | - | 1 | 24V | - | 150V (Typ) | - | - | No | General Purpose | - | -65°C ~ 125°C (TJ) | - | - | Surface Mount | 0603 (1608 Metric) |
|
SMCJ33ATVS DIODE 33VWM 53.3VC DO214AB |
85,086 |
|
Datasheet |
DO-214AB, SMC | SMCJ | Tape & Reel (TR) | Active | Zener | 1 | - | 33V | 36.7V | 53.3V | 28.2A | 1500W (1.5kW) | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMCJ) |
|
TPD2E001DRLRTVS DIODE 5.5VWM SOT5 |
84,999 |
|
Datasheet |
SOT-553 | - | Tape & Reel (TR) | Active | Steering (Rail to Rail) | 2 | - | 5.5V (Max) | 11V | - | - | - | Yes | Ethernet | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-5 |
|
SMA6J24A-TRTVS DIODE 24VWM 44.3VC SMA |
51,202 |
|
Datasheet |
DO-214AC, SMA | SMA6J, TRANSIL™ | Tape & Reel (TR) | Active | Zener | 1 | - | 24V | 26.7V | 44.3V | 80A (8/20µs) | 600W | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Surface Mount | DO-214AC (SMA) |
|
SMCJ150CATVS DIODE 150VWM 243VC DO214AB |
7,881 |
|
Datasheet |
DO-214AB, SMC | SMCJ | Tape & Reel (TR) | Active | Zener | - | 2 | 150V | 167V | 243V | 6.2A | 1500W (1.5kW) | Yes | General Purpose | - | -55°C ~ 150°C | - | - | Surface Mount | DO-214AB (SMCJ) |
|
CPDH3V3UPTVS DIODE 3.3VWM 8VC SOD523 |
18,895 |
|
Datasheet |
SC-79, SOD-523 | - | Tape & Reel (TR) | Active | Zener | 1 | - | 3.3V (Max) | - | 8V | 5A (8/20µs) | 40W | No | General Purpose | 12pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | SOD-523 |
|
P6KE440CATVS DIODE 376VWM 602VC DO204AC |
17,782 |
|
Datasheet |
DO-204AC, DO-15, Axial | P6KE | Tape & Reel (TR) | Active | Zener | - | 1 | 376V | 418V | 602V | 1A | 600W | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Through Hole | DO-204AC (DO-15) |
|
|
SMCJ28CATVS DIODE 28VWM 45.4VC DO214AB |
17,203 |
|
Datasheet |
DO-214AB, SMC | SMCJ | Tape & Reel (TR) | Active | Zener | - | 1 | 28V | 31.1V | 45.4V | 33.1A | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMCJ) |
|
HSP062-2M6TVS DIODE 3VWM 18VC 6UQFN |
14,351 |
|
Datasheet |
6-UFDFN | HSP | Tape & Reel (TR) | Active | Steering (Rail to Rail) | 2 | - | 3V | 6V | 18V (Typ) | 3A (8/20µs) | - | Yes | Ethernet, HDMI | 0.6pF @ 200MHz ~ 3GHz | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 6-uQFN (1.45x1) |
|
SMLJ30CA-TPTVS DIODE 30VWM 48.4VC DO214AB |
6,269 |
|
Datasheet |
DO-214AB, SMC | - | Tape & Reel (TR) | Active | Zener | - | 1 | 30V | 33.3V | 48.4V | 62A | 3000W (3kW) | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Surface Mount | DO-214AB (SMC) |
|
SP1001-04JTGTVS DIODE 5.5VWM 13VC SC70-5 |
60,379 |
|
Datasheet |
5-TSSOP, SC-70-5, SOT-353 | SP1001, SPA® | Tape & Reel (TR) | Active | Zener | 4 | - | 5.5V (Max) | 7V | 13V | 2A (8/20µs) | - | No | - | - | -40°C ~ 125°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SC-70-5 |
|
SMBJ350ATVS DIODE 350VWM 567VC DO214AA |
20,935 |
|
Datasheet |
DO-214AA, SMB | SMBJ | Tape & Reel (TR) | Active | Zener | 1 | - | 350V | 391V | 567V | 1.1A | 600W | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMBJ) |
|
TPD2E001DZDRTVS DIODE 5.5VWM 4SOP |
17,481 |
|
Datasheet |
TO-253-4, TO-253AA | - | Tape & Reel (TR) | Active | Steering (Rail to Rail) | 2 | - | 5.5V (Max) | 11V | - | - | - | Yes | Ethernet | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 4-SOP |
|
SM712H-TPTVS DIODE 12VWM 28VC SOT23 |
9,620 |
|
Datasheet |
TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Active | Zener | - | 2 | 12V (Max) | 13.3V | 28V | 36A (8/20µs) | 1000W (1kW) | No | General Purpose | 75pF @ 1MHz (Max) | -55°C ~ 125°C (TJ) | - | - | Surface Mount | SOT-23 |
|
|
SMCJ30ATVS DIODE 30VWM 48.4VC DO214AB |
9,039 |
|
Datasheet |
DO-214AB, SMC | SMCJ | Tape & Reel (TR) | Active | Zener | 1 | - | 30V | 33.3V | 48.4V | 31A | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMCJ) |
|

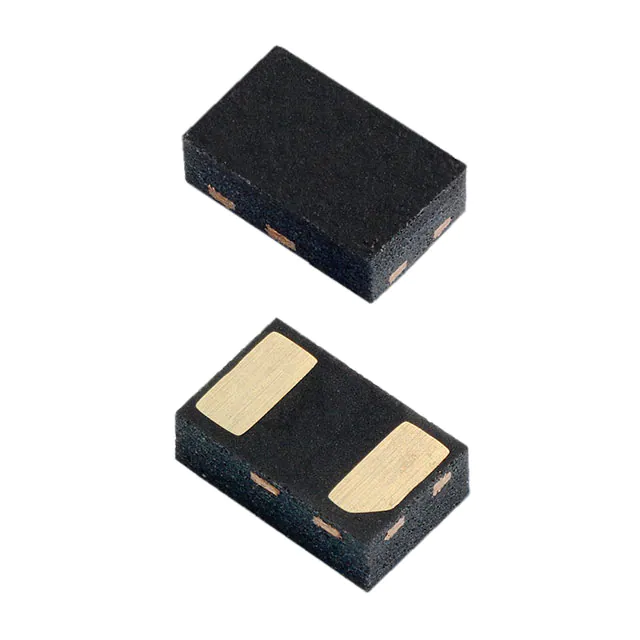

SP1103C-01UTGTVS DIODE 3.3VWM 9VC 2DFN |
62,493 |
|
Datasheet |
0603 (1610 Metric) | * | Tape & Reel (TR) | Active | Zener | - | 1 | 3.3V (Max) | 3.4V | 9V (Typ) | 80A (8/20µs) | 720W | No | - | 130pF @ 1MHz | -40°C ~ 125°C (TA) | Automotive | AEC-Q101 | Surface Mount | 2-DFN (1.6x1) |
|
|
SMCJ64ATVS DIODE 64VWM 103VC DO214AB |
45,530 |
|
Datasheet |
DO-214AB, SMC | SMCJ | Tape & Reel (TR) | Active | Zener | 1 | - | 64V | 71.1V | 103V | 14.6A | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMCJ) |
|
|
SMCJ33CATVS DIODE 33VWM 53.3VC DO214AB |
44,664 |
|
Datasheet |
DO-214AB, SMC | SMCJ | Tape & Reel (TR) | Active | Zener | - | 1 | 33V | 36.7V | 53.3V | 28.2A | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMCJ) |
|
|
SMCJ36CATVS DIODE 36VWM 58.1VC DO214AB |
27,450 |
|
Datasheet |
DO-214AB, SMC | SMCJ | Tape & Reel (TR) | Active | Zener | - | 1 | 36V | 40V | 58.1V | 25.9A | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMCJ) |
