BOM Upload
TVS Diodes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ESD9L3.3ST5GTVS DIODE 3.3VWM 9VC SOD923 |
111,245 |
|
Datasheet |
SOD-923 | - | Tape & Reel (TR) | Active | Zener | 1 | - | 3.3V (Max) | 4.8V | 9V | - | - | No | General Purpose | 0.5pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-923 |
|
SMAJ30CA-TRTVS DIODE 30VWM 64.3VC SMA |
70,124 |
|
Datasheet |
DO-214AC, SMA | SMAJ, TRANSIL™ | Tape & Reel (TR) | Active | Zener | - | 1 | 30V | 33.3V | 64.3V | 36A (8/20µs) | 400W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AC (SMA) |
|
PESD0402-240TVS DIODE 24VWM 40VC 0402 |
60,127 |
|
Datasheet |
0402 (1005 Metric) | - | Tape & Reel (TR) | Active | Zener | - | 1 | 24V | - | 40V (Typ) | - | - | - | Ethernet, HDMI | 0.25pF @ 1MHz | -55°C ~ 125°C | - | - | Surface Mount | 0402 |
|
TPD2EUSB30ADRTRTVS DIODE 3.6VWM 8VC SOT9X3 |
37,424 |
|
Datasheet |
3-SMD, SOT-23-3 Variant | - | Tape & Reel (TR) | Active | Zener | 2 | - | 3.6V (Max) | 4.5V | 8V | 1A (8/20µs) | 45W | Yes | General Purpose | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-3 |
|

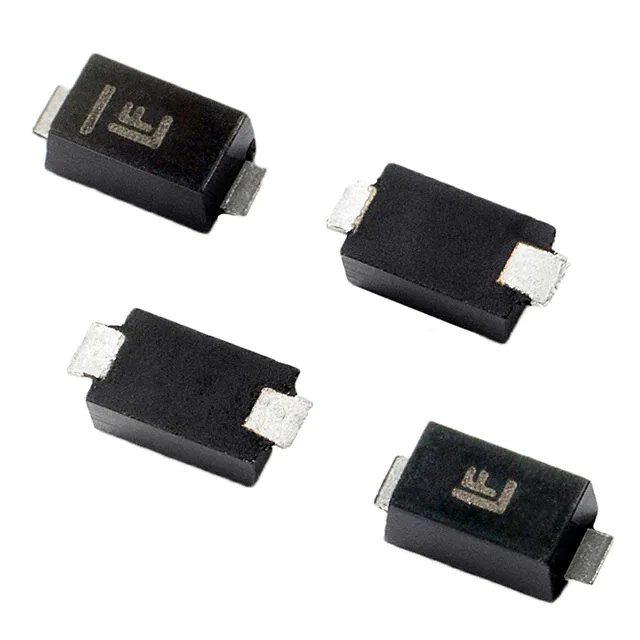

SMF4L36CATVS DIODE 36VWM 58.1VC SOD123FL |
27,689 |
|
Datasheet |
SOD-123F | SMF4L | Tape & Reel (TR) | Active | Zener | - | 1 | 36V | 40V | 58.1V | 6.9A | 400W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-123F |
|
|
SMF4L33CATVS DIODE 33VWM 53.3VC SOD123FL |
24,383 |
|
Datasheet |
SOD-123F | SMF4L | Tape & Reel (TR) | Active | Zener | - | 1 | 33V | 36.7V | 53.3V | 7.5A | 400W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-123F |
|
|
SMF4L30CATVS DIODE 30VWM 48.4VC SOD123FL |
20,209 |
|
Datasheet |
SOD-123F | SMF4L | Tape & Reel (TR) | Active | Zener | - | 1 | 30V | 33.3V | 48.4V | 8.3A | 400W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-123F |
|
SMCJ36ATVS DIODE 36VWM 58.1VC DO214AB |
13,784 |
|
Datasheet |
DO-214AB, SMC | SMCJ | Tape & Reel (TR) | Active | Zener | 1 | - | 36V | 40V | 58.1V | 25.9A | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMCJ) |
|
SP1003-01ETGTVS DIODE 5VWM 12VC SOD882 |
6,439 |
|
Datasheet |
SOD-882 | SP1003, SPA® | Tape & Reel (TR) | Active | Zener | 1 | - | 5V (Max) | 6V | 12V (Typ) | 7A (8/20µs) | - | No | - | - | -40°C ~ 125°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOD-882 |
|

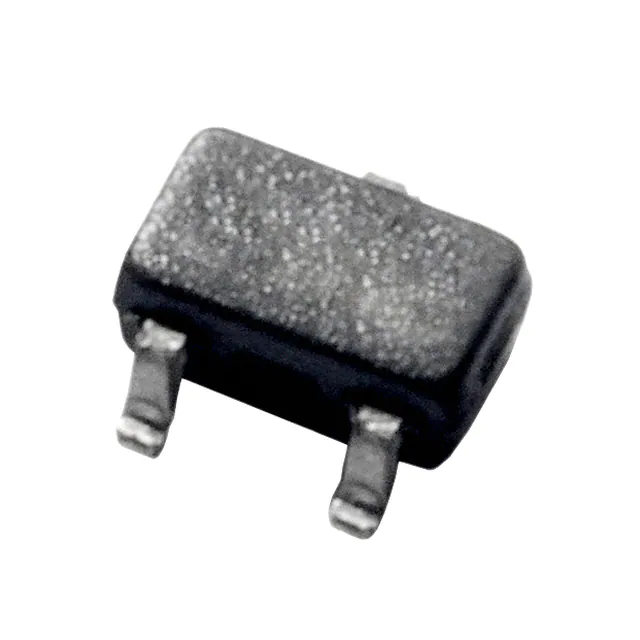

SP1001-02JTGTVS DIODE 5.5VWM 13VC SC70-3 |
279,673 |
|
Datasheet |
SC-70, SOT-323 | SP1001, SPA® | Tape & Reel (TR) | Active | Zener | 2 | - | 5.5V (Max) | 7V | 13V | 2A (8/20µs) | - | No | - | - | -40°C ~ 125°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SC-70-3 |
|
PESD3V3S4UD,115TVS DIODE 3.3VWM 12VC 6TSOP |
221,000 |
|
Datasheet |
SC-74, SOT-457 | - | Tape & Reel (TR) | Active | Zener | 4 | - | 3.3V (Max) | 5.3V | 12V | 20A (8/20µs) | 200W | No | General Purpose | 215pF @ 1MHz | -65°C ~ 150°C (TA) | Automotive | AEC-Q100 | Surface Mount | 6-TSOP |
|
PESD5V0S2BT,215TVS DIODE 5VWM 14VC TO236AB |
72,108 |
|
Datasheet |
TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Active | Zener | - | 2 | 5V (Max) | 5.5V | 14V | 12A (8/20µs) | 130W | No | General Purpose | 35pF @ 1MHz | -65°C ~ 150°C (TA) | Automotive | AEC-Q100 | Surface Mount | TO-236AB |
|

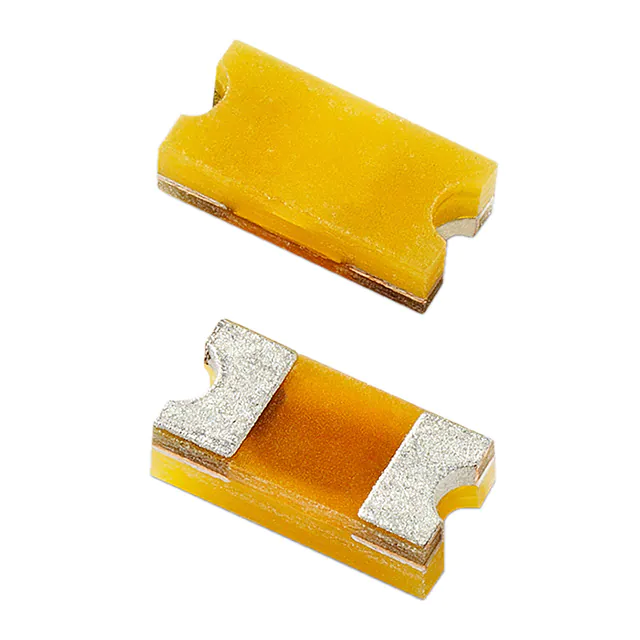

AXGD10402KRTVS DIODE 40VC 0402 |
53,968 |
|
Datasheet |
0402 (1005 Metric), Concave | XTREME-GUARD™ | Tape & Reel (TR) | Active | Zener | - | 1 | - | - | 40V (Typ) | - | - | No | - | 0.04pF @ 250MHz | -65°C ~ 125°C | Automotive | AEC-Q200 | Surface Mount | 0402 |
|
SD36C-01FTGTVS DIODE 36VWM 60VC SOD323 |
51,970 |
|
Datasheet |
SC-76, SOD-323 | SD-C, SPA® | Tape & Reel (TR) | Active | Zener | - | 1 | 36V (Max) | - | 60V | 5A (8/20µs) | 450W | No | - | 30pF @ 1MHz | -40°C ~ 125°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOD-323 |
|
USBLC6-2P6TVS DIODE 5.25VWM 17VC SOT666 |
48,877 |
|
Datasheet |
SOT-563, SOT-666 | USB | Tape & Reel (TR) | Active | Steering (Rail to Rail) | 2 | - | 5.25V | 6V | 17V | 5A (8/20µs) | - | Yes | USB | - | -40°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-666 |
|
NUP2301MW6T1GTVS DIODE 70VWM SC88/SC70-6 |
40,669 |
|
Datasheet |
6-TSSOP, SC-88, SOT-363 | - | Tape & Reel (TR) | Active | Steering (Rail to Rail) | - | 2 | 70V | 70V | - | - | - | No | General Purpose | 1.6pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SC-88/SC70-6/SOT-363 |
|
SMBJ24CAQ-13-FTVS DIODE 24VWM 38.9VC SMB |
35,092 |
|
Datasheet |
DO-214AA, SMB | - | Tape & Reel (TR) | Active | Zener | - | 1 | 24V | 26.7V | 38.9V | 15.4A | 600W | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SMB |
|
SRV05-4L-TPTVS DIODE 5VWM 17.5VC SOT23-6L |
18,737 |
|
Datasheet |
SOT-23-6 | - | Tape & Reel (TR) | Active | Steering (Rail to Rail) | 4 | - | 5V (Max) | 6V | 17.5V | 12A (8/20µs) | 350W | Yes | General Purpose | 1.5pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-23-6L |
|
ESDA7P120-1U1MTVS DIODE 5.5VWM 11.5VC 1610 |
5,076 |
|
Datasheet |
2-UDFN | ESDA | Tape & Reel (TR) | Active | Zener | 1 | - | 5.5V | 6.4V | 11.5V | 120A (8/20µs) | 1400W (1.4kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 1610 |
|
|
SMF4L28CATVS DIODE 28VWM 45.4VC SOD123F |
3,244 |
|
Datasheet |
SOD-123F | SMF4L | Tape & Reel (TR) | Active | Zener | - | 1 | 28V | 31.1V | 45.4V | 8.8A | 400W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-123F |
TVS Diodes Electronic Components
Explore TVS Diodes electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
