TVS Diodes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SMAJ12A-TRTVS DIODE 12VWM 25.3VC SMA |
24,384 |
|
Datasheet |
DO-214AC, SMA | SMAJ, TRANSIL™ | Tape & Reel (TR) | Active | Zener | 1 | - | 12V | 13.3V | 25.3V | 91A (8/20µs) | 400W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AC (SMA) |
|
SMAJ200CATVS DIODE 200VWM 324VC DO214AC |
18,472 |
|
Datasheet |
DO-214AC, SMA | SMAJ | Tape & Reel (TR) | Active | Zener | - | 2 | 200V | 224V | 324V | 1.2A | 400W | Yes | General Purpose | - | -55°C ~ 150°C | - | - | Surface Mount | DO-214AC (SMAJ) |
|
ESDA5V3LYTVS DIODE 3VWM 19VC SOT23-3 |
16,401 |
|
Datasheet |
TO-236-3, SC-59, SOT-23-3 | ESDAY, TRANSIL™ | Tape & Reel (TR) | Active | Zener | 2 | - | 3V | 5.3V | 19V | 25A (8/20µs) | 300W | No | - | - | -40°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOT-23-3 |
|
SMAJ30CAQ-13-FTVS DIODE 30VWM 48.4VC SMA |
15,899 |
|
Datasheet |
DO-214AC, SMA | - | Tape & Reel (TR) | Active | Zener | - | 1 | 30V | 33.3V | 48.4V | 8.3A | 400W | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SMA |
|
|
SMAJ36CAQ-13-FTVS DIODE 36VWM 58.1VC SMA |
15,895 |
|
Datasheet |
DO-214AC, SMA | - | Tape & Reel (TR) | Active | Zener | - | 1 | 36V | 40V | 58.1V | 6.9A | 400W | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SMA |
|
CM1213A-04SOTVS DIODE 3.3VWM 10VC SC74 |
11,259 |
|
Datasheet |
SC-74, SOT-457 | - | Tape & Reel (TR) | Active | Steering (Rail to Rail) | 4 | - | 3.3V | 6V | 10V (Typ) | 1A (8/20µs) | - | Yes | General Purpose | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | SC-74 |
|
TPD4E001DBVRTVS DIODE 5.5VWM SOT23-6 |
8,126 |
|
Datasheet |
SOT-23-6 | - | Tape & Reel (TR) | Active | Steering (Rail to Rail) | 4 | - | 5.5V (Max) | 11V | - | - | 100W | Yes | Ethernet | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-6 |
|
USBULC6-2M6TVS DIODE 5VWM 17VC 6UQFN |
7,404 |
|
Datasheet |
6-UFDFN | USB | Tape & Reel (TR) | Active | Steering (Rail to Rail) | 2 | - | 5V | 6V | 17V | 5A (8/20µs) | - | Yes | Ethernet | 0.95pF @ 1MHz | - | - | - | Surface Mount | 6-µQFN (1.45x1.0) |
|
IP4234CZ6,125TVS DIODE 5.5VWM 6TSOP |
215,644 |
|
Datasheet |
SC-74, SOT-457 | - | Tape & Reel (TR) | Active | Steering (Rail to Rail) | 4 | - | 5.5V | 6V | - | - | 100W | Yes | General Purpose | 2.5pF @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 6-TSOP |
|
SMBJ6.0A-TRTVS DIODE 6VWM 10.3VC SMB |
108,096 |
|
Datasheet |
DO-214AA, SMB | SMBJ, TRANSIL™ | Tape & Reel (TR) | Active | Zener | 1 | - | 6V | 6.7V | 10.3V | 61A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SMB |
|

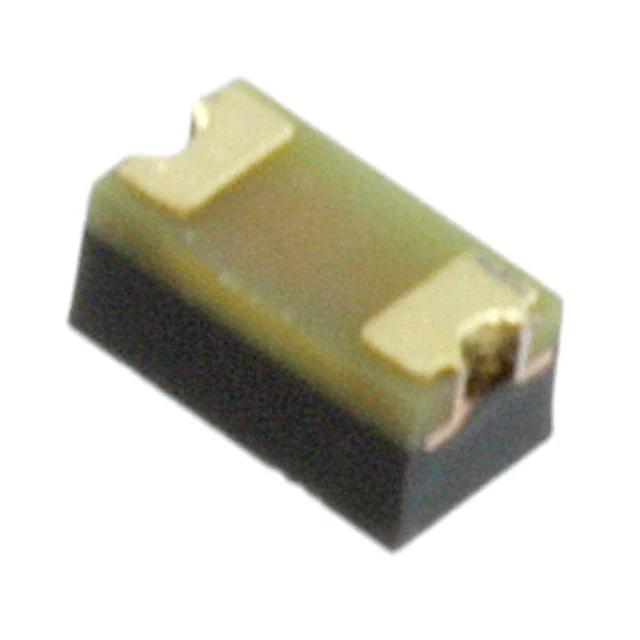

CPDU5V0TVS DIODE 5VWM 15VC 0603/SOD523F |
93,774 |
|
Datasheet |
2-SMD, No Lead | - | Tape & Reel (TR) | Active | Zener | - | 1 | 5V | 5.1V | 15V | 5A (8/20µs) | 75W | No | General Purpose | 15pF @ 1MHz | - | - | - | Surface Mount | 0603/SOD-523F |
|
|
SMAJ10ATVS DIODE 10VWM 17VC DO214AC |
57,906 |
|
Datasheet |
DO-214AC, SMA | SMAJ | Tape & Reel (TR) | Active | Zener | 1 | - | 10V | 11.1V | 17V | 23.5A | 400W | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AC (SMA) |
|
PUSB3AB4ZTVS DIODE 3.3VWM 5VC DFN2510A-10 |
41,915 |
|
Datasheet |
10-XFDFN | - | Tape & Reel (TR) | Active | Zener | - | 4 | 3.3V (Max) | 5.5V | 5V (Typ) | 7A (8/20µs) | - | No | General Purpose | 0.17pF @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | DFN2510A-10 |
|
ESD122DMYRTVS DIODE 3.6VWM 8.4VC 3X2SON |
32,959 |
|
Datasheet |
3-XFDFN | - | Tape & Reel (TR) | Active | Zener | - | 2 | 3.6V (Max) | 5.1V | 8.4V (Typ) | 2.5A (8/20µs) | 20W | No | HDMI, USB | 0.2pF @ 1MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 3-X2SON (1.3x0.6) |
|
|
SMBJ33A-TRTVS DIODE 33VWM 53.3VC SMB |
24,409 |
|
Datasheet |
DO-214AA, SMB | SMBJ, TRANSIL™ | Tape & Reel (TR) | Active | Zener | 1 | - | 33V | 36.7V | 53.3V | 11.8A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SMB |
|
ESD7004MUTAGTVS DIODE 5VWM 10VC 10UDFN |
16,650 |
|
Datasheet |
10-UFDFN | - | Tape & Reel (TR) | Active | Zener | 4 | - | 5V | 5.5V | 10V | 1A (8/20µs) | - | No | HDMI, USB | 0.4pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | 10-UDFN (2.5x1) |
|
|
IP4220CZ6,125TVS DIODE 5.5VWM 6TSOP |
14,878 |
|
Datasheet |
SC-74, SOT-457 | - | Tape & Reel (TR) | Active | Steering (Rail to Rail) | 4 | - | 5.5V (Max) | - | - | - | - | Yes | General Purpose | 1pF @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 6-TSOP |
|

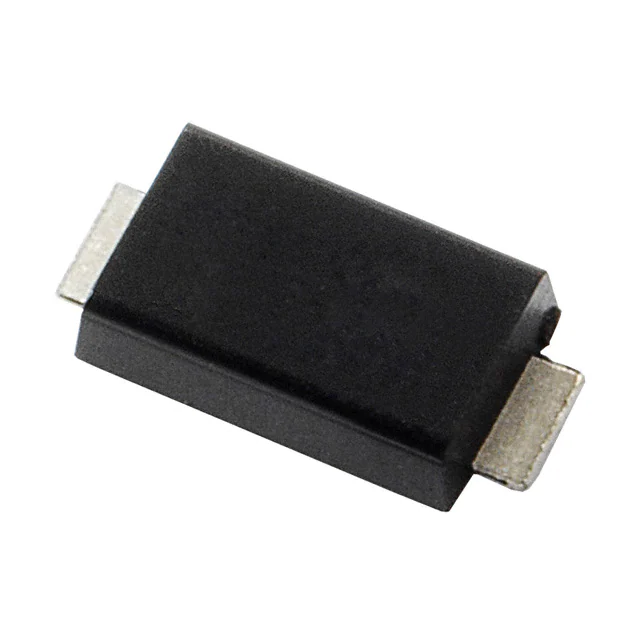

TPSMA6L30ATVS SMAF 30V 600W UNIDIR |
12,418 |
|
Datasheet |
DO-221AC, SMA Flat Leads | TPSMA6L | Tape & Reel (TR) | Active | Zener | 1 | - | 30V | 33.3V | 48.4V | 12.4A | 600W | No | - | - | -65°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-221AC |
;;2.jpg)
|
SMCJ58ATVS DIODE 58VWM 93.6VC DO214AB |
789,837 |
|
Datasheet |
DO-214AB, SMC | SMCJ | Tape & Reel (TR) | Active | Zener | 1 | - | 58V | 64.4V | 93.6V | 16.1A | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMCJ) |
|
1.5SMC36ATVS DIODE 30.8VWM 49.9VC DO214AB |
149,837 |
|
Datasheet |
DO-214AB, SMC | 1.5SMC | Tape & Reel (TR) | Active | Zener | 1 | - | 30.8V | 34.2V | 49.9V | 30.5A | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMCJ) |
TVS Diodes Electronic Components
Explore TVS Diodes electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
