TVS Diodes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DRTR5V0U4S-7TVS DIODE 5.5VWM SOT363 |
22,420 |
|
Datasheet |
6-TSSOP, SC-88, SOT-363 | - | Tape & Reel (TR) | Active | Steering (Rail to Rail) | 4 | - | 5.5V (Max) | 6V | - | - | - | Yes | HDMI | 0.6pF @ 1MHz | -65°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOT-363 |
|
SMAJ5.0A-TRTVS DIODE 5VWM 13.4VC SMA |
19,137 |
|
Datasheet |
DO-214AC, SMA | SMAJ, TRANSIL™ | Tape & Reel (TR) | Active | Zener | 1 | - | 5V | 6.4V | 13.4V | 174A (8/20µs) | 400W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AC (SMA) |
|

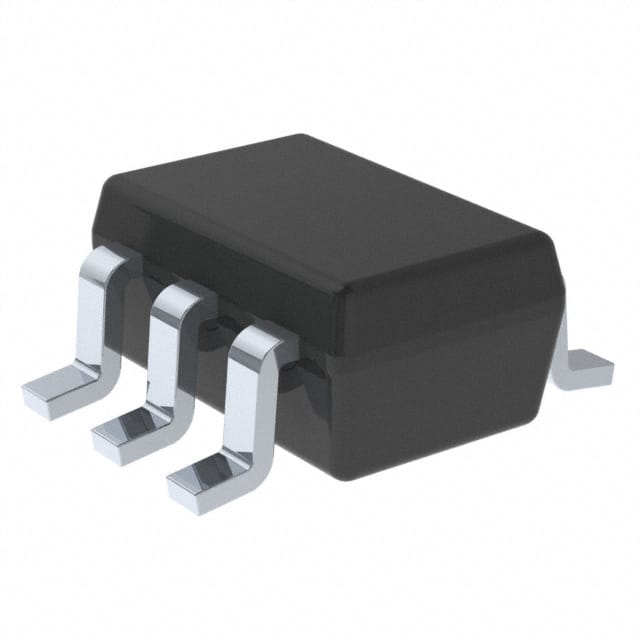

TPD4E1U06DCKRTVS DIODE 5.5VWM 15VC SC70-6 |
15,507 |
|
Datasheet |
6-TSSOP, SC-88, SOT-363 | - | Tape & Reel (TR) | Active | Steering (Rail to Rail) | 4 | - | 5.5V (Max) | 6.5V | 15V (Typ) | 3A (8/20µs) | 45W | Yes | Ethernet, HDMI | - | -40°C ~ 125°C (TA) | - | - | Surface Mount | SC-70-6 |
|
DF3D18FU,LFTVS DIODE 12VWM 33VC USM |
15,382 |
|
Datasheet |
SC-70, SOT-323 | - | Tape & Reel (TR) | Active | Zener | - | 2 | 12V | 16.2V | 33V | 2.5A (8/20µs) | 80W | No | - | 9pF @ 1MHz | - | - | - | Surface Mount | USM |
|
CUHZ5V6,H3F5.6 V ZENER DIODE, SOD-323HE |
8,999 |
|
Datasheet |
2-SMD, Flat Leads | CUHZ | Tape & Reel (TR) | Active | Zener | 1 | - | 5.6V | 5.3V | 5.7V (Typ) | 91A (8/20µs) | 1750W (1.75kW) | No | General Purpose | 860pF @ 1MHz | 150°C (TJ) | - | - | Surface Mount | US2H |
|
CPDU5V0USP-HFTVS DIODE 5VWM 25VC 0603/SOD523F |
102,633 |
|
Datasheet |
0603 (1608 Metric) | - | Tape & Reel (TR) | Active | Zener | 1 | - | 5V (Max) | 5.4V | 25V | 3A (8/20µs) | 75W | No | General Purpose | 0.6pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 0603/SOD-523F |
|
SMM4F24A-TRTVS DIODE 24VWM 50VC DO222-AA |
80,930 |
|
Datasheet |
DO-222AA | SMM4F, TRANSIL™ | Tape & Reel (TR) | Active | Zener | 1 | - | 24V | 26.6V | 50V | 46A (8/20µs) | 400W | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Surface Mount | DO222-AA |
|
ATV02W240B-HFTVS DIODE 24VWM 38.9VC SOD123 |
71,907 |
|
Datasheet |
SOD-123F | - | Tape & Reel (TR) | Active | Zener | - | 1 | 24V | 26.7V | 38.9V | 5.14A | 200W | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOD-123F |
|
NUP2114UPXV5T1GTVS DIODE 5VWM 10VC SOT553 |
54,266 |
|
Datasheet |
SOT-553 | - | Tape & Reel (TR) | Active | Steering (Rail to Rail) | 2 | - | 5V (Max) | 5.5V | 10V (Typ) | 8A (8/20µs) | - | Yes | General Purpose | 0.8pF @ 1MHz | -40°C ~ 125°C (TJ) | - | - | Surface Mount | SOT-553 |
|
|
ATV02W360B-HFTVS DIODE 36VWM 58.1VC SOD123 |
49,883 |
|
Datasheet |
SOD-123F | - | Tape & Reel (TR) | Active | Zener | - | 1 | 36V | 40V | 58.1V | 3.44A | 200W | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOD-123F |
|
SD15C-01FTGTVS DIODE 15VWM 31VC SOD323 |
44,530 |
|
Datasheet |
SC-76, SOD-323 | SD-C, SPA® | Tape & Reel (TR) | Active | Zener | - | 1 | 15V (Max) | - | 31V | 12A (8/20µs) | 450W | No | - | 75pF @ 1MHz | -40°C ~ 125°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOD-323 |
|
ATV02W120B-HFTVS DIODE 12VWM 19.9VC SOD123 |
42,566 |
|
Datasheet |
SOD-123F | - | Tape & Reel (TR) | Active | Zener | - | 1 | 12V | 13.3V | 19.9V | 10.05A | 200W | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOD-123F |
|
NUP4114UCW1T2GTVS DIODE 5.5VWM 10V SC88/SC70-6 |
41,656 |
|
Datasheet |
6-TSSOP, SC-88, SOT-363 | - | Tape & Reel (TR) | Active | Steering (Rail to Rail) | 4 | - | 5.5V (Max) | 5.5V | 10V | 8A (8/20µs) | - | Yes | General Purpose | 0.6pF @ 1MHz | -40°C ~ 125°C (TJ) | - | - | Surface Mount | SC-88/SC70-6/SOT-363 |
|
|
ATV02W330B-HFTVS DIODE 33VWM 53.3VC SOD123 |
25,996 |
|
Datasheet |
SOD-123F | - | Tape & Reel (TR) | Active | Zener | - | 1 | 33V | 36.7V | 53.3V | 3.75A | 200W | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOD-123F |
|
PTVS10VS1UR,115TVS DIODE 10VWM 17VC SOD123W |
25,842 |
|
Datasheet |
SOD-123W | - | Tape & Reel (TR) | Active | Zener | 1 | - | 10V | 11.1V | 17V | 23.5A | 400W | No | - | - | -55°C ~ 150°C (TA) | Automotive | AEC-Q101 | Surface Mount | SOD-123W |
|
DT1240A-08LP3810-7TVS DIODE 3.3VWM 10V U-DFN3810-9 |
22,615 |
|
Datasheet |
9-UDFN | - | Tape & Reel (TR) | Active | Steering (Rail to Rail) | 8 | - | 3.3V (Max) | 5V | 10V | 5.5A (8/20µs) | 55W | No | DVI, HDMI, USB | 0.6pF @ 1MHz | -55°C ~ 85°C (TA) | - | - | Surface Mount | U-DFN3810-9 (Type B) |
|
|
PTVS3V3S1UR,115TVS DIODE 3.3VWM 8VC SOD123W |
14,183 |
|
Datasheet |
SOD-123W | - | Tape & Reel (TR) | Active | Zener | 1 | - | 3.3V | 5.2V | 8V | 43.8A | 350W | No | - | - | -55°C ~ 150°C (TA) | Automotive | AEC-Q101 | Surface Mount | SOD-123W |
|
PESD12VL2BT,215TVS DIODE 12VWM 37VC TO236AB |
10,943 |
|
Datasheet |
TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Active | Zener | - | 2 | 12V (Max) | 14.2V | 37V | 5A (8/20µs) | 200W | No | General Purpose | 19pF @ 1MHz | -65°C ~ 150°C (TA) | Automotive | AEC-Q100 | Surface Mount | TO-236AB |
|
|
PTVS5V0S1UR,115TVS DIODE 5VWM 9.2VC SOD123W |
1,805 |
|
Datasheet |
SOD-123W | - | Tape & Reel (TR) | Active | Zener | 1 | - | 5V | 6.4V | 9.2V | 43.5A | 400W | No | - | - | -55°C ~ 150°C (TA) | Automotive | AEC-Q101 | Surface Mount | SOD-123W |
|
AOZ8904CILTVS DIODE 5.5VWM 18VC SOT23-6 |
1,605,364 |
|
Datasheet |
SOT-23-6 | - | Tape & Reel (TR) | Active | Steering (Rail to Rail) | 4 | - | 5.5V (Max) | 6.6V | 18V (Typ) | 4A (8/20µs) | 50W | Yes | General Purpose | 1.25pF @ 1MHz | -40°C ~ 125°C (TJ) | - | - | Surface Mount | SOT-23-6 |
