TVS Diodes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ESDCAN24-2BLYTVS DIODE 24VWM 40VC SOT23-3 |
115,521 |
|
Datasheet |
TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Active | Zener | - | 2 | 24V (Max) | 26.2V | 40V | 5.5A (8/20µs) | 230W | No | CAN | 30pF @ 1MHz | -40°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOT-23-3 |
|
PRTR5V0U2F,115TVS DIODE 5.5VWM 6XSON |
114,032 |
|
Datasheet |
6-XFDFN | - | Tape & Reel (TR) | Active | Steering (Rail to Rail) | 2 | - | 5.5V (Max) | 6V | - | - | - | Yes | - | 1pF @ 1MHz | -40°C ~ 85°C (TA) | Automotive | AEC-Q101 | Surface Mount | 6-XSON, SOT886 (1.45x1) |
|
PESD1CAN,215TVS DIODE 24VWM 70VC TO236AB |
94,828 |
|
Datasheet |
TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Not For New Designs | Zener | - | 2 | 24V (Max) | 25.4V | 70V | 3A (8/20µs) | 200W | No | CAN | 11pF @ 1MHz | -65°C ~ 150°C (TA) | Automotive | AEC-Q101 | Surface Mount | TO-236AB |
|
VBUS05L1-DD1-G-08TVS DIODE 5.5VWM 17VC LLP1006-2M |
84,955 |
|
Datasheet |
SOD-882 | - | Tape & Reel (TR) | Active | Zener | - | 1 | 5.5V (Max) | 7V | 17V | 2A (8/20µs) | 34W | No | General Purpose | 0.33pF @ 1MHz | -40°C ~ 125°C (TJ) | - | - | Surface Mount | LLP1006-2M |
|
SMF24A-E3-08TVS DIODE 24VWM 38.9VC SMF |
59,767 |
|
Datasheet |
DO-219AB | eSMP® | Tape & Reel (TR) | Active | Zener | 1 | - | 24V | 26.7V | 38.9V | 5.1A | 200W | No | General Purpose | 244pF @ 1MHz | -65°C ~ 175°C (TJ) | - | - | Surface Mount | DO-219AB (SMF) |
|
SMBJ15ATVS DIODE 15VWM 24.4VC DO214AA |
47,553 |
|
Datasheet |
DO-214AA, SMB | SMBJ | Tape & Reel (TR) | Active | Zener | 1 | - | 15V | 16.7V | 24.4V | 24.6A | 600W | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMBJ) |
|
SMBJ12ATVS DIODE 12VWM 19.9VC DO214AA |
46,891 |
|
Datasheet |
DO-214AA, SMB | SMBJ | Tape & Reel (TR) | Active | Zener | 1 | - | 12V | 13.3V | 19.9V | 30.2A | 600W | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMBJ) |
|

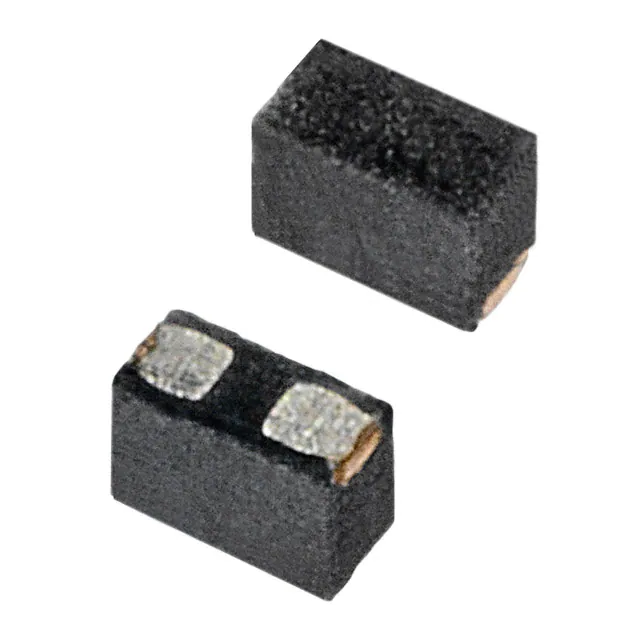

SP1006-01UTGTVS DIODE 6VWM 9.2VC 2UDFN |
30,500 |
|
Datasheet |
0201 (0603 Metric) | SP1006, SPA® | Tape & Reel (TR) | Active | Zener | 1 | - | 6V (Max) | 7.8V (Typ) | 9.2V | 5A (8/20µs) | - | No | General Purpose | - | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 2-uDFN |
|
ESD7C3.3DT5GTVS DIODE 3.3VWM SOT723 |
28,837 |
|
Datasheet |
SOT-723 | - | Tape & Reel (TR) | Active | Zener | 2 | - | 3.3V (Max) | 5V | - | - | - | No | General Purpose | 13pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-723 |
|
ESD7351HT1GTVS DIODE 3.3VWM SOD323 |
20,809 |
|
Datasheet |
SC-76, SOD-323 | - | Tape & Reel (TR) | Active | Zener | 1 | - | 3.3V (Max) | 5V | - | - | - | No | RF Antenna | 0.43pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-323 |
|
SMAJ26A-E3/61TVS DIODE 26VWM 42.1VC DO214AC |
5,438 |
|
Datasheet |
DO-214AC, SMA | TransZorb® | Tape & Reel (TR) | Active | Zener | 1 | - | 26V | 28.9V | 42.1V | 9.5A | 400W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AC (SMA) |
|
D1213A-04V-7TVS DIODE 3.3VWM 10VC SOT563 |
290,986 |
|
Datasheet |
SOT-563, SOT-666 | - | Tape & Reel (TR) | Active | Steering (Rail to Rail) | 4 | - | 3.3V | 6V | 10V (Typ) | 5A (8/20µs) | - | Yes | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOT-563 |
|
D1213A-04S-7TVS DIODE 3.3VWM 10VC SOT363 |
183,952 |
|
Datasheet |
6-TSSOP, SC-88, SOT-363 | - | Tape & Reel (TR) | Active | Steering (Rail to Rail) | 4 | - | 3.3V | 6V | 10V (Typ) | 1A (8/20µs) | - | Yes | - | - | -55°C ~ 150°C (TA) | Automotive | AEC-Q101 | Surface Mount | SOT-363 |
|
SMS12T1GTVS DIODE 12VWM 23VC SC74 |
106,379 |
|
Datasheet |
SC-74, SOT-457 | - | Tape & Reel (TR) | Active | Zener | 4 | - | 12V | 13.3V | 23V | 15A (8/20µs) | 350W | No | General Purpose | 80pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SC-74 |
|
|
SMBJ28ATVS DIODE 28VWM 45.4VC DO214AA |
87,849 |
|
Datasheet |
DO-214AA, SMB | SMBJ | Tape & Reel (TR) | Active | Zener | 1 | - | 28V | 31.1V | 45.4V | 13.3A | 600W | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMBJ) |
|
ESDALC6V1-1U2TVS DIODE 3VWM ST0201 |
82,762 |
|
Datasheet |
0201 (0603 Metric) | ESDA, TRANSIL™ | Tape & Reel (TR) | Active | Zener | 1 | - | 3V | 6.1V | - | - | 20W | No | General Purpose | 12pF @ 1MHz | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 0201 |
|
|
SMBJ24ATVS DIODE 24VWM 38.9VC DO214AA |
74,225 |
|
Datasheet |
DO-214AA, SMB | SMBJ | Tape & Reel (TR) | Active | Zener | 1 | - | 24V | 26.7V | 38.9V | 15.5A | 600W | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMBJ) |
|
ESD112B102ELE6327XTMA1TVS DIODE 5.3VWM 21VC TSLP-2-20 |
71,332 |
|
Datasheet |
0402 (1006 Metric) | - | Tape & Reel (TR) | Not For New Designs | Zener | - | 1 | 5.3V (Max) | 7V | 21V | 3A (8/20µs) | - | No | RF Antenna | 0.23pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | PG-TSLP-2-20 |
|
|
ESD101B102ELE6327XTMA1TVS DIODE 5.5VWM 30VC TSLP-2-20 |
58,063 |
|
Datasheet |
0402 (1006 Metric) | - | Tape & Reel (TR) | Not For New Designs | Zener | - | 1 | 5.5V (Max) | 7.3V (Typ) | 30V | 2A (8/20µs) | - | No | RF Antenna | 0.2pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | PG-TSLP-2-20 |
|
SMF30ATVS SOD123FL 30V 200W UNIDIR |
48,661 |
|
Datasheet |
SOD-123F | SMF | Tape & Reel (TR) | Active | Zener | 1 | - | 30V | 33.3V | 48.4V | 4.1A | 200W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-123F |
TVS Diodes Electronic Components
Explore TVS Diodes electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
