Rotary Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Number of Positions | Index Stops | Number of Decks | Number of Poles per Deck | Circuit per Deck | Contact Timing | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Length | Angle of Throw | Contact Material | Contact Finish | Mounting Type | Termination Style | Features | Depth Behind Panel |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

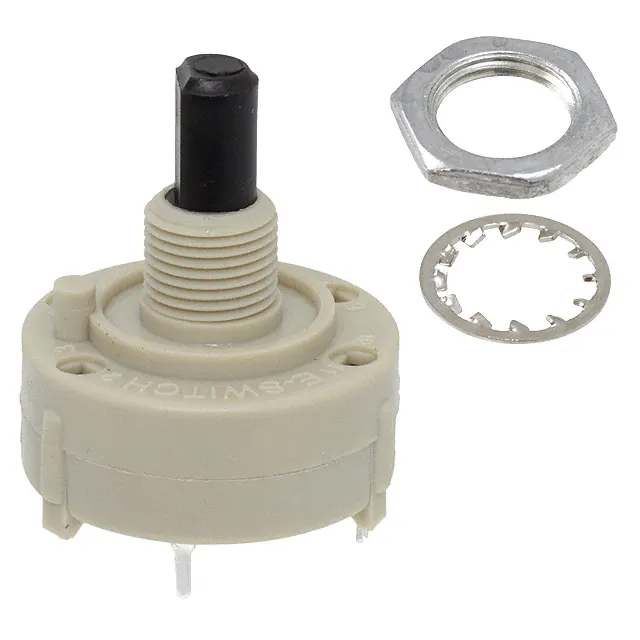

KC58A9.501NPSSWITCH ROTARY 4POS 350MA 125V |
0 |
|
Datasheet |
KC | Bulk | Obsolete | 4 | Fixed | 1 | 1 | SP4T | Non-Shorting (BBM) | 350mA (AC) | 125 V | - | Flatted (6.35mm Dia) | 9.50mm | 90° | Copper Alloy | Silver | Panel Mount, Through Hole | PC Pin | - | 14.20mm |
|
1-435304-1SWITCH ROTARY 16POS |
0 |
|
Datasheet |
6000 | Box | Active | 16 | Continuous | 1 | 1 | SP16T | Non-Shorting (BBM) | - | - | - | Knob | 3.81mm | 22.5° | Phosphor Bronze | Gold | Through Hole | PC Pin | - | - |
|
|
71BF36-02-2-04NSWITCH ROTARY 4POS 250MA 115V |
0 |
|
Datasheet |
71 | Bulk | Active | 4 | Fixed | 2 | 2 | DP4T | Non-Shorting (BBM) | 250mA (AC/DC) | 115 V | 30 V | Flatted (6.35mm Dia) | 9.53mm | 36° | Silver Alloy | - | Panel Mount, Through Hole, Right Angle | PC Pin | - | 24.87mm |
|

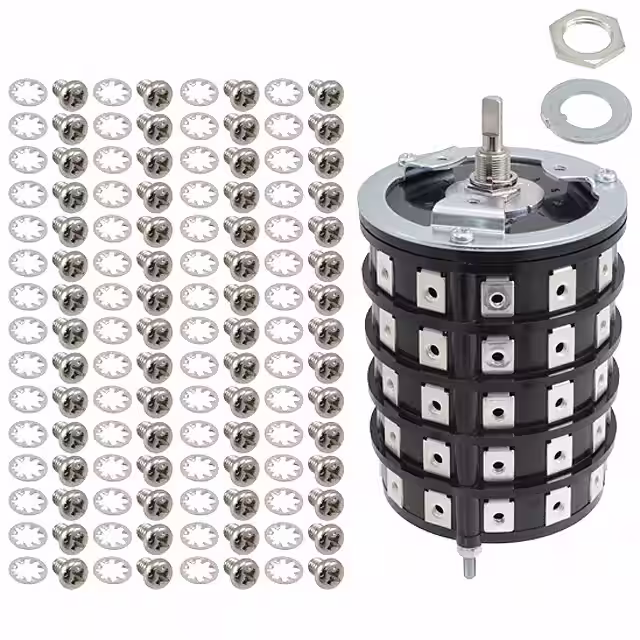

PS5NSWITCH ROTARY 2-11POS 30A 125V |
0 |
|
Datasheet |
PS | Box | Obsolete | 2 ~ 11 | Adjustable | 5 | 1 | SP11T | Non-Shorting (BBM) | 30A (AC) | 125 V | - | Flatted (6mm Dia) | 15.00mm | 30° | Silver Alloy | - | Panel Mount | Screw Terminal | - | 116.50mm |
|
HS13X-DSWITCH ROTARY 2POS 6A 125V |
0 |
|
Datasheet |
HS | Box | Obsolete | 2 | Fixed | 1 | 1 | SPDT | Non-Shorting (BBM) | 6A (AC), 5A (DC) | 125 V | 30 V | Flatted (6mm Dia) | 10.00mm | 45° | Phosphor Bronze | - | Panel Mount | Solder Lug | - | 20.00mm |
|
HS13Y-DSWITCH ROTARY 3POS 6A 125V |
0 |
|
Datasheet |
HS | Box | Obsolete | 3 | Fixed | 1 | 1 | SP3T | Non-Shorting (BBM) | 6A (AC), 5A (DC) | 125 V | 30 V | Flatted (6mm Dia) | 10.00mm | 45° | Phosphor Bronze | - | Panel Mount | Solder Lug | - | 20.00mm |
|
HS13Z-DSWITCH ROTARY 4POS 6A 125V |
0 |
|
Datasheet |
HS | Box | Obsolete | 4 | Fixed | 1 | 1 | SP4T | Non-Shorting (BBM) | 6A (AC), 5A (DC) | 125 V | 30 V | Flatted (6mm Dia) | 10.00mm | 45° | Phosphor Bronze | - | Panel Mount | Solder Lug | - | 20.00mm |
|
|
RBP12206B06CFSSWITCH ROTARY 6POS 130MA 28V |
0 |
|
Datasheet |
RBP12 | Tray | Obsolete | 6 | Fixed | 1 | 2 | DP6T | Shorting (MBB) | 130mA (DC) | - | 28 V | Screwdriver Slot | Flush | 30° | Silver (Ag) | - | Through Hole | PC Pin | - | - |
|
|
RBP12 112B12 N F SSWITCH ROTARY 12POS 130MA 28V |
0 |
|
Datasheet |
RBP12 | Tray | Obsolete | 12 | Fixed | 1 | 1 | SP12T | Non-Shorting (BBM) | 130mA (DC) | - | 28 V | Screwdriver Slot | Flush | 30° | Silver (Ag) | - | Through Hole | PC Pin | - | - |
|
|
RBP12403B03NFGSWITCH ROTARY 3POS 20MA 28V |
0 |
|
Datasheet |
RBP12 | Tray | Obsolete | 3 | Fixed | 1 | 4 | 4P3T | Non-Shorting (BBM) | 20mA (DC) | - | 28 V | Screwdriver Slot | Flush | 30° | Gold (Au) | - | Through Hole | PC Pin | - | - |
|
|
RBP12 602B02 N F SSWITCH ROTARY 2POS 130MA 28V |
0 |
|
Datasheet |
RBP12 | Tray | Obsolete | 2 | Fixed | 1 | 6 | 6PDT | Non-Shorting (BBM) | 130mA (DC) | - | 28 V | Screwdriver Slot | Flush | 30° | Silver (Ag) | - | Through Hole | PC Pin | - | - |
|
|
RBP12 304B04 N S SSWITCH ROTARY 4POS 130MA 28V |
0 |
|
Datasheet |
RBP12 | Tray | Obsolete | 4 | Fixed | 1 | 3 | 3P4T | Non-Shorting (BBM) | 130mA (DC) | - | 28 V | Round (6mm Dia), Slotted | 6.00mm | 30° | Silver (Ag) | - | Through Hole | PC Pin | - | - |
|
|
RBP12 403B03 N S SSWITCH ROTARY 3POS 130MA 28V |
0 |
|
Datasheet |
RBP12 | Tray | Obsolete | 3 | Fixed | 1 | 4 | 4P3T | Non-Shorting (BBM) | 130mA (DC) | - | 28 V | Round (6mm Dia), Slotted | 6.00mm | 30° | Silver (Ag) | - | Through Hole | PC Pin | - | - |
|
|
RBP12 304B04 N AD SSWITCH ROTARY 4POS 130MA 28V |
0 |
|
Datasheet |
RBP12 | Tray | Obsolete | 4 | Fixed | 1 | 3 | 3P4T | Non-Shorting (BBM) | 130mA (DC) | - | 28 V | Round (6mm Dia), Slotted | 20.00mm | 30° | Silver (Ag) | - | Through Hole | PC Pin | - | - |
|
|
RBP12 403B03 N AD SSWITCH ROTARY 3POS 130MA 28V |
0 |
|
Datasheet |
RBP12 | Tray | Obsolete | 3 | Fixed | 1 | 4 | 4P3T | Non-Shorting (BBM) | 130mA (DC) | - | 28 V | Round (6mm Dia), Slotted | 20.00mm | 30° | Silver (Ag) | - | Through Hole | PC Pin | - | - |
|

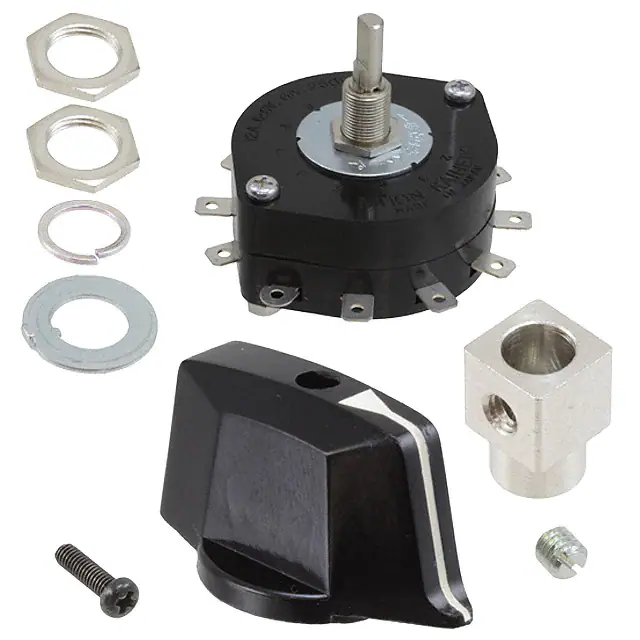

HS16-1N-AT432SWITCH ROTARY 2-11POS 12A 125V |
0 |
|
Datasheet |
HS | Box | Obsolete | 2 ~ 11 | Adjustable | 1 | 1 | SP11T | Non-Shorting (BBM) | 12A (AC) | 125 V | - | Knob | 15.00mm | 30° | Phosphor Bronze | - | Panel Mount | Solder Lug | - | 31.50mm |
|
HS16-1SWITCH ROTARY 2-11POS 12A 125V |
0 |
|
Datasheet |
HS | Box | Obsolete | 2 ~ 11 | Adjustable | 1 | 1 | SP11T | Non-Shorting (BBM) | 12A (AC) | 125 V | - | Knurled (6mm Dia) | 15.00mm | 30° | Phosphor Bronze | - | Panel Mount | Solder Lug | - | 31.50mm |
|

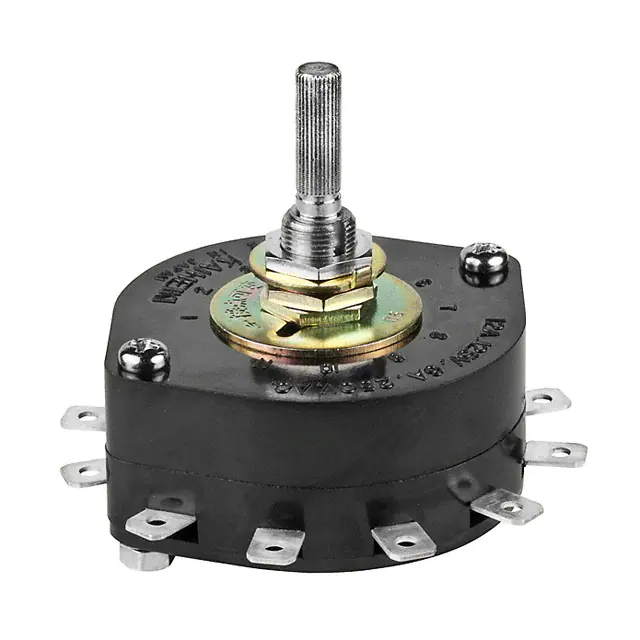

HS16-1SSWITCH ROTARY 2-11POS 12A 125V |
0 |
|
Datasheet |
HS | Box | Obsolete | 2 ~ 11 | Adjustable | 1 | 1 | SP11T | Shorting (MBB) | 12A (AC) | 125 V | - | Knurled (6mm Dia) | 15.00mm | 30° | Phosphor Bronze | - | Panel Mount | Solder Lug | - | 31.50mm |
|

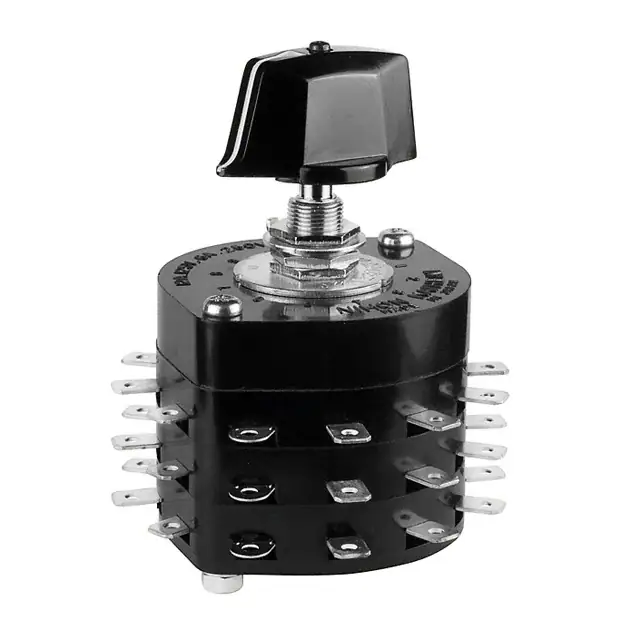

HS16-3N-AT432SWITCH ROTARY 2-11POS 12A 125V |
0 |
|
Datasheet |
HS | Box | Obsolete | 2 ~ 11 | Adjustable | 3 | 1 | SP11T | Non-Shorting (BBM) | 12A (AC) | 125 V | - | Knob | 15.00mm | 30° | Phosphor Bronze | - | Panel Mount | Solder Lug | - | 51.50mm |
|

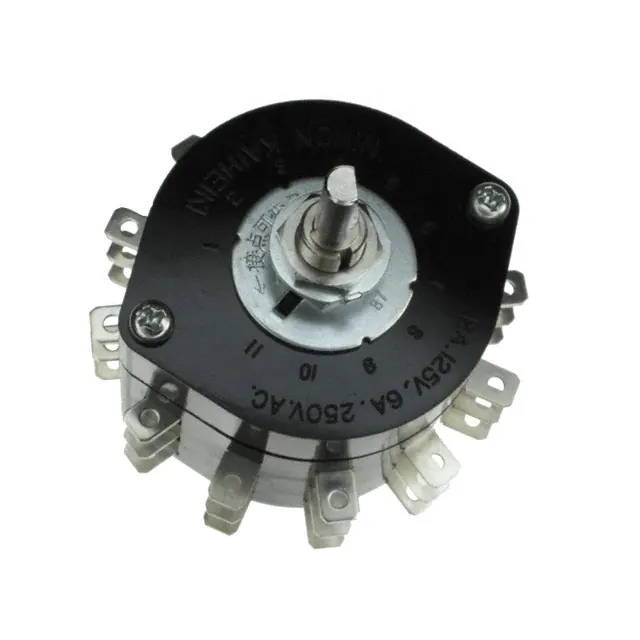

HS16-3SNSWITCH ROTARY 2-11POS 12A 125V |
0 |
|
Datasheet |
HS | Box | Obsolete | 2 ~ 11 | Adjustable | 3 | 1 | SP11T | Shorting (MBB) | 12A (AC) | 125 V | - | Flatted (6mm Dia) | 15.00mm | 30° | Phosphor Bronze | - | Panel Mount | Solder Lug | - | 51.50mm |
