Rotary Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Number of Positions | Index Stops | Number of Decks | Number of Poles per Deck | Circuit per Deck | Contact Timing | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Length | Angle of Throw | Contact Material | Contact Finish | Mounting Type | Termination Style | Features | Depth Behind Panel |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

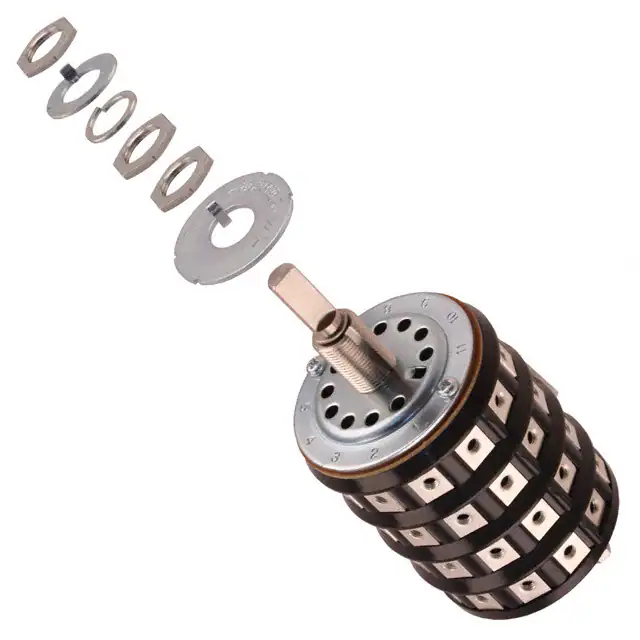

TS4NSWITCH ROTARY 2-11POS 6A 125V |
0 |
|
Datasheet |
TS | Box | Obsolete | 2 ~ 11 | Adjustable | 4 | 1 | SP11T | Non-Shorting (BBM) | 6A (AC) | 125 V | - | Flatted (6mm Dia) | 15.60mm | 30° | Phosphor Bronze | - | Panel Mount | Screw Terminal | - | 58.00mm |
|
PS3SWITCH ROTARY 2-11POS 30A 125V |
0 |
|
Datasheet |
PS | Box | Obsolete | 2 ~ 11 | Adjustable | 3 | 1 | SP11T | Non-Shorting (BBM) | 30A (AC) | 125 V | - | Knurled (6mm Dia) | 15.00mm | 30° | Silver Alloy | - | Panel Mount | Screw Terminal | - | 81.50mm |
|

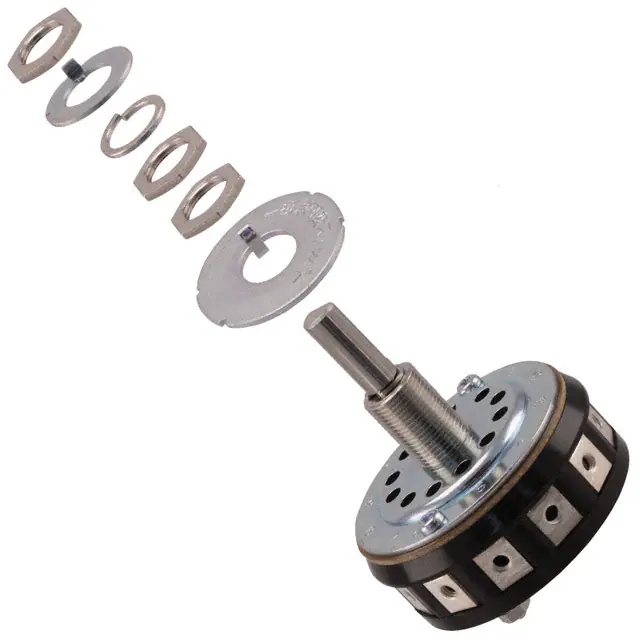

TS1NSWITCH ROTARY 2-11POS 6A 125V |
0 |
|
Datasheet |
TS | Box | Obsolete | 2 ~ 11 | Adjustable | 1 | 1 | SP11T | Non-Shorting (BBM) | 6A (AC) | 125 V | - | Flatted (6mm Dia) | 15.60mm | 30° | Phosphor Bronze | - | Panel Mount | Screw Terminal | - | 22.00mm |
|
HS16-3NSWITCH ROTARY 2-11POS 12A 125V |
0 |
|
Datasheet |
HS | Box | Obsolete | 2 ~ 11 | Adjustable | 3 | 1 | SP11T | Non-Shorting (BBM) | 12A (AC) | 125 V | - | Flatted (6mm Dia) | 15.00mm | 30° | Phosphor Bronze | - | Panel Mount | Solder Lug | - | 51.50mm |
|
|
MRA112-CCSWITCH ROTARY 2-12POS 250MA 125V |
0 |
|
Datasheet |
MR | Box | Obsolete | 2 ~ 12 | Adjustable | 1 | 1 | SP12T | Non-Shorting (BBM) | 250mA (AC) | 125 V | - | Knob | 15.80mm | 30° | Copper | Silver | Panel Mount, Through Hole | PC Pin | Process Sealed | 17.00mm |
|
MRA112-BBSWITCH ROTARY 2-12POS 250MA 125V |
0 |
|
Datasheet |
MR | Box | Obsolete | 2 ~ 12 | Adjustable | 1 | 1 | SP12T | Non-Shorting (BBM) | 250mA (AC) | 125 V | - | Knob | 14.30mm | 30° | Copper | Silver | Panel Mount, Through Hole | PC Pin | Process Sealed | 17.00mm |
|
KC43A01NPS16.3MMSWITCH ROTARY 3POS 350MA 125V |
0 |
|
Datasheet |
KC | Bulk | Active | 3 | Fixed | 1 | 4 | 4P3T | Non-Shorting (BBM) | 350mA (AC) | 125 V | - | Flatted (6.35mm Dia) | 8.00mm | 30° | Copper Alloy | Silver | Panel Mount, Through Hole | PC Pin | - | 14.20mm |
|
|
1-435174-1SWITCH ROTARY 8POS 125MA 115V |
0 |
|
Datasheet |
6000 | Bag | Active | 8 | Continuous | 1 | - | Octal | Non-Shorting (BBM) | 125mA (AC) | 115 V | - | Knob | 3.81mm | 45° | Phosphor Bronze | Gold | Through Hole | PC Pin | - | - |
|
2-435097-1SWITCH ROTARY 10POS |
0 |
|
Datasheet |
6000 | Bulk | Obsolete | 10 | Continuous | 1 | 1 | SP10T | Non-Shorting (BBM) | - | - | - | Knob | 3.81mm | 36° | Phosphor Bronze | Gold | Through Hole | PC Pin | - | - |
|

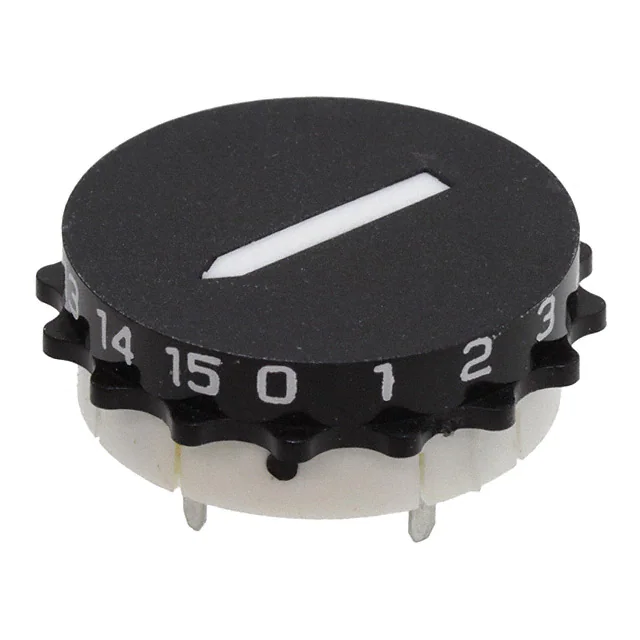

2-435167-1SWITCH ROTARY 16POS |
0 |
|
Datasheet |
6000 | Tray | Active | 16 | Continuous | 1 | - | Hexadecimal | Non-Shorting (BBM) | - | - | - | Thumbwheel | Flush | 15° | Phosphor Bronze | Gold | Through Hole | PC Pin | - | - |
|
|
435005-1SWITCH ROTARY 10POS 125MA 115V |
0 |
|
Datasheet |
6000 | Bulk | Active | 10 | Continuous | 1 | - | BCD | Non-Shorting (BBM) | 125mA (AC) | 115 V | - | Screwdriver Slot | Flush | 36° | Phosphor Bronze | Gold | Through Hole | PC Pin | - | - |
|
435986-1SWITCH ROTARY 16POS 125MA 115V |
0 |
|
Datasheet |
3100 | Tray | Active | 16 | Continuous | 1 | - | Hexadecimal | Not Specified | 125mA (AC) | 115 V | - | Flatted (6.35mm Dia) | 14.88mm | 22.5° | Phosphor Bronze | Gold | Panel Mount, Through Hole | PC Pin | - | 13.34mm |
|
|
435987-1SWITCH ROTARY 16POS 125MA 115V |
0 |
|
Datasheet |
3100 | Bag | Active | 16 | Continuous | 1 | - | Hexadecimal Complement | Not Specified | 125mA (AC) | 115 V | - | Flatted (6.35mm Dia) | 14.88mm | 22.5° | Phosphor Bronze | Gold | Panel Mount, Through Hole | PC Pin | - | 13.34mm |
|
|
436024-1SWITCH ROTARY 12POS 125MA 115V |
0 |
|
Datasheet |
3100 | Tray | Active | 12 | Continuous | 1 | - | BCD Complement | Not Specified | 125mA (AC) | 115 V | - | Flatted (6.35mm Dia) | 14.88mm | 30° | Phosphor Bronze | Gold | Panel Mount, Through Hole | PC Pin | - | 13.34mm |
|
|
436028-1SWITCH ROTARY 24POS 125MA 115V |
0 |
|
Datasheet |
3100 | Tray | Active | 24 | Continuous | 1 | - | BCD | Not Specified | 125mA (AC) | 115 V | - | Flatted (6.35mm Dia) | 14.88mm | 15° | Phosphor Bronze | Gold | Panel Mount, Through Hole | PC Pin | - | 13.34mm |
|
|
436287-1SWITCH ROTARY 32POS 125MA 115V |
0 |
|
Datasheet |
3100 | Bag | Active | 32 | Continuous | 1 | - | BCD | Not Specified | 125mA (AC) | 115 V | - | Flatted (6.35mm Dia) | 14.88mm | 11.25° | Phosphor Bronze | Gold | Panel Mount, Through Hole | PC Pin | - | 13.34mm |
|
|
MRJB11204SWITCH ROTARY 12POS 0.4VA 20V |
0 |
|
Datasheet |
MRJ | Bulk | Active | 12 | Continuous | 1 | 1 | SP12T | Non-Shorting (BBM) | 0.4VA (AC/DC) | 20 V | 20 V | Screwdriver Slot | 1.02mm | 30° | Nickel | Gold | Through Hole | PC Pin | Epoxy Sealed Terminals | 7.62mm |
|
|
57M22-08-1-16N-CSWITCH ROTARY 16POS 250MA 115V |
0 |
|
Datasheet |
57 | Bulk | Active | 16 | Continuous | 8 | 1 | SP16T | Non-Shorting (BBM) | 250mA (AC/DC) | 115 V | 30 V | Flatted (6.35mm Dia) | 11.10mm | 22.5° | Silver Alloy | Gold | Panel Mount | Solder Lug | - | 88.82mm |
|
|
50DP36-01-2-AJSSWITCH ROTARY 2-5POS 150MA 115V |
0 |
|
Datasheet |
50 | Bulk | Active | 2 ~ 5 | Adjustable | 1 | 2 | DP5T | Shorting (MBB) | 150mA (AC), 200mA (DC) | 115 V | 28 V | Flatted (3.17mm Dia) | 9.53mm | 36° | - | Gold | Panel Mount, Through Hole | PC Pin | - | 13.64mm |
|
|
71AD36-02-2-AJSSWITCH ROTARY 2-5POS 250MA 115V |
0 |
|
Datasheet |
71 | Bulk | Active | 2 ~ 5 | Adjustable | 2 | 2 | DP5T | Shorting (MBB) | 250mA (AC/DC) | 115 V | 30 V | Flatted (3.17mm Dia) | 9.53mm | 36° | Silver Alloy | - | Panel Mount | Solder Lug | - | 24.87mm |
