Rotary Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Number of Positions | Index Stops | Number of Decks | Number of Poles per Deck | Circuit per Deck | Contact Timing | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Length | Angle of Throw | Contact Material | Contact Finish | Mounting Type | Termination Style | Features | Depth Behind Panel |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MIL1110B10NSD25SWITCH ROTARY 10POS 20MA 50V |
0 |
|
Datasheet |
MIL | - | Obsolete | 10 | Fixed | 1 | 1 | SP10T | Non-Shorting (BBM) | 20mA (AC/DC) | 50 V | 50 V | Round (4mm Dia) | 25.00mm | 30° | Brass | Gold | Through Hole, Right Angle | PC Pin | Sealed - Fully | 17.78mm |
|
MIL1112SNSD25SWITCH ROTARY 12POS 20MA 50V |
0 |
|
Datasheet |
MIL | - | Obsolete | 12 | Continuous | 1 | 1 | SP12T | Non-Shorting (BBM) | 20mA (AC/DC) | 50 V | 50 V | Round (4mm Dia) | 25.00mm | 30° | Brass | Gold | Through Hole, Right Angle | PC Pin | Sealed - Fully | 17.78mm |
|
|
MIL1303B03NSD25SWITCH ROTARY 3POS 20MA 50V |
0 |
|
Datasheet |
MIL | - | Obsolete | 3 | Fixed | 1 | 3 | 3P3T | Non-Shorting (BBM) | 20mA (AC/DC) | 50 V | 50 V | Round (4mm Dia) | 25.00mm | 30° | Brass | Gold | Through Hole, Right Angle | PC Pin | Sealed - Fully | 17.78mm |
|

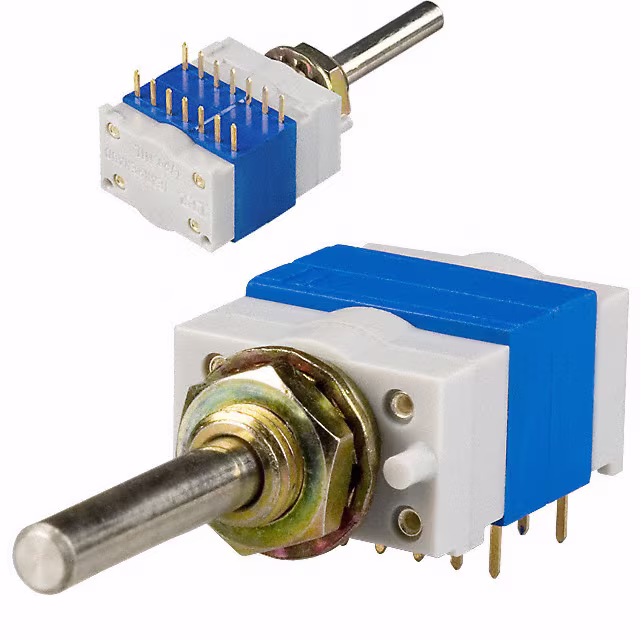

MIL1303B03NAD25SWITCH ROTARY 3POS 20MA 50V |
0 |
|
Datasheet |
MIL | - | Obsolete | 3 | Fixed | 1 | 3 | 3P3T | Non-Shorting (BBM) | 20mA (AC/DC) | 50 V | 50 V | Round (4mm Dia) | 25.00mm | 30° | Brass | Gold | Panel Mount, Through Hole, Right Angle | PC Pin | Sealed - Fully | 17.78mm |
|

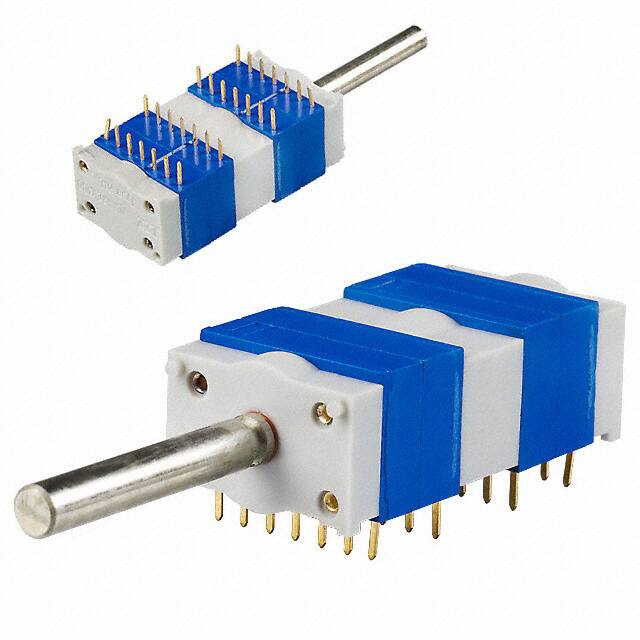

MIL2112B12NSD25SWITCH ROTARY 12POS 20MA 50V |
0 |
|
Datasheet |
MIL | - | Obsolete | 12 | Fixed | 2 | 1 | SP12T | Non-Shorting (BBM) | 20mA (AC/DC) | 50 V | 50 V | Round (4mm Dia) | 25.00mm | 30° | Brass | Gold | Through Hole, Right Angle | PC Pin | Sealed - Fully | 35.56mm |
|
|
42H36-09-1-10NSWITCH ROTARY 10POS 1A 115V |
0 |
|
Datasheet |
42 | Bulk | Active | 10 | Continuous | 9 | 1 | SP10T | Non-Shorting (BBM) | 1A (AC/DC) | 115 V | 28 V | Flatted (6.35mm Dia) | 11.10mm | 36° | Silver Alloy | - | Panel Mount | Solder Lug | - | 102.69mm |
|
|
KC43A10.001SPSSWITCH ROTARY 3POS 350MA 125V |
0 |
|
Datasheet |
KC | Bulk | Active | 3 | Fixed | 1 | 4 | 4P3T | Shorting (MBB) | 350mA (AC) | 125 V | - | Flatted (6.35mm Dia) | 10.00mm | 30° | Copper Alloy | Silver | Panel Mount, Through Hole | PC Pin | - | 14.20mm |
|
HS13ZSWITCH ROTARY 4POS 6A 125V |
0 |
|
Datasheet |
HS | Tray | Obsolete | 4 | Fixed | 1 | 1 | SP4T | Non-Shorting (BBM) | 6A (AC), 5A (DC) | 125 V | 30 V | Round (6mm Dia) | 10.00mm | 45° | Phosphor Bronze | - | Panel Mount | Solder Lug | - | 20.00mm |
|

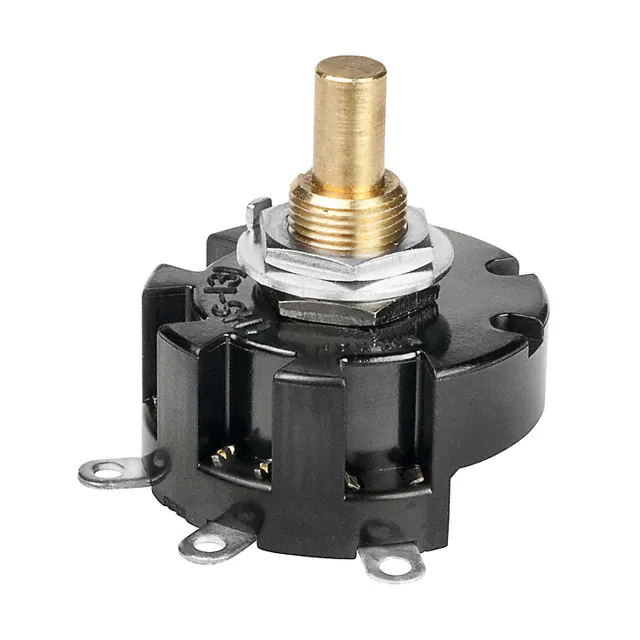

HS13XSWITCH ROTARY 2POS 6A 125V |
0 |
|
Datasheet |
HS | Box | Obsolete | 2 | Fixed | 1 | 1 | SPDT | Non-Shorting (BBM) | 6A (AC), 5A (DC) | 125 V | 30 V | Round (6mm Dia) | 10.00mm | 45° | Phosphor Bronze | - | Panel Mount | Solder Lug | - | 20.00mm |
|
HS13YSWITCH ROTARY 3POS 6A 125V |
0 |
|
Datasheet |
HS | Box | Obsolete | 3 | Fixed | 1 | 1 | SP3T | Non-Shorting (BBM) | 6A (AC), 5A (DC) | 125 V | 30 V | Round (6mm Dia) | 10.00mm | 45° | Phosphor Bronze | - | Panel Mount | Solder Lug | - | 20.00mm |
|

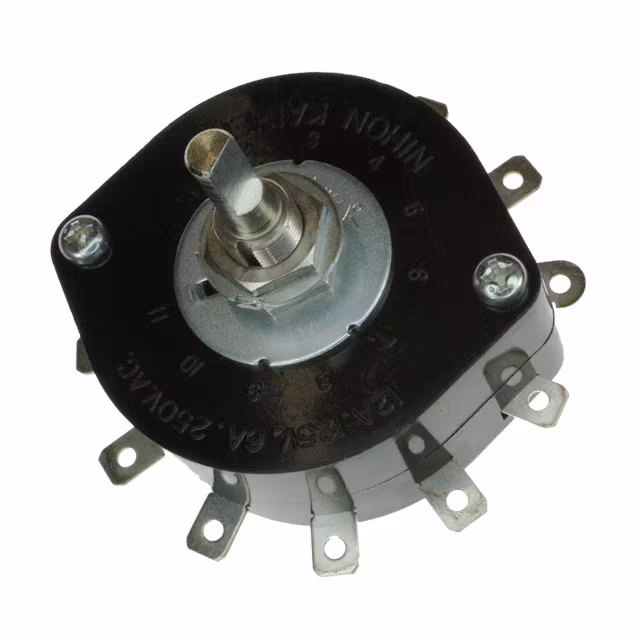

HS16-1SNSWITCH ROTARY 2-11POS 12A 125V |
0 |
|
Datasheet |
HS | Box | Obsolete | 2 ~ 11 | Adjustable | 1 | 1 | SP11T | Shorting (MBB) | 12A (AC) | 125 V | - | Flatted (6mm Dia) | 15.00mm | 30° | Phosphor Bronze | - | Panel Mount | Solder Lug | - | 31.50mm |
|

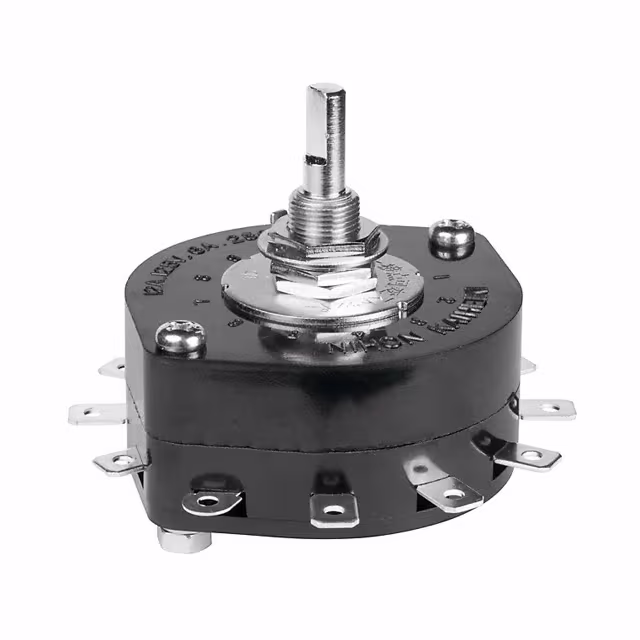

HS16-1NSWITCH ROTARY 2-11POS 12A 125V |
0 |
|
Datasheet |
HS | Box | Obsolete | 2 ~ 11 | Adjustable | 1 | 1 | SP11T | Non-Shorting (BBM) | 12A (AC) | 125 V | - | Flatted (6mm Dia) | 15.00mm | 30° | Phosphor Bronze | - | Panel Mount | Solder Lug | - | 31.50mm |
|
HS16-2NSWITCH ROTARY 2-11POS 12A 125V |
0 |
|
Datasheet |
HS | Box | Obsolete | 2 ~ 11 | Adjustable | 2 | 1 | SP11T | Non-Shorting (BBM) | 12A (AC) | 125 V | - | Flatted (6mm Dia) | 15.00mm | 30° | Phosphor Bronze | - | Panel Mount | Solder Lug | - | 41.50mm |
|
TS3NSWITCH ROTARY 2-11POS 6A 125V |
0 |
|
Datasheet |
TS | Box | Obsolete | 2 ~ 11 | Adjustable | 3 | 1 | SP11T | Non-Shorting (BBM) | 6A (AC) | 125 V | - | Flatted (6mm Dia) | 15.60mm | 30° | Phosphor Bronze | - | Panel Mount | Screw Terminal | - | 46.00mm |
|

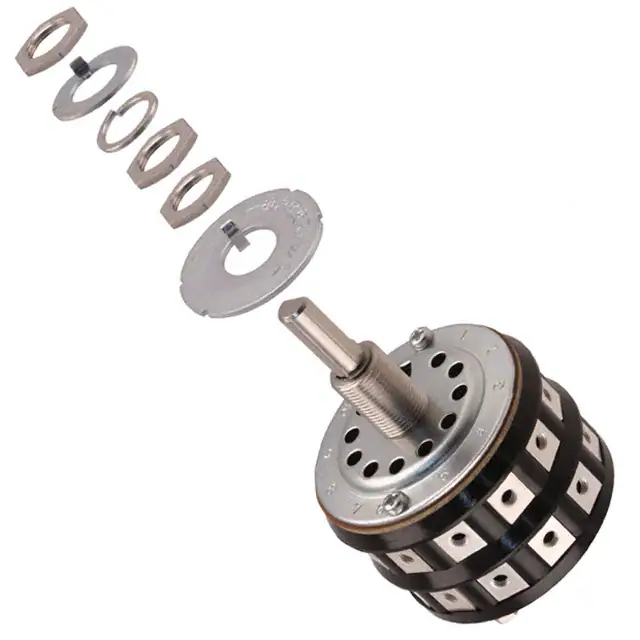

TS2NSWITCH ROTARY 2-11POS 6A 125V |
0 |
|
Datasheet |
TS | Box | Obsolete | 2 ~ 11 | Adjustable | 2 | 1 | SP11T | Non-Shorting (BBM) | 6A (AC) | 125 V | - | Flatted (6mm Dia) | 15.60mm | 30° | Phosphor Bronze | - | Panel Mount | Screw Terminal | - | 34.00mm |
|

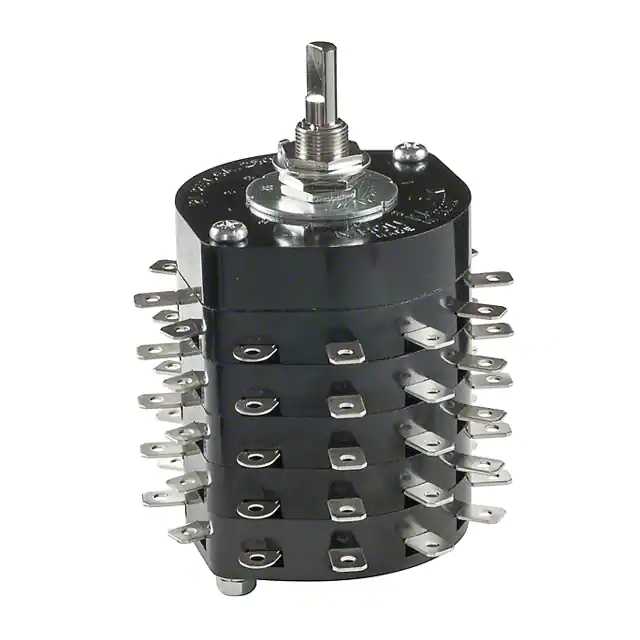

HS16-5NSWITCH ROTARY 2-11POS 12A 125V |
0 |
|
Datasheet |
HS | Box | Obsolete | 2 ~ 11 | Adjustable | 5 | 1 | SP11T | Non-Shorting (BBM) | 12A (AC) | 125 V | - | Flatted (6mm Dia) | 15.00mm | 30° | Phosphor Bronze | - | Panel Mount | Solder Lug | - | 71.50mm |
|

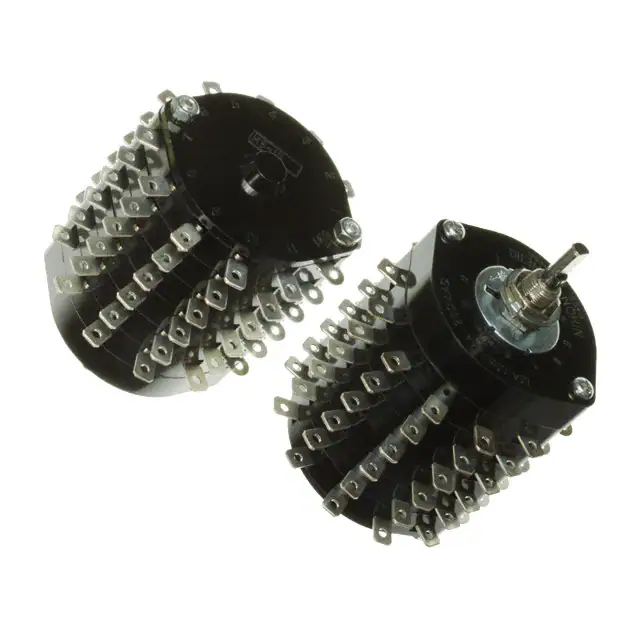

HS16-6NSWITCH ROTARY 2-11POS 12A 125V |
0 |
|
Datasheet |
HS | Box | Obsolete | 2 ~ 11 | Adjustable | 6 | 1 | SP11T | Non-Shorting (BBM) | 12A (AC) | 125 V | - | Flatted (6mm Dia) | 15.00mm | 30° | Phosphor Bronze | - | Panel Mount | Solder Lug | - | 81.50mm |
|

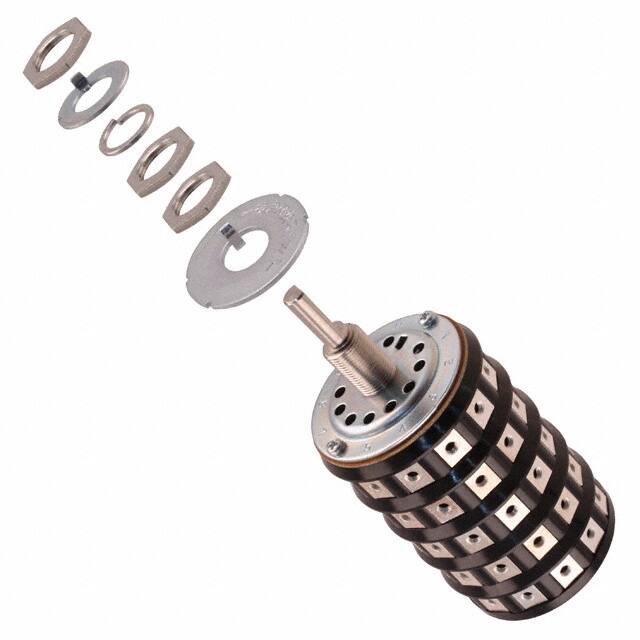

TS5NSWITCH ROTARY 2-11POS 6A 125V |
0 |
|
Datasheet |
TS | Box | Obsolete | 2 ~ 11 | Adjustable | 5 | 1 | SP11T | Non-Shorting (BBM) | 6A (AC) | 125 V | - | Flatted (6mm Dia) | 15.60mm | 30° | Phosphor Bronze | - | Panel Mount | Screw Terminal | - | 70.00mm |
|

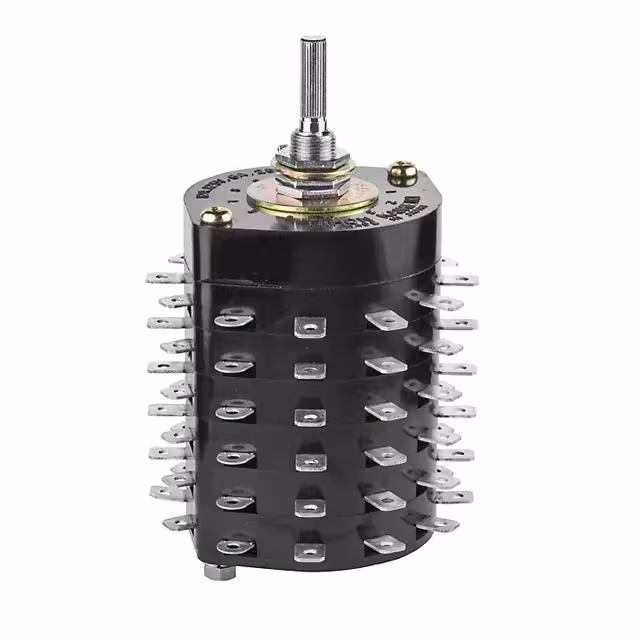

HS16-6SWITCH ROTARY 2-11POS 12A 125V |
0 |
|
Datasheet |
HS | Box | Obsolete | 2 ~ 11 | Adjustable | 6 | 1 | SP11T | Non-Shorting (BBM) | 12A (AC) | 125 V | - | Knurled (6mm Dia) | 15.00mm | 30° | Phosphor Bronze | - | Panel Mount | Solder Lug | - | 81.50mm |
|

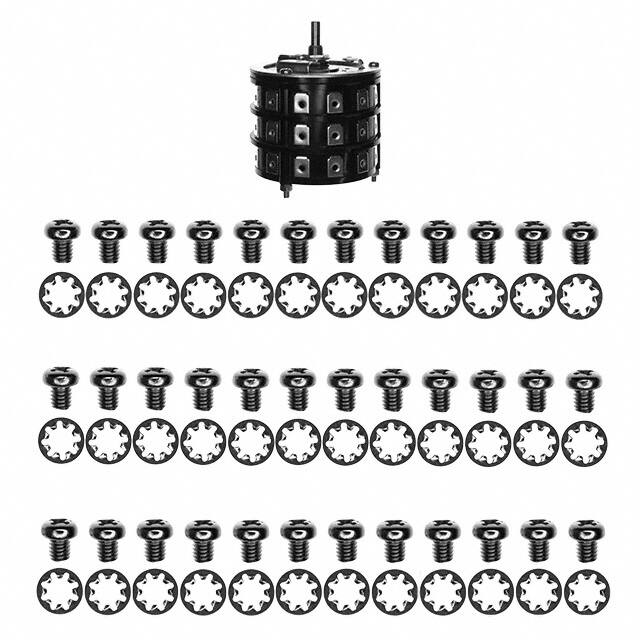

PS3NSWITCH ROTARY 2-11POS 30A 125V |
0 |
|
Datasheet |
PS | Box | Obsolete | 2 ~ 11 | Adjustable | 3 | 1 | SP11T | Non-Shorting (BBM) | 30A (AC) | 125 V | - | Flatted (6mm Dia) | 15.00mm | 30° | Silver Alloy | - | Panel Mount | Screw Terminal | - | 81.50mm |
Rotary Switches Electronic Components
Explore Rotary Switches electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
