Rotary Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Number of Positions | Index Stops | Number of Decks | Number of Poles per Deck | Circuit per Deck | Contact Timing | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Length | Angle of Throw | Contact Material | Contact Finish | Mounting Type | Termination Style | Features | Depth Behind Panel |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RM103772BCBSWITCH ROTARY 3POS 500MA 24V |
2,406 |
|
Datasheet |
RM | Tray | Active | 3 | Fixed | 1 | 1 | SP3T | Non-Shorting (BBM) | 500mA (DC) | - | 24 V | Flatted (4.2mm Dia), Slotted | 7.70mm | 45° | Brass | Gold | Through Hole | PC Pin | - | 7.37mm |
|
RM100772BCBSWITCH ROTARY 7POS 500MA 24V |
1,085 |
|
Datasheet |
RM | Tray | Active | 7 | Continuous | 1 | 1 | SP7T | Non-Shorting (BBM) | 500mA (DC) | - | 24 V | Flatted (4.2mm Dia), Slotted | 7.70mm | 45° | Brass | Gold | Through Hole | PC Pin | - | 7.37mm |
|
RM104772BCBSWITCH ROTARY 4POS 500MA 24V |
1,026 |
|
Datasheet |
RM | Tray | Active | 4 | Fixed | 1 | 1 | SP4T | Non-Shorting (BBM) | 500mA (DC) | - | 24 V | Flatted (4.2mm Dia), Slotted | 7.70mm | 45° | Brass | Gold | Through Hole | PC Pin | - | 7.37mm |
|
KC43A30.001NPSSWITCH ROTARY 3POS 350MA 125V |
1,665 |
|
Datasheet |
KC | Bulk | Active | 3 | Fixed | 1 | 4 | 4P3T | Non-Shorting (BBM) | 350mA (AC) | 125 V | - | Flatted (6.35mm Dia) | 30.00mm | 30° | Copper Alloy | Silver | Panel Mount, Through Hole | PC Pin | - | 14.20mm |
|
A10303RNZQSWITCH ROTARY 3POS 2.5A 125V |
9,432 |
|
Datasheet |
A | Bulk | Active | 3 | Fixed | 1 | 1 | SP3T | Non-Shorting (BBM) | 2.5A (AC), 350mA (DC) | 125 V | 125 V | Flatted (6.35mm Dia) | 9.53mm | 30° | Silver (Ag) | Silver | Panel Mount | Solder Lug | - | 20.83mm |
|
A10505RNZQSWITCH ROTARY 5POS 2.5A 125V |
766 |
|
Datasheet |
A | Tray | Active | 5 | Fixed | 1 | 1 | SP5T | Non-Shorting (BBM) | 2.5A (AC), 350mA (DC) | 125 V | 125 V | Flatted (6.35mm Dia) | 12.70mm | 30° | Silver (Ag) | Silver | Panel Mount | Solder Lug | - | 20.83mm |
|
KC52A10.001NPSSWITCH ROTARY 12POS 350MA 125V |
757 |
|
Datasheet |
KC | Bulk | Active | 12 | Fixed | 1 | 1 | SP12T | Non-Shorting (BBM) | 350mA (AC) | 125 V | - | Flatted (6.35mm Dia) | 10.00mm | 30° | Copper Alloy | Silver | Panel Mount, Through Hole | PC Pin | - | 14.20mm |
|
A11215RNCQSWITCH ROTARY 12POS 2.5A 125V |
1,625 |
|
Datasheet |
A | Tray | Active | 12 | Fixed | 1 | 1 | SP12T | Non-Shorting (BBM) | 2.5A (AC), 350mA (DC) | 125 V | 125 V | Flatted (6.35mm Dia) | 38.10mm | 30° | Silver (Ag) | Silver | Panel Mount, Through Hole | PC Pin | - | 14.48mm |
|
A11205RNCQSWITCH ROTARY 12POS 2.5A 125V |
483 |
|
Datasheet |
A | Tray | Active | 12 | Fixed | 1 | 1 | SP12T | Non-Shorting (BBM) | 2.5A (AC), 350mA (DC) | 125 V | 125 V | Flatted (6.35mm Dia) | 12.70mm | 30° | Silver (Ag) | Silver | Panel Mount, Through Hole | PC Pin | - | 14.48mm |
|
A11203RNCQSWITCH ROTARY 12POS 2.5A 125V |
538 |
|
Datasheet |
A | Tray | Active | 12 | Fixed | 1 | 1 | SP12T | Non-Shorting (BBM) | 2.5A (AC), 350mA (DC) | 125 V | 125 V | Flatted (6.35mm Dia) | 9.53mm | 30° | Silver (Ag) | Silver | Panel Mount, Through Hole | PC Pin | - | 14.48mm |
|
A20605RNCQSWITCH ROTARY 6POS 2.5A 125V |
440 |
|
Datasheet |
A | Tray | Active | 6 | Fixed | 1 | 2 | DP6T | Non-Shorting (BBM) | 2.5A (AC), 350mA (DC) | 125 V | 125 V | Flatted (6.35mm Dia) | 12.70mm | 30° | Silver (Ag) | Silver | Panel Mount, Through Hole | PC Pin | - | 14.48mm |
|
RTAP31S12M25NSSWITCH ROTARY 12POS 150MA 60V |
805 |
|
Datasheet |
RTA | Bag | Active | 12 | Fixed | 1 | 1 | SP12T | Non-Shorting (BBM) | 150mA (AC/DC) | 60 V | 60 V | Round (6mm Dia), Slotted | 25.00mm | 30° | Brass | Silver | Panel Mount, Through Hole | PC Pin | - | 12.60mm |
|
NR01105ANG13-2ASWITCH ROTARY 5POS 0.4VA 28V |
486 |
|
Datasheet |
NR01 | Bulk | Active | 5 | Fixed | 1 | 1 | SP5T | Non-Shorting (BBM) | 0.4VA (AC/DC) | 28 V | 28 V | Knob | 10.80mm | 45° | Beryllium Copper | Gold | Through Hole | PC Pin | - | 10.50mm |
|
MRK112-ASWITCH ROTARY 2-12POS 0.4VA 28V |
390 |
|
Datasheet |
MR | Box | Active | 2 ~ 12 | Adjustable | 1 | 1 | SP12T | Non-Shorting (BBM) | 0.4VA (AC/DC) | 28 V | 28 V | Knob | 13.00mm | 30° | Phosphor Bronze | Gold | Panel Mount, Through Hole | PC Pin | Process Sealed | 10.10mm |
|
MRK206-ASWITCH ROTARY 2-6POS 0.4VA 28V |
1,366 |
|
Datasheet |
MR | Box | Active | 2 ~ 6 | Adjustable | 1 | 2 | DP6T | Non-Shorting (BBM) | 0.4VA (AC/DC) | 28 V | 28 V | Knob | 13.00mm | 30° | Phosphor Bronze | Gold | Panel Mount, Through Hole | PC Pin | Process Sealed | 10.10mm |
|
MRK206SWITCH ROTARY 2-6POS 0.4VA 28V |
163 |
|
Datasheet |
MR | Box | Active | 2 ~ 6 | Adjustable | 1 | 2 | DP6T | Non-Shorting (BBM) | 0.4VA (AC/DC) | 28 V | 28 V | Flatted (3.17mm Dia) | 10.00mm | 30° | Phosphor Bronze | Gold | Panel Mount, Through Hole | PC Pin | Process Sealed | 10.10mm |
|

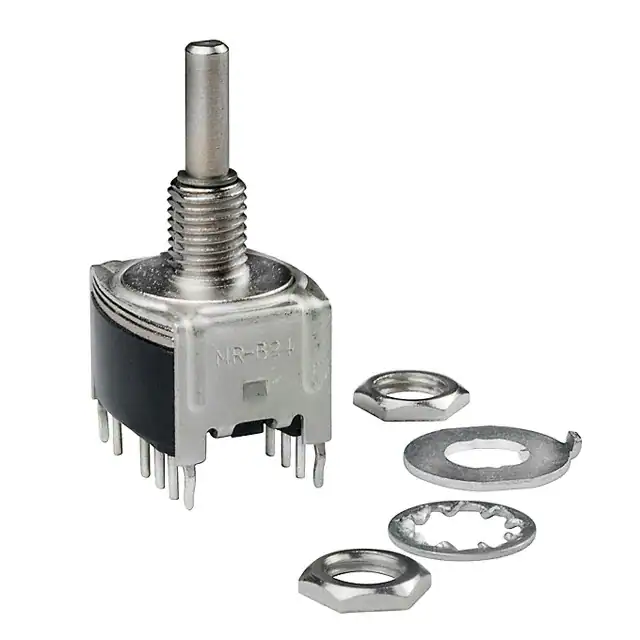

MRB24BSWITCH ROTARY 3POS 0.4VA 28V |
217 |
|
Datasheet |
MRB | Box | Active | 3 | Fixed | 1 | 2 | DP3T | Non-Shorting (BBM) | 0.4VA (AC/DC) | 28 V | 28 V | Flatted (3.17mm Dia) | 10.00mm | 45° | Beryllium Copper | Gold | Panel Mount, Through Hole | PC Pin | Sealed - Fully | 11.00mm |
|
MRY106-ASWITCH ROTARY 2-6POS 3A 125V |
3,339 |
|
Datasheet |
MR | Box | Active | 2 ~ 6 | Adjustable | 1 | 1 | SP6T | Non-Shorting (BBM) | 3A (AC), 2A (DC) | 125 V | 30 V | Knob | 13.00mm | 60° | Copper | Silver | Panel Mount | Solder Turret | Sealed - Flux Protection | 24.90mm |
|

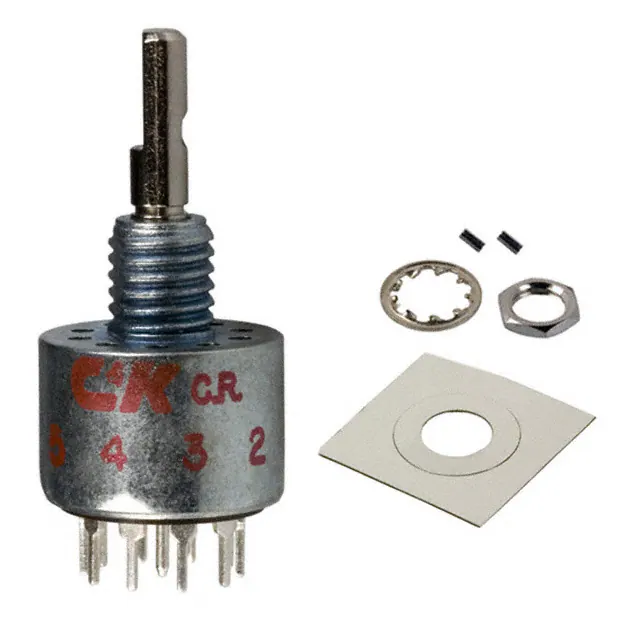

MC00L1NCQDSWITCH ROTARY 12POS 250MA 125V |
267 |
|
Datasheet |
M | Tray | Active | 12 | Continuous | 1 | 1 | SP12T | Non-Shorting (BBM) | 250mA (AC/DC) | 125 V | 28 V | Flatted (3.17mm Dia) | 10.16mm | 30° | Copper Alloy | Silver | Panel Mount, Through Hole | PC Pin | - | 10.42mm |
|
56DP36-01-1-AJNSWITCH ROTARY 2-10POS 200MA 115V |
249 |
|
Datasheet |
56 | Bulk | Active | 2 ~ 10 | Adjustable | 1 | 1 | SP10T | Non-Shorting (BBM) | 200mA (AC/DC) | 115 V | 30 V | Flatted (3.17mm Dia) | 9.53mm | 36° | Brass | Silver | Panel Mount, Through Hole | PC Pin | - | 9.58mm |
