Rocker Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Color - Actuator/Cap | Actuator Marking | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A8A-205-1SWITCH ROCKER DPST 16A 125V |
46 |
|
Datasheet |
A8A | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 16A (AC) | 125 V | - | Flat | Yellow | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | IP00 | - | Rectangular - 30.00mm x 22.00mm | -25°C ~ 50°C | CSA, EN, UL |
|
|
2636LHA232000L0SWITCH ROCKER SPDT 16A 125V |
14 |
|
Datasheet |
2600 | Tray | Active | Panel Mount, Snap-In | SPDT | On-On | 16A (AC), 15A (DC) | 125 V | 12 V | Concave (Curved) | Black | No Marking | - | - | Screw Terminal | - | - | Rectangular - 30.00mm x 22.00mm | -20°C ~ 85°C | CSA, NF, UL, VDE |
|

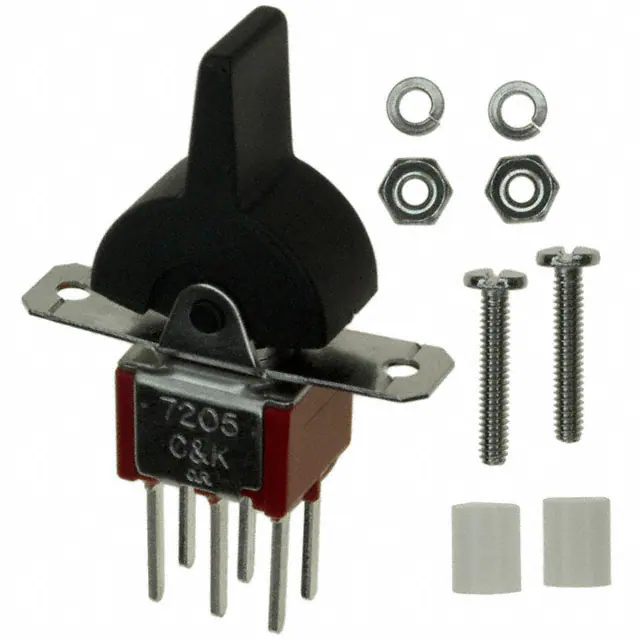

7205J2W3QE2SWITCH ROCKER DPDT 5A 120V |
72 |
|
Datasheet |
7000 | Tray | Active | Panel Mount, Flange | DPDT | Mom-Off-Mom | 5A (AC/DC) | 120 V | 28 V | Paddle | Black | No Marking | - | - | Wire Wrap | - | Epoxy Sealed Terminals | Rectangular - 17.96mm x 10.62mm | -30°C ~ 85°C | cULus |
|
E207J1ZQE2SWITCH ROCKER DPDT 7.5A 125V |
51 |
|
Datasheet |
E | Bulk | Active | Panel Mount, Flange | DPDT | On-Off-Mom | 7.5A (AC/DC) | 125 V | 28 V | Concave (Standard V) | Black | No Marking | - | - | Solder Lug | - | Sealed - Flux Protection | Rectangular - 17.96mm x 10.62mm | -30°C ~ 85°C | cULus |
|
7211J60Z3QE2SWITCH ROCKER SP3T 5A 120V |
7 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount, Snap-In | SP3T | On-On-On | 5A (AC/DC) | 120 V | 28 V | Paddle | Black | No Marking | - | - | Quick Connect - 0.062" (1.5mm) | - | Jumper needed to achieve triple throw | Rectangular - 15.24mm x 12.70mm | -30°C ~ 85°C | cULus |
|

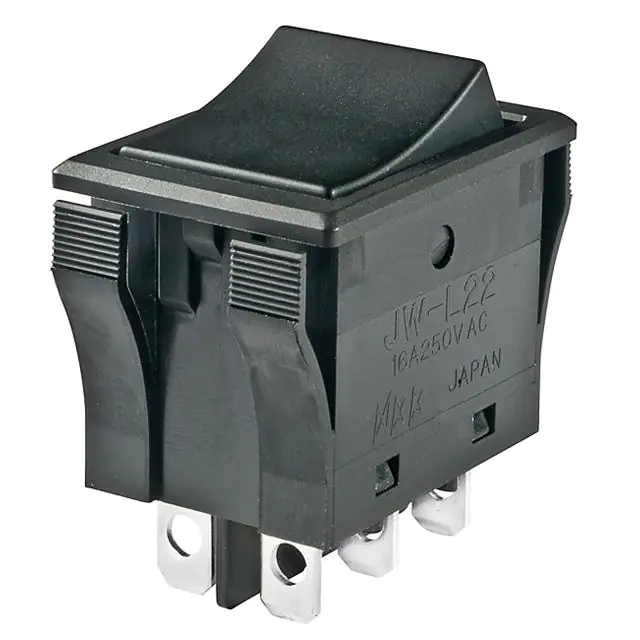

JWL22RAA/UCV-WLSWITCH ROCKER DPDT 16A 125V |
20 |
|
Datasheet |
JW | Box | Active | Panel Mount, Snap-In | DPDT | On-On | 16A (AC) | 125 V | - | Concave (Curved) | Black | No Marking | - | - | Solder, Quick Connect - 0.187" (4.7mm) | Dust Proof | - | Rectangular - 29.50mm x 20.50mm | -25°C ~ 70°C | CSA, UL, VDE |
|
KG412A2XXA21XXSWITCH ROCKER DPST 15A 12V |
40 |
|
Datasheet |
KG | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 15A (DC) | - | 12 V | Convex (Reverse V) | Black | No Marking | - | - | Solder, Quick Connect - 0.250" (6.3mm) | IP65 - Dust Tight, Water Resistant | - | Rectangular - 36.80mm x 21.08mm | -40°C ~ 85°C | - |
|
ET21J1AVBE2SWITCH ROCKER DPDT 0.4VA 20V |
80 |
|
Datasheet |
ET | Tray | Active | Through Hole, Right Angle, Vertical | DPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Concave (Curved) | Black | No Marking | - | - | PC Pin | - | Sealed - Flux Protection | - | -30°C ~ 85°C | cULus |
|
CWSB21CACF-WLSWITCH ROCKER DPST 9A 125V |
16 |
|
Datasheet |
CWSB | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 9A (AC) | 125 V | - | Concave (Curved) - Illuminated | Red | No Marking | Neon, Red | 125 VAC | Wire Leads | - | Audible Click | Rectangular - 19.20mm x 12.90mm | -20°C ~ 85°C | cULus |
|

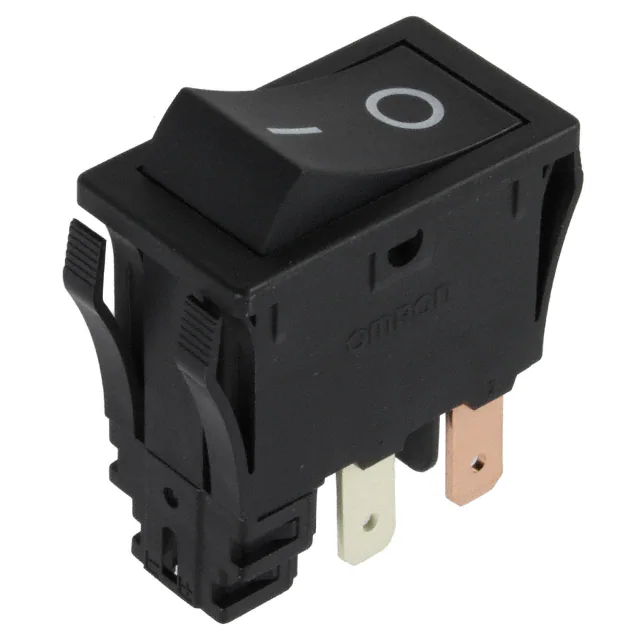

A8GS-P1285SWITCH ROCKER SPST 16A 125V |
49 |
|
Datasheet |
A8GS | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 16A (AC) | 125 V | - | Concave (Curved) | Black | O - | - | - | Quick Connect - 0.187" (4.7mm) | - | Remote Reset Function | Rectangular - 27.70mm x 15.20mm | -10°C ~ 55°C | cULus, EN, UL |
|
|
A8A2162SWITCH ROCKER DPST 16A 125V |
10 |
|
Datasheet |
A8A | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 16A (AC) | 125 V | - | Flat - Illuminated | Orange | No Marking | Neon, Orange | 110 VAC | Quick Connect - 0.250" (6.3mm) | IP00 | - | Rectangular - 30.00mm x 22.00mm | -25°C ~ 50°C | CSA, EN, UL |
|

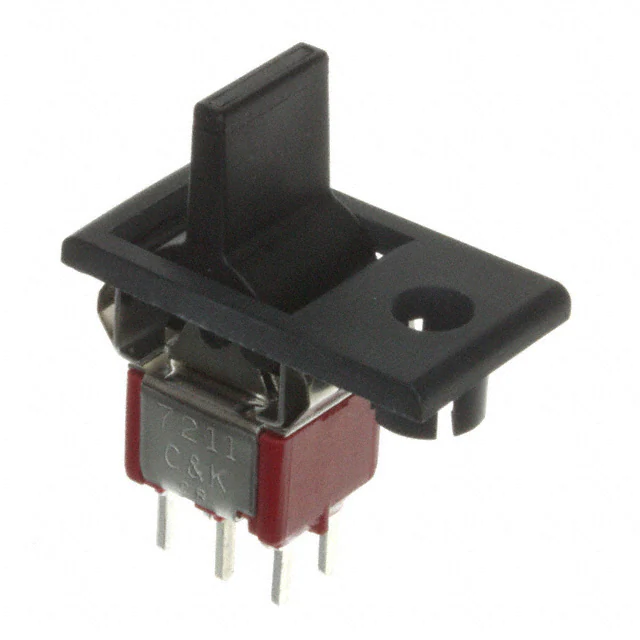

7211J62CQE22SWITCH ROCKER SP3T 5A 120V |
50 |
|
Datasheet |
7000 | Tray | Active | Panel Mount, Snap-In | SP3T | On-On-On | 5A (AC/DC) | 120 V | 28 V | Paddle - Illuminated | Black | No Marking | - | - | PC Pin | - | Jumper needed to achieve triple throw | Rectangular - 15.24mm x 12.70mm | -30°C ~ 85°C | cULus |
|
CWSB21FAFF-WLSWITCH ROCKER DPST 9A 125V |
7 |
|
Datasheet |
CWSB | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 9A (AC) | 125 V | - | Concave (Curved) - Illuminated | Green | No Marking | Neon, Green | 125 VAC | Wire Leads | - | Audible Click | Rectangular - 19.20mm x 12.90mm | -20°C ~ 85°C | cULus |
|
7201J90ZGE2SWITCH ROCKER DPDT 5A 120V |
28 |
|
Datasheet |
7000 | Bag | Active | Panel Mount, Snap-In | DPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Paddle | Black | No Marking | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 15.24mm x 12.70mm | -30°C ~ 85°C | cULus |
|
A8A-223-1SWITCH ROCKER DPST 16A 125V |
51 |
|
Datasheet |
A8A | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 16A (AC) | 125 V | - | Flat - Illuminated | Green | No Marking | Neon, Green | 220 VAC | Quick Connect - 0.250" (6.3mm) | IP00 | - | Rectangular - 30.00mm x 22.00mm | -25°C ~ 50°C | CSA, EN, UL |
|
7205J16CQE22SWITCH ROCKER DPDT 5A 120V |
7 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount, Snap-In | DPDT | Mom-Off-Mom | 5A (AC/DC) | 120 V | 28 V | Concave (Standard V) | Black | No Marking | - | - | PC Pin | - | Epoxy Sealed Terminals | Rectangular - 20.32mm x 12.70mm | -30°C ~ 85°C | cULus |
|
|
A8A-222SWITCH ROCKER DPST 16A 125V |
49 |
|
Datasheet |
A8A | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 16A (AC) | 125 V | - | Flat - Illuminated | Red | No Marking | Neon, Red | 220 VAC | Quick Connect - 0.250" (6.3mm) | IP00 | - | Rectangular - 30.00mm x 22.00mm | -25°C ~ 50°C | CSA, EN, UL |
|
7205J19ZQE12SWITCH ROCKER DPDT 5A 120V |
42 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount, Snap-In | DPDT | Mom-Off-Mom | 5A (AC/DC) | 120 V | 28 V | Concave (Curved) | White | No Marking | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 38.74mm x 16.46mm | -30°C ~ 85°C | cULus |
|

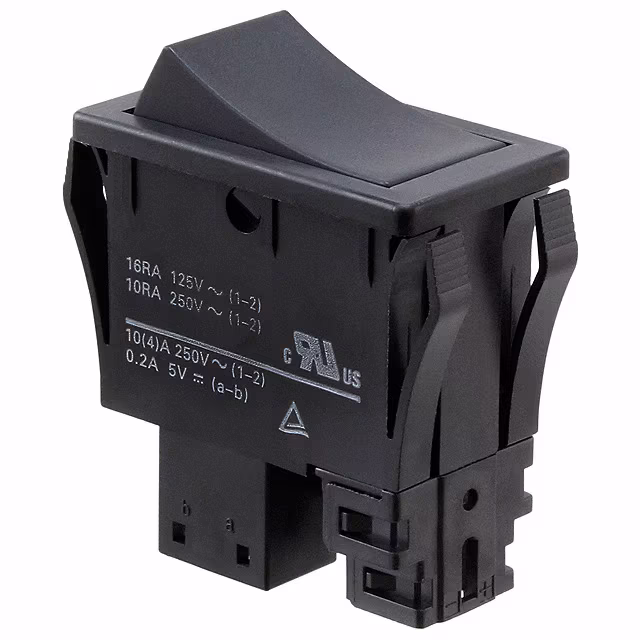

A8GS-C1185SWITCH ROCKER DPST 16A 125V |
45 |
|
Datasheet |
A8GS | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 16A (AC) | 125 V | - | Concave (Curved) | Black | No Marking | - | - | Connector, Quick Connect - 0.187" (4.7mm) | - | Remote Reset Function | Rectangular - 27.70mm x 15.20mm | -10°C ~ 55°C | cULus, EN, UL |
|

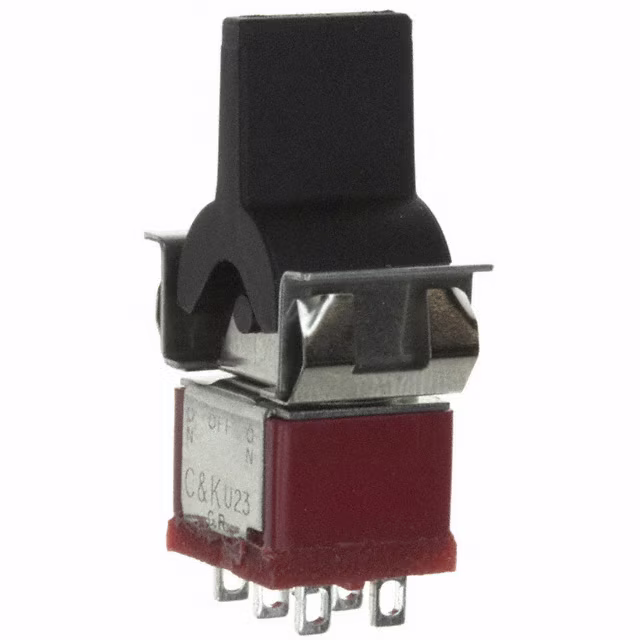

U23J60ZQI2SWITCH ROCKER DPDT 5A 120V |
40 |
|
Datasheet |
7000 | Tray | Active | Panel Mount, Snap-In | DPDT | On-Off-On | 5A (AC/DC) | 120 V | 28 V | Paddle | Black | No Marking | - | - | Solder Lug | - | Epoxy Potted | Rectangular - 15.24mm x 12.70mm | -30°C ~ 85°C | cULus |
