Rocker Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Color - Actuator/Cap | Actuator Marking | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
JWL11RAA/UCV-WLSWITCH ROCKER SPST 16A 125V |
8 |
|
Datasheet |
JW | Box | Active | Panel Mount, Snap-In | SPST | On-Off | 16A (AC) | 125 V | - | Concave (Curved) | Black | No Marking | - | - | Solder, Quick Connect - 0.187" (4.7mm) | Dust Proof | - | Rectangular - 29.50mm x 20.50mm | -25°C ~ 70°C | CSA, UL, VDE |
|
7401J1CBE2SWITCH ROCKER 4PDT 0.4VA 20V |
96 |
|
Datasheet |
7000 | Bulk | Active | Through Hole | 4PDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Concave (Standard V) | Black | No Marking | - | - | PC Pin | - | Epoxy Sealed Terminals | Rectangular - 17.96mm x 10.62mm | -30°C ~ 85°C | cULus |
|
JWM21BA2A/UC-A-WLSWITCH ROCKER DPST 10A 125V |
11 |
|
Datasheet |
JW | Box | Active | Panel Mount, Snap-In | DPST | On-Off | 10A (AC) | 125 V | - | Concave (Curved) | Black | O - | - | - | Wire Leads | Dust Proof | - | Rectangular - 24.00mm x 15.40mm | -25°C ~ 70°C | CSA, UL, VDE |
|
U15J19ZQE22SWITCH ROCKER SPDT 5A 120V |
80 |
|
Datasheet |
7000 | Tray | Active | Panel Mount, Snap-In | SPDT | Mom-Off-Mom | 5A (AC/DC) | 120 V | 28 V | Concave (Curved) | Black | No Marking | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 38.74mm x 16.46mm | -30°C ~ 85°C | cULus |
|

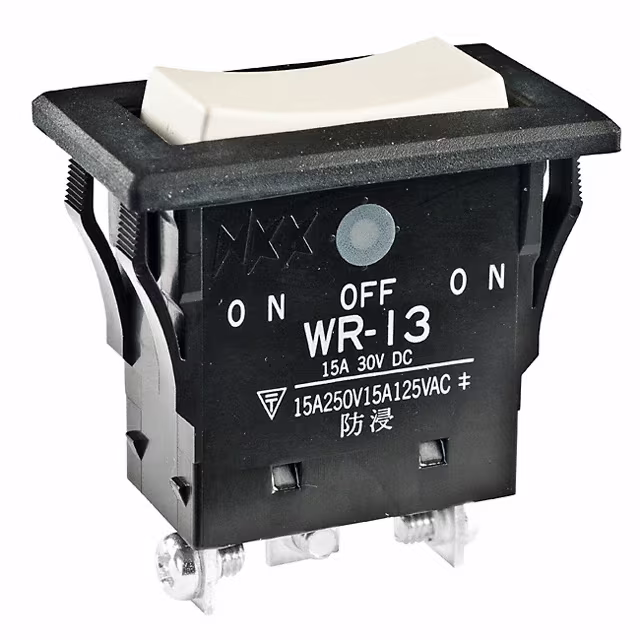

WR13BTSWITCH ROCKER SPDT 15A 125V |
3 |
|
Datasheet |
WR | Bulk | Active | Panel Mount, Snap-In | SPDT | On-Off-On | 15A (AC/DC) | 125 V | 30 V | Concave (Curved) | Ivory | No Marking | - | - | Screw Terminal | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | Rectangular - 34.20mm x 17.20mm | -25°C ~ 85°C | EN, UL |
|
KG462A2XXA21XXSWITCH ROCKER DPDT 15A 12V |
55 |
|
Datasheet |
KG | Bulk | Active | Panel Mount, Snap-In | DPDT | On-On | 15A (DC) | - | 12 V | Convex (Reverse V) | Black | No Marking | - | - | Solder, Quick Connect - 0.250" (6.3mm) | IP65 - Dust Tight, Water Resistant | - | Rectangular - 36.80mm x 21.08mm | -40°C ~ 85°C | - |
|
A8A-203-1SWITCH ROCKER DPST 16A 125V |
13 |
|
Datasheet |
A8A | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 16A (AC) | 125 V | - | Flat | Green | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | IP00 | - | Rectangular - 30.00mm x 22.00mm | -25°C ~ 50°C | CSA, EN, UL |
|
JWL21RC2A/UCV-WLSWITCH ROCKER DPST 16A 125V |
16 |
|
Datasheet |
JW | Box | Active | Panel Mount, Snap-In | DPST | On-Off | 16A (AC) | 125 V | - | Concave (Curved) | Red | O - | - | - | Solder, Quick Connect - 0.187" (4.7mm) | Dust Proof | - | Rectangular - 29.50mm x 20.50mm | -25°C ~ 70°C | CSA, UL, VDE |
|
JWM21RA1A/UCV-WLSWITCH ROCKER DPST 10A 125V |
17 |
|
Datasheet |
JW | Box | Active | Panel Mount, Snap-In | DPST | On-Off | 10A (AC) | 125 V | - | Concave (Curved) | Black | O I | - | - | Wire Leads | Dust Proof | - | Rectangular - 24.00mm x 15.40mm | -25°C ~ 70°C | CSA, UL, VDE |
|
|
KG492A2DXA246XSWITCH ROCKER DPDT 10A 12V |
40 |
|
Datasheet |
KG | Bulk | Active | Panel Mount, Snap-In | DPDT | On-Off-On | 10A (DC) | - | 12 V | Convex (Reverse V) - Illuminated | Black | No Marking | LED, Red | 12 VDC | Solder, Quick Connect - 0.250" (6.3mm) | IP65 - Dust Tight, Water Resistant | - | Rectangular - 36.80mm x 21.08mm | -10°C ~ 65°C | - |
|
A8GS-D1285SWITCH ROCKER DPST 16A 125V |
6 |
|
Datasheet |
A8GS | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 16A (AC) | 125 V | - | Concave (Curved) | Black | O - | - | - | Quick Connect - 0.187" (4.7mm) | - | Remote Reset Function | Rectangular - 27.70mm x 15.20mm | -10°C ~ 55°C | cULus, EN, UL |
|
A8A-222-1SWITCH ROCKER DPST 16A 125V |
50 |
|
Datasheet |
A8A | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 16A (AC) | 125 V | - | Flat - Illuminated | Red | No Marking | Neon, Red | 220 VAC | Quick Connect - 0.250" (6.3mm) | IP00 | - | Rectangular - 30.00mm x 22.00mm | -25°C ~ 50°C | CSA, EN, UL |
|

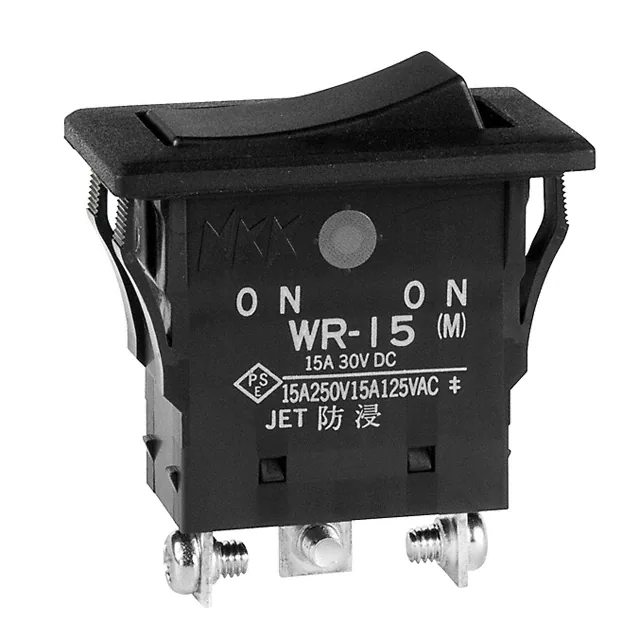

WR15ATSWITCH ROCKER SPDT 15A 125V |
9 |
|
Datasheet |
WR | Bulk | Active | Panel Mount, Snap-In | SPDT | On-Mom | 15A (AC/DC) | 125 V | 30 V | Concave (Curved) | Black | No Marking | - | - | Screw Terminal | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | Rectangular - 34.20mm x 17.20mm | -25°C ~ 85°C | EN, UL |
|
A8GS-D1185SWITCH ROCKER DPST 16A 125V |
36 |
|
Datasheet |
A8GS | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 16A (AC) | 125 V | - | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.187" (4.7mm) | - | Remote Reset Function | Rectangular - 27.70mm x 15.20mm | -10°C ~ 55°C | cULus, EN, UL |
|
|
KG412A2XDA26X6SWITCH ROCKER DPST 15A 12V |
38 |
|
Datasheet |
KG | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 15A (DC) | - | 12 V | Convex (Reverse V) - Illuminated | Black | No Marking | LED, Red | 12 VDC | Solder, Quick Connect - 0.250" (6.3mm) | IP65 - Dust Tight, Water Resistant | - | Rectangular - 36.80mm x 21.08mm | -40°C ~ 85°C | - |
|

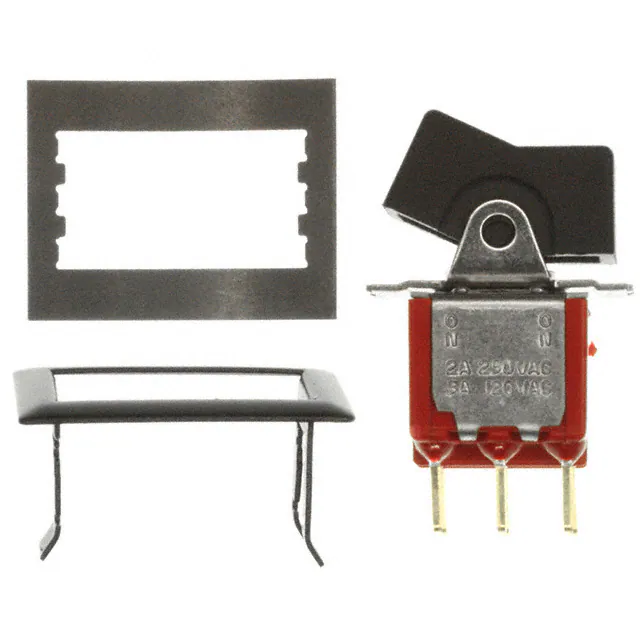

7301J11CQE22SWITCH ROCKER 3PDT 5A 120V |
10 |
|
Datasheet |
7000 | Tray | Active | Panel Mount, Snap-In | 3PDT | On-On | 5A (AC/DC) | 120 V | 28 V | Concave (Standard V) | Black | No Marking | - | - | PC Pin | - | Epoxy Sealed Terminals | Rectangular - 19.05mm x 10.41mm | -30°C ~ 85°C | cULus |
|
|
KG312A2DXD246XSWITCH ROCKER SPST 15A 12V |
27 |
|
Datasheet |
KG | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 15A (DC) | - | 12 V | Convex (Reverse V) - Illuminated | Black | No Marking | LED, Red | 12 VDC | Solder, Quick Connect - 0.250" (6.3mm) | IP65 - Dust Tight, Water Resistant | - | Rectangular - 36.80mm x 21.08mm | -40°C ~ 85°C | - |
|
E213J60V8QE2SWITCH ROCKER SP3T 7.5A 125V |
81 |
|
Datasheet |
E | Bulk | Active | Through Hole | SP3T | On-On-Mom | 7.5A (AC/DC) | 125 V | 28 V | Paddle | Black | No Marking | - | - | PC Pin | - | Jumper needed to achieve triple throw | - | -30°C ~ 85°C | cULus |
|

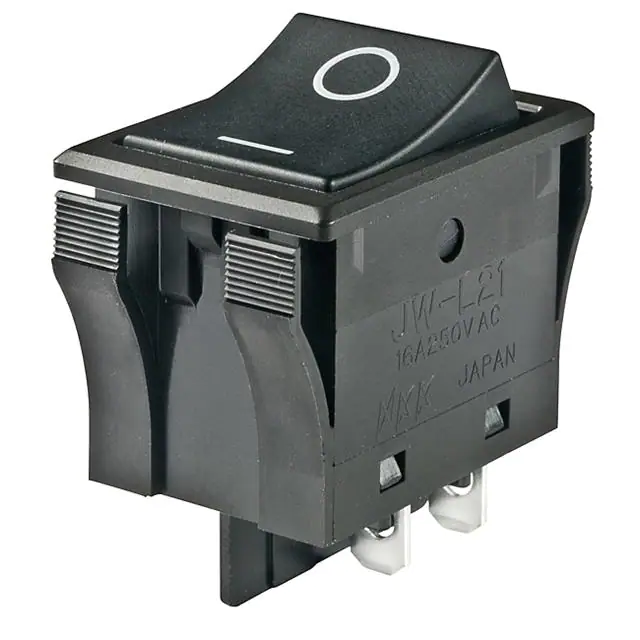

JWL21RA1A/UCV-WLSWITCH ROCKER DPST 16A 125V |
15 |
|
Datasheet |
JW | Box | Active | Panel Mount, Snap-In | DPST | On-Off | 16A (AC) | 125 V | - | Concave (Curved) | Black | O I | - | - | Solder, Quick Connect - 0.187" (4.7mm) | Dust Proof | - | Rectangular - 29.50mm x 20.50mm | -25°C ~ 70°C | CSA, UL, VDE |
|
JWL21RC1A/UCV-WLSWITCH ROCKER DPST 16A 125V |
9 |
|
Datasheet |
JW | Box | Active | Panel Mount, Snap-In | DPST | On-Off | 16A (AC) | 125 V | - | Concave (Curved) | Red | O I | - | - | Solder, Quick Connect - 0.187" (4.7mm) | Dust Proof | - | Rectangular - 29.50mm x 20.50mm | -25°C ~ 70°C | CSA, UL, VDE |
