Rocker Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Color - Actuator/Cap | Actuator Marking | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
KH146AAZXXG12NXXXXXXSWITCH ROCKER DPDT 10A 24V |
15 |
|
Datasheet |
KH | Tray | Active | Panel Mount, Snap-In | DPDT | On-On | 10A (DC) | - | 24 V | Convex (Reverse V) | Black | No Marking | - | - | Solder, Quick Connect - 0.250" (6.3mm) | IP69K - Dust Tight, High Temp Water Jets, Waterproof | - | Rectangular - 36.80mm x 21.08mm | -40°C ~ 85°C | - |
|
KR46CAKXXGSWITCH ROCKER DPDT 10A 24V |
38 |
|
Datasheet |
KR | Tray | Active | Panel Mount, Snap-In | DPDT | On-On | 10A (DC) | - | 24 V | Actuator Arm, Cap Required | - | Varies by Cap | - | - | Solder, Quick Connect - 0.250" (6.3mm) | IP68 - Dust Tight, Waterproof | - | Rectangular - 36.80mm x 21.08mm | -40°C ~ 85°C | - |
|

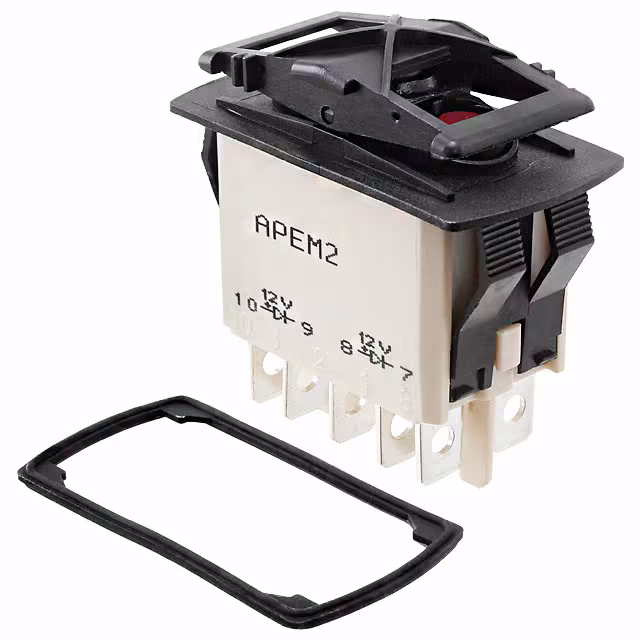

KR47CAKDDGSWITCH ROCKER DPDT 10A 24V |
40 |
|
Datasheet |
KR | Tray | Active | Panel Mount, Snap-In | DPDT | Mom-Off-Mom | 10A (DC) | - | 24 V | Actuator Arm, Cap Required - Illuminated | - | Varies by Cap | LED, Red/Red | 12 VDC | Solder, Quick Connect - 0.250" (6.3mm) | IP68 - Dust Tight, Waterproof | - | Rectangular - 36.80mm x 21.08mm | -40°C ~ 85°C | - |
|
SQR22603LASWITCH ROCKER SP3T 15A 120V |
10 |
|
Datasheet |
Square D, X | Box | Active | Panel Mount, Flange | SP3T | - | 15A (AC) | 120 V | - | Flat | Almond | No Marking | - | - | Screw Terminal | - | - | - | 0°C ~ 40°C | - |
|
|
SQR22603GYSWITCH ROCKER SP3T 15A 120V |
10 |
|
Datasheet |
Square D, X | Box | Active | Panel Mount, Flange | SP3T | - | 15A (AC) | 120 V | - | Flat | Gray | No Marking | - | - | Screw Terminal | - | - | - | 0°C ~ 40°C | - |
|
JWL21RA2A/UCV-WLSWITCH ROCKER DPST 16A 125V |
10 |
|
Datasheet |
JW | Box | Active | Panel Mount, Snap-In | DPST | On-Off | 16A (AC) | 125 V | - | Concave (Curved) | Black | O - | - | - | Solder, Quick Connect - 0.187" (4.7mm) | Dust Proof | - | Rectangular - 29.50mm x 20.50mm | -25°C ~ 70°C | CSA, UL, VDE |
|

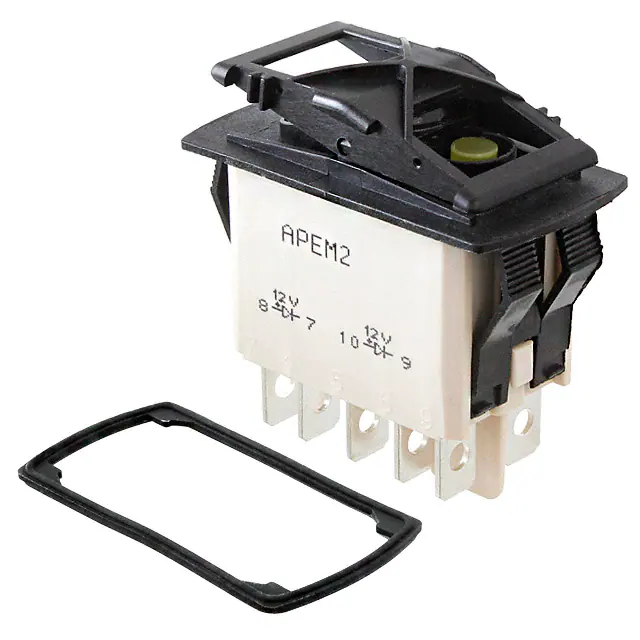

KR46CAKFFGSWITCH ROCKER DPDT 10A 24V |
38 |
|
Datasheet |
KR | Tray | Active | Panel Mount, Snap-In | DPDT | On-On | 10A (DC) | - | 24 V | Actuator Arm, Cap Required - Illuminated | - | Varies by Cap | LED, Yellow/Yellow | 12 VDC | Solder, Quick Connect - 0.250" (6.3mm) | IP68 - Dust Tight, Waterproof | - | Rectangular - 36.80mm x 21.08mm | -40°C ~ 85°C | - |
|
9201J1ZQE1SWITCH ROCKER DPDT 6A 125V |
46 |
|
Datasheet |
9000 | Tray | Active | Panel Mount, Flange | DPDT | On-On | 6A (AC/DC) | 125 V | 30 V | Concave (Standard V) | White | No Marking | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 17.96mm x 10.62mm | -30°C ~ 85°C | cULus |
|
KL462AKXA125N01026SWITCH ROCKER DPDT 10A 24V |
37 |
|
Datasheet |
KL | Tray | Active | Panel Mount, Snap-In | DPDT | On-On | 10A (DC) | - | 24 V | Locking | Black, Yellow | ON OFF, Vertical | - | - | Solder, Quick Connect - 0.250" (6.3mm) | IP68 - Dust Tight, Waterproof | - | Rectangular - 36.80mm x 21.08mm | -40°C ~ 85°C | - |
|
|
SQR22601GYSWITCH ROCKER SP3T 15A 120V |
10 |
|
Datasheet |
Square D, X | Box | Active | Panel Mount, Flange | SP3T | - | 15A (AC) | 120 V | - | Flat | Gray | No Marking | - | - | Screw Terminal | - | - | - | 0°C ~ 40°C | - |
|

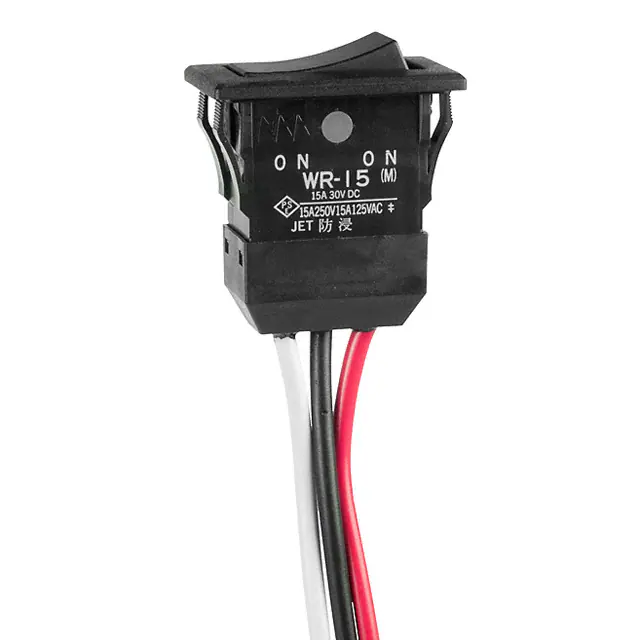

WR15ALSWITCH ROCKER SPDT 15A 125V |
3 |
|
Datasheet |
WR | Bulk | Active | Panel Mount, Snap-In | SPDT | On-Mom | 15A (AC/DC) | 125 V | 30 V | Concave (Curved) | Black | No Marking | - | - | Wire Leads | IP67 - Dust Tight, Waterproof | - | Rectangular - 34.20mm x 17.20mm | -25°C ~ 85°C | EN, UL |
|

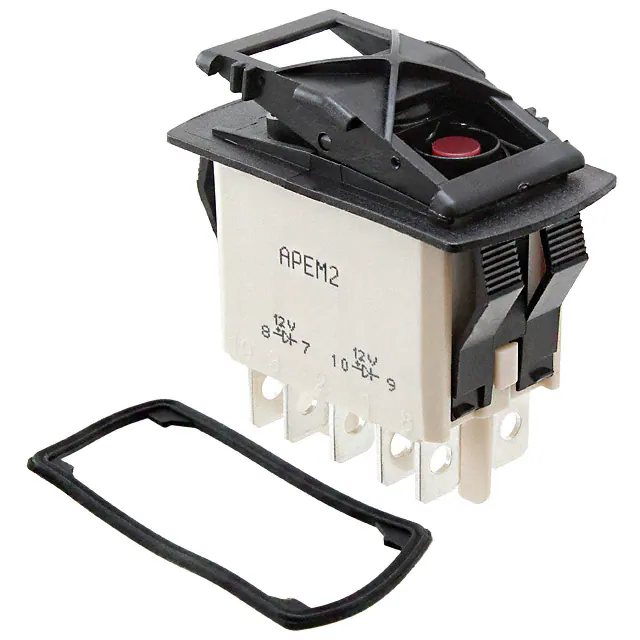

KR46CAKDDGSWITCH ROCKER DPDT 10A 24V |
38 |
|
Datasheet |
KR | Tray | Active | Panel Mount, Snap-In | DPDT | On-On | 10A (DC) | - | 24 V | Actuator Arm, Cap Required - Illuminated | - | Varies by Cap | LED, Red/Red | 12 VDC | Solder, Quick Connect - 0.250" (6.3mm) | IP68 - Dust Tight, Waterproof | - | Rectangular - 36.80mm x 21.08mm | -40°C ~ 85°C | - |
|

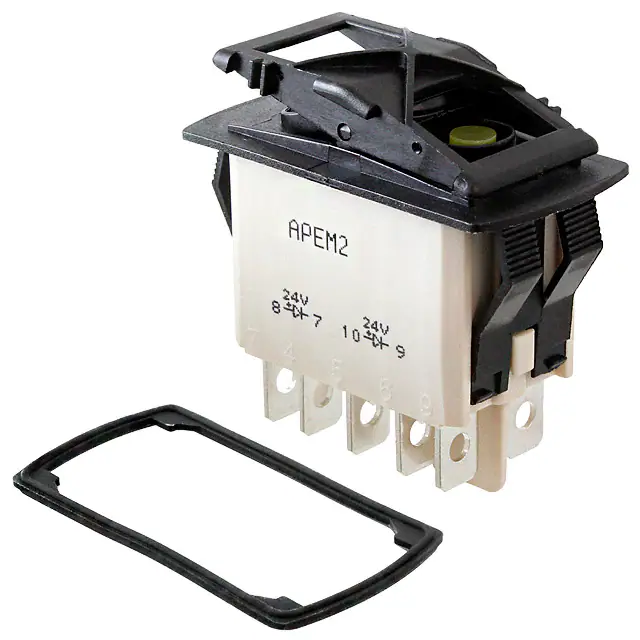

KR46CAKLLGSWITCH ROCKER DPDT 10A 24V |
33 |
|
Datasheet |
KR | Tray | Active | Panel Mount, Snap-In | DPDT | On-On | 10A (DC) | - | 24 V | Actuator Arm, Cap Required - Illuminated | - | Varies by Cap | LED, Yellow/Yellow | 24 VDC | Solder, Quick Connect - 0.250" (6.3mm) | IP68 - Dust Tight, Waterproof | - | Rectangular - 36.80mm x 21.08mm | -40°C ~ 85°C | - |
|
|
KR35FAKDDG22N82XX02SWITCH ROCKER SPDT 10A 24V |
40 |
|
Datasheet |
KR | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
KR48CAKXXGSWITCH ROCKER DPDT 10A 24V |
29 |
|
Datasheet |
KR | Tray | Active | Panel Mount, Snap-In | DPDT | On-Off-Mom | 10A (DC) | - | 24 V | Actuator Arm, Cap Required | - | Varies by Cap | - | - | Solder, Quick Connect - 0.250" (6.3mm) | IP68 - Dust Tight, Waterproof | - | Rectangular - 36.80mm x 21.08mm | -40°C ~ 85°C | - |
|
|
SQR141U1LAWSWITCH ROCKER SP3T 15A 120V |
10 |
|
Datasheet |
Square D, X | Box | Active | Panel Mount, Flange | SP3T | - | 15A (AC) | 120 V | - | Flat | Almond | No Marking | - | - | Screw Terminal | - | - | - | 0°C ~ 40°C | - |
|

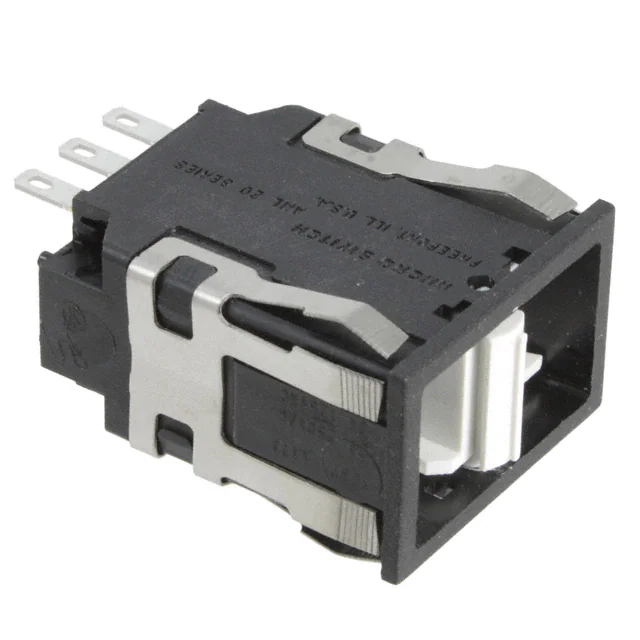

AML24EBA2AA05SWITCH ROCKER SPDT 3A 125V |
54 |
|
Datasheet |
AML24 | Bulk | Active | Panel Mount, Snap-In | SPDT | Mom-Off-Mom | 3A (AC), 2A (DC) | 125 V | 24 V | Actuator Arm, Cap Required | - | Varies by Cap | - | - | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Rectangular - 28.98mm x 19.05mm | - | CSA, CE, UL, VDE |
|
|
SQR141U1BKWSWITCH ROCKER SP3T 15A 120V |
10 |
|
Datasheet |
Square D, X | Box | Active | Panel Mount, Flange | SP3T | - | 15A (AC) | 120 V | - | Flat | Black | No Marking | - | - | Screw Terminal | - | - | - | 0°C ~ 40°C | - |
|
AML24EBA2AA04SWITCH ROCKER SPDT 3A 125V |
75 |
|
Datasheet |
AML24 | Bulk | Active | Panel Mount, Snap-In | SPDT | On-Off-On | 3A (AC), 2A (DC) | 125 V | 24 V | Actuator Arm, Cap Required | - | Varies by Cap | - | - | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Rectangular - 28.98mm x 19.05mm | - | CSA, CE, UL, VDE |
|
|
SQR22603WHSWITCH ROCKER SP3T 15A 120V |
9 |
|
Datasheet |
Square D, X | Box | Active | Panel Mount, Flange | SP3T | - | 15A (AC) | 120 V | - | Flat | White | No Marking | - | - | Screw Terminal | - | - | - | 0°C ~ 40°C | - |
