Rocker Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Color - Actuator/Cap | Actuator Marking | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
D602J13S215QASWITCH ROCKER DPST 10A 125V |
75 |
|
Datasheet |
D | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 10A (AC) | 125 V | - | Concave (Curved) | Red | No Marking | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 22.53mm x 19.20mm | -30°C ~ 65°C | cULus |
|
GW12LJVDSWITCH ROCKER SPDT 0.4VA 28V |
100 |
|
Datasheet |
GW | Tray | Active | Through Hole, Right Angle, Vertical | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Paddle - Illuminated | Clear | No Marking | LED, Amber | 2 VDC | PC Pin | - | Sealed - Flux Protection | - | -25°C ~ 55°C | CSA, UL |
|
GW12LJHDSWITCH ROCKER SPDT 0.4VA 28V |
0 |
|
Datasheet |
GW | Tray | Active | Through Hole, Right Angle | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Paddle - Illuminated | Clear | No Marking | LED, Amber | 2 VDC | PC Pin | - | Sealed - Flux Protection | - | -25°C ~ 55°C | CSA, UL |
|

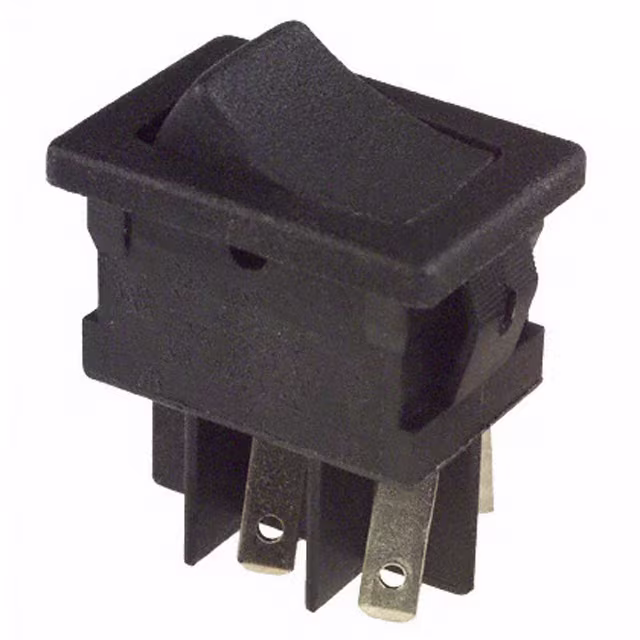

DM62J12S205QSWITCH ROCKER DPST 10A 125V |
28 |
|
Datasheet |
DM | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 10A (AC) | 125 V | - | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.110" (2.8mm) | - | - | Rectangular - 19.20mm x 12.90mm | -20°C ~ 65°C | cULus |
|
E101J1A3BE2SWITCH ROCKER SPDT 0.4VA 20V |
80 |
|
Datasheet |
E | Bulk | Active | Through Hole, Right Angle | SPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Concave (Standard V) | Black | No Marking | - | - | PC Pin | - | Sealed - Flux Protection | Rectangular - 17.96mm x 10.62mm | -30°C ~ 85°C | cULus |
|
|
E101J1AGE2SWITCH ROCKER SPDT 7.5A 125V |
30 |
|
Datasheet |
E | Bulk | Active | Through Hole, Right Angle | SPDT | On-On | 7.5A (AC/DC) | 125 V | 28 V | Concave (Standard V) | Black | No Marking | - | - | PC Pin | - | Sealed - Flux Protection | Rectangular - 17.96mm x 10.62mm | -30°C ~ 85°C | cULus |
|
DM21J12S205PQSWITCH ROCKER DPDT 3A 125V |
100 |
|
Datasheet |
DM | Bulk | Active | Panel Mount, Snap-In | DPDT | On-On | 3A (AC) | 125 V | - | Concave (Curved) | Black | O - | - | - | Quick Connect - 0.110" (2.8mm) | - | - | Rectangular - 19.20mm x 12.90mm | -20°C ~ 65°C | cULus |
|
DM62J12S205HQSWITCH ROCKER DPST 10A 125V |
42 |
|
Datasheet |
DM | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 10A (AC) | 125 V | - | Concave (Curved) | Black | O I | - | - | Quick Connect - 0.110" (2.8mm) | - | - | Rectangular - 19.20mm x 12.90mm | -20°C ~ 65°C | cULus |
|
ET01J6AQE2SWITCH ROCKER SPDT 3A 120V |
98 |
|
Datasheet |
ET | Tray | Active | Through Hole, Right Angle | SPDT | On-On | 3A (AC/DC) | 120 V | 28 V | Concave (Curved) | Black | No Marking | - | - | PC Pin | - | Sealed - Flux Protection | - | -30°C ~ 85°C | cULus |
|
A8GS-D1180SWITCH ROCKER DPST 16A 125V |
5 |
|
Datasheet |
A8GS | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 16A (AC) | 125 V | - | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 27.70mm x 15.20mm | -10°C ~ 55°C | cULus, EN, UL |
|
JWMW11RCASWITCH ROCKER SPST 10A 125V |
0 |
|
Datasheet |
JW | Tray | Active | Panel Mount, Snap-In | SPST | On-Off | 10A (AC/DC) | 125 V | 30 V | Concave (Curved) | Red | No Marking | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | Rectangular - 25.00mm x 15.40mm | -25°C ~ 85°C | CSA, UL, VDE |
|
|
A8GS-P1110SWITCH ROCKER SPST 16A 125V |
8 |
|
Datasheet |
A8GS | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 16A (AC) | 125 V | - | Concave (Curved) | Black | No Marking | - | - | Solder Lug | - | - | Rectangular - 27.70mm x 15.20mm | -10°C ~ 55°C | cULus, EN, UL |
|
7108J1V3GE2SWITCH ROCKER SPDT 5A 120V |
25 |
|
Datasheet |
7000 | Bulk | Active | Through Hole | SPDT | On-Mom | 5A (AC/DC) | 120 V | 28 V | Concave (Standard V) | Black | No Marking | - | - | PC Pin | - | Epoxy Sealed Terminals | Rectangular - 17.96mm x 10.62mm | -30°C ~ 85°C | cULus |
|

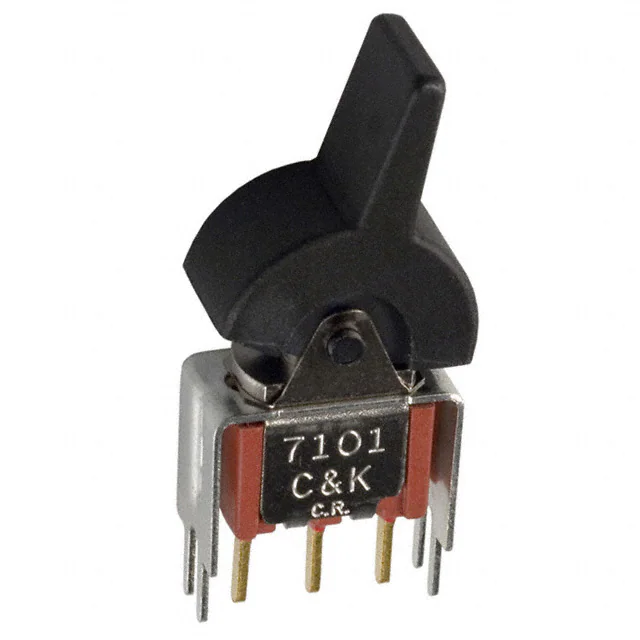

7101J2V3BE2SWITCH ROCKER SPDT 0.4VA 20V |
46 |
|
Datasheet |
7000 | Tray | Active | Through Hole | SPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Paddle | Black | No Marking | - | - | PC Pin | - | Epoxy Sealed Terminals | Rectangular - 17.96mm x 10.62mm | -30°C ~ 85°C | cULus |
|

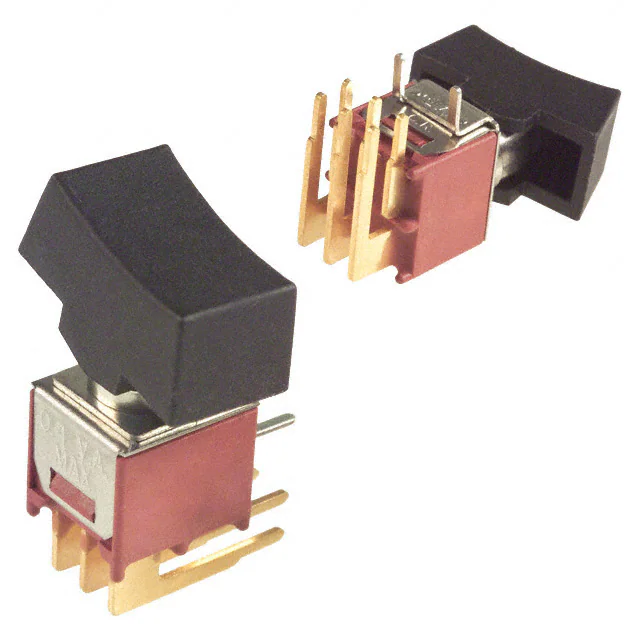

T201J1ABE2SWITCH ROCKER DPDT 0.4VA 20V |
14 |
|
Datasheet |
T | Tray | Active | Through Hole, Right Angle | DPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Concave (Curved) | Black | No Marking | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -30°C ~ 85°C | UL |
|
|
A8A-207SWITCH ROCKER DPST 16A 125V |
10 |
|
Datasheet |
A8A | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 16A (AC) | 125 V | - | Flat | Black | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | IP00 | - | Rectangular - 30.00mm x 22.00mm | -25°C ~ 50°C | CSA, EN, UL |
|
|
A8A-207-2SWITCH ROCKER DPST 16A 125V |
10 |
|
Datasheet |
A8A | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 16A (AC) | 125 V | - | Flat | Black | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | IP00 | - | Rectangular - 30.00mm x 22.00mm | -25°C ~ 50°C | CSA, EN, UL |
|
|
A8A-202SWITCH ROCKER DPST 16A 125V |
8 |
|
Datasheet |
A8A | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 16A (AC) | 125 V | - | Flat | Red | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | IP00 | - | Rectangular - 30.00mm x 22.00mm | -25°C ~ 50°C | CSA, EN, UL |
|
|
A8GS-S1200SWITCH ROCKER SPST 200MA 5V |
6 |
|
Datasheet |
A8GS | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 200mA (AC) | 5 V | - | Concave (Curved) | Black | O - | - | - | Connector | - | - | Rectangular - 27.70mm x 15.20mm | -10°C ~ 55°C | cULus, EN, UL |
|
CWSB21DADF-WLSWITCH ROCKER DPST 9A 125V |
20 |
|
Datasheet |
CWSB | Box | Active | Panel Mount, Snap-In | DPST | On-Off | 9A (AC) | 125 V | - | Concave (Curved) - Illuminated | Amber | No Marking | Neon, Amber | 125 VAC | Quick Connect - 0.187" (4.7mm) | - | Audible Click | Rectangular - 19.20mm x 12.90mm | -20°C ~ 85°C | cULus |
