Rocker Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Color - Actuator/Cap | Actuator Marking | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

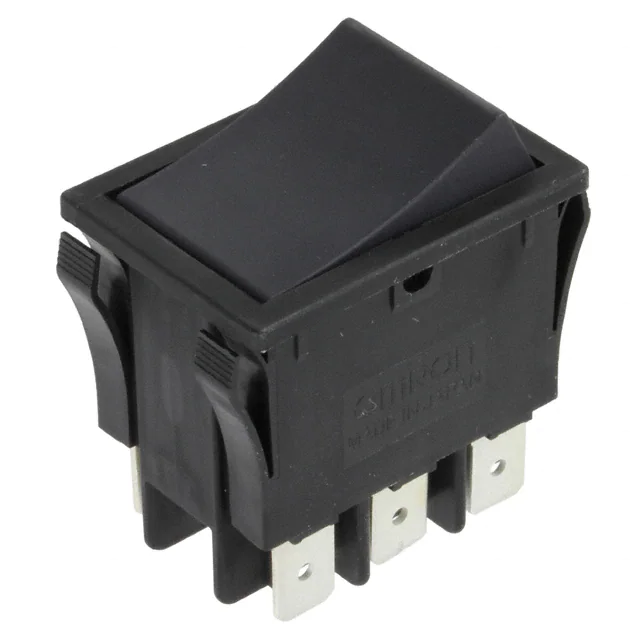

A8G-107-1-24SWITCH ROCKER DPDT 20A 250V |
43 |
|
Datasheet |
A8G | Tube | Active | Panel Mount, Snap-In | DPDT | On-On | 20A (AC) | 250 V | - | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.110"/0.250" | - | Remote Reset Function | Rectangular - 34.40mm x 24.40mm | -10°C ~ 55°C | CE, cULus |
|
KR373AKXXA12XXSWITCH ROCKER SPDT 10A 24V |
63 |
|
Datasheet |
KR | Bulk | Active | Panel Mount, Snap-In | SPDT | Mom-Off-Mom | 10A (DC) | - | 24 V | Convex (Reverse V) | Black | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | IP68 - Dust Tight, Waterproof | - | Rectangular - 36.83mm x 21.08mm | -40°C ~ 85°C | - |
|

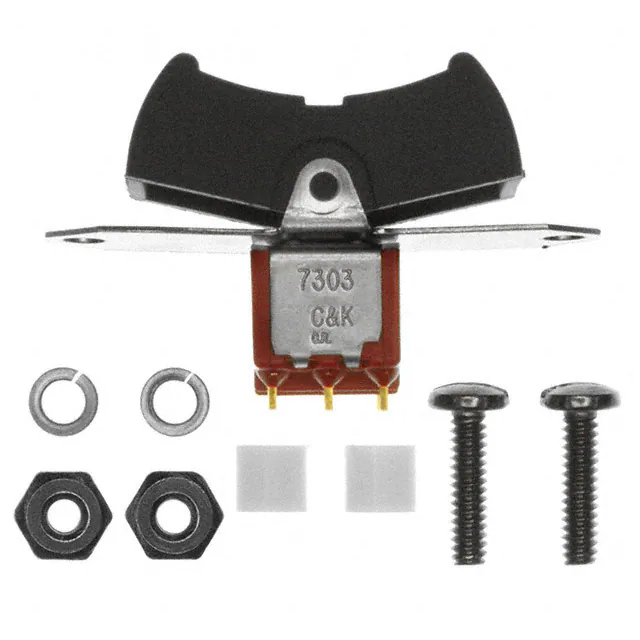

7303J10ZGE2SWITCH ROCKER 3PDT 5A 120V |
66 |
|
Datasheet |
7000 | Tray | Active | Panel Mount, Flange | 3PDT | On-Off-On | 5A (AC/DC) | 120 V | 28 V | Concave (Curved) | Black | No Marking | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 34.92mm x 16.46mm | -30°C ~ 85°C | cULus |
|
|
KR413AKXXA12XXSWITCH ROCKER DPST 10A 24V |
37 |
|
Datasheet |
KR | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 10A (DC) | - | 24 V | Convex (Reverse V) | Black | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | IP68 - Dust Tight, Waterproof | - | Rectangular - 36.83mm x 21.08mm | -40°C ~ 85°C | - |
|
7401J1ZQE2SWITCH ROCKER 4PDT 5A 120V |
57 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount, Flange | 4PDT | On-On | 5A (AC/DC) | 120 V | 28 V | Concave (Standard V) | Black | No Marking | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 17.96mm x 10.62mm | -30°C ~ 85°C | cULus |
|
|
SQR22603BKSWITCH ROCKER SP3T 5A 120V |
8 |
|
Datasheet |
Square D, X | Box | Active | Panel Mount, Flange | SP3T | - | 5A (AC) | 120 V | - | Flat | Black | No Marking | - | - | Screw Terminal | - | - | - | 0°C ~ 40°C | - |
|
7401J11ZQE22SWITCH ROCKER 4PDT 5A 120V |
29 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount, Snap-In | 4PDT | On-On | 5A (AC/DC) | 120 V | 28 V | Concave (Standard V) | Black | No Marking | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 19.05mm x 10.41mm | -30°C ~ 85°C | cULus |
|
WR11BLSWITCH ROCKER SPST 15A 125V |
5 |
|
Datasheet |
WR | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 15A (AC/DC) | 125 V | 30 V | Concave (Curved) | Ivory | No Marking | - | - | Wire Leads | IP67 - Dust Tight, Waterproof | - | Rectangular - 34.20mm x 17.20mm | -25°C ~ 85°C | EN, UL |
|

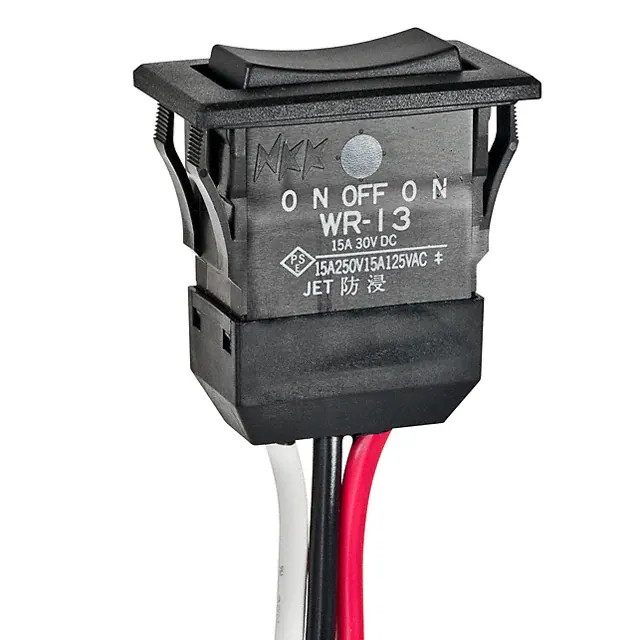

WR13ALSWITCH ROCKER SPDT 15A 125V |
8 |
|
Datasheet |
WR | Bulk | Active | Panel Mount, Snap-In | SPDT | On-Off-On | 15A (AC/DC) | 125 V | 30 V | Concave (Curved) | Black | No Marking | - | - | Wire Leads | IP67 - Dust Tight, Waterproof | - | Rectangular - 34.20mm x 17.20mm | -25°C ~ 85°C | EN, UL |
|
W11D2G661-A7900-000SWITCH ROCKER SPST 10A 12V |
10 |
|
Datasheet |
W | Box | Active | Panel Mount, Snap-In | SPST | On-Off | 10A (DC) | - | 12 V | Concave (Curved) - Illuminated | Black | No Marking | LED, White | 12 VDC | Quick Connect - 0.110" (2.8mm) | IP68 - Dust Tight, Waterproof | Sealed - Fully | Rectangular - 36.83mm x 21.08mm | -40°C ~ 85°C | - |
|

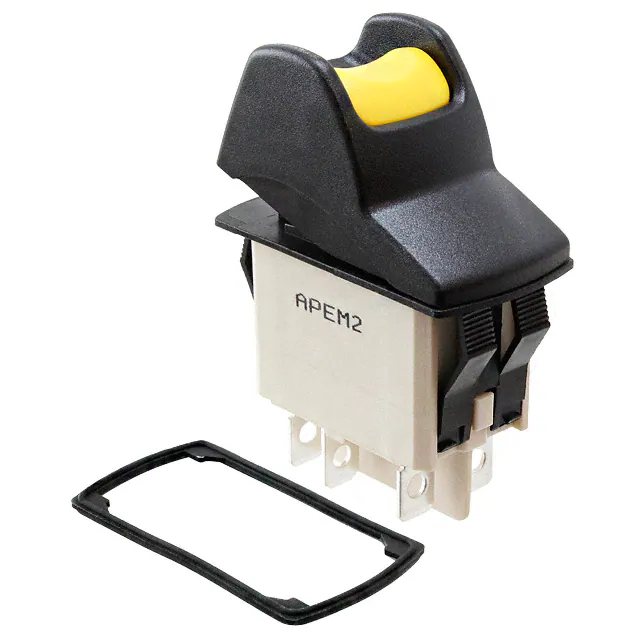

KL462AKXA125SWITCH ROCKER DPDT 10A 24V |
35 |
|
Datasheet |
KL | Tray | Active | Panel Mount, Snap-In | DPDT | On-On | 10A (DC) | - | 24 V | Locking | Black, Yellow | No Marking | - | - | Solder, Quick Connect - 0.250" (6.3mm) | IP68 - Dust Tight, Waterproof | - | Rectangular - 36.80mm x 21.08mm | -40°C ~ 85°C | - |
|
|
SQR22601WHSWITCH ROCKER SP3T 15A 120V |
9 |
|
Datasheet |
Square D, X | Box | Active | Panel Mount, Flange | SP3T | - | 15A (AC) | 120 V | - | Flat | White | No Marking | - | - | Screw Terminal | - | - | - | 0°C ~ 40°C | - |
|
|
SQR22601LASWITCH ROCKER SP3T 15A 120V |
8 |
|
Datasheet |
Square D, X | Box | Active | Panel Mount, Flange | SP3T | - | 15A (AC) | 120 V | - | Flat | Almond | No Marking | - | - | Screw Terminal | - | - | - | 0°C ~ 40°C | - |
|
|
SQR22601BKSWITCH ROCKER SP3T 15A 120V |
6 |
|
Datasheet |
Square D, X | Box | Active | Panel Mount, Flange | SP3T | - | 15A (AC) | 120 V | - | Flat | Black | No Marking | - | - | Screw Terminal | - | - | - | 0°C ~ 40°C | - |
|

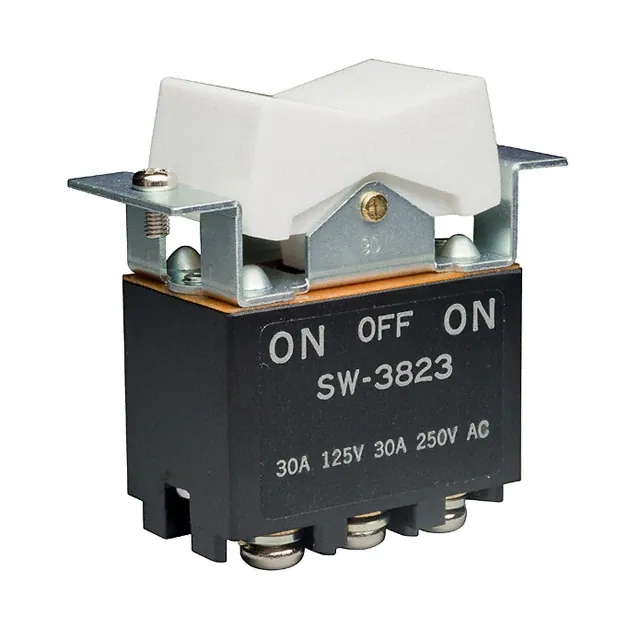

SW3823/USWITCH ROCKER DPDT 30A 125V |
40 |
|
Datasheet |
SW | Bulk | Active | Panel Mount, Flange | DPDT | On-Off-On | 30A (AC/DC) | 125 V | 30 V | Concave (Standard V) | White | No Marking | - | - | Screw Terminal | - | - | - | -10°C ~ 70°C | CSA, UL |
|
AML34EBA4AA01SWITCH ROCKER SPST 15A 125V |
32 |
|
Datasheet |
AML34 | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 15A (AC) | 125 V | - | Actuator Arm, Cap Required | - | Varies by Cap | - | - | Solder, Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 28.98mm x 19.05mm | - | CE, CSA, UL, VDE |
|

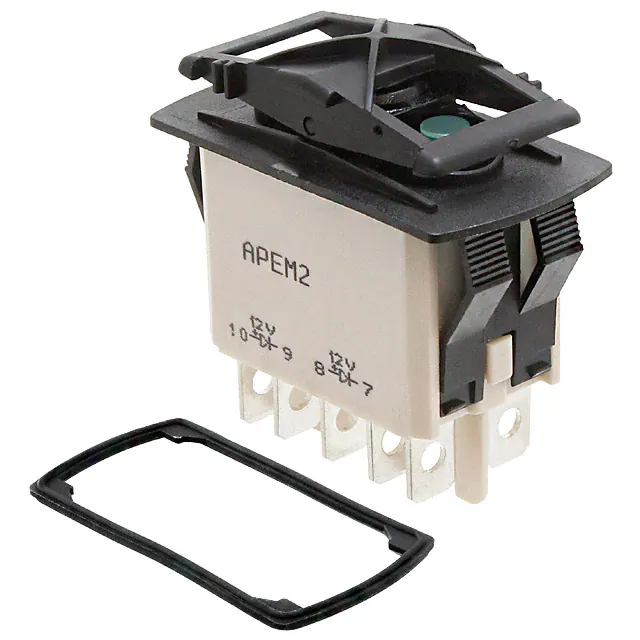

KR47CAKEEGSWITCH ROCKER DPDT 10A 24V |
58 |
|
Datasheet |
KR | Tray | Active | Panel Mount, Snap-In | DPDT | Mom-Off-Mom | 10A (DC) | - | 24 V | Actuator Arm, Cap Required - Illuminated | - | Varies by Cap | LED, Green/Green | 12 VDC | Solder, Quick Connect - 0.250" (6.3mm) | IP68 - Dust Tight, Waterproof | - | Rectangular - 36.80mm x 21.08mm | -40°C ~ 85°C | - |
|

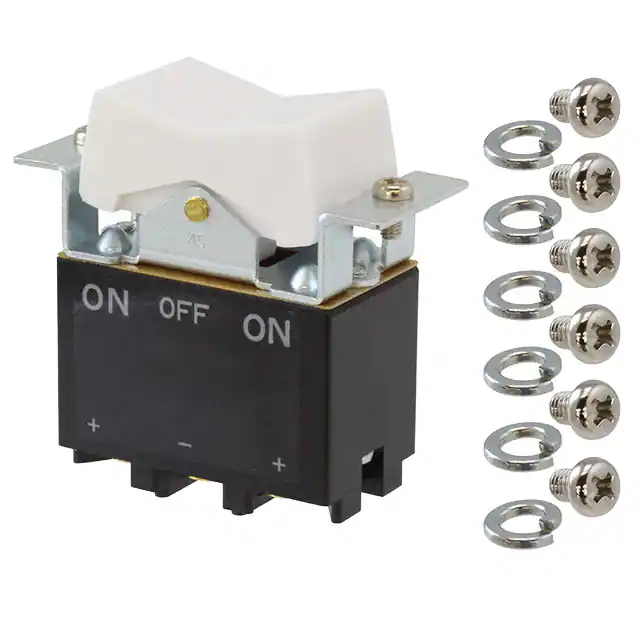

SW3823DSWITCH ROCKER DPDT 30A 30V |
53 |
|
Datasheet |
SW | Bulk | Active | Panel Mount, Flange | DPDT | On-Off-On | 30A (DC) | - | 30 V | Concave (Standard V) | White | No Marking | - | - | Screw Terminal | - | - | - | -10°C ~ 70°C | CSA, UL |
|
|
SQR226U1WHWSWITCH ROCKER SP3T 15A 120V |
10 |
|
Datasheet |
Square D, X | Box | Active | Panel Mount, Flange | SP3T | - | 15A (AC) | 120 V | - | Flat | White | No Marking | - | - | Screw Terminal | - | - | - | 0°C ~ 40°C | - |
|

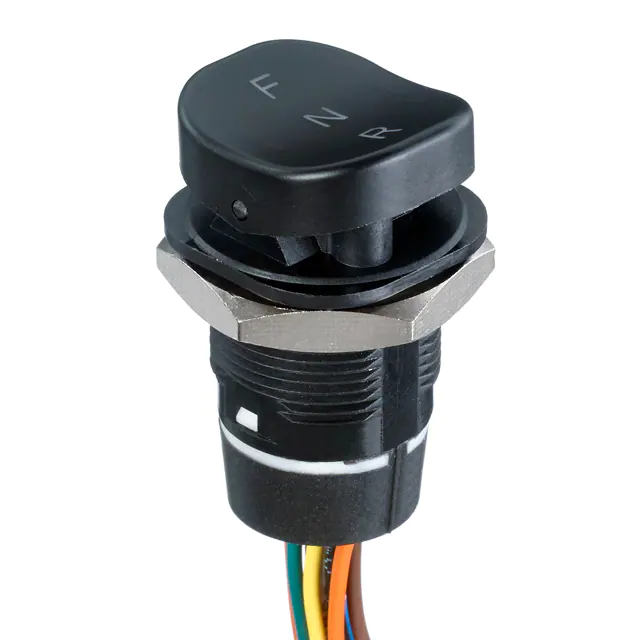

FNRCF4FSS2N2XWRX53XPMSWITCH ROCKER DP3T 1A 24V |
25 |
|
Datasheet |
FNR | Tray | Active | Panel Mount, Threaded Body with Nut | DP3T | On-On-On | 1A (DC) | - | 24 V | Concave (Curved) - Illuminated | Black | - | LED, White | 12 VDC | Wire Leads | IP69K - Dust Tight, High Temp Water Jets, Waterproof | - | Circular - 20.20mm Dia | -40°C ~ 85°C | - |
