Rocker Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Color - Actuator/Cap | Actuator Marking | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
GRS-4011B-0002SWITCH ROCKER SPST-NO 13A 125V |
140 |
|
Datasheet |
4000 | Bulk | Active | Panel Mount, Snap-In | SPST-NO | Off-Mom | 13A (AC) | 125 V | - | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.20mm x 12.90mm | - | - |
|

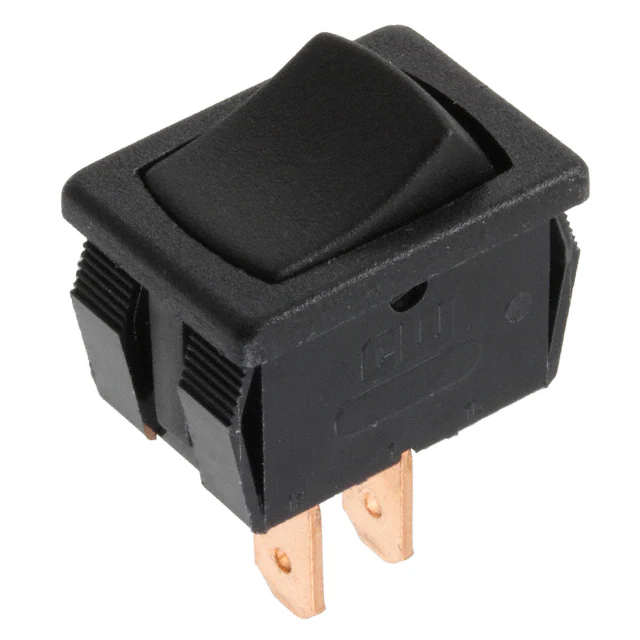

GRS-4011-0107SWITCH ROCKER SPST 8A 125V |
135 |
|
Datasheet |
4000 | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 8A (AC) | 125 V | - | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.187" (4.7mm) | - | Terminal Barriers | Rectangular - 19.20mm x 12.90mm | -20°C ~ 105°C | - |
|

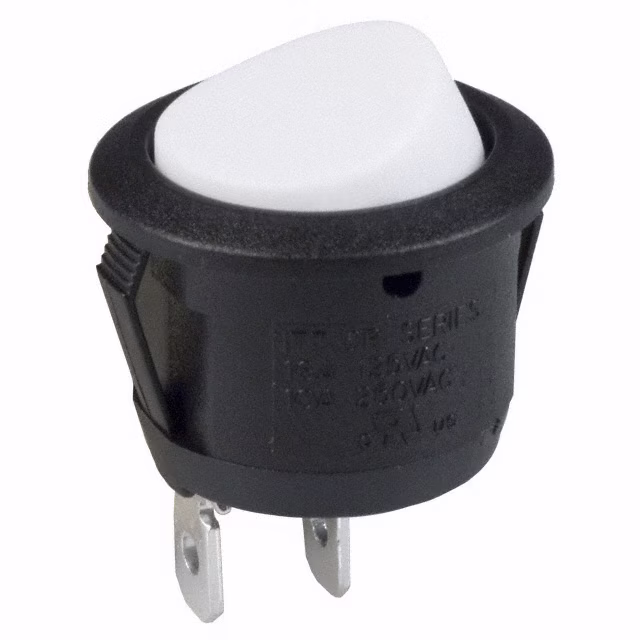

CR102J11S215QFSWITCH ROCKER SPST 16A 125V |
872 |
|
Datasheet |
CR | Tray | Active | Panel Mount, Snap-In | SPST | On-Off | 16A (AC) | 125 V | - | Round | White | No Marking | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Circular - 20.20mm Dia | -20°C ~ 85°C | cULus |
|

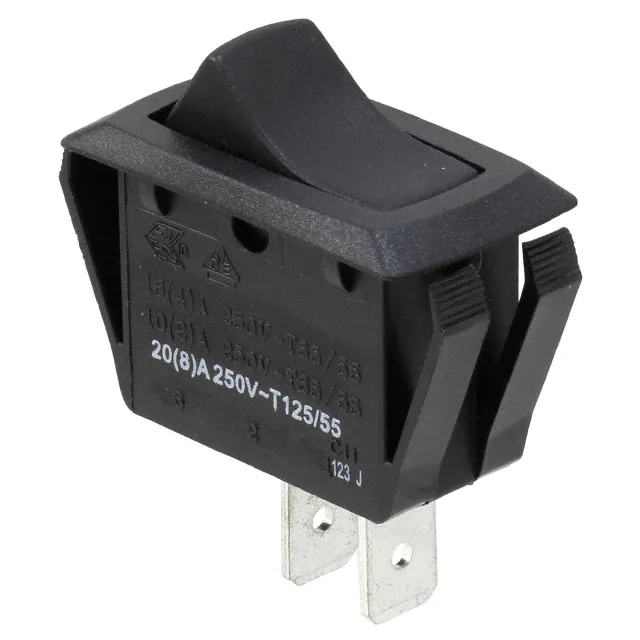

RSC144D1100SWITCH ROCKER SPST-NO 20A 125V |
26 |
|
Datasheet |
RSC, LAMB | Bulk | Active | Panel Mount, Snap-In | SPST-NO | Off-Mom | 20A (AC) | 125 V | - | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 28.60mm x 13.90mm | -20°C ~ 105°C | CSA, UL |
|
R1966ABLKBLKDFSWITCH ROCKER SPST 15A 125V |
94 |
|
Datasheet |
R1966 | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 15A (AC) | 125 V | - | Concave (Curved) | Black | - = | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.40mm x 13.00mm | -30°C ~ 65°C | - |
|
R1966DBLKBLKIFSWITCH ROCKER SPDT 15A 125V |
48 |
|
Datasheet |
R1966 | Bulk | Active | Panel Mount, Snap-In | SPDT | On-Off-On | 15A (AC) | 125 V | - | Concave (Curved) | Black | ON OFF, Vertical | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.40mm x 13.00mm | -30°C ~ 65°C | - |
|
R1973ABLKGILEF1SWITCH ROCKER SPST 9A 125V |
57 |
|
Datasheet |
R1973 | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 9A (AC) | 125 V | - | Concave (Curved) - Illuminated | Green | No Marking | Neon, Green | 125 VAC | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.20mm x 12.80mm | -30°C ~ 65°C | - |
|

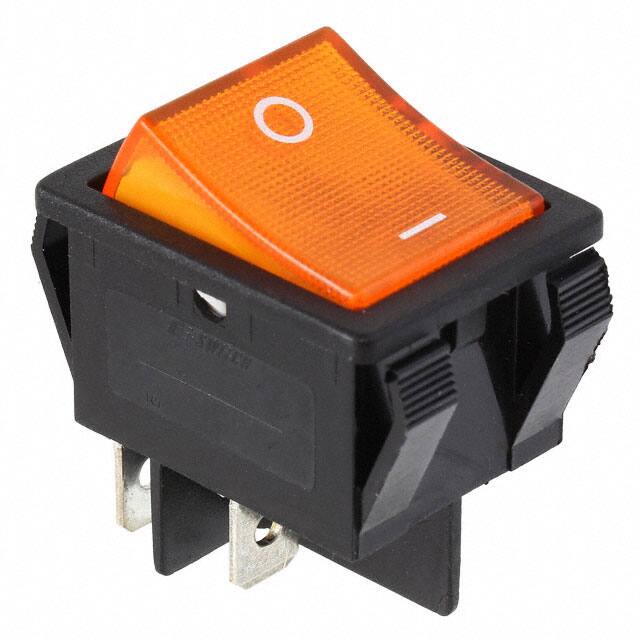

R5BBLKYELGF2SWITCH ROCKER DPST 20A 125V |
86 |
|
Datasheet |
R5 | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 20A (AC) | 125 V | - | Concave (Curved) - Illuminated | Yellow | O I | Neon, Yellow | 250 VAC | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 30.00mm x 22.20mm | -20°C ~ 55°C | CSA, UL |
|
R1966FBLKBLKGFSWITCH ROCKER SPST-NO 15A 125V |
36 |
|
Datasheet |
R1966 | Bulk | Active | Panel Mount, Snap-In | SPST-NO | Off-Mom | 15A (AC) | 125 V | - | Concave (Curved) | Black | O I | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.40mm x 13.00mm | -30°C ~ 65°C | - |
|
R1973BBLKYELFF2SWITCH ROCKER DPST 9A 125V |
90 |
|
Datasheet |
R1973 | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 9A (AC) | 125 V | - | Concave (Curved) | Yellow | O I | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.20mm x 12.80mm | -30°C ~ 65°C | - |
|

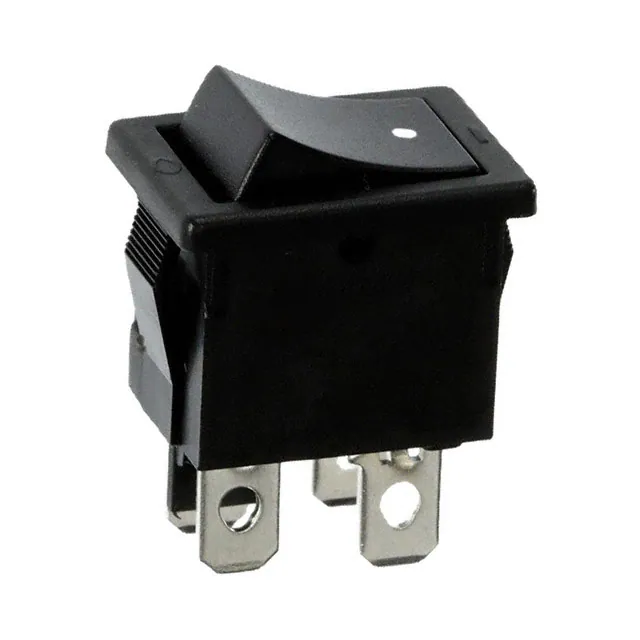

R1973BBLKBLKAF0SWITCH ROCKER DPST 9A 125V |
86 |
|
Datasheet |
R1973 | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 9A (AC) | 125 V | - | Concave (Curved) | Black | Dot | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.20mm x 12.80mm | -30°C ~ 65°C | - |
|
D101J12S205QASWITCH ROCKER SPDT 4A 125V |
59 |
|
Datasheet |
D | Bulk | Active | Panel Mount, Snap-In | SPDT | On-On | 4A (AC) | 125 V | - | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.20mm x 12.90mm | -30°C ~ 65°C | cULus |
|
D102J12S215QASWITCH ROCKER SPST 4A 125V |
44 |
|
Datasheet |
D | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 4A (AC) | 125 V | - | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.20mm x 12.90mm | -30°C ~ 65°C | cULus |
|
A8L-21-14N1SWITCH ROCKER DPST 10A 125V |
43 |
|
Datasheet |
A8L | Bulk | Active | Panel Mount, Snap-In, Right Angle | DPST | On-Off | 10A (AC) | 125 V | - | Concave (Curved) | Black | No Marking | - | - | PC Pin | - | - | Rectangular - 19.20mm x 17.50mm | -20°C ~ 55°C | cULus, EN, UL |
|
SW-R3-2B-C-5-G-14SWITCH ROCKER SPDT 0.4VA 20V |
100 |
|
Datasheet |
SW | Box | Active | Through Hole, Right Angle | SPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Concave (Curved) | - | No Marking | - | - | PC Pin | IP67 - Dust Tight, Waterproof | - | - | -30°C ~ 85°C | - |
|
7103J61ZBE22SWITCH ROCKER SPDT 0.4VA 20V |
56 |
|
Datasheet |
7000 | Tray | Active | Panel Mount, Snap-In | SPDT | On-Off-On | 0.4VA (AC/DC) | 20 V | 20 V | Paddle | Black | No Marking | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 15.24mm x 12.70mm | -30°C ~ 85°C | cULus |
|

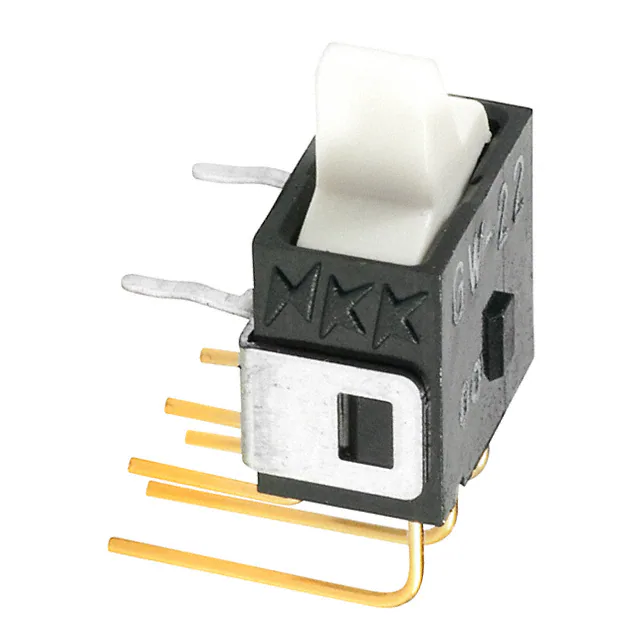

GW22LBHSWITCH ROCKER DPDT 0.4VA 28V |
77 |
|
Datasheet |
GW | Tray | Active | Through Hole, Right Angle | DPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Paddle | White | No Marking | - | - | PC Pin | - | Sealed - Flux Protection | - | -30°C ~ 85°C | CSA, UL |
|

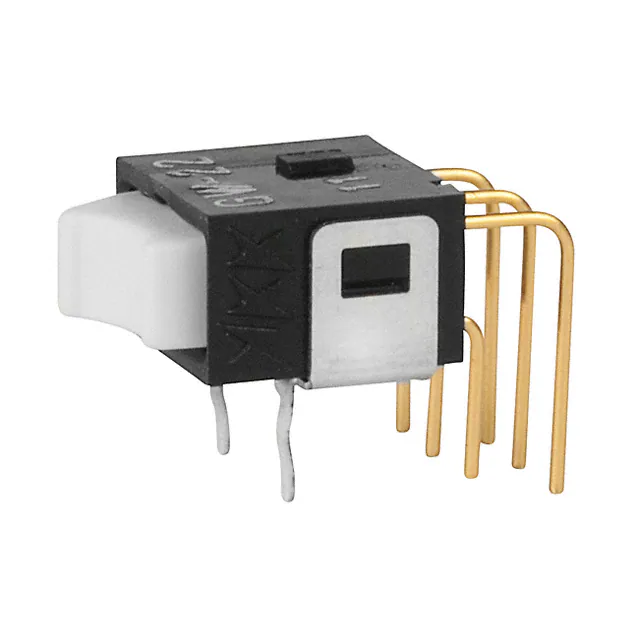

GW22RBHSWITCH ROCKER DPDT 0.4VA 28V |
61 |
|
Datasheet |
GW | Tray | Active | Through Hole, Right Angle | DPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Concave (Curved) | White | No Marking | - | - | PC Pin | - | Sealed - Flux Protection | - | -30°C ~ 85°C | CSA, UL |
|
D201J12S205PQASWITCH ROCKER DPDT 4A 125V |
82 |
|
Datasheet |
D | Bulk | Active | Panel Mount, Snap-In | DPDT | On-On | 4A (AC) | 125 V | - | Concave (Curved) | Black | O - | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 22.53mm x 19.20mm | -30°C ~ 65°C | cULus |
|

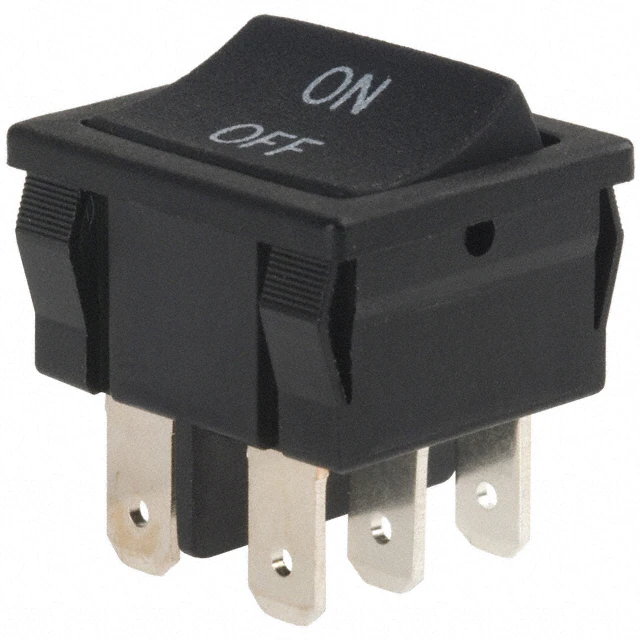

D201J12S215DQASWITCH ROCKER DPDT 4A 125V |
27 |
|
Datasheet |
D | Bulk | Active | Panel Mount, Snap-In | DPDT | On-On | 4A (AC) | 125 V | - | Concave (Curved) | Black | ON OFF, Vertical | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 22.53mm x 19.20mm | -30°C ~ 65°C | cULus |
