Rocker Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Color - Actuator/Cap | Actuator Marking | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
7201J16ZQE22SWITCH ROCKER DPDT 5A 120V |
41 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount, Snap-In | DPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Concave (Standard V) | Black | No Marking | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 20.32mm x 12.70mm | -30°C ~ 85°C | cULus |
|

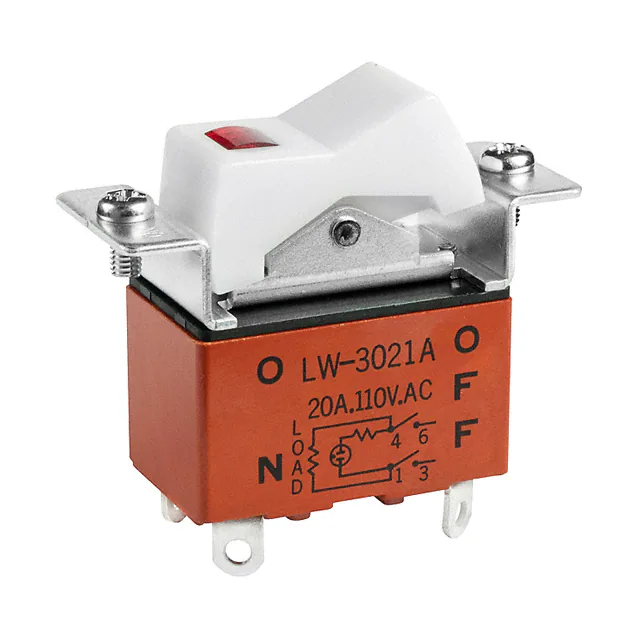

LW3021ASWITCH ROCKER DPST 20A 110V |
47 |
|
Datasheet |
LW | Tray | Active | Panel Mount, Flange | DPST | On-Off | 20A (AC) | 110 V | - | Concave (Standard V) - Illuminated | White | No Marking | Neon, Red | 110 VAC | Solder Lug | - | - | - | -10°C ~ 50°C | CSA, UL |
|
7211J61ZQE22SWITCH ROCKER SP3T 5A 120V |
76 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount, Snap-In | SP3T | On-On-On | 5A (AC/DC) | 120 V | 28 V | Paddle | Black | No Marking | - | - | Solder Lug | - | Jumper needed to achieve triple throw | Rectangular - 15.24mm x 12.70mm | -30°C ~ 85°C | cULus |
|
TRD21N10WLSWITCH ROCKER DPDT 0.4VA 20V |
31 |
|
Datasheet |
TRD | Bulk | Active | Panel Mount, Threaded Body with Nut | DPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Concave (Curved) | Black | No Marking | - | - | Solder Lug | - | - | Circular - 11.90mm Dia | -20°C ~ 80°C | - |
|

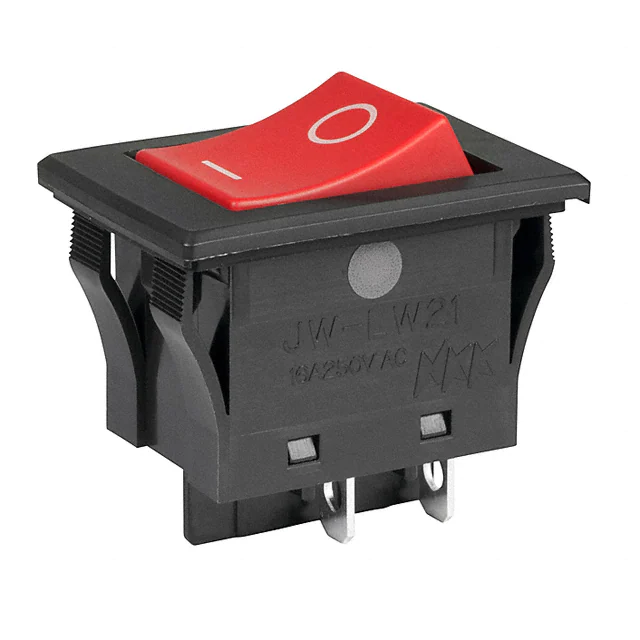

JWLW21RC1ASWITCH ROCKER DPST 16A 125V |
7 |
|
Datasheet |
JW | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 16A (AC) | 125 V | - | Concave (Curved) | Red | O I | - | - | Solder, Quick Connect - 0.187" (4.7mm) | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | Rectangular - 30.70mm x 20.50mm | -25°C ~ 85°C | CSA, UL, VDE |
|
|
7203J51ZQE22SWITCH ROCKER DPDT 5A 120V |
45 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount, Snap-In | DPDT | On-Off-On | 5A (AC/DC) | 120 V | 28 V | Concave (Standard V) | Black | No Marking | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 15.24mm x 12.70mm | -30°C ~ 85°C | cULus |
|
WR11BSSWITCH ROCKER SPST 15A 125V |
6 |
|
Datasheet |
WR | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 15A (AC/DC) | 125 V | 30 V | Concave (Curved) | Ivory | No Marking | - | - | Solder Lug | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | Rectangular - 34.20mm x 17.20mm | -25°C ~ 85°C | EN, UL |
|
7211J61Z3QE22SWITCH ROCKER SP3T 5A 120V |
69 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount, Snap-In | SP3T | On-On-On | 5A (AC/DC) | 120 V | 28 V | Paddle | Black | No Marking | - | - | Quick Connect - 0.062" (1.5mm) | - | Jumper needed to achieve triple throw | Rectangular - 15.24mm x 12.70mm | -30°C ~ 85°C | cULus |
|

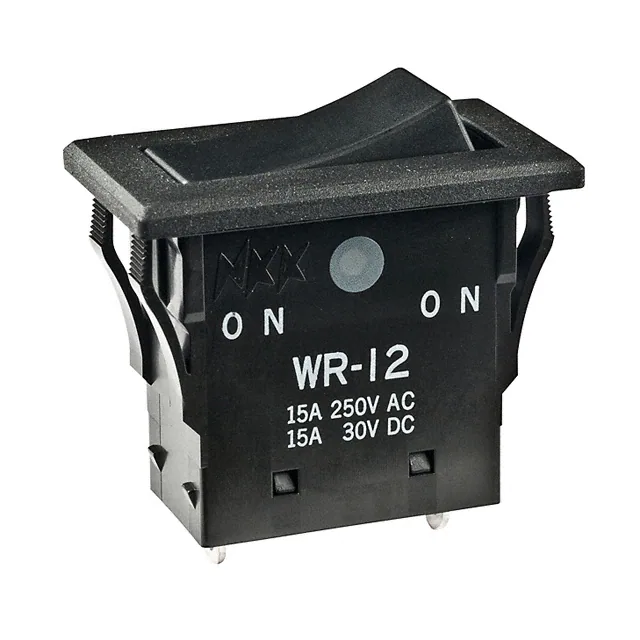

WR12ASNSWITCH ROCKER SPDT 15A 125V |
29 |
|
Datasheet |
WR | Bulk | Active | Panel Mount, Snap-In | SPDT | On-On | 15A (AC/DC) | 125 V | 30 V | Concave (Curved) | Black | No Marking | - | - | Solder Lug | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | Rectangular - 34.20mm x 17.20mm | -25°C ~ 85°C | EN, UL |
|
A8GS-P1185SWITCH ROCKER SPST 16A 125V |
42 |
|
Datasheet |
A8GS | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 16A (AC) | 125 V | - | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.187" (4.7mm) | - | Remote Reset Function | Rectangular - 27.70mm x 15.20mm | -10°C ~ 55°C | cULus, EN, UL |
|

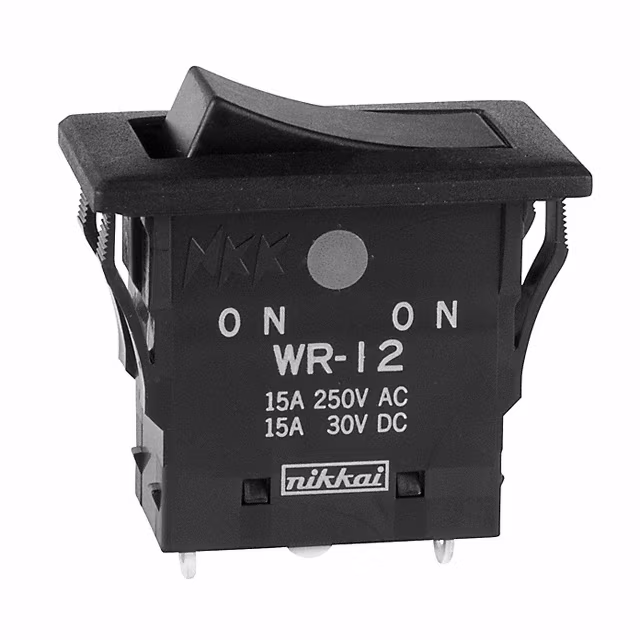

WR12ASSWITCH ROCKER SPDT 15A 125V |
63 |
|
Datasheet |
WR | Bulk | Active | Panel Mount, Snap-In | SPDT | On-On | 15A (AC/DC) | 125 V | 30 V | Concave (Curved) | Black | No Marking | - | - | Solder Lug | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | Rectangular - 34.20mm x 17.20mm | -25°C ~ 85°C | EN, UL |
|
WR12AFSWITCH ROCKER SPDT 15A 125V |
9 |
|
Datasheet |
WR | Bulk | Active | Panel Mount, Snap-In | SPDT | On-On | 15A (AC/DC) | 125 V | 30 V | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | Rectangular - 34.20mm x 17.20mm | -25°C ~ 85°C | EN, UL |
|

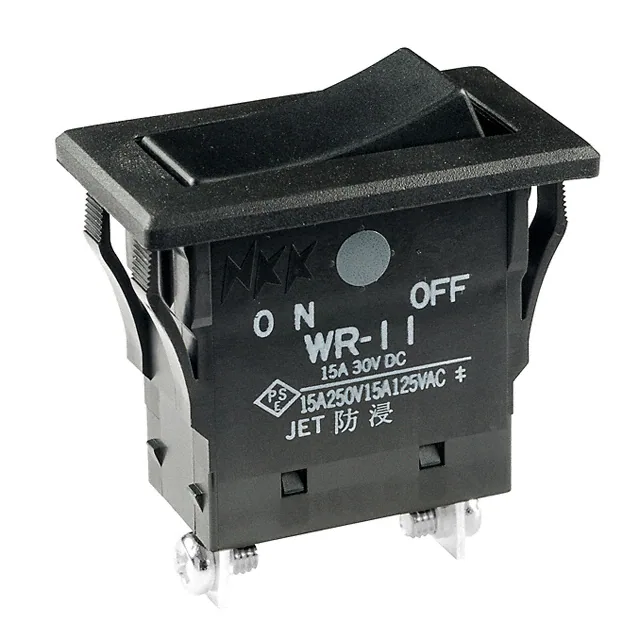

WR11ATSWITCH ROCKER SPST 15A 125V |
49 |
|
Datasheet |
WR | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 15A (AC/DC) | 125 V | 30 V | Concave (Curved) | Black | No Marking | - | - | Screw Terminal | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | Rectangular - 34.20mm x 17.20mm | -25°C ~ 85°C | EN, UL |
|
A8A-216-1SWITCH ROCKER DPST 16A 125V |
38 |
|
Datasheet |
A8A | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 16A (AC) | 125 V | - | Flat - Illuminated | Orange | No Marking | Neon, Orange | 110 VAC | Quick Connect - 0.250" (6.3mm) | IP00 | - | Rectangular - 30.00mm x 22.00mm | -25°C ~ 50°C | CSA, EN, UL |
|

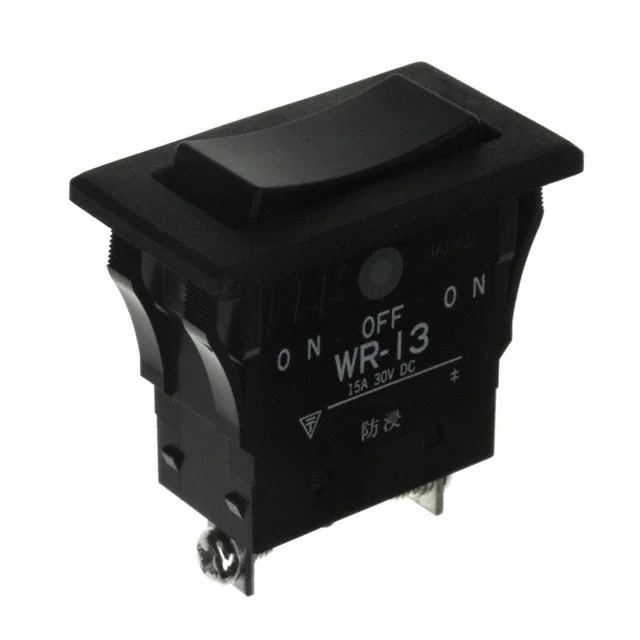

WR13ATNSWITCH ROCKER SPDT 15A 125V |
27 |
|
Datasheet |
WR | Bulk | Active | Panel Mount, Snap-In | SPDT | On-Off-On | 15A (AC/DC) | 125 V | 30 V | Concave (Curved) | Black | No Marking | - | - | Screw Terminal | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | Rectangular - 34.20mm x 17.20mm | -25°C ~ 85°C | EN, UL |
|

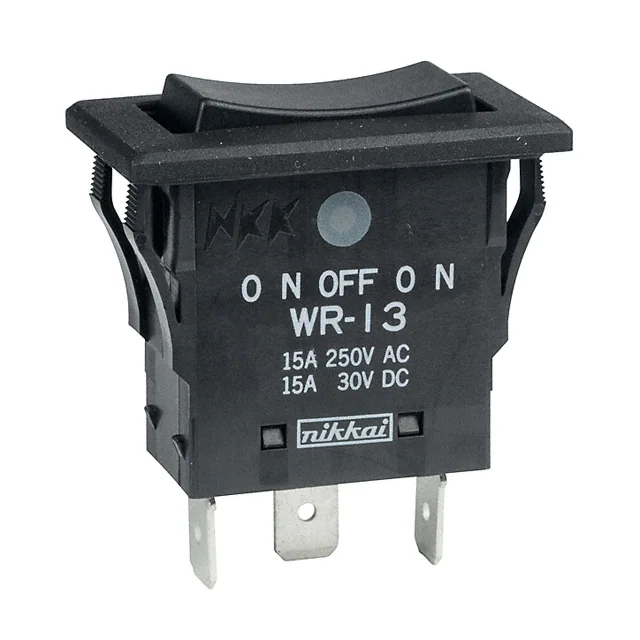

WR13AFNSWITCH ROCKER SPDT 15A 125V |
7 |
|
Datasheet |
WR | Bulk | Active | Panel Mount, Snap-In | SPDT | On-Off-On | 15A (AC/DC) | 125 V | 30 V | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | Rectangular - 34.20mm x 17.20mm | -25°C ~ 85°C | EN, UL |
|
W24D20001-AZZ00-000SWITCH ROCKER DPDT 10A 12V |
7 |
|
Datasheet |
W | Box | Active | Panel Mount, Snap-In | DPDT | On-On | 10A (DC) | - | 12 V | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.110" (2.8mm) | IP68 - Dust Tight, Waterproof | - | Rectangular - 36.83mm x 21.08mm | -40°C ~ 85°C | - |
|

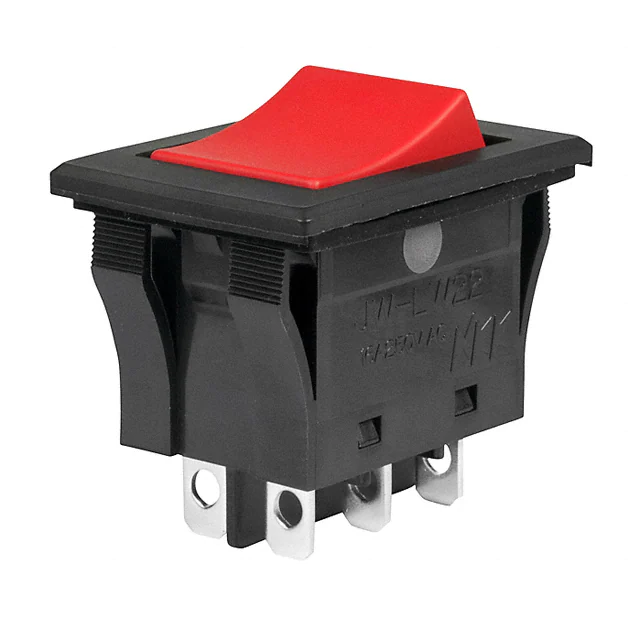

JWLW22RCASWITCH ROCKER DPDT 16A 125V |
32 |
|
Datasheet |
JW | Bulk | Active | Panel Mount, Snap-In | DPDT | On-On | 16A (AC) | 125 V | - | Concave (Curved) | Red | No Marking | - | - | Solder, Quick Connect - 0.187" (4.7mm) | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | Rectangular - 30.70mm x 20.50mm | -25°C ~ 85°C | CSA, UL, VDE |
|

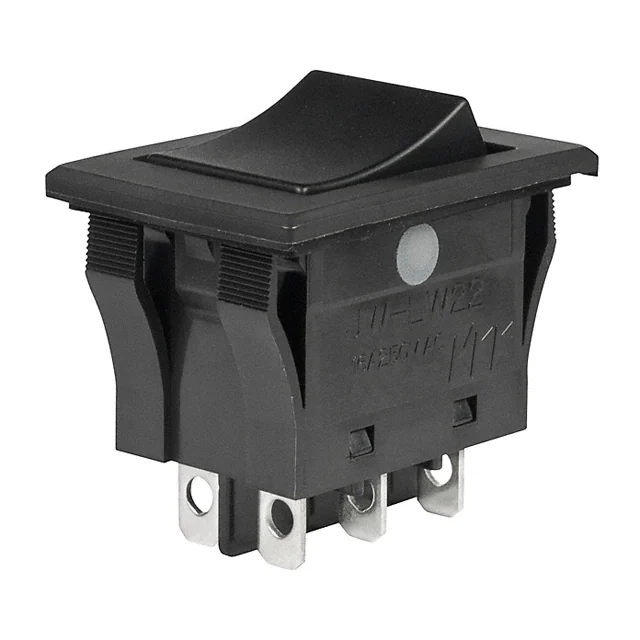

JWLW22RAASWITCH ROCKER DPDT 16A 125V |
9 |
|
Datasheet |
JW | Bulk | Active | Panel Mount, Snap-In | DPDT | On-On | 16A (AC) | 125 V | - | Concave (Curved) | Black | No Marking | - | - | Solder, Quick Connect - 0.187" (4.7mm) | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | Rectangular - 30.70mm x 20.50mm | -25°C ~ 85°C | CSA, UL, VDE |
|
7205J10ZGE2SWITCH ROCKER DPDT 5A 120V |
22 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount, Flange | DPDT | Mom-Off-Mom | 5A (AC/DC) | 120 V | 28 V | Concave (Curved) | Black | No Marking | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 34.92mm x 16.46mm | -30°C ~ 85°C | cULus |
Rocker Switches Electronic Components
Explore Rocker Switches electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
