Rocker Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Color - Actuator/Cap | Actuator Marking | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CRSL1A125VG4M9SWITCH ROCKER SPST 20A 125V |
78 |
|
Datasheet |
CRSL | Bulk | Active | Panel Mount, Snap-In | SPST | Off-On | 20A (AC), 14A (DC) | 125 V | 14 V | Concave (Curved) - Illuminated | Green | - | Neon, Green | 125 VAC | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 27.43mm x 12.19mm | - | CSA, UL, VDE |
|
|
CRTP11A9M9SWITCH ROCKER DPST 20A 125V |
27 |
|
Datasheet |
CRTP | Bulk | Active | Panel Mount, Snap-In | DPST | Off-On | 20A (AC), 14A (DC) | 125 V | 14 V | Concave (Curved) | Black | Stop Request | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 27.43mm x 22.35mm | - | CSA, UL, VDE |
|

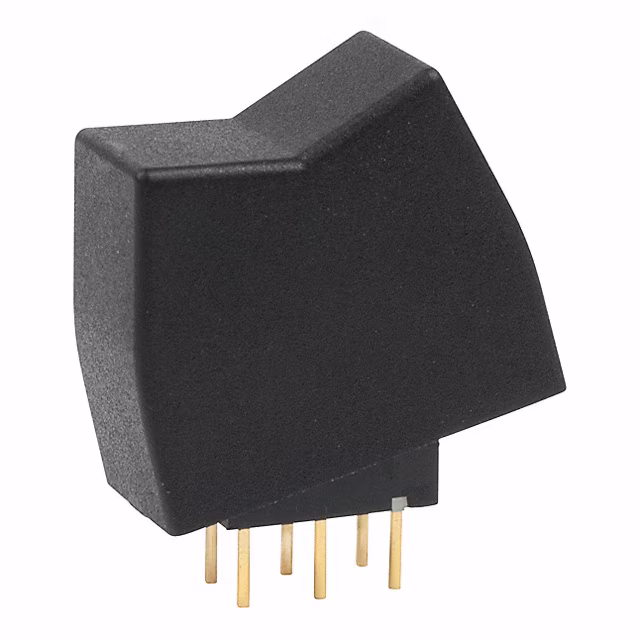

G22KP-YASWITCH ROCKER DPDT 0.4VA 28V |
19 |
|
Datasheet |
G | Tray | Active | Through Hole | DPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Concave (Standard V) | Black | No Marking | - | - | PC Pin | - | Process Sealed | - | -25°C ~ 85°C | CSA, UL |
|
CF-LA-2KC-3CSWITCH ROCKER DPST 16A 125V |
100 |
|
Datasheet |
CF-LA | Tray | Active | Panel Mount, Snap-In | DPST | On-Off | 16A (AC) | 125 V | - | Concave (Curved) | Black | O I | - | - | PC Pin | IP40 | In Rush 160A Max | Rectangular - 28.20mm x 12.90mm | -25°C ~ 85°C | cULus, UL |
|
EHRRSLBSWITCH ROCKER |
61 |
|
Datasheet |
EH | Bulk | Active | Panel Mount, Flange | DPDT | - | - | - | - | Concave (Curved) | Black | O - | - | - | Solder Lug | - | - | - | - | - |
|

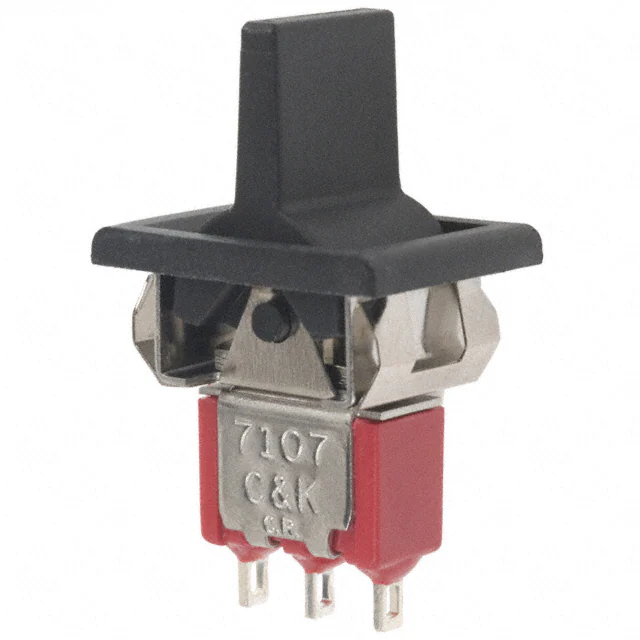

7101J61ZQE22SWITCH ROCKER SPDT 5A 120V |
83 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount, Snap-In | SPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Paddle | Black | No Marking | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 15.24mm x 12.70mm | -30°C ~ 85°C | cULus |
|
T101J1AVBE2SWITCH ROCKER SPDT 0.4VA 20V |
40 |
|
Datasheet |
T | Tray | Active | Through Hole, Right Angle, Vertical | SPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Concave (Curved) | Black | No Marking | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -30°C ~ 85°C | UL |
|
|
7107J61ZQE22SWITCH ROCKER SPDT 5A 120V |
71 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount, Snap-In | SPDT | On-Off-Mom | 5A (AC/DC) | 120 V | 28 V | Paddle | Black | No Marking | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 15.24mm x 12.70mm | -30°C ~ 85°C | cULus |
|

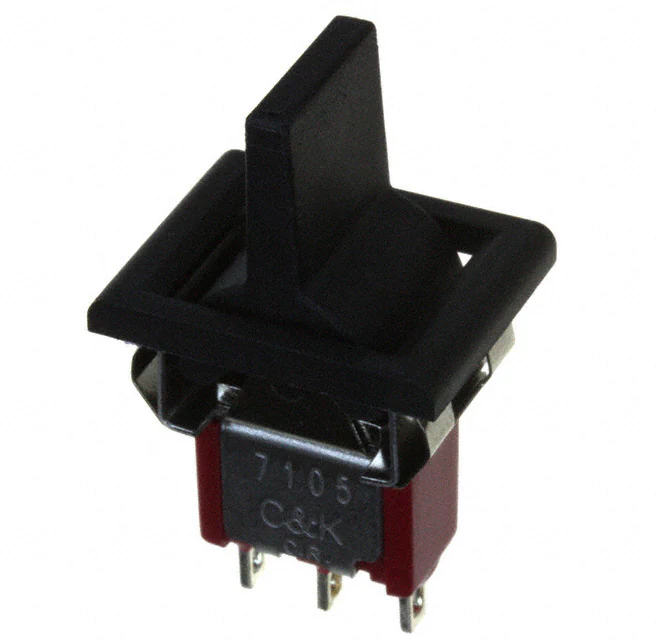

7105J61ZQE22SWITCH ROCKER SPDT 5A 120V |
24 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount, Snap-In | SPDT | Mom-Off-Mom | 5A (AC/DC) | 120 V | 28 V | Paddle | Black | No Marking | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 15.24mm x 12.70mm | -30°C ~ 85°C | cULus |
|
|
471018264152SWITCH ROCKER DPST 10A 250V |
42 |
|
Datasheet |
WS-RSTV | Tray | Active | Panel Mount, Snap-In | DPST | On-Off | 10A (AC) | 250 V | 60 V | Concave (Curved) | Black | O - | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 30.20mm x 22.20mm | 0°C ~ 85°C | CQC, ENEC, UL |
|
|
471018264153SWITCH ROCKER DPST 10A 250V |
40 |
|
Datasheet |
WS-RSTV | Tray | Active | Panel Mount, Snap-In | DPST | On-Off | 10A (AC) | 250 V | 60 V | Concave (Curved) | Black | O I | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 30.20mm x 22.20mm | 0°C ~ 85°C | CQC, ENEC, UL |
|
JWMW11RA2A/CUL-WLSWITCH ROCKER SPST 10A 125V |
17 |
|
Datasheet |
JW | Box | Active | Panel Mount, Snap-In | SPST | On-Off | 10A (AC/DC) | 125 V | 30 V | Concave (Curved) | Black | O - | - | - | Wire Leads | Dust Proof | - | Rectangular - 25.00mm x 15.40mm | -25°C ~ 85°C | CSA, UL, VDE |
|

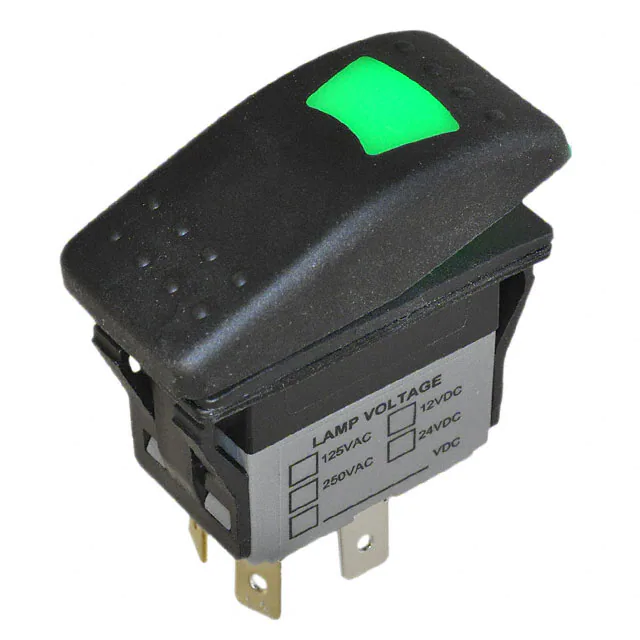

R711FE1-SXXX2BDGNWSWITCH ROCKER SPST 16A 30V |
76 |
|
Datasheet |
R7 | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 16A (DC) | - | 30 V | Convex (Reverse V) - Illuminated | Black | No Marking | LED, Green | 12 VDC | Quick Connect - 0.250" (6.3mm) | IP67 - Dust Tight, Waterproof | - | Rectangular - 37.00mm x 21.10mm | 0°C ~ 55°C | cULus |
|
H8653VBBG3-577WSWITCH ROCKER DPST 6A 277V |
51 |
|
Datasheet |
8600 | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 6A (AC) | 277 V | - | Concave (Curved) - Illuminated | Green | O - | Neon, Green | 250 VAC | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 21.90mm x 19.30mm | - | CSA, UL |
|
7105J3ZQE2SWITCH ROCKER SPDT 5A 120V |
16 |
|
Datasheet |
7000 | Tray | Active | Panel Mount, Flange | SPDT | Mom-Off-Mom | 5A (AC/DC) | 120 V | 28 V | Concave (Standard V) | Black | No Marking | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 27.81mm x 16.46mm | -30°C ~ 85°C | cULus |
|

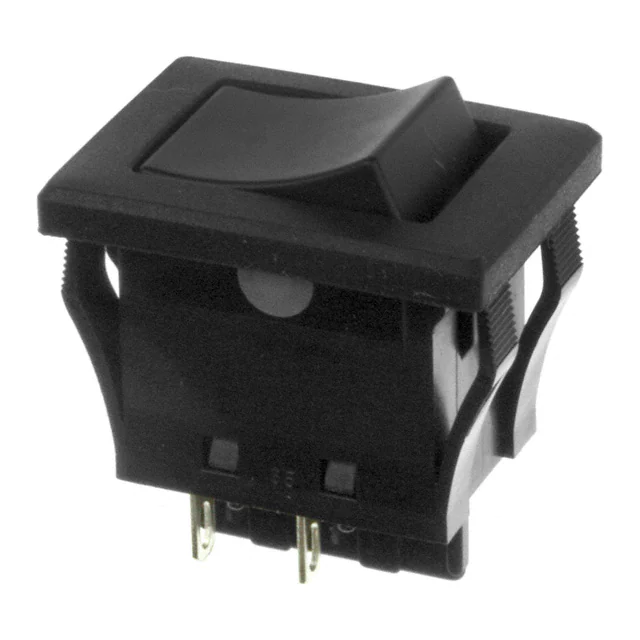

JWMW22RAASWITCH ROCKER DPDT 10A 125V |
23 |
|
Datasheet |
JW | Bulk | Active | Panel Mount, Snap-In | DPDT | On-On | 10A (AC/DC) | 125 V | 30 V | Concave (Curved) | Black | No Marking | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | Rectangular - 25.00mm x 15.40mm | -25°C ~ 85°C | CSA, UL, VDE |
|

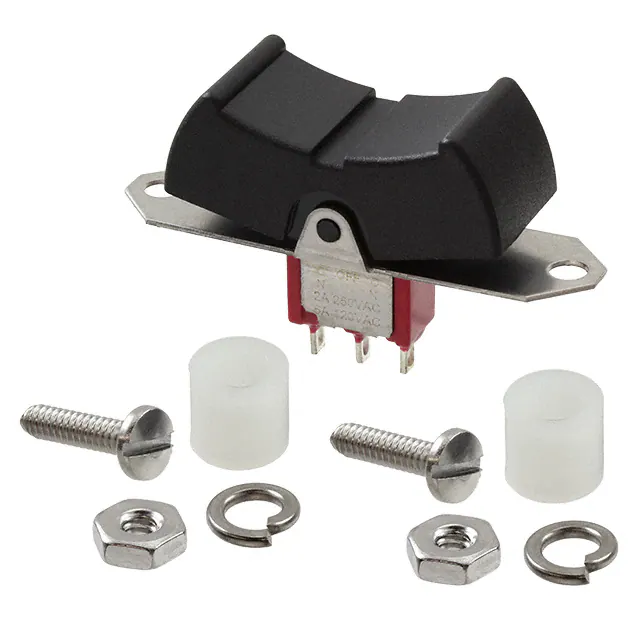

7105J10ZQE2SWITCH ROCKER SPDT 5A 120V |
96 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount, Flange | SPDT | Mom-Off-Mom | 5A (AC/DC) | 120 V | 28 V | Concave (Curved) | Black | No Marking | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 34.92mm x 16.46mm | -30°C ~ 85°C | cULus |
|

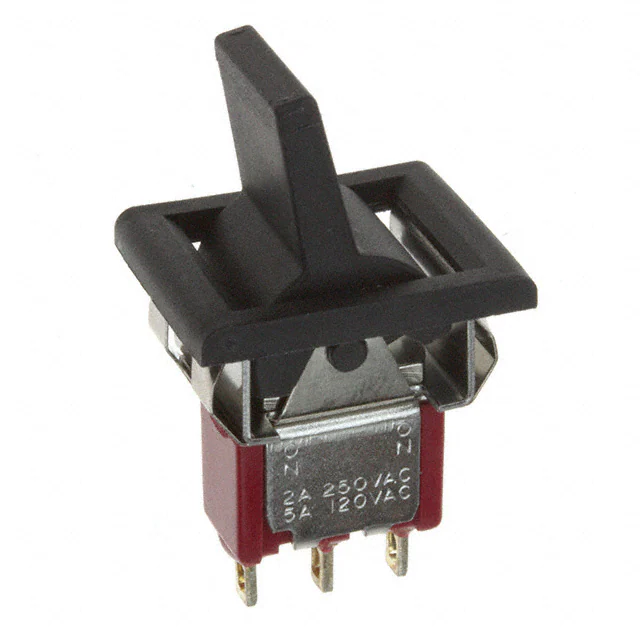

7108J26ZBE22SWITCH ROCKER SPDT 0.4VA 20V |
90 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount, Snap-In | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Paddle | Black | No Marking | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 20.32mm x 12.70mm | -30°C ~ 85°C | cULus |
|
58027-04SWITCH ROCKER SPDT 15A 24V |
67 |
|
Datasheet |
58027 | Bulk | Active | Panel Mount, Snap-In | SPDT | Mom-Off-Mom | 15A (DC) | - | 24 V | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | IP66 - Dust Tight, Water Resistant | - | Rectangular - 36.83mm x 21.08mm | - | - |
|
7201J51ZQE22SWITCH ROCKER DPDT 5A 120V |
54 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount, Snap-In | DPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Concave (Standard V) | Black | No Marking | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 15.24mm x 12.70mm | -30°C ~ 85°C | cULus |
