Rocker Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Color - Actuator/Cap | Actuator Marking | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MLW3022-00-RB-1ASWITCH ROCKER DPDT 5A 125V |
226 |
|
Datasheet |
MLW | Box | Obsolete | Panel Mount, Snap-In | DPDT | On-On | 5A (AC), 3A (DC) | 125 V | 30 V | Concave (Curved) | White | No Marking | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 18.70mm x 16.70mm | -10°C ~ 50°C | UL |
|

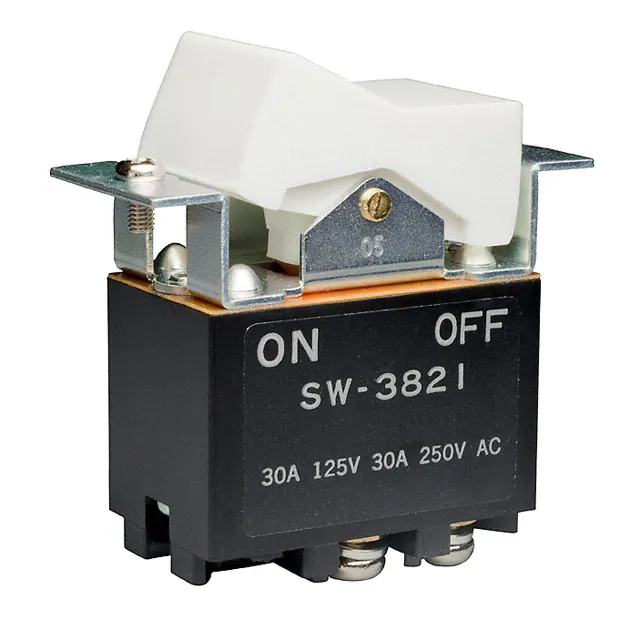

SW3821/UCSWITCH ROCKER DPST 30A 125V |
295 |
|
Datasheet |
SW | Bulk | Obsolete | Panel Mount, Flange | DPST | On-Off | 30A (AC/DC) | 125 V | 30 V | Concave (Standard V) | White | No Marking | - | - | Screw Terminal | - | - | - | -10°C ~ 70°C | CSA, UL |
|
TRD11G20QCSWITCH ROCKER SPDT 0.4VA 20V |
0 |
|
Datasheet |
TRD | Bulk | Obsolete | Panel Mount, Threaded Body with Nut | SPDT | Mom-Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Paddle | Black | No Marking | - | - | Quick Connect - 0.110" (2.8mm) | - | - | Circular - 11.90mm Dia | -20°C ~ 80°C | - |
|
|
WR18AL/CULSWITCH ROCKER SPDT 15A 125V |
0 |
|
Datasheet |
WR | Bulk | Active | Panel Mount, Snap-In | SPDT | Mom-Off-Mom | 15A (AC/DC) | 125 V | 30 V | Concave (Curved) | Black | No Marking | - | - | Wire Leads | IP67 - Dust Tight, Waterproof | - | Rectangular - 34.20mm x 17.20mm | -25°C ~ 85°C | EN, UL |
|

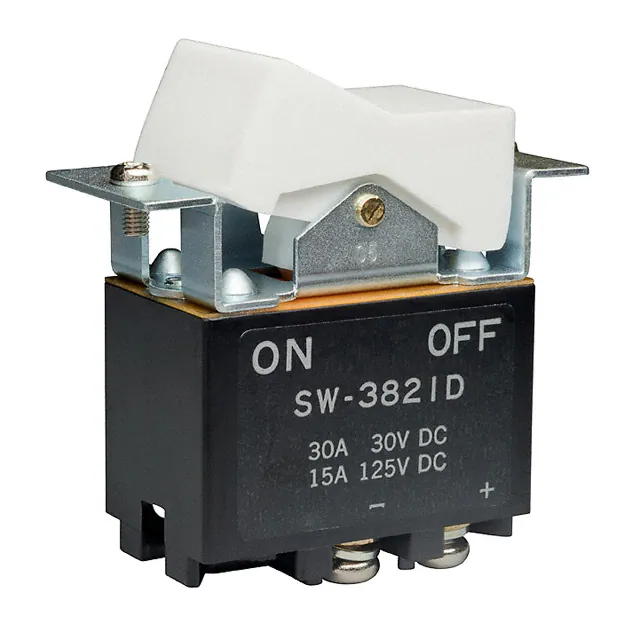

SW3821D/UCSWITCH ROCKER DPST 30A 30V |
0 |
|
Datasheet |
SW | Bulk | Obsolete | Panel Mount, Flange | DPST | On-Off | 30A (DC) | - | 30 V | Concave (Standard V) | White | No Marking | - | - | Screw Terminal | - | - | - | -10°C ~ 70°C | CSA, UL |
|
|
SW3823D/USWITCH ROCKER DPDT 30A 30V |
0 |
|
Datasheet |
SW | Bulk | Active | Panel Mount, Flange | DPDT | On-Off-On | 30A (DC) | - | 30 V | Concave (Standard V) | White | No Marking | - | - | Screw Terminal | - | - | - | -10°C ~ 70°C | CSA, UL |
|
|
TRD21S10WLSWITCH ROCKER DPDT 0.4VA 20V |
0 |
|
- |
TRD | Bulk | Active | Panel Mount, Threaded Body with Nut | DPDT | Mom-Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Concave (Curved) | Black | No Marking | - | - | Solder Lug | - | - | Circular - 11.90mm Dia | -20°C ~ 80°C | - |
|
|
SW3832/A/UCSWITCH ROCKER 3PDT 30A 125V |
0 |
|
- |
SW | Bulk | Obsolete | Panel Mount, Flange | 3PDT | On-On | 30A (AC/DC) | 125 V | 30 V | Concave (Standard V) | White | No Marking | - | - | Screw Terminal | - | - | - | -10°C ~ 70°C | CSA, UL |
|
|
SW3831/CULSWITCH ROCKER 3PST 30A 125V |
0 |
|
Datasheet |
SW | Bulk | Active | Panel Mount, Flange | 3PST | On-Off | 30A (AC/DC) | 125 V | 30 V | Concave (Standard V) | White | No Marking | - | - | Screw Terminal | - | - | - | -10°C ~ 70°C | CSA, UL |
|

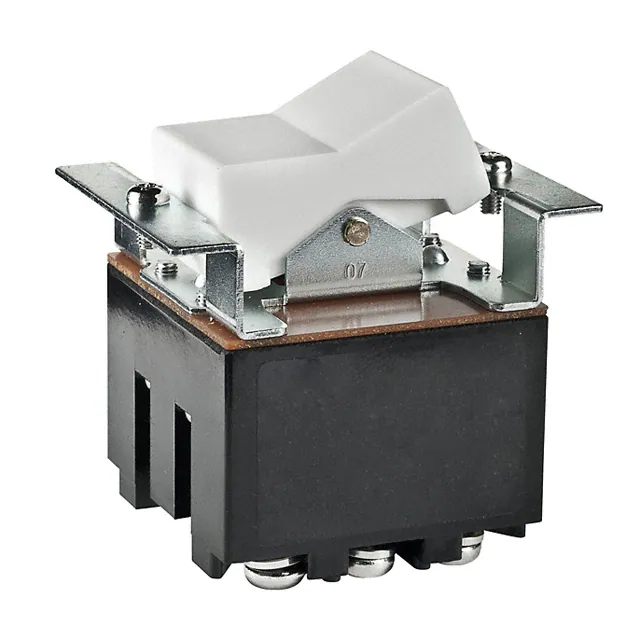

SW3832D/UCSWITCH ROCKER 3PDT 30A 30V |
15 |
|
Datasheet |
SW | Bulk | Obsolete | Panel Mount, Flange | 3PDT | On-On | 30A (DC) | - | 30 V | Concave (Standard V) | White | No Marking | - | - | Screw Terminal | - | - | - | -10°C ~ 70°C | CSA, UL |
|
AML24EBA2AA06SWITCH ROCKER SPDT 3A 125V |
0 |
|
Datasheet |
AML24 | Bulk | Active | Panel Mount, Snap-In | SPDT | On-Off-Mom | 3A (AC), 2A (DC) | 125 V | 24 V | Actuator Arm, Cap Required | - | Varies by Cap | - | - | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Rectangular - 28.98mm x 19.05mm | - | - |
|
|
SW3833/CULSWITCH ROCKER 3PDT 30A 125V |
0 |
|
Datasheet |
SW | Bulk | Active | Panel Mount, Flange | 3PDT | On-Off-On | 30A (AC/DC) | 125 V | 30 V | Concave (Standard V) | White | No Marking | - | - | Screw Terminal | - | - | - | -10°C ~ 70°C | CSA, UL |
|
SW3832/UCSWITCH ROCKER 3PDT 30A 125V |
8 |
|
Datasheet |
SW | Bulk | Obsolete | Panel Mount, Flange | 3PDT | On-On | 30A (AC/DC) | 125 V | 30 V | Concave (Standard V) | White | No Marking | - | - | Screw Terminal | - | - | - | -10°C ~ 70°C | CSA, UL |
|
AML36FBC7AC01SWITCH ROCKER DPST 15A 125V |
0 |
|
Datasheet |
AML36 | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 15A (AC) | 125 V | - | Actuator Arm, Cap Required - Illuminated | - | Varies by Cap | Neon, Red | 250 VAC | Solder, Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 28.98mm x 19.05mm | - | CE, CSA, UL, VDE |
|
|
4TP1-10SWITCH ROCKER 4PDT 15A 125V |
0 |
|
Datasheet |
TP | Bulk | Obsolete | Panel Mount, Flange | 4PDT | On-On-On | 15A (AC) | 125 V | - | Concave (Curved) | Clear | No Marking | - | - | Screw Terminal | - | Sealed | - | -54°C ~ 71°C | - |
|
|
1TP4-2SWITCH ROCKER SPST 15A 125V |
0 |
|
Datasheet |
TP | Bulk | Active | Panel Mount, Flange | SPST | On-Off | 15A (AC) | 125 V | - | Concave (Curved) | Clear | No Marking | - | - | Screw Terminal | - | Sealed | Rectangular - 38.40mm x 23.90mm | -54°C ~ 71°C | CE, CSA, UKCA, UL |
|
|
AML26GBF8AA07RGSWITCH ROCKER SPDT 3A 125V |
0 |
|
Datasheet |
AML26 | Bulk | Active | Panel Mount, Snap-In | SPDT | On-Off-Mom | 3A (AC), 2A (DC) | 125 V | 24 V | Actuator Arm, Cap Required - Illuminated | - | Varies by Cap | LED, Green/Red | 24 VDC | Solder, Quick Connect - 0.110" (2.8mm) | - | Diode Protection for LED | Rectangular - 28.98mm x 19.05mm | - | CSA, UL |
|

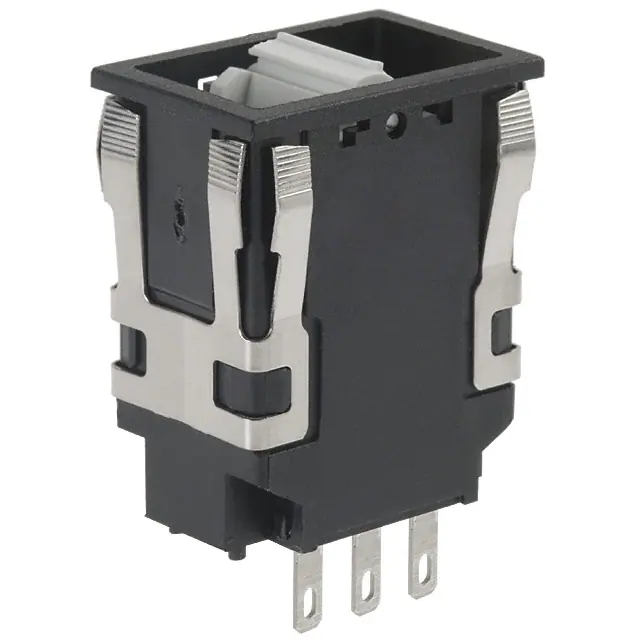

AML24EBA2AA01SWITCH ROCKER SPDT 3A 125V |
0 |
|
Datasheet |
AML24 | Bulk | Active | Panel Mount, Snap-In | SPDT | On-On | 3A (AC), 2A (DC) | 125 V | 24 V | Actuator Arm, Cap Required | - | Varies by Cap | - | - | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Rectangular - 28.98mm x 19.05mm | - | CSA, CE, UL, VDE |
|
|
AML26GBC3AA04GGSWITCH ROCKER SPDT 3A 125V |
0 |
|
Datasheet |
AML26 | Bulk | Active | Panel Mount, Snap-In | SPDT | On-Off-On | 3A (AC), 2A (DC) | 125 V | 24 V | Actuator Arm, Cap Required - Illuminated | - | Varies by Cap | LED, Green | 5 VDC | PC Pin | - | - | Rectangular - 28.98mm x 19.05mm | - | CSA, UL |
|
1TP201-7SWITCH ROCKER SPDT 10A 125V |
0 |
|
Datasheet |
TP | Bulk | Active | Panel Mount, Flange | SPDT | Mom-Off-Mom | 10A (AC) | 125 V | - | Concave (Curved) | White | No Marking | - | - | Screw Terminal | - | Sealed | Rectangular - 38.40mm x 23.90mm | -54°C ~ 71°C | CE, CSA, UKCA, UL |
