Rocker Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Color - Actuator/Cap | Actuator Marking | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SW-R3-1A-A-1-2SWITCH ROCKER SPST 6A 125V |
985 |
|
Datasheet |
SW | Bag | Active | Panel Mount, Snap-In | SPST | On-Off | 6A (AC) | 125 V | - | Round | Black | O - | - | - | Solder Lug | - | - | Circular - 14.40mm Dia | -25°C ~ 85°C | - |
|
SW-R2-1A-F-1-0SWITCH ROCKER SPST 10A 125V |
960 |
|
Datasheet |
SW | Bag | Active | Panel Mount, Snap-In | SPST | On-Off | 10A (AC) | 125 V | - | Concave (Curved) | Black | O - | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.20mm x 13.20mm | -25°C ~ 85°C | - |
|
RA12131100SWITCH ROCKER SPST 10A 125V |
884 |
|
Datasheet |
RA1, LAMB | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 10A (AC) | 125 V | - | Concave (Curved) | Black | No Marking | - | - | Solder Lug | - | - | Rectangular - 19.40mm x 13.10mm | -20°C ~ 55°C | cULus |
|
SW-R2-1A-F-1-5SWITCH ROCKER SPST 10A 125V |
107 |
|
Datasheet |
SW | Bag | Active | Panel Mount, Snap-In | SPST | On-Off | 10A (AC) | 125 V | - | Round | Black | O - | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Circular - 20.00mm Dia | -25°C ~ 85°C | - |
|
SW-R2-2B-F-1-0SWITCH ROCKER SPDT 10A 125V |
264 |
|
Datasheet |
SW | Bag | Active | Panel Mount, Snap-In | SPDT | On-On | 10A (AC) | 125 V | - | Concave (Curved) | Black | O - | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.20mm x 13.00mm | -25°C ~ 85°C | - |
|
SW-R1-1A-E-1-0SWITCH ROCKER SPST 20A 125V |
743 |
|
Datasheet |
SW | Bag | Active | Panel Mount, Snap-In | SPST | On-Off | 20A (AC) | 125 V | - | Concave (Curved) | Black | O - | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 28.00mm x 10.00mm | -25°C ~ 85°C | - |
|

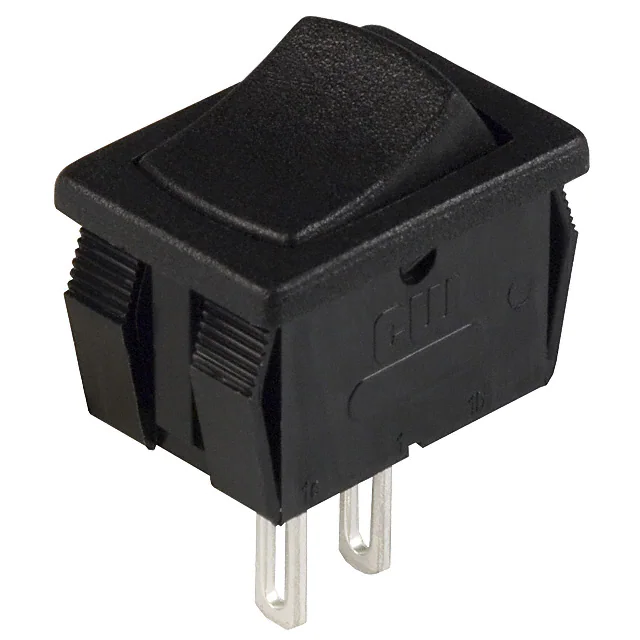

GRS-4011-0024SWITCH ROCKER SPST 16A 125V |
100 |
|
Datasheet |
4000 | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 16A (AC) | 125 V | - | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.20mm x 12.90mm | -20°C ~ 105°C | - |
|
SW-R2-1A-F-LR13-2SWITCH ROCKER SPST 10A 125V |
223 |
|
Datasheet |
SW | Bag | Active | Panel Mount, Snap-In | SPST | On-Off | 10A (AC) | 125 V | - | Concave (Curved) - Illuminated | Red | O - | LED, Red | 12 VDC | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.20mm x 13.00mm | -25°C ~ 85°C | - |
|
SW-R2-2E-F-6-2SWITCH ROCKER SPDT 10A 125V |
171 |
|
Datasheet |
SW | Bag | Active | Panel Mount, Snap-In | SPDT | On-Off-On | 10A (AC) | 125 V | - | Concave (Curved) | Black | O - | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.20mm x 13.00mm | -25°C ~ 85°C | - |
|
SW-R2-3A-F-1-6SWITCH ROCKER DPST 10A 125V |
202 |
|
Datasheet |
SW | Bag | Active | Panel Mount, Snap-In | DPST | On-Off | 10A (AC) | 125 V | - | Concave (Curved) | Black | O - | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 22.20mm x 20.00mm | -25°C ~ 85°C | - |
|

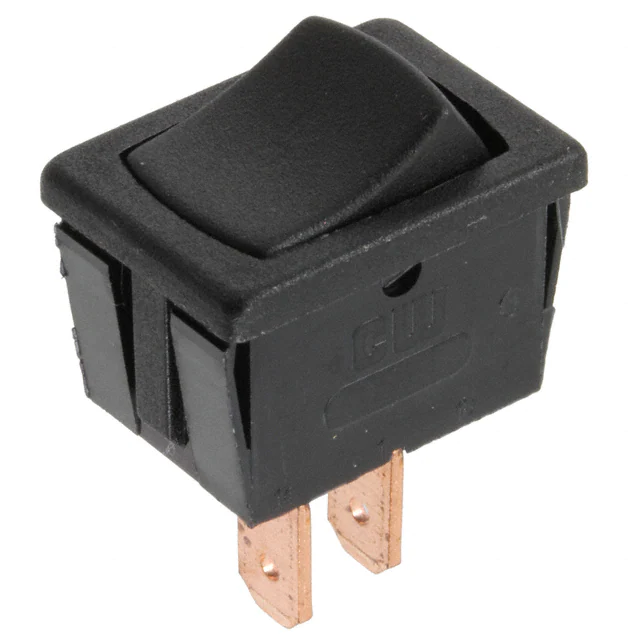

GRS-4011-0118SWITCH ROCKER SPST 13A 125V |
783 |
|
Datasheet |
4000 | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 13A (AC) | 125 V | - | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.20mm x 12.90mm | - | - |
|
SW-R2-1A-F-LR13-8SWITCH ROCKER SPST 10A 125V |
407 |
|
Datasheet |
SW | Bag | Active | Panel Mount, Snap-In | SPST | On-Off | 10A (AC) | 125 V | - | Round - Illuminated | Red | O - | LED, Red | 12 VDC | Quick Connect - 0.187" (4.7mm) | - | - | Circular - 20.00mm Dia | -25°C ~ 85°C | - |
|
SW-R1-1C-E-1-0SWITCH ROCKER SPST 20A 125V |
270 |
|
Datasheet |
SW | Bag | Active | Panel Mount, Snap-In | SPST | Off-Mom | 20A (AC) | 125 V | - | Concave (Curved) | Black | O - | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 28.00mm x 10.00mm | -25°C ~ 85°C | - |
|
RR11132211SWITCH ROCKER SPST 10A 125V |
674 |
|
Datasheet |
RR1, LAMB | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 10A (AC) | 125 V | - | Round | White | O - | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Circular - 20.00mm Dia | -20°C ~ 105°C | cUL, VDE, UL |
|
SW-R2-1A-F-LR13-5SWITCH ROCKER SPST 10A 125V |
291 |
|
Datasheet |
SW | Bag | Active | Panel Mount, Snap-In | SPST | On-Off | 10A (AC) | 125 V | - | Round - Illuminated | Red | O - | LED, Red | 12 VDC | Quick Connect - 0.187" (4.7mm) | - | - | Circular - 20.00mm Dia | -25°C ~ 85°C | - |
|
|
SW-R3-1A-A-LG13-2SWITCH ROCKER SPST 6A 125V |
257 |
|
Datasheet |
SW | Bag | Active | Panel Mount, Snap-In | SPST | On-Off | 6A (AC) | 125 V | - | Round - Illuminated | Green | O - | LED, Green | 12 VDC | Solder Lug | - | - | Circular - 14.40mm Dia | -25°C ~ 85°C | - |
|

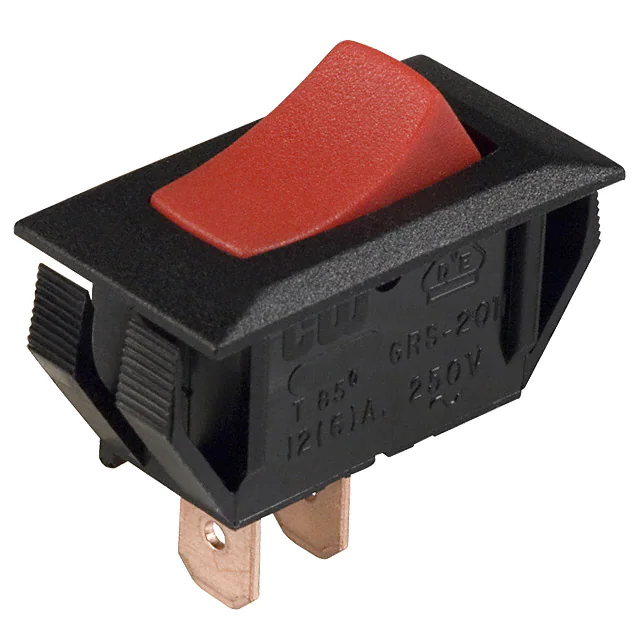

GRS-2011-2019SWITCH ROCKER SPST 16A 125V |
475 |
|
Datasheet |
2000 | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 16A (AC) | 125 V | - | Concave (Curved) | Red | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 28.58mm x 13.97mm | -20°C ~ 105°C | - |
|
|
SW-R2-4E-S-6-1SWITCH ROCKER DPDT 10A 125V |
58 |
|
Datasheet |
SW | Bag | Active | Panel Mount, Snap-In | DPDT | On-Off-On | 10A (AC) | 125 V | - | Concave (Curved) | Black | ON OFF, Vertical | - | - | Quick Connect - 0.110" (2.8mm) | - | - | - | -25°C ~ 85°C | - |
|

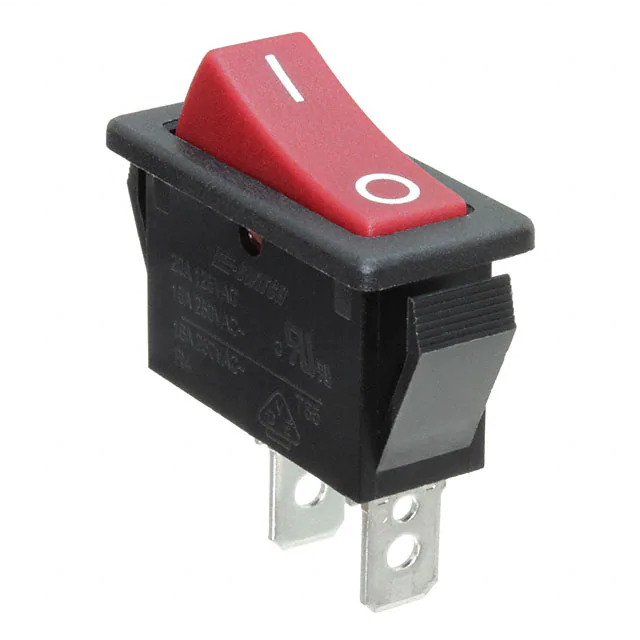

R4ABLKREDFF0SWITCH ROCKER SPST 20A 125V |
35 |
|
Datasheet |
R4 | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 20A (AC) | 125 V | - | Concave (Curved) | Red | O - | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 30.10mm x 11.10mm | -20°C ~ 55°C | UL |
|
|
RR31123TCWCN10SWITCH ROCKER SPST 15A 125V |
55 |
|
Datasheet |
RR3 | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 15A (AC) | 125 V | - | Round - Illuminated | Red | O - | Neon, Clear | 125 VAC | Solder, Quick Connect - 0.187" (4.7mm) | - | - | Circular - 20.20mm Dia | -20°C ~ 70°C | - |
Rocker Switches Electronic Components
Explore Rocker Switches electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
