Rocker Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Color - Actuator/Cap | Actuator Marking | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
7205J61ZQE22SWITCH ROCKER DPDT 5A 120V |
95 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount, Snap-In | DPDT | Mom-Off-Mom | 5A (AC/DC) | 120 V | 28 V | Paddle | Black | No Marking | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 15.24mm x 12.70mm | -30°C ~ 85°C | cULus |
|

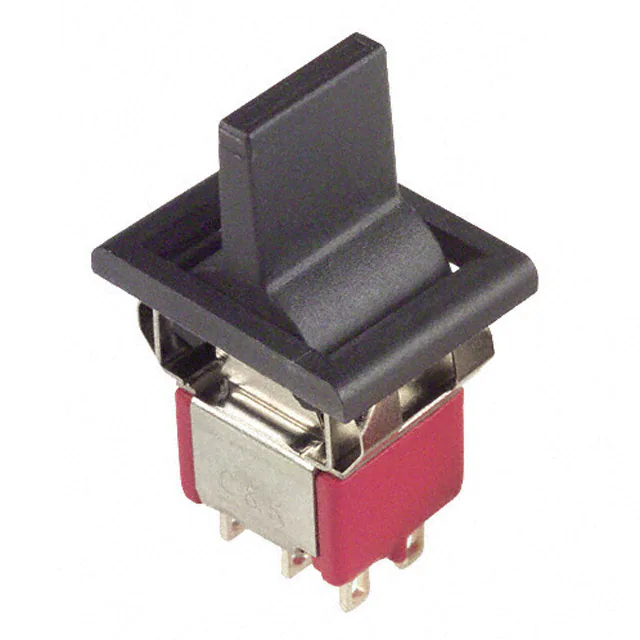

7203J61ZQE22SWITCH ROCKER DPDT 5A 120V |
77 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount, Snap-In | DPDT | On-Off-On | 5A (AC/DC) | 120 V | 28 V | Paddle | Black | No Marking | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 15.24mm x 12.70mm | -30°C ~ 85°C | cULus |
|
L24D1S001-AZZ00-000SWITCH ROCKER DPDT 20A 12V |
35 |
|
Datasheet |
L | Box | Active | Panel Mount, Snap-In | DPDT | On-On | 20A (DC) | - | 12 V | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | IP67 - Dust Tight, Waterproof | - | Rectangular - 44.04mm x 22.02mm | -40°C ~ 85°C | - |
|

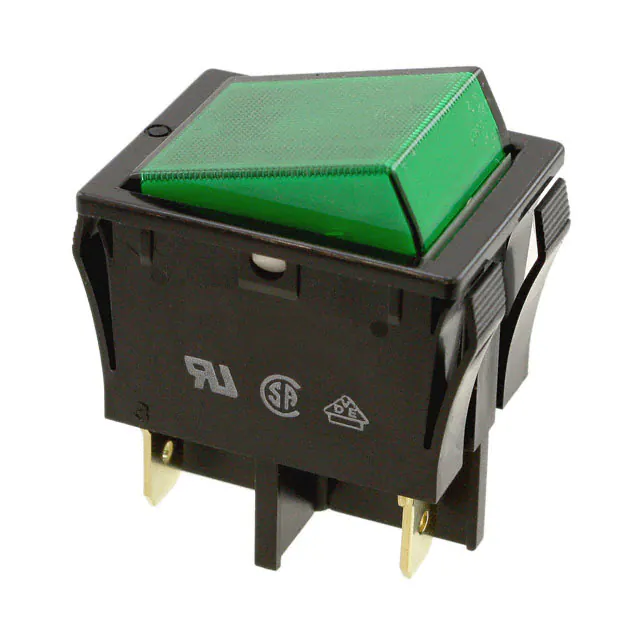

A8A-213-1SWITCH ROCKER DPST 16A 125V |
20 |
|
Datasheet |
A8A | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 16A (AC) | 125 V | - | Flat - Illuminated | Green | No Marking | Neon, Green | 110 VAC | Quick Connect - 0.250" (6.3mm) | IP00 | - | Rectangular - 30.00mm x 22.00mm | -25°C ~ 50°C | CSA, EN, UL |
|
2641SLH/2A232021L0SWITCH ROCKER DPST 16A 125V |
60 |
|
Datasheet |
2600 | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 16A (AC), 15A (DC) | 125 V | 12 V | Concave (Curved) | Black | O - | - | - | Solder, Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 30.00mm x 22.00mm | -20°C ~ 85°C | CSA, NF, UL, VDE |
|

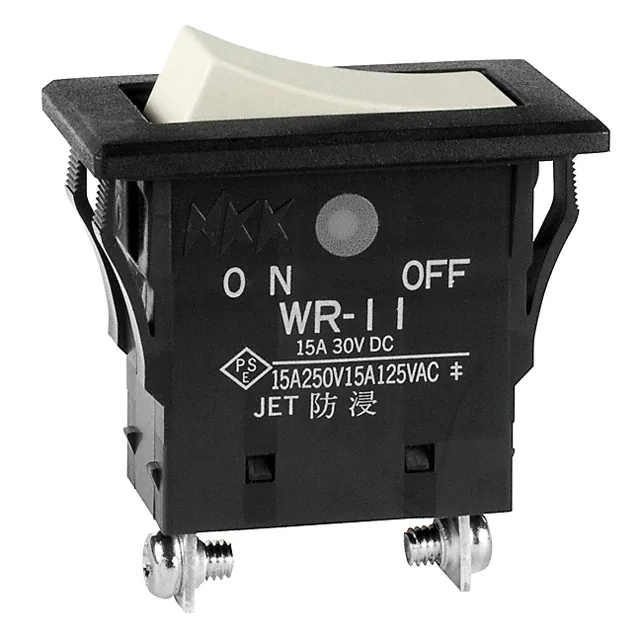

WR11BTSWITCH ROCKER SPST 15A 125V |
0 |
|
Datasheet |
WR | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 15A (AC/DC) | 125 V | 30 V | Concave (Curved) | Ivory | No Marking | - | - | Screw Terminal | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | Rectangular - 34.20mm x 17.20mm | -25°C ~ 85°C | EN, UL |
|
58027-11SWITCH ROCKER DPDT 15A 24V |
47 |
|
Datasheet |
58027 | Bulk | Active | Panel Mount, Snap-In | DPDT | Mom-Off-Mom | 15A (DC) | - | 24 V | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | IP66 - Dust Tight, Water Resistant | - | Rectangular - 36.83mm x 21.08mm | - | - |
|

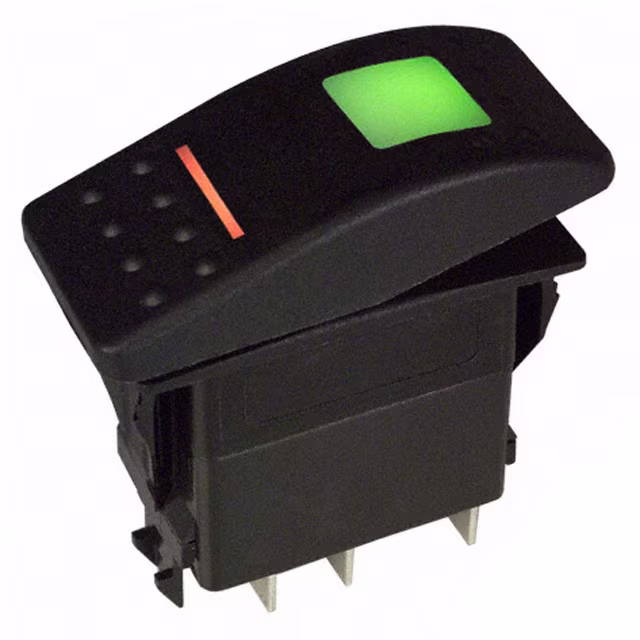

V2D2GHNB-AAC00-000SWITCH ROCKER SPST-NO 20A 12V |
70 |
|
Datasheet |
Contura® V | Bulk | Active | Panel Mount, Snap-In | SPST-NO | Off-Mom | 20A (DC) | - | 12 V | Convex (Reverse V) - Illuminated | Black | No Marking | LED, Amber/Green | 12 VDC | Quick Connect - 0.250" (6.3mm) | IP66/IP68 - Dust Tight, Water Resistant, Waterproof | - | Rectangular - 36.83mm x 21.08mm | -40°C ~ 85°C | CSA, UL, VDE |
|
7301J11ZQE22SWITCH ROCKER 3PDT 5A 120V |
69 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount, Snap-In | 3PDT | On-On | 5A (AC/DC) | 120 V | 28 V | Concave (Standard V) | Black | No Marking | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 19.05mm x 10.41mm | -30°C ~ 85°C | cULus |
|
KH149AAZXXG12NXXXXXXSWITCH ROCKER DPDT 10A 24V |
26 |
|
Datasheet |
KH | Tray | Active | Panel Mount, Snap-In | DPDT | On-Off-On | 10A (DC) | - | 24 V | Convex (Reverse V) | Black | No Marking | - | - | Solder, Quick Connect - 0.250" (6.3mm) | IP69K - Dust Tight, High Temp Water Jets, Waterproof | - | Rectangular - 36.80mm x 21.08mm | -40°C ~ 85°C | - |
|
KH137AAZEEG22N09XX10SWITCH ROCKER SPDT 10A 24V |
49 |
|
Datasheet |
KH | Tray | Active | Panel Mount, Snap-In | SPDT | Mom-Off-Mom | 10A (DC) | - | 24 V | Convex (Reverse V) - Illuminated | Black | Triangular Arrows | LED, Green/Green | 12 VDC | Solder, Quick Connect - 0.250" (6.3mm) | IP69K - Dust Tight, High Temp Water Jets, Waterproof | - | Rectangular - 36.80mm x 21.08mm | -40°C ~ 85°C | - |
|
1825421-1SWITCH ROCKER DPDT 3A 125V |
64 |
|
Datasheet |
TRD | Bulk | Active | Panel Mount, Threaded Body with Nut | DPDT | On-On | 3A (AC) | 125 V | - | Concave (Curved) | Black | No Marking | - | - | Solder Lug | - | - | Circular - 11.90mm Dia | -20°C ~ 80°C | - |
|

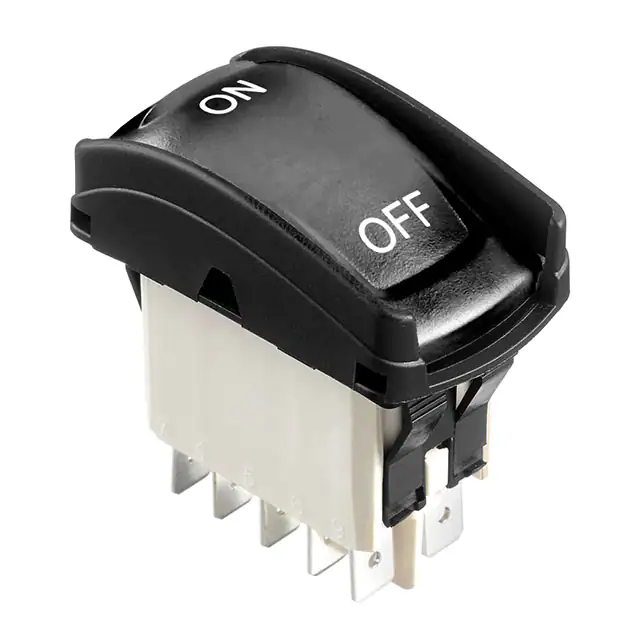

KH147AAZEFG22N01XX02SWITCH ROCKER DPDT 10A 24V |
35 |
|
Datasheet |
KH | Tray | Active | Panel Mount, Snap-In | DPDT | Mom-Off-Mom | 10A (DC) | - | 24 V | Convex (Reverse V) - Illuminated | Black | ON OFF, Vertical | LED, Green/Yellow | 12 VDC | Solder, Quick Connect - 0.250" (6.3mm) | IP69K - Dust Tight, High Temp Water Jets, Waterproof | - | Rectangular - 36.80mm x 21.08mm | -40°C ~ 85°C | - |
|

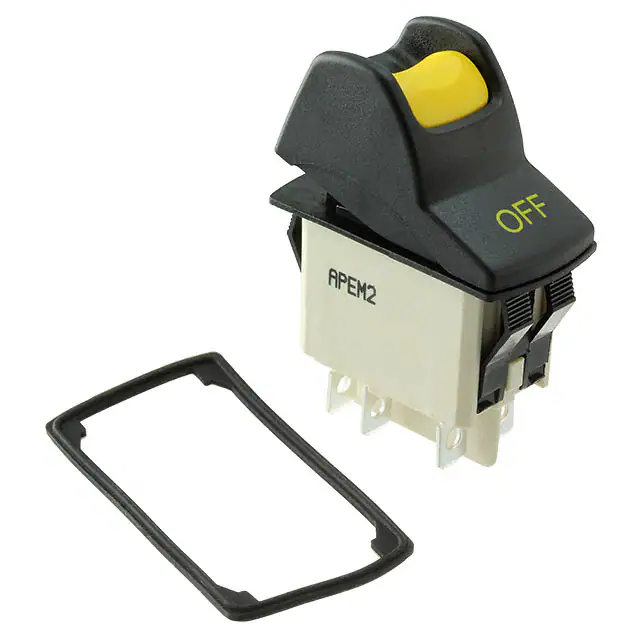

KL462AKXA125N01025SWITCH ROCKER DPDT 10A 24V |
49 |
|
Datasheet |
KL | Tray | Active | Panel Mount, Snap-In | DPDT | On-On | 10A (DC) | - | 24 V | Locking | Black, Yellow | ON OFF, Vertical | - | - | Solder, Quick Connect - 0.250" (6.3mm) | IP68 - Dust Tight, Waterproof | - | Rectangular - 36.80mm x 21.08mm | -40°C ~ 85°C | - |
|

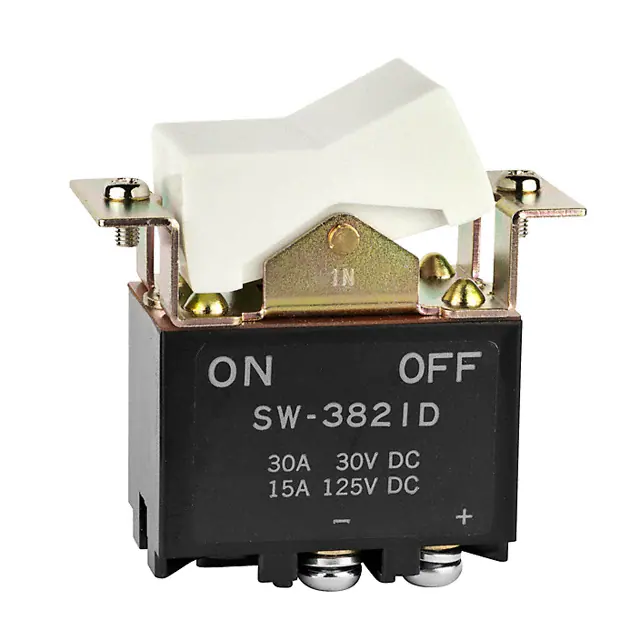

SW3821DSWITCH ROCKER DPST 30A 30V |
34 |
|
Datasheet |
SW | Bulk | Active | Panel Mount, Flange | DPST | On-Off | 30A (DC) | - | 30 V | Concave (Standard V) | White | No Marking | - | - | Screw Terminal | - | - | - | -10°C ~ 70°C | CSA, UL |
|
WLS28PBQSWITCH ROCKER 4A 30V |
13 |
|
Datasheet |
WLS | Bulk | Active | Panel Mount, Flange | - | On-Off | 4A (DC) | - | 30 V | Concave (Curved) | Black | O I | - | - | Connector | IP50 - Dust Protected | - | - | - | CE |
|

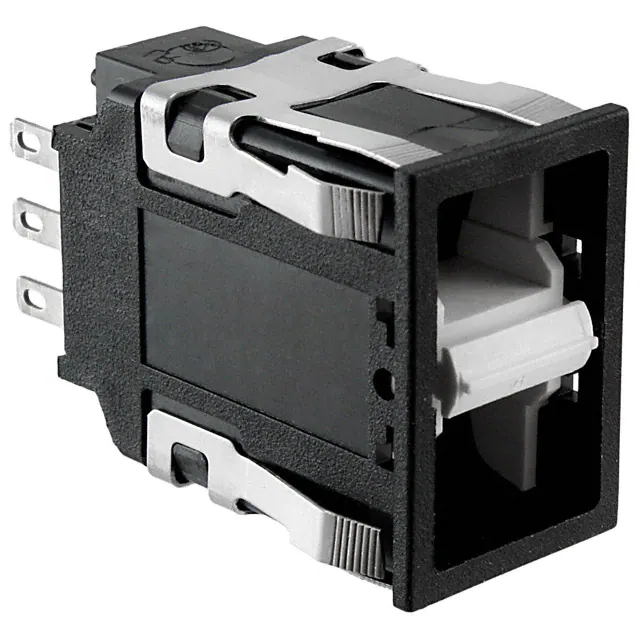

AML24EBA2AC05SWITCH ROCKER DPDT 3A 125V |
0 |
|
Datasheet |
AML24 | Bulk | Active | Panel Mount, Snap-In | DPDT | Mom-Off-Mom | 3A (AC), 2A (DC) | 125 V | 24 V | Actuator Arm, Cap Required | - | Varies by Cap | - | - | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Rectangular - 28.98mm x 19.05mm | - | CSA, CE, UL, VDE |
|

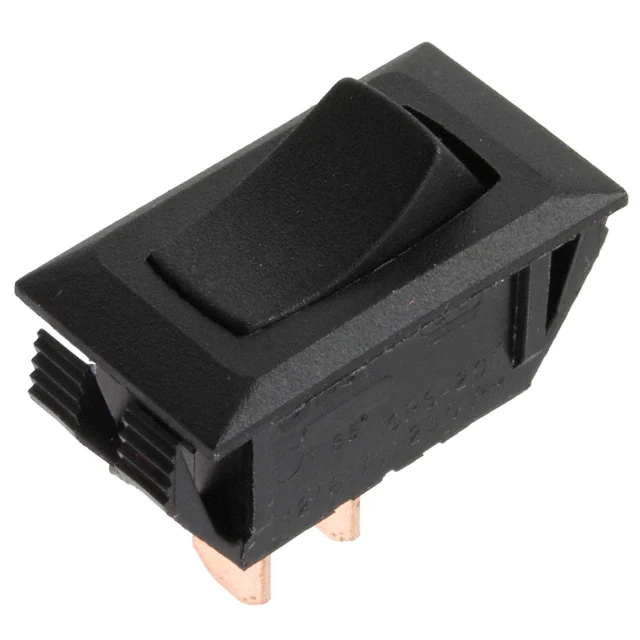

GRS-2011-2131SWITCH ROCKER SPST 16A 125V |
863 |
|
Datasheet |
2000 | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 16A (AC) | 125 V | - | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 28.58mm x 13.97mm | - | - |
|
SW-R2-1A-F-1-8SWITCH ROCKER SPST 10A 125V |
26 |
|
Datasheet |
SW | Bag | Active | Panel Mount, Snap-In | SPST | On-Off | 10A (AC) | 125 V | - | Round | Black | O - | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Circular - 20.00mm Dia | -25°C ~ 85°C | - |
|
GRSV-4011B-0027SWITCH ROCKER SPST-NO 13A 125V |
827 |
|
Datasheet |
4000 | Bulk | Active | Panel Mount, Snap-In | SPST-NO | Off-Mom | 13A (AC), 5A (DC) | 125 V | 14 V | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.20mm x 12.90mm | -20°C ~ 105°C | - |
Rocker Switches Electronic Components
Explore Rocker Switches electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
