Rocker Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Color - Actuator/Cap | Actuator Marking | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
R1966ABLKBLKEPGRNSWITCH ROCKER SPST 15A 125V |
309 |
|
Datasheet |
R1966 | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 15A (AC) | 125 V | - | Concave (Curved) - Illuminated | Black | No Marking | LED, Green | 2.2 VDC | PC Pin | - | - | Rectangular - 19.40mm x 13.00mm | -30°C ~ 65°C | - |
|
R1966DBLKBLKEPSWITCH ROCKER SPDT 15A 125V |
227 |
|
Datasheet |
R1966 | Bulk | Active | Panel Mount, Snap-In | SPDT | On-Off-On | 15A (AC) | 125 V | - | Concave (Curved) | Black | No Marking | - | - | PC Pin | - | - | Rectangular - 19.40mm x 13.00mm | -30°C ~ 65°C | - |
|
|
1634201-3SWITCH ROCKER DPST 16A 125V |
700 |
|
Datasheet |
PRF | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 16A (AC) | 125 V | - | Concave (Curved) | Black | O I | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 30.20mm x 22.20mm | -20°C ~ 85°C | cULus |
|
|
DSR11151SWITCH ROCKER SPDT 16A 125V |
617 |
|
Datasheet |
DSR | Bulk | Active | Panel Mount, Snap-In | SPDT | On-On | 16A (AC) | 125 V | - | Convex (Reverse V) | Black | No Marking | - | - | Solder, Quick Connect - 0.187" (4.7mm) | IP65 - Dust Tight, Water Resistant | - | Rectangular - 19.40mm x 13.00mm | -25°C ~ 85°C | cULus |
|
|
H1350ARBR-602AWSWITCH ROCKER DPST-NO 20A 250V |
1,000 |
|
Datasheet |
1350 | Bulk | Active | Panel Mount, Snap-In | DPST-NO | On-Off | 20A (AC/DC) | 250 V | 24 V | Concave (Curved) | Red | O - | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 28.50mm x 25.40mm | - | CSA, UL |
|
|
C1500AABBSWITCH ROCKER SPST 16A 250V |
991 |
|
Datasheet |
1500 | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 16A (AC) | 250 V | 24 V | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 27.30mm x 12.30mm | - | CSA, UL |
|
|
1634201-7SWITCH ROCKER DPDT 16A 125V |
325 |
|
Datasheet |
PRF | Bulk | Active | Panel Mount, Snap-In | DPDT | On-On | 16A (AC) | 125 V | - | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 30.20mm x 22.20mm | -20°C ~ 85°C | cULus |
|
|
H8610VBBBSWITCH ROCKER SPDT 10A 277V |
1,000 |
|
Datasheet |
8600 | Bulk | Active | Panel Mount, Snap-In | SPDT | On-On | 10A (AC) | 277 V | - | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.30mm x 12.90mm | - | CSA, UL |
|
CWSB11AAHSWITCH ROCKER SPST 6A 250V |
123 |
|
Datasheet |
CWSB | Bulk | Active | Panel Mount, Snap-In, Right Angle | SPST | On-Off | 6A (AC) | 250 V | - | Concave (Curved) | Black | No Marking | - | - | PC Pin | - | Audible Click | Rectangular - 19.20mm x 12.90mm | -10°C ~ 70°C | cULus |
|

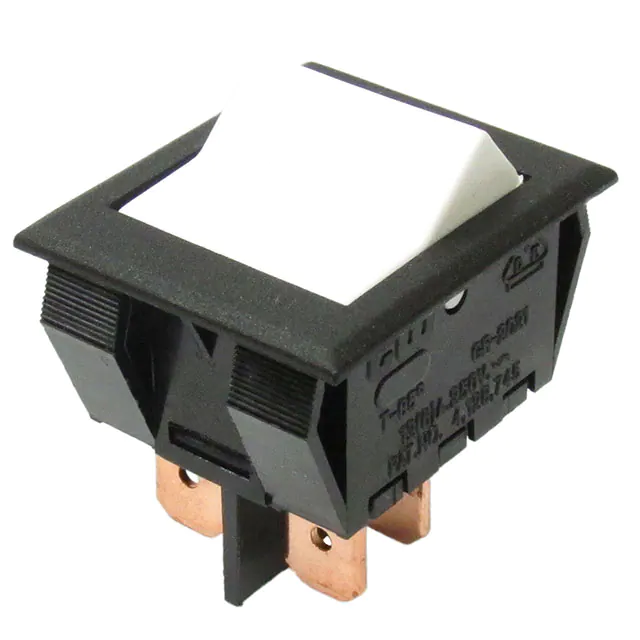

GR-2021-0014SWITCH ROCKER DPST 16A 125V |
473 |
|
Datasheet |
2000 | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 16A (AC) | 125 V | - | Concave (Standard V) | White | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | - | Terminal Barriers | Rectangular - 27.20mm x 22.15mm | -20°C ~ 105°C | - |
|
H8550VBBBSWITCH ROCKER DPST 15A 250V |
197 |
|
Datasheet |
8500 | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 15A (AC) | 250 V | - | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.30mm x 12.90mm | - | CSA, UL |
|
|
C1300ALBB-602AWSWITCH ROCKER SPST 20A 250V |
692 |
|
Datasheet |
1300 | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 20A (AC/DC) | 250 V | 24 V | Concave (Curved) | Black | O - | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 30.10mm x 11.10mm | - | CSA, UL |
|

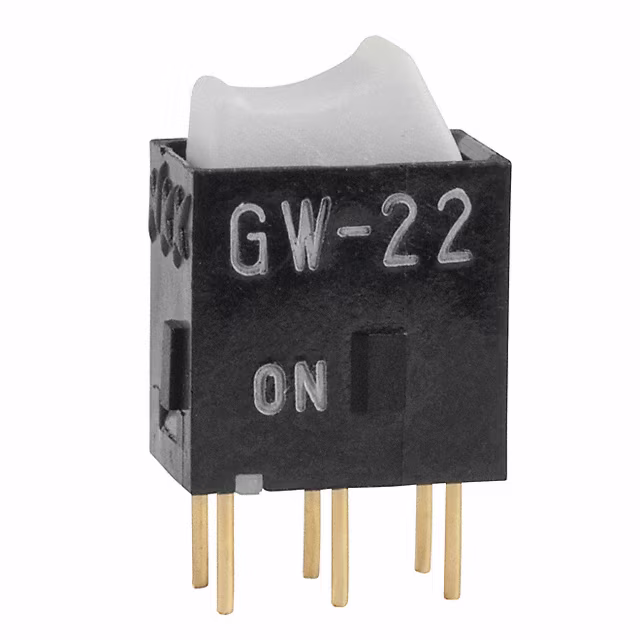

GW22RBPSWITCH ROCKER DPDT 0.4VA 28V |
144 |
|
Datasheet |
GW | Tray | Active | Through Hole | DPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Concave (Curved) | White | No Marking | - | - | PC Pin | - | Sealed - Flux Protection | - | -30°C ~ 85°C | CSA, UL |
|
|
1-1634201-0SWITCH ROCKER DPDT 16A 125V |
1,000 |
|
Datasheet |
PRF | Bulk | Active | Panel Mount, Snap-In | DPDT | On-Off-On | 16A (AC) | 125 V | - | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 30.20mm x 22.20mm | -20°C ~ 85°C | cULus |
|
|
2-1634200-2SWITCH ROCKER DPDT 10A 125V |
300 |
|
Datasheet |
PRE | Bulk | Active | Panel Mount, Snap-In | DPDT | On-Off-Mom | 10A (AC) | 125 V | - | Concave (Curved) | Black | I O II | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 22.20mm x 19.40mm | -20°C ~ 85°C | cULus |
|
|
1571989-2SWITCH ROCKER DPDT 5A 120V |
500 |
|
Datasheet |
AE | Bulk | Active | Through Hole, Right Angle, Vertical | DPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Concave (Standard V) | Black | No Marking | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -30°C ~ 85°C | - |
|
|
C1520AABBSWITCH ROCKER SPDT 16A 250V |
1,107 |
|
Datasheet |
1500 | Bulk | Active | Panel Mount, Snap-In | SPDT | On-Off-On | 16A (AC) | 250 V | 24 V | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 27.30mm x 12.30mm | - | CSA, UL |
|
|
C1510AABBSWITCH ROCKER SPDT 16A 250V |
857 |
|
Datasheet |
1500 | Bulk | Active | Panel Mount, Snap-In | SPDT | On-On | 16A (AC) | 250 V | 24 V | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 27.30mm x 12.30mm | - | CSA, UL |
|
G12KPSWITCH ROCKER SPDT 0.4VA 28V |
105 |
|
Datasheet |
G | Bulk | Active | Through Hole | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Actuator Arm, Cap Required | - | Varies by Cap | - | - | PC Pin | - | Process Sealed | - | -25°C ~ 85°C | CSA, UL |
|
|
C1510WABBSWITCH ROCKER SPDT 16A 250V |
6,691 |
|
Datasheet |
1500 | Bulk | Active | Panel Mount, Snap-In | SPDT | On-On | 16A (AC) | 250 V | 24 V | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | Splash Proof | - | Rectangular - 27.30mm x 12.30mm | - | CSA, UL |
