Rocker Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Color - Actuator/Cap | Actuator Marking | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A8L-21-11N1SWITCH ROCKER DPST 10A 125V |
374 |
|
Datasheet |
A8L | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 10A (AC) | 125 V | - | Concave (Curved) | Black | No Marking | - | - | Solder Lug | - | - | Rectangular - 19.20mm x 12.90mm | -20°C ~ 55°C | cULus, EN, UL |
|
300DP6J1BLKM6QESWITCH ROCKER SP3T 5A 120V |
4,672 |
|
Datasheet |
300 | Bulk | Active | Through Hole, Right Angle | SP3T | On-On-On | 5A (AC/DC) | 120 V | 28 V | Concave (Standard V) | Black | No Marking | - | - | PC Pin | - | Jumper needed to achieve triple throw | - | -30°C ~ 85°C | - |
|
RMS1R102M1QESSWITCH ROCKER SPDT 3A 120V |
463 |
|
Datasheet |
- | Bulk | Active | Panel Mount, Flange | SPDT | On-On | 3A (AC/DC) | 120 V | 28 V | Concave (Curved) | Black | No Marking | - | - | Solder Lug | - | Process Sealed | Rectangular - 15.75mm x 8.89mm | -30°C ~ 85°C | - |
|
RMS1R102M7QESSWITCH ROCKER SPDT 3A 120V |
628 |
|
Datasheet |
- | Bulk | Active | Through Hole, Right Angle, Vertical | SPDT | On-On | 3A (AC/DC) | 120 V | 28 V | Concave (Curved) | Black | No Marking | - | - | PC Pin | - | Process Sealed | - | -30°C ~ 85°C | - |
|
D101J12S2APQASWITCH ROCKER SPDT 4A 125V |
105 |
|
Datasheet |
D | Bulk | Active | Panel Mount, Snap-In, Right Angle | SPDT | On-On | 4A (AC) | 125 V | - | Concave (Curved) | Black | O - | - | - | PC Pin | - | - | Rectangular - 19.20mm x 12.90mm | -30°C ~ 65°C | cULus |
|

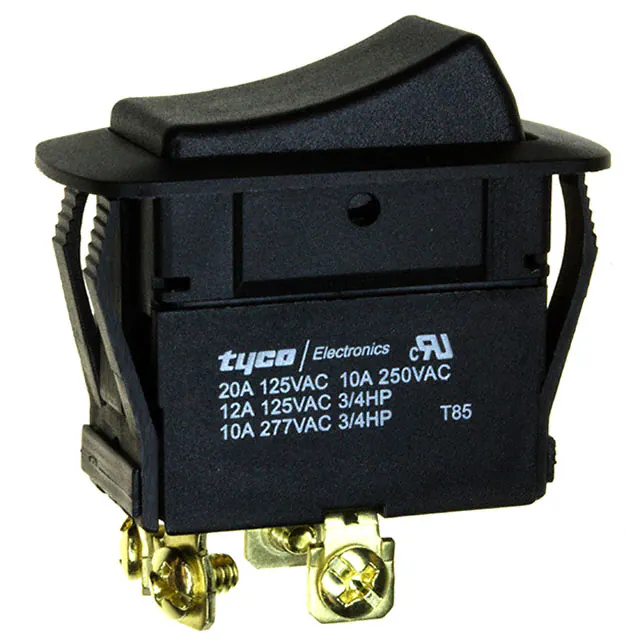

1571102-9SWITCH ROCKER DPST 20A 125V |
180 |
|
Datasheet |
PRC | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 20A (AC) | 125 V | - | Concave (Curved) | Black | No Marking | - | - | Screw Terminal | IP66 - Dust Tight, Water Resistant | - | Rectangular - 36.60mm x 21.20mm | -20°C ~ 85°C | - |
|
ALE1D-2M4-10-ZSWITCH ROCKER SPDT 50MA 48V |
137 |
|
Datasheet |
ALE | Bulk | Active | Through Hole | SPDT | On-On | 50mA (AC/DC) | 48 V | 48 V | Actuator Arm, Cap Required | - | Varies by Cap | - | - | PC Pin | - | Sealed - Fully | - | -20°C ~ 85°C | UL |
|
RBW2ABLKBLKEF0SWITCH ROCKER DPST 16A 125V |
3,376 |
|
Datasheet |
RBW2 | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 16A (AC) | 125 V | - | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | IP66 - Dust Tight, Water Resistant | - | Rectangular - 30.00mm x 22.30mm | -20°C ~ 85°C | - |
|
D102J12S205QASWITCH ROCKER SPST 4A 125V |
138 |
|
Datasheet |
D | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 4A (AC) | 125 V | - | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.20mm x 12.90mm | -30°C ~ 65°C | cULus |
|
300SP1J3BLKVS5RESWITCH ROCKER SPDT 0.4VA 20V |
500 |
|
Datasheet |
300 | Bulk | Active | Through Hole | SPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Concave (Standard V) | Black | No Marking | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -30°C ~ 85°C | - |
|
RAS1R102M2RESSWITCH ROCKER SPDT 0.4VA 20V |
431 |
|
Datasheet |
- | Bulk | Active | Through Hole | SPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Concave (Curved) | Black | No Marking | - | - | PC Pin | IP67 - Dust Tight, Waterproof | Process Sealed | - | -30°C ~ 85°C | - |
|

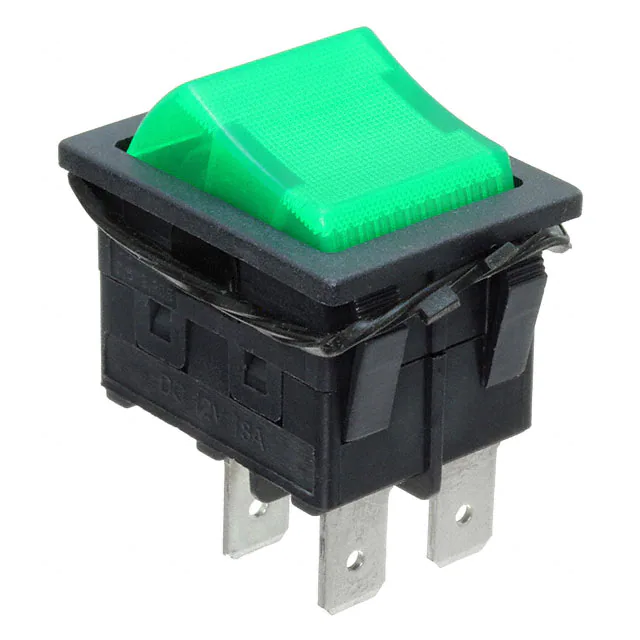

RBW2ABLKGILEF3SWITCH ROCKER DPST 18A 125V |
291 |
|
Datasheet |
RBW2 | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 16A (AC) | - | - | Concave (Curved) - Illuminated | Green | No Marking | Incandescent, Green | 12 VDC | Quick Connect - 0.250" (6.3mm) | IP66 - Dust Tight, Water Resistant | - | Rectangular - 30.00mm x 22.30mm | -20°C ~ 85°C | - |
|
|
1634201-4SWITCH ROCKER DPST 16A 125V |
473 |
|
Datasheet |
PRF | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 16A (AC) | 125 V | - | Concave (Curved) | Red | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 30.20mm x 22.20mm | -20°C ~ 85°C | cULus |
|
RMD1R102M7QESSWITCH ROCKER DPDT 3A 120V |
462 |
|
Datasheet |
- | Bulk | Active | Through Hole, Right Angle, Vertical | DPDT | On-On | 3A (AC/DC) | 120 V | 28 V | Concave (Curved) | Black | No Marking | - | - | PC Pin | - | Process Sealed | - | -30°C ~ 85°C | - |
|
GRS-2012-2053SWITCH ROCKER SPDT 13A 125V |
228 |
|
Datasheet |
2000 | Bulk | Active | Panel Mount, Snap-In | SPDT | On-On | 13A (AC) | 125 V | - | - | - | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | - | 3 Switches | Rectangular - 28.58mm x 13.97mm | -20°C ~ 105°C | - |
|

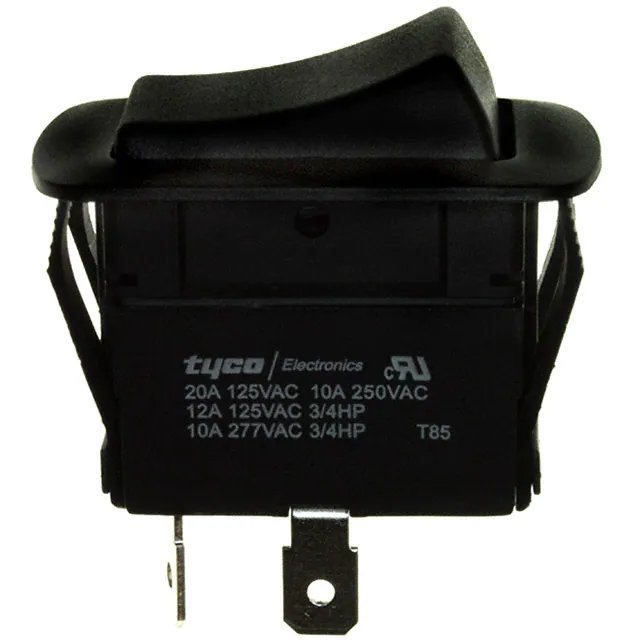

1571095-1SWITCH ROCKER SPST 20A 125V |
545 |
|
Datasheet |
PRC | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 20A (AC) | 125 V | - | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | IP66 - Dust Tight, Water Resistant | - | Rectangular - 36.60mm x 21.20mm | -20°C ~ 85°C | - |
|
JWS11RAA/UCVSWITCH ROCKER SPST 6A 125V |
4 |
|
Datasheet |
JWS | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 6A (AC) | 125 V | - | Concave (Curved) | Black | No Marking | - | - | Solder, Quick Connect - 0.187" (4.7mm) | Dust Proof | - | Rectangular - 19.20mm x 12.90mm | -25°C ~ 70°C | CSA, UL, VDE |
|
D601J13S205QASWITCH ROCKER DPDT 10A 125V |
390 |
|
Datasheet |
D | Bulk | Active | Panel Mount, Snap-In | DPDT | On-On | 10A (AC) | 125 V | - | Concave (Curved) | Red | No Marking | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 22.53mm x 19.20mm | -30°C ~ 65°C | cULus |
|

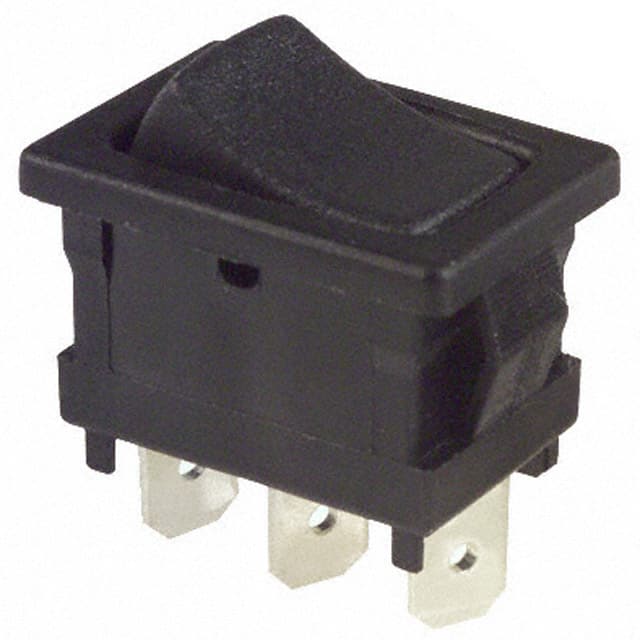

D508J12S205QASWITCH ROCKER SPDT 10A 125V |
277 |
|
Datasheet |
D | Bulk | Active | Panel Mount, Snap-In | SPDT | On-Mom | 10A (AC) | 125 V | - | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.20mm x 12.90mm | -30°C ~ 65°C | cULus |
|

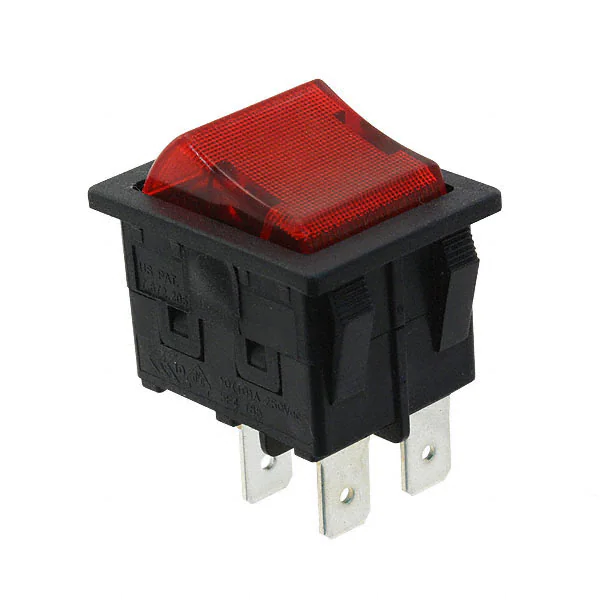

RBW2ABLKRILEF1SWITCH ROCKER DPST 16A 125V |
302 |
|
Datasheet |
RBW2 | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 16A (AC) | 125 V | - | Concave (Curved) - Illuminated | Red | No Marking | Neon, Red | 125 VAC | Quick Connect - 0.250" (6.3mm) | IP66 - Dust Tight, Water Resistant | - | Rectangular - 30.00mm x 22.30mm | -20°C ~ 85°C | - |
