Rocker Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Color - Actuator/Cap | Actuator Marking | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

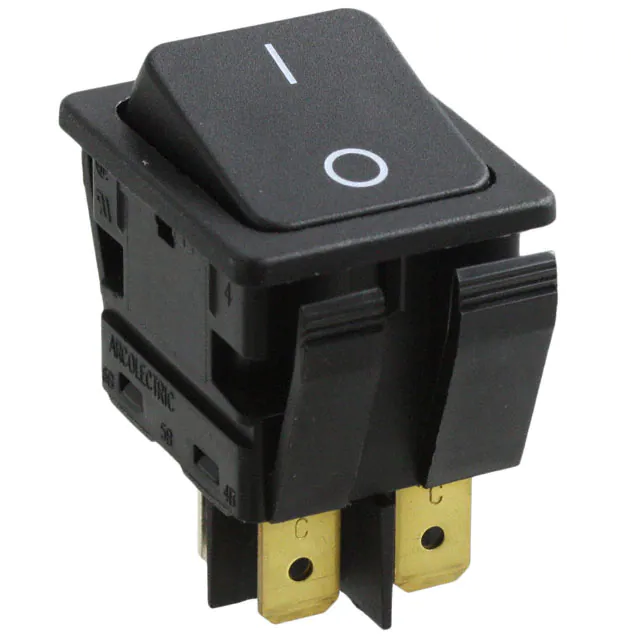

C6050ALBB-1197WSWITCH ROCKER DPST 20A 277V |
867 |
|
Datasheet |
6050 | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 20A (AC) | 277 V | - | Flat | Black | O - | - | - | Quick Connect - 0.250" (6.3mm) | Splash Proof | - | Rectangular - 30.10mm x 22.20mm | - | CSA, UL |
|
H8620VBBBSWITCH ROCKER SPDT 15A 277V |
992 |
|
Datasheet |
8600 | Bulk | Active | Panel Mount, Snap-In | SPDT | On-Off-On | 15A (AC) | 277 V | - | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.30mm x 12.90mm | - | CSA, UL |
|
|
AJ8W202BFSWITCH ROCKER DPST 16A 250V |
385 |
|
Datasheet |
AJ8 | Bulk | Not For New Designs | Panel Mount, Snap-In | DPST | On-Off | 16A (AC) | 250 V | - | Concave (Curved) | Black | O - | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 28.20mm x 12.90mm | -25°C ~ 85°C | cULus, ENEC, VDE |
|
|
RB342A1100-136SWITCH ROCKER SPDT 16A 125V |
267 |
|
Datasheet |
RB3 | Box | Active | Panel Mount, Snap-In | SPDT | On-On | 16A (AC) | 125 V | - | Flat - Illuminated | Black | No Marking | LED, Green/Red | 125 VAC | Quick Connect - 0.250" (6.3mm) | IP67 - Dust Tight, Waterproof | - | Rectangular - 30.20mm x 13.80mm | 0°C ~ 55°C | cULus, ENEC |
|
|
RB345A1100-136SWITCH ROCKER SPDT 16A 125V |
299 |
|
Datasheet |
RB3 | Box | Active | Panel Mount, Snap-In | SPDT | On-Mom | 16A (AC) | 125 V | - | Flat - Illuminated | Black | No Marking | LED, Green/Red | 125 VAC | Quick Connect - 0.250" (6.3mm) | IP67 - Dust Tight, Waterproof | - | Rectangular - 30.20mm x 13.80mm | 0°C ~ 55°C | cULus, ENEC |
|
G12KP-YBSWITCH ROCKER SPDT 0.4VA 28V |
112 |
|
Datasheet |
G | Bulk | Active | Through Hole | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Concave (Standard V) | White | No Marking | - | - | PC Pin | - | Process Sealed | - | -25°C ~ 85°C | CSA, UL |
|
|
C5503ARBR3SWITCH ROCKER SPST 16A 250V |
241 |
|
Datasheet |
5500 | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 16A (AC) | 250 V | - | Concave (Curved) - Illuminated | Red | No Marking | Neon, Red | 250 VAC | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 28.60mm x 14.10mm | - | CSA, UL |
|
GRB292D201BBWN1SWITCH ROCKER SPDT 21A 14V |
324 |
|
Datasheet |
GRB | Bulk | Active | Panel Mount, Snap-In | SPDT | On-Off-On | 21A (DC) | - | 14 V | Convex (Reverse V) - Illuminated | Black | No Marking | LED, White | - | Quick Connect - 0.250" (6.3mm) | IP66 - Dust Tight, Water Resistant | - | Rectangular - 36.60mm x 21.00mm | -25°C ~ 85°C | - |
|

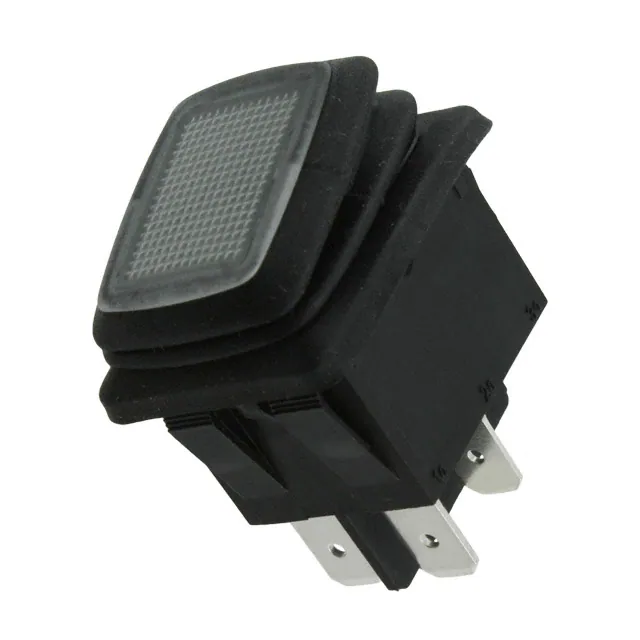

GRB285A8L101GR4SWITCH ROCKER DPST 20A 125V |
123 |
|
Datasheet |
GRB | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 20A (AC) | 125 V | - | Flat - Illuminated | Clear | No Marking | LED, Green/Red | - | Quick Connect - 0.250" (6.3mm) | IP56 - Dust Protected, Water Resistant | - | Rectangular - 30.20mm x 22.20mm | -25°C ~ 85°C | cULus, ENEC |
|
|
C1353AABR3-G72SWITCH ROCKER DPST-NO 20A 250V |
499 |
|
Datasheet |
1350 | Bulk | Active | Panel Mount, Snap-In | DPST-NO | On-Off | 20A (AC/DC) | 250 V | 24 V | Concave (Curved) - Illuminated | Red | No Marking | Neon, Red | 250 VAC | Quick Connect - 0.250" (6.3mm) | IP65 - Dust Tight, Water Resistant | Sealing Boot | Rectangular - 27.30mm x 22.40mm | - | CSA, UL |
|
C1501ALAAASWITCH ROCKER SPST-NO 20A 250V |
3,443 |
|
Datasheet |
1500 | - | Active | Panel Mount, Snap-In | SPST-NO | Off-Mom | 16A (AC) | 250 V | 24 V | Concave (Curved) | Amber | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 30.10mm x 11.10mm | - | CSA, UL |
|

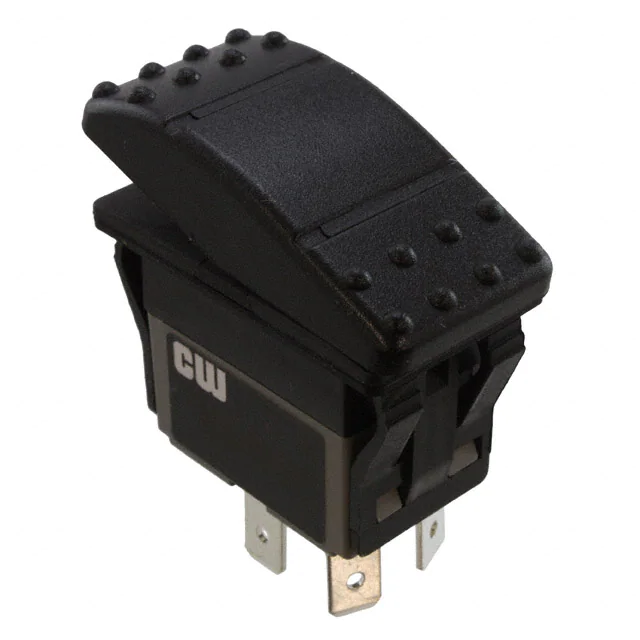

GRB214A2NABA1SWITCH ROCKER DPST 25A 12V |
920 |
|
Datasheet |
GRB | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 25A (DC) | - | 12 V | Convex (Reverse V) | Black | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | IP67 - Dust Tight, Waterproof | - | Rectangular - 37.00mm x 21.10mm | -25°C ~ 85°C | - |
|
H8553VBBG3SWITCH ROCKER DPST 15A 250V |
995 |
|
Datasheet |
8500 | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 15A (AC) | 250 V | - | Concave (Curved) - Illuminated | Green | No Marking | Neon, Green | 250 VAC | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.30mm x 12.90mm | - | CSA, UL |
|
|
RB547A1100-136SWITCH ROCKER DPDT 16A 125V |
266 |
|
Datasheet |
RB5 | Box | Active | Panel Mount, Snap-In | DPDT | Mom-Off-On | 16A (AC) | - | 125 V | Flat - Illuminated | White | No Marking | LED, Green/Red | 125 VAC | Quick Connect - 0.250" (6.3mm) | IP67 - Dust Tight, Waterproof | - | Rectangular - 30.23mm x 22.10mm | 0°C ~ 55°C | cULus, ENEC15 |
|
|
C5503ARBR7SWITCH ROCKER SPST 16A 250V |
365 |
|
Datasheet |
5500 | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 16A (AC) | 250 V | - | Concave (Curved) - Illuminated | Red | No Marking | Incandescent, Red | 12 VAC | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 28.60mm x 14.10mm | - | CSA, UL |
|
|
RB546A1100-136SWITCH ROCKER DPDT 16A 125V |
280 |
|
Datasheet |
RB5 | Box | Active | Panel Mount, Snap-In | DPDT | Mom-Off-Mom | 16A (AC) | - | 125 V | Flat - Illuminated | White | No Marking | LED, Green/Red | 125 VAC | Quick Connect - 0.250" (6.3mm) | IP67 - Dust Tight, Waterproof | - | Rectangular - 30.23mm x 22.10mm | 0°C ~ 55°C | cULus, ENEC15 |
|
|
C1553PBBG2-M441SWITCH ROCKER DPST 16A 250V |
996 |
|
Datasheet |
1550 | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 16A (AC) | 250 V | 24 V | Concave (Curved) - Illuminated | Green | No Marking | Neon, Green | 125 VAC | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 30.10mm x 22.20mm | - | CSA, UL |
|

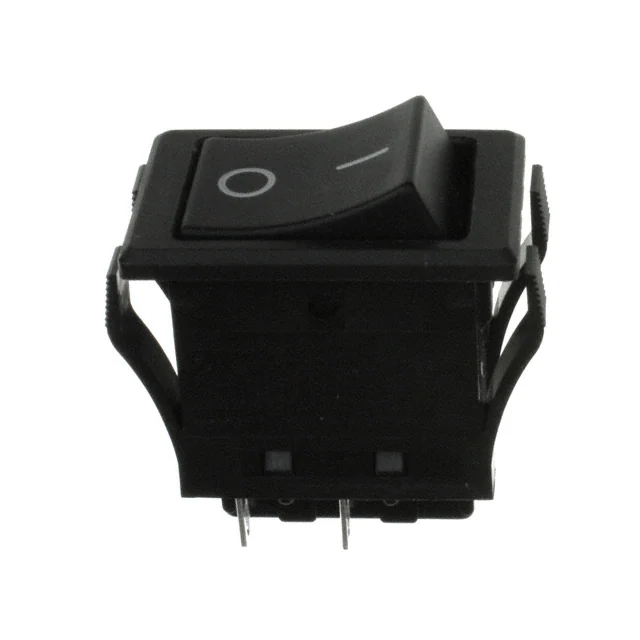

JWM11RA2A/UCVSWITCH ROCKER SPST 10A 125V |
21 |
|
Datasheet |
JW | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 10A (AC) | 125 V | - | Concave (Curved) | Black | O - | - | - | Solder, Quick Connect - 0.110" (2.8mm) | Dust Proof | Epoxy Sealed Terminals | Rectangular - 24.00mm x 15.40mm | -25°C ~ 70°C | CSA, UL, VDE |
|

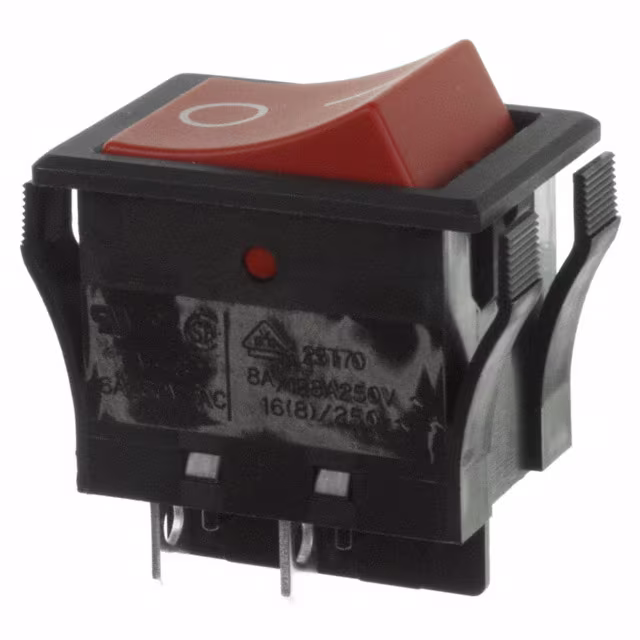

JWL11RC2A/UCVSWITCH ROCKER SPST 16A 125V |
25 |
|
Datasheet |
JW | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 16A (AC) | 125 V | - | Concave (Curved) | Red | O - | - | - | Solder, Quick Connect - 0.187" (4.7mm) | Dust Proof | Epoxy Sealed Terminals | Rectangular - 29.50mm x 20.50mm | -25°C ~ 70°C | CSA, UL, VDE |
|
|
MN12TXW41-DASWITCH ROCKER MINI PC MOUNT |
263 |
|
- |
M | Bulk | Active | Through Hole, Right Angle, Vertical | SPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Concave (Standard V) | Black | No Marking | - | - | PC Pin | - | - | - | -30°C ~ 85°C | UL |
Rocker Switches Electronic Components
Explore Rocker Switches electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
