Rocker Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Color - Actuator/Cap | Actuator Marking | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
62115216-0-8-WSWITCH ROCKER DPST 5A 125V |
0 |
|
- |
621 | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 5A (AC) | 125 V | - | Concave (Curved) | Black, White | O - | - | - | Solder Lug | - | - | Rectangular - 19.20mm x 12.90mm | 0°C ~ 85°C | CSA, UL |
|
|
62115919-0-0-WSWITCH ROCKER DPST 8A 125V |
0 |
|
- |
621 | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 8A (AC) | 125 V | - | Concave (Curved) | Black, White | No Marking | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.20mm x 12.90mm | 0°C ~ 85°C | CSA, UL |
|
|
62112918-0-9-GSWITCH ROCKER DPST 8A 125V |
0 |
|
- |
621 | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 8A (AC) | 125 V | - | Concave (Curved) | Black | O I | - | - | PC Pin | - | - | Rectangular - 19.20mm x 12.90mm | 0°C ~ 85°C | CSA, UL |
|
|
V1B1AT01-JRZ00-000SWITCH ROCKER SPST 15A 24V |
0 |
|
Datasheet |
Contura® V | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 15A (DC) | - | 24 V | Paddle - Illuminated | Black | No Marking | LED, Red | 12 VDC | Quick Connect - 0.250" (6.3mm) | IP66/IP68 - Dust Tight, Water Resistant, Waterproof | - | Rectangular - 36.83mm x 21.08mm | -40°C ~ 85°C | CSA, UL, VDE |
|
|
C1522VABBSWITCH ROCKER SPDT 16A 250V |
0 |
|
Datasheet |
1500 | Bulk | Active | Panel Mount, Snap-In | SPDT | Mom-Off-Mom | 16A (AC) | 250 V | 24 V | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 27.30mm x 12.30mm | - | CSA, UL |
|
|
300AWSP3J5BLKM7RESWITCH ROCKER SPDT 0.4VA 20V |
0 |
|
Datasheet |
300A | Bulk | Active | Through Hole, Right Angle, Vertical | SPDT | On-Off-On | 0.4VA (AC/DC) | 20 V | 20 V | Concave (Standard V) | Black | No Marking | - | - | PC Pin | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | - | -30°C ~ 85°C | - |
|
|
RVW46D1122SWITCH ROCKER DPDT 20A 125V |
0 |
|
Datasheet |
RVW | Bulk | Active | Panel Mount, Snap-In | DPDT | On-Off-On | 20A (AC) | 125 V | - | Concave (Curved) | Black | ON OFF ON, Vertical | - | - | Quick Connect - 0.250" (6.3mm) | IP54 - Dust Protected, Water Resistant | - | Rectangular - 36.80mm x 21.00mm | 0°C ~ 55°C | - |
|
|
5-1571986-6SWITCH ROCKER SPDT 5A 120V |
0 |
|
Datasheet |
A | Bulk | Active | Panel Mount, Flange | SPDT | Mom-Off-Mom | 5A (AC/DC) | 120 V | 28 V | Paddle | Black | No Marking | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 17.96mm x 10.62mm | -30°C ~ 85°C | - |
|
|
WB24GD1121SWITCH ROCKER DPDT 20A 125V |
0 |
|
Datasheet |
WB2, LAMB | Bulk | Active | Panel Mount, Snap-In | DPDT | On-On | 20A (AC) | 125 V | - | Concave (Curved) | Black | O - | - | - | Quick Connect - 0.250" (6.3mm) | IP55 - Dust Protected, Water Resistant | - | Rectangular - 30.00mm x 22.00mm | -20°C ~ 65°C | CE, cULus, TUV |
|
|
SLA215K-6SWITCH ROCKER DPST 15A 125V |
0 |
|
- |
SLA | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 15A (AC) | 125 V | - | Concave (Curved) | Black | O - | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 24.00mm x 15.40mm | -25°C ~ 85°C | CSA, ENEC, UL |
|
|
SLA215K-5SWITCH ROCKER DPST 15A 125V |
0 |
|
- |
SLA | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 15A (AC) | 125 V | - | Concave (Curved) | Black | Dot | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 24.00mm x 15.40mm | -25°C ~ 85°C | CSA, ENEC, UL |
|
|
SLA215K-7SWITCH ROCKER DPST 15A 125V |
0 |
|
- |
SLA | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 15A (AC) | 125 V | - | Concave (Curved) | Black | ON OFF, Vertical | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 24.00mm x 15.40mm | -25°C ~ 85°C | CSA, ENEC, UL |
|
|
651652-BB-0NSWITCH ROCKER 10A 125V |
0 |
|
- |
651 | Bulk | Active | Panel Mount, Snap-In | - | - | 10A (AC) | 125 V | - | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.20mm x 12.90mm | 0°C ~ 85°C | CSA, UL |
|
|
C1510ARBBSWITCH ROCKER SPDT 16A 250V |
0 |
|
Datasheet |
1500 | Bulk | Active | Panel Mount, Snap-In | SPDT | On-On | 16A (AC) | 250 V | 24 V | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 28.60mm x 14.10mm | - | CSA, UL |
|
C1572ALAAASWITCH ROCKER MOM-OFF-MOM |
0 |
|
Datasheet |
- | - | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
300SP3J1VS3RESWITCH ROCKER SPDT 0.4VA 20V |
0 |
|
Datasheet |
300 | Bulk | Active | Through Hole | SPDT | On-Off-On | 0.4VA (AC/DC) | 20 V | 20 V | Concave (Standard V) | Black | No Marking | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -30°C ~ 85°C | - |
|
|
300SP3J3BLKVS5RESWITCH ROCKER SPDT 0.4VA 20V |
0 |
|
Datasheet |
300 | Bulk | Active | Through Hole | SPDT | On-Off-On | 0.4VA (AC/DC) | 20 V | 20 V | Concave (Standard V) | Black | No Marking | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -30°C ~ 85°C | - |
|
|
C1520WRBBSWITCH ROCKER SPDT 16A 250V |
0 |
|
Datasheet |
1500 | Bulk | Active | Panel Mount, Snap-In | SPDT | On-Off-On | 16A (AC) | 250 V | 24 V | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | Splash Proof | - | Rectangular - 28.60mm x 14.10mm | - | CSA, UL |
|

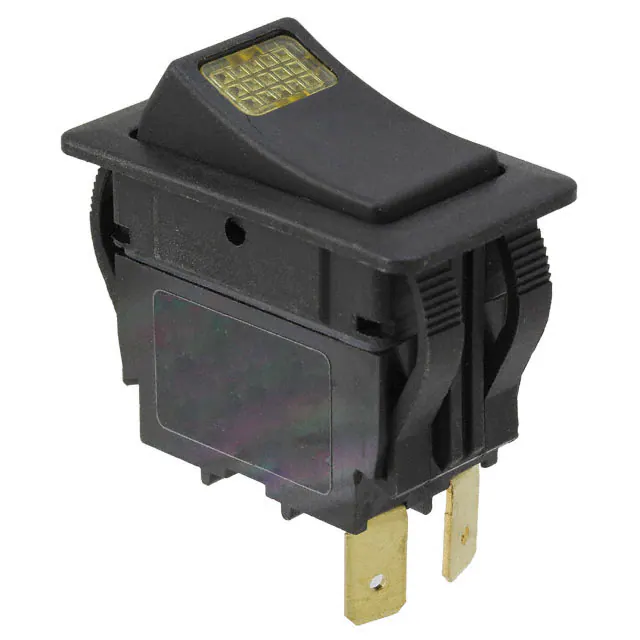

RVW41D1100-126SWITCH ROCKER SPST 20A 125V |
0 |
|
Datasheet |
RVW, LAMB | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 20A (AC) | 125 V | - | Concave (Curved) - Illuminated | Black | No Marking | Neon, Amber | 125 VAC | Quick Connect - 0.250" (6.3mm) | IP54 - Dust Protected, Water Resistant | - | Rectangular - 36.80mm x 21.00mm | -20°C ~ 55°C | - |
|
|
RVW44D1100-116SWITCH ROCKER SPST-NO 20A 125V |
0 |
|
Datasheet |
RVW | Bulk | Active | Panel Mount, Snap-In | SPST-NO | Off-Mom | 20A (AC) | 125 V | - | Concave (Curved) - Illuminated | Black | No Marking | Neon, Red | 125 VAC | Quick Connect - 0.250" (6.3mm) | IP54 - Dust Protected, Water Resistant | - | Rectangular - 36.80mm x 21.00mm | 0°C ~ 55°C | - |
