Rocker Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Color - Actuator/Cap | Actuator Marking | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
300SP3J2BLKVS5QESWITCH ROCKER SPDT 5A 120V |
0 |
|
Datasheet |
300 | Bulk | Active | Through Hole | SPDT | On-Off-On | 5A (AC/DC) | 120 V | 28 V | Paddle | Black | No Marking | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -30°C ~ 85°C | - |
|
|
300SP3J3BLKVS5QESWITCH ROCKER SPDT 5A 120V |
0 |
|
Datasheet |
300 | Bulk | Active | Through Hole | SPDT | On-Off-On | 5A (AC/DC) | 120 V | 28 V | Concave (Standard V) | Black | No Marking | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -30°C ~ 85°C | - |
|
|
300SP2J6BLKVS5RESWITCH ROCKER SPDT 0.4VA 20V |
0 |
|
Datasheet |
300 | Bulk | Active | Through Hole | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Paddle | Black | No Marking | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -30°C ~ 85°C | - |
|
|
300DP4R8GRYM1QESWITCH ROCKER DPDT 5A 120V |
0 |
|
Datasheet |
300 | Tray | Active | Panel Mount, Snap-In | DPDT | Mom-Off-Mom | 5A (AC/DC) | 120 V | 28 V | Paddle | Gray | No Marking | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 15.24mm x 12.70mm | -30°C ~ 85°C | - |
|
|
GW12LHHSWITCH ROCKER SPDT 0.4VA 28V |
0 |
|
Datasheet |
GW | Tray | Active | Through Hole, Right Angle | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Paddle | Gray | No Marking | - | - | PC Pin | - | Sealed - Flux Protection | - | -30°C ~ 85°C | CSA, UL |
|
|
GW12LBVSWITCH ROCKER SPDT 0.4VA 28V |
0 |
|
Datasheet |
GW | Tray | Active | Through Hole, Right Angle, Vertical | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Paddle | White | No Marking | - | - | PC Pin | - | Sealed - Flux Protection | - | -30°C ~ 85°C | CSA, UL |
|
|
GW12RBVSWITCH ROCKER SPDT 0.4VA 28V |
0 |
|
Datasheet |
GW | Tray | Active | Through Hole, Right Angle, Vertical | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Concave (Curved) | White | No Marking | - | - | PC Pin | - | Sealed - Flux Protection | - | -30°C ~ 85°C | CSA, UL |
|
|
C5503ATBG7SWITCH ROCKER SPST 16A 250V |
0 |
|
Datasheet |
5500 | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 16A (AC) | 250 V | - | Concave (Curved) - Illuminated | Green | No Marking | Incandescent, Green | 12 VAC | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 28.30mm x 11.60mm | - | CSA, UL |
|
|
C5503ATBR7SWITCH ROCKER SPST 16A 250V |
0 |
|
Datasheet |
5500 | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 16A (AC) | 250 V | - | Concave (Curved) - Illuminated | Red | No Marking | Incandescent, Red | 12 VAC | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 28.30mm x 11.60mm | - | CSA, UL |
|
|
300DP5J1BLKM7RESWITCH ROCKER DPDT 0.4VA 20V |
0 |
|
Datasheet |
300 | Bulk | Active | Through Hole, Right Angle, Vertical | DPDT | On-Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Concave (Standard V) | Black | No Marking | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -30°C ~ 85°C | - |
|
C1300AABB-602AW-BSWITCH ROCKER SPST 20A 250V |
0 |
|
Datasheet |
1300 | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 20A (AC/DC) | 250 V | 24 V | Concave (Curved) | Black | O - | - | - | Quick Connect - 0.250" (6.3mm) | - | Antimicrobial | Rectangular - 27.30mm x 12.30mm | - | CSA, UL |
|
C1300ARBB-BSWITCH ROCKER SPST 20A 250V |
0 |
|
Datasheet |
1300 | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 20A (AC/DC) | 250 V | 24 V | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | - | Antimicrobial | Rectangular - 28.60mm x 14.10mm | - | CSA, UL |
|
C1300ARBB-602AW-BSWITCH ROCKER SPST 20A 250V |
0 |
|
Datasheet |
1300 | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 20A (AC/DC) | 250 V | 24 V | Concave (Curved) | Black | O - | - | - | Quick Connect - 0.250" (6.3mm) | - | Antimicrobial | Rectangular - 28.60mm x 14.10mm | - | CSA, UL |
|
C1300ALBB-BSWITCH ROCKER SPST 20A 250V |
0 |
|
Datasheet |
1300 | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 20A (AC/DC) | 250 V | 24 V | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | - | Antimicrobial | Rectangular - 30.10mm x 11.10mm | - | CSA, UL |
|
C1300ABBB-BSWITCH ROCKER SPST 20A 250V |
0 |
|
Datasheet |
1300 | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 20A (AC/DC) | 250 V | 24 V | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | - | Antimicrobial | Rectangular - 30.10mm x 11.10mm | - | CSA, UL |
|

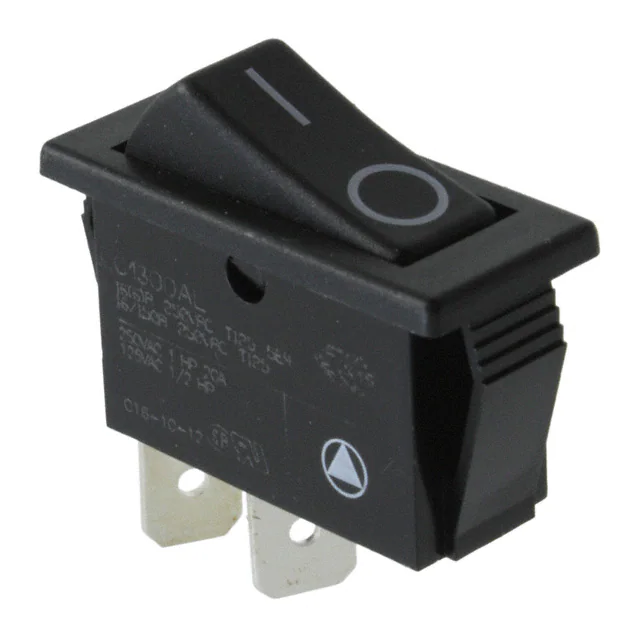

C1300ALBB-602AW-BSWITCH ROCKER SPST 20A 250V |
0 |
|
Datasheet |
1300 | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 20A (AC/DC) | 250 V | 24 V | Concave (Curved) | Black | O - | - | - | Quick Connect - 0.250" (6.3mm) | - | Antimicrobial | Rectangular - 30.10mm x 11.10mm | - | CSA, UL |
|
C1300AABB-BSWITCH ROCKER SPST 20A 250V |
0 |
|
Datasheet |
1300 | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 20A (AC/DC) | 250 V | 24 V | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | - | Antimicrobial | Rectangular - 27.30mm x 12.30mm | - | CSA, UL |
|
C1300ABBB-602AW-BSWITCH ROCKER SPST 20A 250V |
0 |
|
Datasheet |
1300 | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 20A (AC/DC) | 250 V | 24 V | Concave (Curved) | Black | O - | - | - | Quick Connect - 0.250" (6.3mm) | - | Antimicrobial | Rectangular - 30.10mm x 11.10mm | - | CSA, UL |
|
|
300AWDP4R11M1QESWITCH ROCKER DPDT 5A 120V |
0 |
|
Datasheet |
300A | Bulk | Active | Panel Mount, Flange | DPDT | Mom-Off-Mom | 5A (AC/DC) | 120 V | 28 V | Concave (Standard V) | Black | No Marking | - | - | Solder Lug | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | Rectangular - 13.14mm x 7.20mm | -30°C ~ 85°C | - |
|
|
300AWDP4R2BLKM1QESWITCH ROCKER DPDT 5A 120V |
0 |
|
Datasheet |
300A | Bulk | Active | Panel Mount, Flange | DPDT | Mom-Off-Mom | 5A (AC/DC) | 120 V | 28 V | Paddle | Black | No Marking | - | - | Solder Lug | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | Rectangular - 13.14mm x 7.20mm | -30°C ~ 85°C | - |
