Rocker Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Color - Actuator/Cap | Actuator Marking | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
300AWSP5J3BLKVS2QESWITCH ROCKER SPDT 5A 120V |
0 |
|
Datasheet |
300A | Bulk | Active | Through Hole | SPDT | On-Off-Mom | 5A (AC/DC) | 120 V | 28 V | Concave (Standard V) | Black | No Marking | - | - | PC Pin | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | - | -30°C ~ 85°C | - |
|
|
M2T15TXW13-DASWITCH ROCKER SPDT 6A 125V |
0 |
|
Datasheet |
M2 | Bulk | Obsolete | Through Hole | SPDT | On-Mom | 6A (AC), 3A (DC) | 125 V | 30 V | Concave (Standard V) | Black | No Marking | - | - | PC Pin | - | Process Sealed | - | -30°C ~ 85°C | CSA, UL |
|
|
H8553VBBG7-551WSWITCH ROCKER DPST 15A 250V |
0 |
|
Datasheet |
8500 | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 15A (AC) | 250 V | - | Concave (Curved) - Illuminated | Green | O - | Incandescent, Green | 12 VAC | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.30mm x 12.90mm | - | CSA, UL |
|
MR93-222B3SWITCH ROCKER DPST 12A 125V |
0 |
|
Datasheet |
MR | Bulk | Obsolete | Panel Mount, Snap-In | DPST | On-Off | 12A (AC) | 125 V | - | Flat - Illuminated | Red | No Marking | LED, Red | 12 VDC | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.20mm x 12.90mm | 0°C ~ 85°C | - |
|

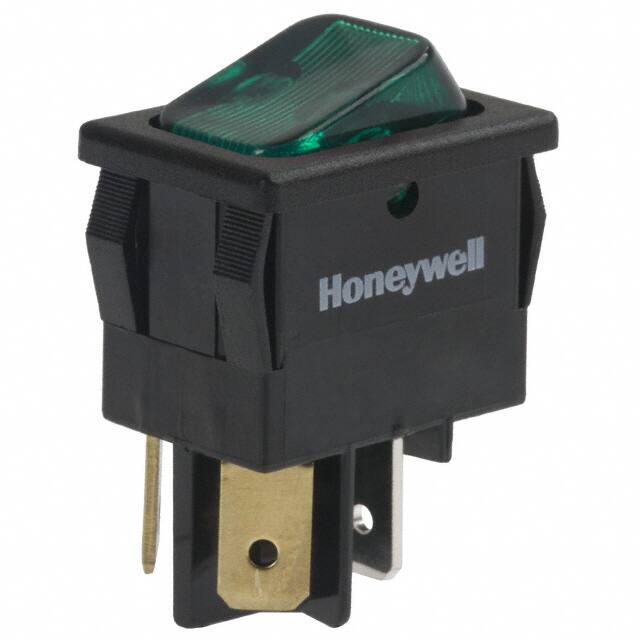

MR93-224B3SWITCH ROCKER DPST 12A 125V |
0 |
|
Datasheet |
MR | Bulk | Obsolete | Panel Mount, Snap-In | DPST | On-Off | 12A (AC) | 125 V | - | Flat - Illuminated | Green | No Marking | LED, Green | 12 VDC | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.20mm x 12.90mm | 0°C ~ 85°C | - |
|

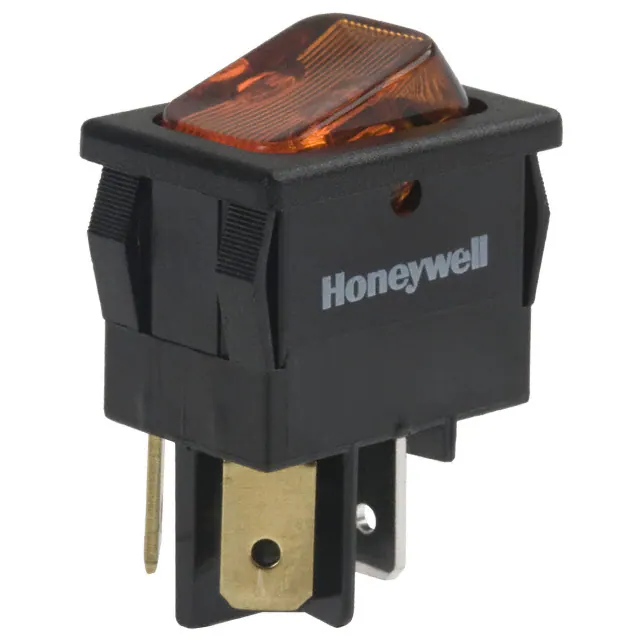

MR93-221B4SWITCH ROCKER DPST 12A 125V |
0 |
|
Datasheet |
MR | Bulk | Obsolete | Panel Mount, Snap-In | DPST | On-Off | 12A (AC) | 125 V | - | Flat - Illuminated | Amber | No Marking | LED, Amber | 24 VDC | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.20mm x 12.90mm | 0°C ~ 85°C | - |
|

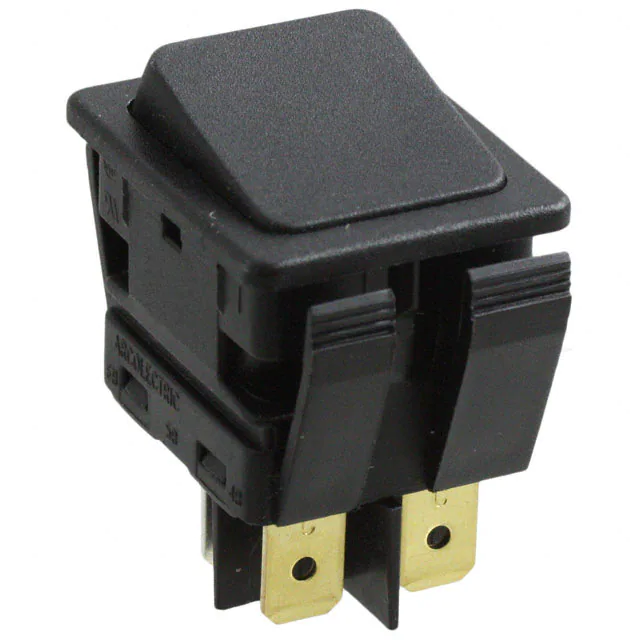

C6050ALBBSWITCH ROCKER DPST 20A 277V |
0 |
|
Datasheet |
6050 | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 20A (AC) | 277 V | - | Flat | Black | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | Splash Proof | - | Rectangular - 30.10mm x 22.20mm | - | CSA, UL |
|
|
C1350ABBBSWITCH ROCKER DPST-NO 20A 250V |
0 |
|
Datasheet |
1350 | Bulk | Active | Panel Mount, Snap-In | DPST-NO | On-Off | 20A (AC/DC) | 250 V | 24 V | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 30.10mm x 22.20mm | - | CSA, UL |
|
|
300AWSP1J1BLKVS3QESWITCH ROCKER SPDT 5A 120V |
0 |
|
Datasheet |
300A | Bulk | Active | Through Hole | SPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Concave (Standard V) | Black | No Marking | - | - | PC Pin | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | - | -30°C ~ 85°C | - |
|
|
300DP6R6BLKM3QEBLKSWITCH ROCKER DPDT 5A 120V |
0 |
|
Datasheet |
300 | Bulk | Active | Panel Mount, Snap-In | DPDT | On-On-On | 5A (AC/DC) | 120 V | 28 V | Concave (Standard V) | Black | No Marking | - | - | Quick Connect - 0.062" (1.5mm) | - | Epoxy Sealed Terminals | Rectangular - 15.70mm x 12.57mm | -30°C ~ 85°C | - |
|
|
300DP1J1BLKVS3QESWITCH ROCKER DPDT 5A 120V |
0 |
|
Datasheet |
300 | Bulk | Active | Through Hole | DPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Concave (Standard V) | Black | No Marking | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -30°C ~ 85°C | - |
|
300AWSP4J2WHTVS2RESWITCH ROCKER SPDT 0.4VA 20V |
0 |
|
Datasheet |
300A | Bulk | Active | Through Hole | SPDT | Mom-Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Paddle | White | No Marking | - | - | PC Pin | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | - | -30°C ~ 85°C | - |
|
D501J12S2AQASWITCH ROCKER SPDT 10A 125V |
0 |
|
Datasheet |
D | Bulk | Active | Panel Mount, Snap-In, Right Angle | SPDT | On-On | 10A (AC) | 125 V | - | Concave (Curved) | Black | No Marking | - | - | PC Pin | - | - | Rectangular - 19.20mm x 12.90mm | -30°C ~ 65°C | cULus |
|
|
6-1571986-9SWITCH ROCKER SPDT 5A 120V |
0 |
|
Datasheet |
A | Bulk | Active | Panel Mount, Snap-In | SPDT | On-Mom | 5A (AC/DC) | 120 V | 28 V | Concave (Standard V) | Black | No Marking | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 15.75mm x 12.70mm | -30°C ~ 85°C | - |
|

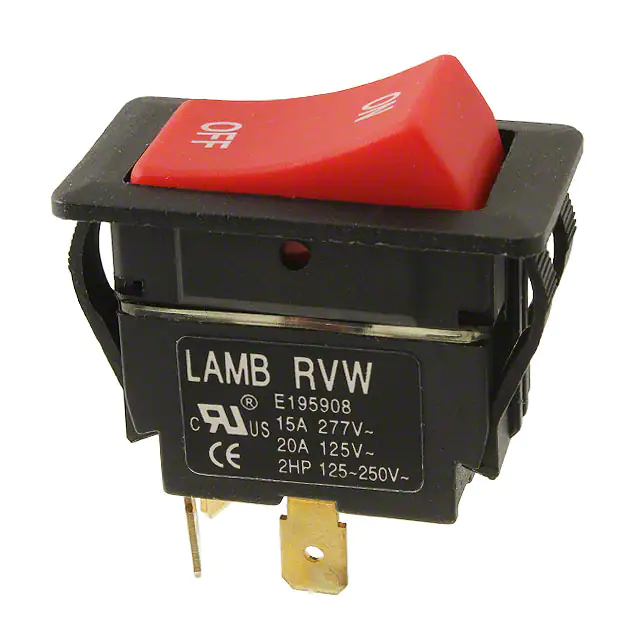

RVW42D1923SWITCH ROCKER DPST 20A 125V |
0 |
|
Datasheet |
RVW, LAMB | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 20A (AC) | 125 V | - | Concave (Curved) | Red | ON OFF, Vertical | - | - | Quick Connect - 0.250" (6.3mm) | IP54 - Dust Protected, Water Resistant | - | Rectangular - 36.80mm x 21.00mm | -20°C ~ 55°C | - |
|
|
651125-BB-ANSWITCH ROCKER SPST 10A 125V |
0 |
|
- |
651 | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 10A (AC) | 125 V | - | Concave (Curved) | Black | OFF ON, Vertical | - | - | Wire Leads | - | - | Rectangular - 19.20mm x 12.90mm | 0°C ~ 85°C | CSA, UL |
|
|
C1550WABBSWITCH ROCKER DPST 16A 250V |
0 |
|
Datasheet |
1550 | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 16A (AC) | 250 V | 24 V | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | Splash Proof | - | Rectangular - 27.30mm x 22.40mm | - | CSA, UL |
|
|
C1550WABB602AWSWITCH ROCKER DPST 16A 250V |
0 |
|
Datasheet |
1550 | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 16A (AC) | 250 V | 24 V | Concave (Curved) | Black | O - | - | - | Quick Connect - 0.250" (6.3mm) | Splash Proof | - | Rectangular - 27.30mm x 22.40mm | - | CSA, UL |
|
|
CWSB11AA3HSWITCH ROCKER SPST 6A 250V |
0 |
|
Datasheet |
CWSB | Bulk | Active | Panel Mount, Snap-In, Right Angle | SPST | On-Off | 6A (AC) | 250 V | - | Concave (Curved) | Black | Dot | - | - | PC Pin | - | Audible Click | Rectangular - 19.20mm x 12.90mm | -10°C ~ 70°C | cULus |
|
|
RGSEA901-R-R-B-ESWITCH ROCKER SPST 20A 125V |
0 |
|
- |
RG | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 20A (AC) | 125 V | - | Concave (Curved) | Red | O - | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 28.58mm x 25.40mm | -40°C ~ 85°C | CSA, UL, VDE |
