Rocker Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Color - Actuator/Cap | Actuator Marking | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TA101-TB-B/I-OSWITCH ROCKER SPST 10A 125V |
0 |
|
- |
T | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 10A (AC) | 125 V | - | Concave (Standard V) | Black | O I | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 28.57mm x 13.97mm | 0°C ~ 85°C | cUL, UL |
|
|
TA101-TW-B/ON-OFFSWITCH ROCKER SPST 10A 125V |
0 |
|
- |
T | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 10A (AC) | 125 V | - | Concave (Standard V) | White | ON OFF, Vertical | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 28.57mm x 13.97mm | 0°C ~ 85°C | cUL, UL |
|
|
TA201-TB-B/ON-OFFSWITCH ROCKER SPST 15A 125V |
0 |
|
Datasheet |
T | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 15A (AC) | 125 V | - | Concave (Standard V) | Black | ON OFF, Vertical | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 28.57mm x 13.97mm | 0°C ~ 85°C | cUL, UL |
|
|
TA201-TB-W/ON-OFFSWITCH ROCKER SPST 15A 125V |
0 |
|
- |
T | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 15A (AC) | 125 V | - | Concave (Standard V) | Black | ON OFF, Vertical | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 28.57mm x 13.97mm | 0°C ~ 85°C | cUL, UL |
|
|
TA101-PB-B/ON-OFFSWITCH ROCKER SPST 10A 125V |
0 |
|
- |
T | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 10A (AC) | 125 V | - | Paddle | Black | ON OFF, Vertical | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 28.57mm x 13.97mm | 0°C ~ 85°C | cUL, UL |
|
|
TA201-TR-BSWITCH ROCKER SPST 15A 125V |
0 |
|
- |
T | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 15A (AC) | 125 V | - | Concave (Standard V) | Red | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 28.57mm x 13.97mm | 0°C ~ 85°C | cUL, UL |
|
|
TA201-TW-B/ON-OFFSWITCH ROCKER SPST 15A 125V |
0 |
|
- |
T | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 15A (AC) | 125 V | - | Concave (Standard V) | White | ON OFF, Vertical | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 28.57mm x 13.97mm | 0°C ~ 85°C | cUL, UL |
|
|
C5503ABBR2-449ABSWITCH ROCKER SPST 16A 250V |
0 |
|
Datasheet |
5500 | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 16A (AC) | 250 V | - | Concave (Curved) - Illuminated | Red | O - | Neon, Red | 125 VAC | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 30.10mm x 11.10mm | - | CSA, UL |
|
|
R13133LBBR7SWITCH ROCKER SPST 10A 125V |
0 |
|
Datasheet |
R13 | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 10A (AC) | 125 V | - | Round - Illuminated | Black, Red | No Marking | Incandescent, Red | 12 VAC | Quick Connect - 0.187" (4.7mm) | - | - | Circular - 20.20mm Dia | - | CSA, UL |
|
|
RSCA201-VB-B-9-GSWITCH ROCKER SPST 20A 125V |
0 |
|
Datasheet |
RSC | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 20A (AC) | 125 V | - | Concave (Curved) | Black | O - | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 28.58mm x 13.97mm | 0°C ~ 85°C | CSA, UL, VDE |
|
|
651115-BB-0NSWITCH ROCKER 10A 125V |
0 |
|
- |
651 | Bulk | Active | Panel Mount, Snap-In | - | - | 10A (AC) | 125 V | - | Concave (Curved) | Black | No Marking | - | - | Wire Leads | - | - | Rectangular - 19.20mm x 12.90mm | 0°C ~ 85°C | CSA, UL |
|
|
651125-WB-0N/POLYSWITCH ROCKER SPST 10A 125V |
0 |
|
- |
651 | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 10A (AC) | 125 V | - | Concave (Curved) | White | No Marking | - | - | Wire Leads | - | - | Rectangular - 19.20mm x 12.90mm | 0°C ~ 85°C | CSA, UL |
|
|
651165-BB-0NSWITCH ROCKER 10A 125V |
0 |
|
- |
651 | Bulk | Active | Panel Mount, Snap-In | - | - | 10A (AC) | 125 V | - | Concave (Curved) | Black | No Marking | - | - | Wire Leads | - | - | Rectangular - 19.20mm x 12.90mm | 0°C ~ 85°C | CSA, UL |
|
|
300DP2R7BLKM1REBLKSWITCH ROCKER DPDT 0.4VA 20V |
0 |
|
Datasheet |
300 | Bulk | Active | Panel Mount, Snap-In | DPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Paddle | Black | No Marking | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 15.24mm x 12.70mm | -30°C ~ 85°C | - |
|
|
300DP3R7BLKM1REBLKSWITCH ROCKER DPDT 0.4VA 20V |
0 |
|
Datasheet |
300 | Bulk | Active | Panel Mount, Snap-In | DPDT | On-Off-On | 0.4VA (AC/DC) | 20 V | 20 V | Paddle | Black | No Marking | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 15.24mm x 12.70mm | -30°C ~ 85°C | - |
|
|
300DP8R1BLKM1QESWITCH ROCKER DP3T 5A 120V |
0 |
|
Datasheet |
300 | Bulk | Active | Panel Mount, Flange | DP3T | Mom-On-Mom | 5A (AC/DC) | 120 V | 28 V | Concave (Standard V) | Black | No Marking | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 17.96mm x 10.62mm | -30°C ~ 85°C | - |
|

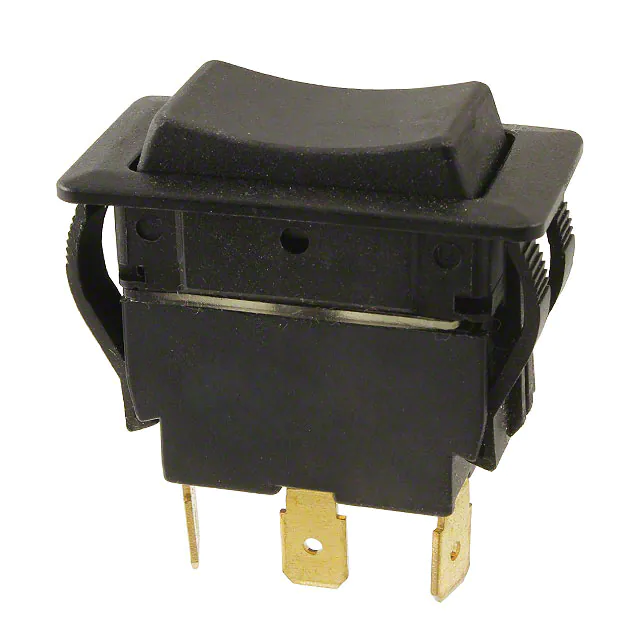

RVW4DD1100SWITCH ROCKER SPDT 20A 125V |
0 |
|
Datasheet |
RVW, LAMB | Bulk | Active | Panel Mount, Snap-In | SPDT | Mom-Off-Mom | 20A (AC) | 125 V | - | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | IP54 - Dust Protected, Water Resistant | - | Rectangular - 36.80mm x 21.00mm | -20°C ~ 55°C | - |
|
300DP1J1VS2RESWITCH ROCKER DPDT 0.4VA 20V |
0 |
|
Datasheet |
300 | Bulk | Active | Through Hole | DPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Concave (Standard V) | Black | No Marking | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -30°C ~ 85°C | - |
|
|
300DP1J1WHTVS2RESWITCH ROCKER DPDT 0.4VA 20V |
0 |
|
Datasheet |
300 | Bulk | Active | Through Hole | DPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Concave (Standard V) | White | No Marking | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -30°C ~ 85°C | - |
|
|
300DP1J6BLKVS2RESWITCH ROCKER DPDT 0.4VA 20V |
0 |
|
Datasheet |
300 | Bulk | Active | Through Hole | DPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Paddle | Black | No Marking | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -30°C ~ 85°C | - |
