Rocker Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Color - Actuator/Cap | Actuator Marking | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
R13112IBBSWITCH ROCKER SPDT 10A 125V |
0 |
|
Datasheet |
R13 | Bulk | Active | Panel Mount, Snap-In | SPDT | - | 10A (AC) | 125 V | - | Round | Black | No Marking | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Circular - 20.20mm Dia | - | CSA, UL |
|
|
R1973ABLKGILIR6SWITCH ROCKER SPST 9A 125V |
0 |
|
Datasheet |
R1973 | Bulk | Active | Panel Mount, Snap-In, Right Angle | SPST | On-Off | 9A (AC) | 125 V | - | Concave (Curved) - Illuminated | Green | ON OFF, Vertical | Incandescent, Green | 6 VDC | PC Pin | - | - | Rectangular - 19.20mm x 12.80mm | -30°C ~ 65°C | - |
|
|
R1966IWHTWHTBFSWITCH ROCKER SPDT 15A 125V |
0 |
|
Datasheet |
R1966 | Bulk | Active | Panel Mount, Snap-In | SPDT | Mom-Off-Mom | 15A (AC) | 125 V | - | Concave (Curved) | White | I O II | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.40mm x 13.00mm | -30°C ~ 65°C | - |
|
R1966IWHTWHTEFSWITCH ROCKER SPDT 15A 125V |
0 |
|
Datasheet |
R1966 | Bulk | Active | Panel Mount, Snap-In | SPDT | Mom-Off-Mom | 15A (AC) | 125 V | - | Concave (Curved) | White | No Marking | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.40mm x 13.00mm | -30°C ~ 65°C | - |
|
|
RR3112LBLKBLKREDEF4SWITCH ROCKER SPST 16A 125V |
0 |
|
Datasheet |
RR3112 | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 16A (AC) | 125 V | - | Round - Illuminated | Black | No Marking | LED, Red | 12 VDC | Quick Connect - 0.187" (4.7mm) | - | - | Circular - 20.20mm Dia | 0°C ~ 65°C | - |
|
|
RR3112LBLKREDREDEF4SWITCH ROCKER SPST 16A 125V |
0 |
|
Datasheet |
RR3112 | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 16A (AC) | 125 V | - | Round - Illuminated | Red | No Marking | LED, Red | 12 VDC | Quick Connect - 0.187" (4.7mm) | - | - | Circular - 20.20mm Dia | 0°C ~ 65°C | - |
|
|
R5BBLKBLUEF1SWITCH ROCKER DPST 20A 125V |
0 |
|
Datasheet |
R5 | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 20A (AC) | 125 V | - | Concave (Curved) - Illuminated | Blue | No Marking | Neon, Blue | 125 VAC | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 30.00mm x 22.20mm | -20°C ~ 55°C | CSA, UL |
|
|
R5BBLKBLUIF1SWITCH ROCKER DPST 20A 125V |
0 |
|
Datasheet |
R5 | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 20A (AC) | 125 V | - | Concave (Curved) - Illuminated | Blue | ON OFF, Vertical | Neon, Blue | 125 VAC | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 30.00mm x 22.20mm | -20°C ~ 55°C | CSA, UL |
|
|
400AWMSP1R1REDM1QESWITCH ROCKER SPDT 3A 120V |
0 |
|
Datasheet |
400A | Tray | Active | Panel Mount, Snap-In | SPDT | On-On | 3A (AC/DC) | 120 V | 28 V | Concave (Curved) | Red | No Marking | - | - | Solder Lug | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | - | -30°C ~ 85°C | - |
|
|
R13112BBG2SWITCH ROCKER SPST 10A 125V |
0 |
|
Datasheet |
R13 | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 10A (AC) | 125 V | - | Round - Illuminated | Green | No Marking | Neon, Green | 125 VAC | Quick Connect - 0.187" (4.7mm) | - | - | Circular - 20.20mm Dia | - | CSA, UL |
|
|
RB341A1100SWITCH ROCKER SPST 16A 125V |
0 |
|
Datasheet |
RB3 | Box | Active | Panel Mount, Snap-In | SPST | On-Off | 16A (AC) | 125 V | - | Flat | Black | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | IP67 - Dust Tight, Waterproof | - | Rectangular - 30.20mm x 13.80mm | 0°C ~ 55°C | cULus, ENEC |
|

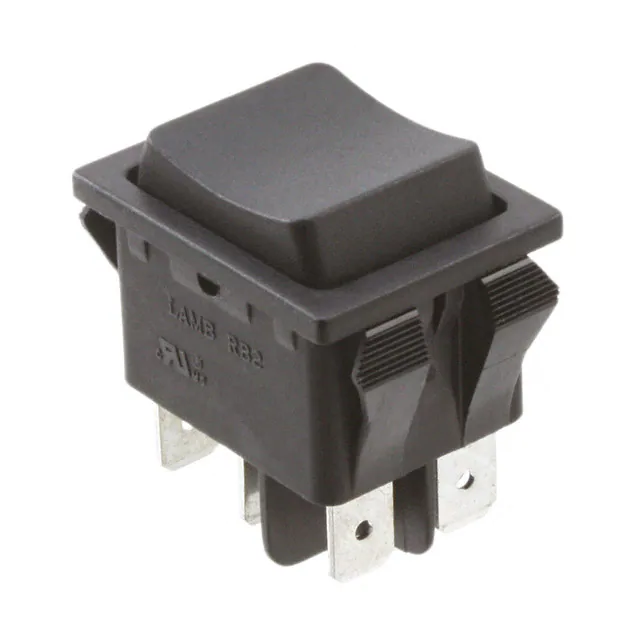

RB246E1100SWITCH ROCKER DPDT 16A 125V |
0 |
|
Datasheet |
RB2, LAMB | Bulk | Active | Panel Mount, Snap-In | DPDT | On-Off-On | 16A (AC) | 125 V | - | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 30.00mm x 22.00mm | -20°C ~ 65°C | - |
|
DA102J5GG215QF6SWITCH ROCKER SPST 16A 125V |
0 |
|
Datasheet |
DA | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 16A (AC) | 125 V | - | Concave (Curved) - Illuminated | Green | No Marking | LED, Green | 1.85 VDC | Quick Connect - 0.187" (4.7mm) | - | Guard | Rectangular - 19.40mm x 13.00mm | -20°C ~ 85°C | cULus |
|

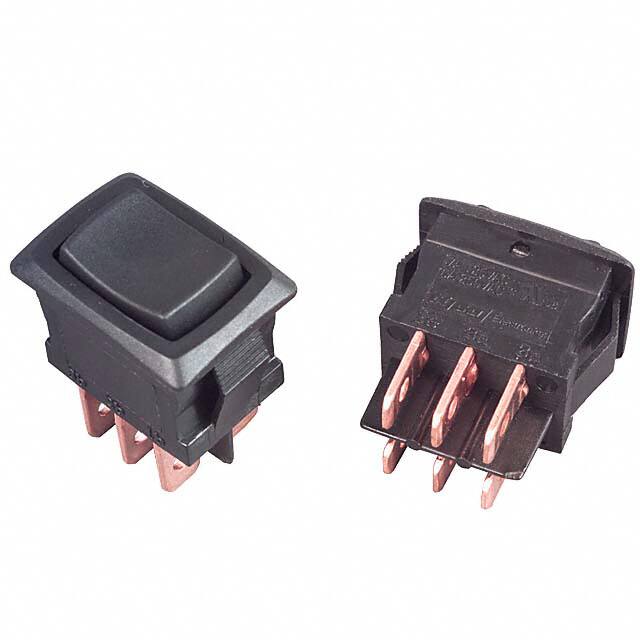

5-1571086-4SWITCH ROCKER DPDT 7A 125V |
0 |
|
Datasheet |
PRA | Bulk | Obsolete | Panel Mount, Snap-In | DPDT | On-Off-On | 7A (AC) | 125 V | - | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.187" (4.7mm) | Dust Proof | - | Rectangular - 19.20mm x 13.00mm | -20°C ~ 85°C | UL |
|
|
PRADD1-07F-BB0DWSWITCH ROCKER DPDT 7A 125V |
0 |
|
Datasheet |
PRA | Bulk | Obsolete | Panel Mount, Snap-In | DPDT | On-On | 7A (AC) | 125 V | - | Concave (Curved) | Black | - = | - | - | Quick Connect - 0.187" (4.7mm) | Dust Proof | - | Rectangular - 19.20mm x 13.00mm | -20°C ~ 85°C | UL |
|
|
PRADD1-07F-BB0EWSWITCH ROCKER DPDT 7A 125V |
0 |
|
Datasheet |
PRA | Bulk | Obsolete | Panel Mount, Snap-In | DPDT | On-On | 7A (AC) | 125 V | - | Concave (Curved) | Black | I II | - | - | Quick Connect - 0.187" (4.7mm) | Dust Proof | - | Rectangular - 19.20mm x 13.00mm | -20°C ~ 85°C | UL |
|
|
KRE2ALA2GBBSWITCH ROCKER SPST 16A 125V |
0 |
|
Datasheet |
KR | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 16A (AC), 10A (DC) | 125 V | 28 V | Flat - Illuminated | Green | No Marking | Neon, Green | 110 VAC | Quick Connect - 0.187" (4.7mm) | IP65 - Dust Tight, Water Resistant | - | Rectangular - 19.40mm x 13.00mm | -25°C ~ 85°C | - |
|
|
R5GBLKBLKAF0SWITCH ROCKER DPDT 15A 125V |
0 |
|
Datasheet |
R5 | Bulk | Active | Panel Mount, Snap-In | DPDT | Mom-Off-Mom | 15A (AC) | 125 V | - | Concave (Curved) | Black | Dot | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 30.00mm x 22.20mm | -20°C ~ 55°C | CSA, UL |
|
|
RR3112LBLKBLKBLUEF4SWITCH ROCKER SPST 16A 125V |
0 |
|
Datasheet |
RR3112 | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 16A (AC) | 125 V | - | Round - Illuminated | Black | No Marking | LED, Blue | 12 VDC | Quick Connect - 0.187" (4.7mm) | - | - | Circular - 20.20mm Dia | 0°C ~ 65°C | - |
|
CF-LD-1DC-AG2SWITCH ROCKER SPDT 0.4VA 28V |
0 |
|
Datasheet |
CF-LD | Bulk | Active | Through Hole | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Paddle | Gray | No Marking | - | - | PC Pin | - | - | - | -40°C ~ 85°C | - |
