Rocker Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Color - Actuator/Cap | Actuator Marking | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RR3112BBLKGRNNFF2SWITCH ROCKER SPST 16A 125V |
0 |
|
Datasheet |
RR3112 | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 16A (AC) | 125 V | - | Round - Illuminated | Green | O - | Neon, Green | 220 VAC | Quick Connect - 0.187" (4.7mm) | - | - | Circular - 20.20mm Dia | 0°C ~ 65°C | - |
|
|
R1973ABLKORGER6SWITCH ROCKER SPST 9A 125V |
0 |
|
Datasheet |
R1973 | Bulk | Active | Panel Mount, Snap-In, Right Angle | SPST | On-Off | 9A (AC) | 125 V | - | Concave (Curved) - Illuminated | Orange | No Marking | Incandescent, Orange | 6 VDC | PC Pin | - | - | Rectangular - 19.20mm x 12.80mm | -30°C ~ 65°C | - |
|

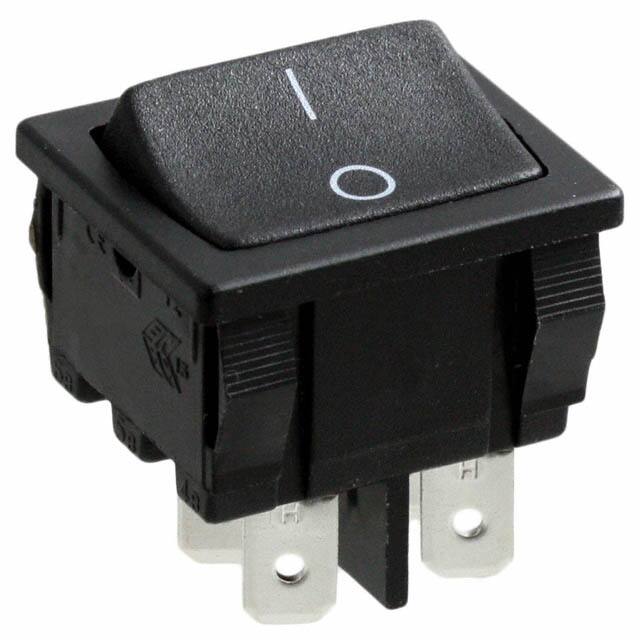

H8650VBBBEN577WSWITCH ROCKER DPST 10A 277V |
0 |
|
Datasheet |
8600 | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 10A (AC) | 277 V | - | Concave (Curved) | Black | O - | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 21.90mm x 19.30mm | - | CSA, UL |
|
|
VVAZCAC-100SWITCH ROCKER |
0 |
|
Datasheet |
Contura® V | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
L8500VBCWW-551BSWITCH ROCKER SPST 15A 250V |
0 |
|
Datasheet |
8500 | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 15A (AC) | 250 V | - | Concave (Curved) | White | O - | - | - | Quick Connect - 0.110" (2.8mm) | - | - | Rectangular - 19.30mm x 12.90mm | - | CSA, UL |
|
|
400MSP1R6WHTM6QESWITCH ROCKER SPDT 3A 120V |
0 |
|
Datasheet |
400 | Bulk | Active | Through Hole, Right Angle | SPDT | On-On | 3A (AC/DC) | 120 V | 28 V | Concave (Curved) | White | No Marking | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -30°C ~ 85°C | cULus |
|
YRM33F2BBBNNSWITCH ROCKER DPDT 20A 125V |
0 |
|
- |
YR | Bulk | Active | Panel Mount, Snap-In | DPDT | On-On | 20A (AC) | 125 V | - | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 30.00mm x 22.00mm | 0°C ~ 85°C | - |
|
|
KCA2ANA1BBDSWITCH ROCKER SPST 16A 125V |
0 |
|
- |
KC | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 16A (AC), 10A (DC) | 125 V | 28 V | Round | Black | O - | - | - | Quick Connect - 0.187" (4.7mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 20.00mm Dia | -25°C ~ 85°C | - |
|
|
1634202-1SWITCH ROCKER SPST 10A 125V |
0 |
|
Datasheet |
PRG | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 10A (AC) | 125 V | - | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | Dust Proof | - | Rectangular - 30.20mm x 11.20mm | -20°C ~ 85°C | ENEC, UL |
|
|
R1966DBLKBLKBRSWITCH ROCKER SPDT 15A 125V |
0 |
|
Datasheet |
R1966 | Bulk | Active | Panel Mount, Snap-In, Right Angle | SPDT | On-Off-On | 15A (AC) | 125 V | - | Concave (Curved) | Black | I O II | - | - | PC Pin | - | - | Rectangular - 19.40mm x 13.00mm | -30°C ~ 65°C | - |
|
R1966DBLKBLKFRSWITCH ROCKER SPDT 15A 125V |
0 |
|
Datasheet |
R1966 | Bulk | Active | Panel Mount, Snap-In, Right Angle | SPDT | On-Off-On | 15A (AC) | 125 V | - | Concave (Curved) | Black | O - | - | - | PC Pin | - | - | Rectangular - 19.40mm x 13.00mm | -30°C ~ 65°C | - |
|
CF-LD-1DC6-AG2SWITCH ROCKER SPDT 0.4VA 28V |
0 |
|
Datasheet |
CF-LD | Bulk | Active | Through Hole, Right Angle, Vertical | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Paddle | Gray | No Marking | - | - | PC Pin | - | - | - | -40°C ~ 85°C | - |
|
|
R4BBLKBLKGRNEF4SWITCH ROCKER SPST 20A 125V |
0 |
|
Datasheet |
R4 | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 20A (AC) | 125 V | - | Concave (Curved) - Illuminated | Black | No Marking | Incandescent, Green | 24 VDC | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 30.10mm x 11.10mm | -20°C ~ 55°C | UL |
|
|
R4BBLKBLKGRNFF3SWITCH ROCKER SPST 20A 125V |
0 |
|
Datasheet |
R4 | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 20A (AC) | 125 V | - | Concave (Curved) - Illuminated | Black | O - | Incandescent, Green | 12 VDC | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 30.10mm x 11.10mm | -20°C ~ 55°C | UL |
|
|
R4BBLKBLKREDEF3SWITCH ROCKER SPST 20A 125V |
0 |
|
Datasheet |
R4 | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 20A (AC) | 125 V | - | Concave (Curved) - Illuminated | Black | No Marking | Incandescent, Red | 12 VDC | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 30.10mm x 11.10mm | -20°C ~ 55°C | UL |
|
|
R4BBLKBLKYELEF3SWITCH ROCKER SPST 20A 125V |
0 |
|
Datasheet |
R4 | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 20A (AC) | 125 V | - | Concave (Curved) - Illuminated | Black | No Marking | Incandescent, Yellow | 12 VDC | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 30.10mm x 11.10mm | -20°C ~ 55°C | UL |
|
|
R4BBLKBLKYELEF4SWITCH ROCKER SPST 20A 125V |
0 |
|
Datasheet |
R4 | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 20A (AC) | 125 V | - | Concave (Curved) - Illuminated | Black | No Marking | Incandescent, Yellow | 24 VDC | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 30.10mm x 11.10mm | -20°C ~ 55°C | UL |
|
|
R4BBLKREDREDEF3SWITCH ROCKER SPST 20A 125V |
0 |
|
Datasheet |
R4 | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 20A (AC) | 125 V | - | Concave (Curved) - Illuminated | Red | No Marking | Incandescent, Red | 12 VDC | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 30.10mm x 11.10mm | -20°C ~ 55°C | UL |
|
|
R4BBLKREDREDEF4SWITCH ROCKER SPST 20A 125V |
0 |
|
Datasheet |
R4 | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 20A (AC) | 125 V | - | Concave (Curved) - Illuminated | Red | No Marking | Incandescent, Red | 24 VDC | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 30.10mm x 11.10mm | -20°C ~ 55°C | UL |
|
|
R4BBLKREDYELEF3SWITCH ROCKER SPST 20A 125V |
0 |
|
Datasheet |
R4 | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 20A (AC) | 125 V | - | Concave (Curved) - Illuminated | Red | No Marking | Neon, Yellow | 12 VDC | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 30.10mm x 11.10mm | -20°C ~ 55°C | UL |
