Rocker Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Color - Actuator/Cap | Actuator Marking | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

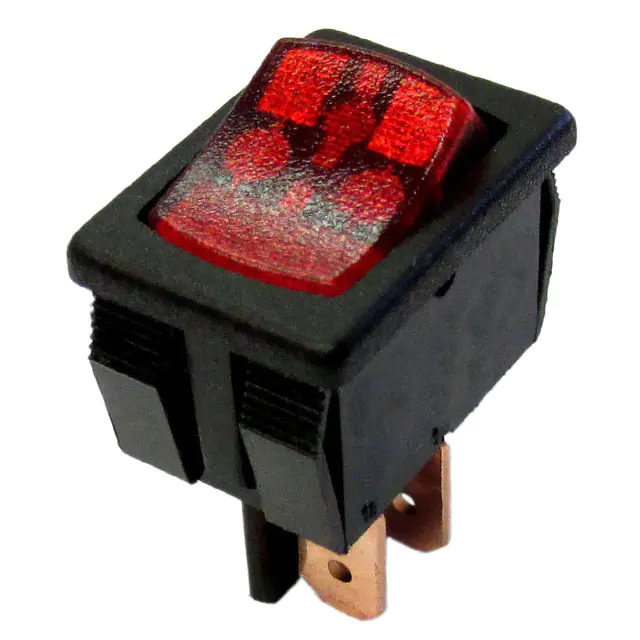

GRL-4011-0000SWITCH ROCKER SPST 13A 125V |
0 |
|
Datasheet |
4000 | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 13A (AC) | 125 V | - | Concave (Curved) - Illuminated | Red | No Marking | Neon, Red | 125 VAC | Quick Connect - 0.187" (4.7mm) | - | Terminal Barriers | Rectangular - 19.20mm x 12.90mm | -20°C ~ 105°C | - |
|
RR3402DSWITCH ROCKER SPDT 6A 125V |
0 |
|
Datasheet |
RR3402 | Bulk | Active | Panel Mount, Threaded Body with Nut | SPDT | On-Off-On | 6A (AC) | 125 V | - | Paddle | Black | No Marking | - | - | Solder Lug | - | - | Circular - 15.00mm Dia | 0°C ~ 65°C | - |
|
V1B1AJ0B-AKC00-000SWITCH ROCKER SPST 15A 24V |
0 |
|
Datasheet |
Contura® V | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 15A (DC) | - | 24 V | Convex (Reverse V) - Illuminated | Black | No Marking | LED, Green | 24 VDC | Quick Connect - 0.250" (6.3mm) | IP66/IP68 - Dust Tight, Water Resistant, Waterproof | - | Rectangular - 36.83mm x 21.08mm | -40°C ~ 85°C | CSA, UL, VDE |
|
|
V1B1AJ0B-A9C00-000SWITCH ROCKER SPST 15A 24V |
0 |
|
Datasheet |
Contura® V | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 15A (DC) | - | 24 V | Convex (Reverse V) - Illuminated | Black | No Marking | LED, Green | 24 VDC | Quick Connect - 0.250" (6.3mm) | IP66/IP68 - Dust Tight, Water Resistant, Waterproof | - | Rectangular - 36.83mm x 21.08mm | -40°C ~ 85°C | CSA, UL, VDE |
|
|
V1B1AJ0B-AGC00-000SWITCH ROCKER SPST 15A 24V |
0 |
|
Datasheet |
Contura® V | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 15A (DC) | - | 24 V | Convex (Reverse V) - Illuminated | Black | No Marking | LED, Green | 24 VDC | Quick Connect - 0.250" (6.3mm) | IP66/IP68 - Dust Tight, Water Resistant, Waterproof | - | Rectangular - 36.83mm x 21.08mm | -40°C ~ 85°C | CSA, UL, VDE |
|
|
V1B1AJ0B-C1B00-000SWITCH ROCKER SPST 15A 24V |
0 |
|
Datasheet |
Contura® V | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 15A (DC) | - | 24 V | Convex (Reverse V) - Illuminated | Black | No Marking | LED, Green | 24 VDC | Quick Connect - 0.250" (6.3mm) | IP66/IP68 - Dust Tight, Water Resistant, Waterproof | - | Rectangular - 36.83mm x 21.08mm | -40°C ~ 85°C | CSA, UL, VDE |
|
|
C1500XTBBR-GOLDSWITCH ROCKER SPST 16A 250V |
0 |
|
Datasheet |
1500 | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 16A (AC) | 250 V | 24 V | Concave (Curved) | Black, Red | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 28.30mm x 11.60mm | - | CSA, UL |
|
H8550VBABJSWITCH ROCKER DPST |
0 |
|
Datasheet |
- | - | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
ANR21R11P2CQESWITCH ROCKER DPDT 5A 120V |
0 |
|
Datasheet |
ANR | Bulk | Active | Through Hole | DPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Concave (Curved) | Black | No Marking | - | - | PC Pin | - | - | - | -40°C ~ 85°C | cULus |
|
|
ANR21R112BQESWITCH ROCKER DPDT 5A 120V |
0 |
|
Datasheet |
ANR | Bulk | Active | Panel Mount, Flange | DPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Concave (Curved) | Black | No Marking | - | - | Solder Lug | - | - | Rectangular - 17.96mm x 10.62mm | -40°C ~ 85°C | cULus |
|
|
RB24GD1121SWITCH ROCKER DPDT 20A 125V |
0 |
|
Datasheet |
RB2, LAMB | Bulk | Active | Panel Mount, Snap-In | DPDT | On-On | 20A (AC) | 125 V | - | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 30.00mm x 22.00mm | -20°C ~ 65°C | - |
|
|
RB246E112Z102/ACC-F04-1SWITCH ROCKER DPDT 16A 125V |
0 |
|
- |
RB2, LAMB | Bulk | Active | Panel Mount, Snap-In | DPDT | On-Off-On | 16A (AC) | 125 V | - | Concave (Curved) - Illuminated | Black | ON OFF ON, Vertical | LED, Clear | - | Quick Connect - 0.250" (6.3mm) | IP54 - Dust Protected, Water Resistant | - | Rectangular - 30.00mm x 22.00mm | -20°C ~ 65°C | - |
|
GRL-2011-0039SWITCH ROCKER SPST 16A 125V |
0 |
|
Datasheet |
2000 | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 16A (AC) | 125 V | - | Concave (Curved) - Illuminated | Red | No Marking | Neon, Red | 125 VAC | Quick Connect - 0.250" (6.3mm) | - | Terminal Barriers | Rectangular - 28.58mm x 13.97mm | -20°C ~ 105°C | - |
|
|
ANR13R112BQESWITCH ROCKER SPDT 5A 120V |
0 |
|
Datasheet |
ANR | Bulk | Active | Panel Mount, Flange | SPDT | On-Off-On | 5A (AC/DC) | 120 V | 28 V | Concave (Curved) | Black | No Marking | - | - | Solder Lug | - | - | Rectangular - 17.96mm x 10.62mm | -40°C ~ 85°C | cULus |
|
|
ANR13R11P2CQESWITCH ROCKER SPDT 5A 120V |
0 |
|
Datasheet |
ANR | Bulk | Active | Through Hole | SPDT | On-Off-On | 5A (AC/DC) | 120 V | 28 V | Concave (Curved) | Black | No Marking | - | - | PC Pin | - | - | - | -40°C ~ 85°C | cULus |
|
|
V1D2BC0B-A9C00-000SWITCH ROCKER SPST 20A 12V |
0 |
|
Datasheet |
Contura® V | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 20A (DC) | - | 12 V | Convex (Reverse V) - Illuminated | Black | No Marking | LED, Red | 12 VDC | Quick Connect - 0.250" (6.3mm) | IP66/IP68 - Dust Tight, Water Resistant, Waterproof | - | Rectangular - 36.83mm x 21.08mm | -40°C ~ 85°C | CSA, UL, VDE |
|
|
RR3130CBLKBLKESSWITCH ROCKER SPDT 10A 125V |
0 |
|
Datasheet |
RR3130 | Bulk | Active | Panel Mount, Threaded Body with Nut | SPDT | On-On | 10A (AC) | 125 V | - | Round | Black | No Marking | - | - | Solder Lug | - | - | Circular - 18.20mm Dia | 0°C ~ 65°C | - |
|

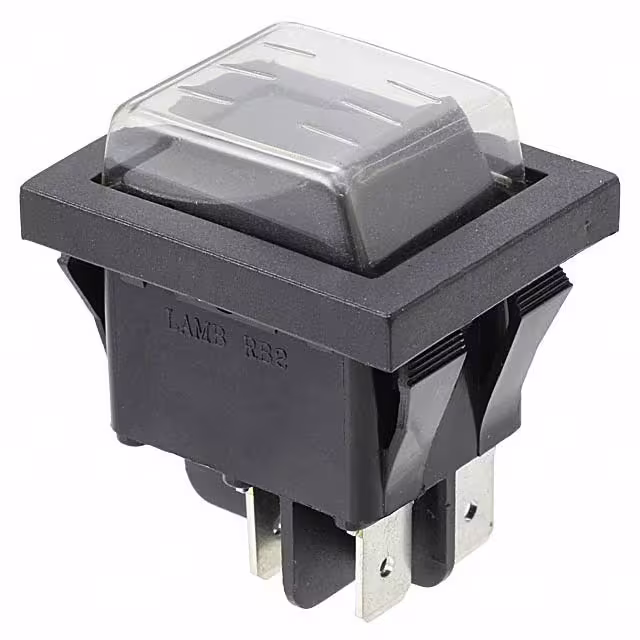

RB242D1128/ACC-F02-1SWITCH ROCKER DPST 20A 125V |
0 |
|
- |
RB2, LAMB | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 20A (AC) | 125 V | - | Concave (Curved) | Black | O on End | - | - | Quick Connect - 0.250" (6.3mm) | IP54 - Dust Protected, Water Resistant | Sealing Boot | Rectangular - 30.00mm x 22.00mm | -20°C ~ 65°C | - |
|

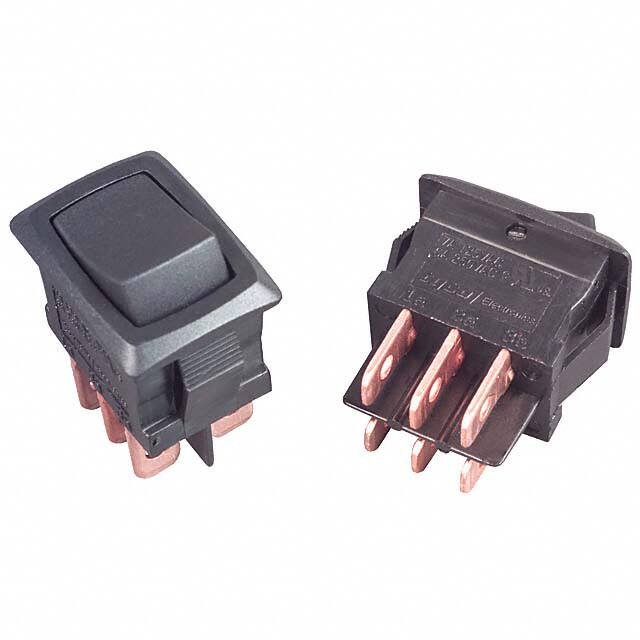

PRADD1-07F-BB000SWITCH ROCKER DPDT 7A 125V |
0 |
|
Datasheet |
PRA | Bulk | Obsolete | Panel Mount, Snap-In | DPDT | On-On | 7A (AC) | 125 V | - | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.187" (4.7mm) | Dust Proof | - | Rectangular - 19.20mm x 13.00mm | -20°C ~ 85°C | UL |
|
|
R13112BBR2SWITCH ROCKER SPST 10A 125V |
0 |
|
Datasheet |
R13 | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 10A (AC) | 125 V | - | Round - Illuminated | Red | No Marking | Neon, Red | 125 VAC | Quick Connect - 0.187" (4.7mm) | - | - | Circular - 20.20mm Dia | - | CSA, UL |
