Rocker Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Color - Actuator/Cap | Actuator Marking | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
R13208FBB-602AWSWITCH ROCKER SPST 10A 125V |
0 |
|
Datasheet |
R13 | Bulk | Active | Panel Mount, Snap-In | SPST | Off-Mom | 10A (AC) | 125 V | - | Round | Black | O - | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Circular - 20.20mm Dia | - | CSA, UL |
|
|
D501J12S202QASWITCH ROCKER SPDT 125V |
0 |
|
Datasheet |
D | Bulk | Active | Panel Mount, Snap-In | SPDT | On-On | 10A (AC) | 125 V | - | Concave (Curved) | Black | No Marking | - | - | PC Pin | - | - | Rectangular - 19.41mm x 12.90mm | -30°C ~ 65°C | cULus |
|

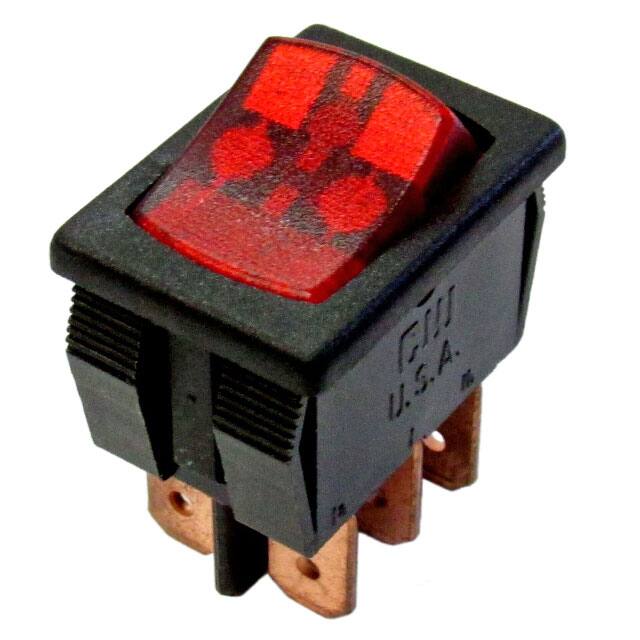

GRL-4022-0001SWITCH ROCKER DPDT 8A 125V |
0 |
|
Datasheet |
4000 | Bulk | Active | Panel Mount, Snap-In | DPDT | On-On | 8A (AC) | 125 V | - | Concave (Curved) - Illuminated | Red | No Marking | Neon, Red | 125 VAC | Quick Connect - 0.187" (4.7mm) | - | Terminal Barriers | Rectangular - 19.20mm x 12.90mm | -20°C ~ 105°C | - |
|

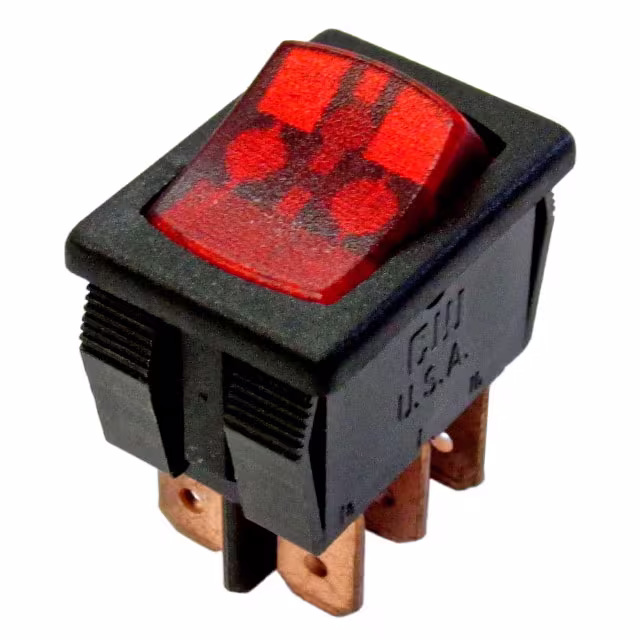

GRL-4022-0000SWITCH ROCKER DPDT 13A 125V |
0 |
|
Datasheet |
4000 | Bulk | Active | Panel Mount, Snap-In | DPDT | On-On | 13A (AC) | 125 V | - | Concave (Curved) - Illuminated | Red | No Marking | Neon, Red | 125 VAC | Quick Connect - 0.187" (4.7mm) | - | Terminal Barriers | Rectangular - 19.20mm x 12.90mm | -20°C ~ 105°C | - |
|
CG102J25S205QFSWITCH ROCKER SPST 16A 125V |
0 |
|
Datasheet |
CG | Tray | Active | Panel Mount, Snap-In | SPST | On-Off | 16A (AC) | 125 V | - | Concave (Curved) | Black, Red | Dot | - | - | Quick Connect - 0.250" (6.3mm) | - | Two-Tone Rocker | Rectangular - 27.80mm x 13.80mm | -20°C ~ 85°C | cULus, UL |
|
|
C1520ARBBSWITCH ROCKER SPDT 16A 250V |
0 |
|
Datasheet |
1500 | Bulk | Active | Panel Mount, Snap-In | SPDT | On-Off-On | 16A (AC) | 250 V | 24 V | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 28.60mm x 14.10mm | - | CSA, UL |
|
PRBSB1-16F-BA000SWITCH ROCKER SPST 16A 125V |
0 |
|
Datasheet |
PRB | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 16A (AC) | 125 V | - | Concave (Curved) - Illuminated | Amber | No Marking | Neon, Amber | 110 VAC | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 27.60mm x 13.80mm | -20°C ~ 85°C | UL |
|
|
400AWMSP1R1BLKM2RESWITCH ROCKER SPDT 0.4VA 20V |
0 |
|
Datasheet |
400A | Bulk | Active | Through Hole | SPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Concave (Curved) | Black | No Marking | - | - | PC Pin | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | - | -30°C ~ 85°C | - |
|

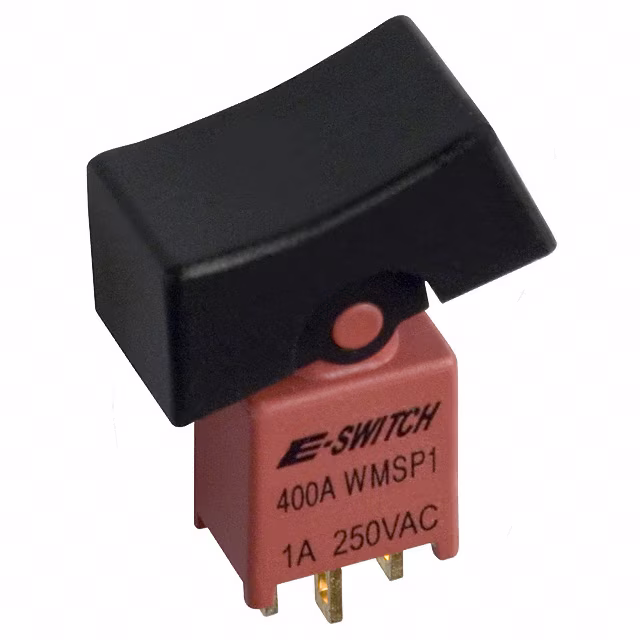

400AWMSP1R1BLKM1QESWITCH ROCKER SPDT 3A 120V |
0 |
|
Datasheet |
400A | Bulk | Active | - | SPDT | On-On | 3A (AC/DC) | 120 V | 28 V | Concave (Curved) | Black | No Marking | - | - | Solder Lug | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | - | -30°C ~ 85°C | - |
|
|
A8L-21-14N6ROCKER SWITCH |
0 |
|
Datasheet |
A8L | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 10A (AC) | 125 V | - | Concave (Curved) | Black | OFF ON, Vertical | - | - | PC Pin | IP40 | - | Rectangular - 19.20mm x 12.90mm | -20°C ~ 55°C | cUL, UL |
|
|
A8L-21-14N3ROCKER SWITCH |
0 |
|
Datasheet |
A8L | Bulk | Active | Panel Mount, Snap-In, Right Angle | DPST | On-Off | 10A (AC) | 125 V | - | Concave (Curved) | Black | O I | - | - | PC Pin | - | - | Rectangular - 19.20mm x 17.50mm | -20°C ~ 55°C | cUL, UL |
|
|
A8L-11-12N6ROCKER SWITCH |
0 |
|
Datasheet |
A8L | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 10A (AC) | 125 V | - | Concave (Curved) | Black | OFF ON, Vertical | - | - | PC Pin | IP40 | - | Rectangular - 19.20mm x 12.90mm | -20°C ~ 55°C | cUL, UL |
|
|
A8L-21-15N6ROCKER SWITCH |
0 |
|
Datasheet |
A8L | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 10A (AC) | 125 V | - | Concave (Curved) | Black | OFF ON, Vertical | - | - | Quick Connect - 0.187" (4.7mm) | IP40 | - | Rectangular - 19.20mm x 12.90mm | -20°C ~ 55°C | cUL, UL |
|
|
A8L-11-13N3ROCKER SWITCH |
0 |
|
Datasheet |
A8L | Bulk | Active | Panel Mount, Snap-In, Right Angle | SPST | On-Off | 10A (AC) | 125 V | - | Concave (Curved) | Black | O - | - | - | PC Pin | IP40 | - | Rectangular - 19.20mm x 17.50mm | -20°C ~ 55°C | cUL, UL |
|
|
A8L-11-13N6ROCKER SWITCH |
0 |
|
Datasheet |
A8L | Bulk | Active | Panel Mount, Snap-In, Right Angle | SPST | On-Off | 10A (AC) | 125 V | - | Concave (Curved) | Black | OFF ON, Vertical | - | - | PC Pin | IP40 | - | Rectangular - 19.20mm x 17.50mm | -20°C ~ 55°C | cUL, UL |
|
|
A8L-21-13N6ROCKER SWITCH |
0 |
|
Datasheet |
A8L | Bulk | Active | Panel Mount, Snap-In, Right Angle | DPST | On-Off | 10A (AC) | 125 V | - | Concave (Curved) | Black | OFF ON, Vertical | - | - | PC Pin | IP40 | - | Rectangular - 19.20mm x 17.50mm | -20°C ~ 55°C | cUL, UL |
|
|
A8L-21-12N6ROCKER SWITCH |
0 |
|
Datasheet |
A8L | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 10A (AC) | 125 V | - | Concave (Curved) | Black | OFF ON, Vertical | - | - | PC Pin | IP40 | - | Rectangular - 19.20mm x 12.90mm | -20°C ~ 55°C | cUL, UL |
|
|
651192-BB-0NSWITCH ROCKER 10A 125V |
0 |
|
- |
651 | Bulk | Active | Panel Mount, Snap-In | - | - | 10A (AC) | 125 V | - | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.20mm x 12.90mm | 0°C ~ 85°C | CSA, UL |
|
400AWMSP1R1BLKM7QESWITCH ROCKER SPDT 3A 120V |
0 |
|
Datasheet |
400A | Bulk | Active | Through Hole, Right Angle, Vertical | SPDT | On-On | 3A (AC/DC) | 120 V | 28 V | Concave (Curved) | Black | No Marking | - | - | PC Pin | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | - | -30°C ~ 85°C | - |
|
|
D101J12S215HQASWITCH ROCKER SPDT 4A 125V |
0 |
|
Datasheet |
D | Bulk | Active | Panel Mount, Snap-In | SPDT | On-On | 4A (AC) | 125 V | - | Concave (Curved) | Black | O I | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.20mm x 12.90mm | -30°C ~ 65°C | cULus |
