Rocker Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Color - Actuator/Cap | Actuator Marking | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
M2112PFW01SWITCH ROCKER SPDT 6A 125V |
7 |
|
Datasheet |
M2100 | Bulk | Obsolete | Panel Mount, Snap-In | SPDT | On-On | 6A (AC), 3A (DC) | 125 V | 30 V | Paddle - Illuminated | Black | No Marking | LED, Green | 2.1 VDC | Solder Lug | - | - | Rectangular - 15.90mm x 13.10mm | -25°C ~ 70°C | CSA, UL |
|
|
M2023TJG01-GA-2A-CSWITCH ROCKER DPDT 0.4VA 28V |
0 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount, Snap-In | DPDT | On-Off-On | 0.4VA (AC/DC) | 28 V | 28 V | Paddle - Illuminated | Black | No Marking | LED, Red | 2.8 VDC | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 15.90mm x 13.10mm | -30°C ~ 85°C | CSA, UL |
|

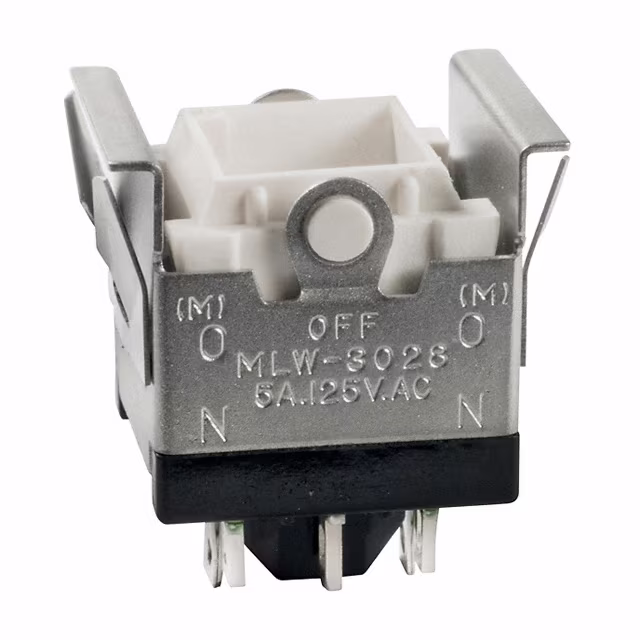

MLW3028/USWITCH ROCKER DPDT 5A 125V |
0 |
|
Datasheet |
MLW | Tray | Obsolete | Panel Mount, Snap-In | DPDT | Mom-Off-Mom | 5A (AC) | 125 V | - | Actuator Arm, Cap Required | - | Varies by Cap | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 18.70mm x 16.70mm | -10°C ~ 50°C | UL |
|
|
MLW3028/CULSWITCH ROCKER DPDT 5A 125V |
20 |
|
Datasheet |
MLW | Bulk | Obsolete | Panel Mount, Snap-In | DPDT | Mom-Off-Mom | 5A (AC) | 125 V | - | Actuator Arm, Cap Required | - | Varies by Cap | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 18.70mm x 16.70mm | -10°C ~ 50°C | UL |
|
MLW3015-F-LF-2ASWITCH ROCKER SPDT 5A 125V |
0 |
|
Datasheet |
MLW | Bulk | Obsolete | Panel Mount, Snap-In | SPDT | On-Mom | 5A (AC), 3A (DC) | 125 V | 30 V | Concave (Curved) - Illuminated | Green | No Marking | LED, Green | 2.1 VDC | Solder Lug | - | Epoxy Sealed Terminals | Square - 19.20mm² | -10°C ~ 50°C | UL |
|
|
WR15AT/CULSWITCH ROCKER SPDT 15A 125V |
0 |
|
Datasheet |
WR | Bulk | Active | Panel Mount, Snap-In | SPDT | On-Mom | 15A (AC/DC) | 125 V | 30 V | Concave (Curved) | Black | No Marking | - | - | Screw Terminal | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | Rectangular - 34.20mm x 17.20mm | -25°C ~ 85°C | EN, UL |
|
|
M2023TJW01-FA-3A-CCSWITCH ROCKER DPDT 6A 125V |
0 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount, Snap-In | DPDT | On-Off-On | 6A (AC), 3A (DC) | 125 V | 30 V | Concave (Standard V) - Illuminated | Black | No Marking | LED, Red | 2 VDC | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 18.70mm x 15.90mm | -30°C ~ 85°C | CSA, UL |
|
|
M2023TJW01-FA-3A-CFSWITCH ROCKER DPDT 6A 125V |
0 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount, Snap-In | DPDT | On-Off-On | 6A (AC), 3A (DC) | 125 V | 30 V | Concave (Standard V) - Illuminated | Black | No Marking | LED, Green/Red | 2.0, 2.25 VDC | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 18.70mm x 15.90mm | -30°C ~ 85°C | CSA, UL |
|

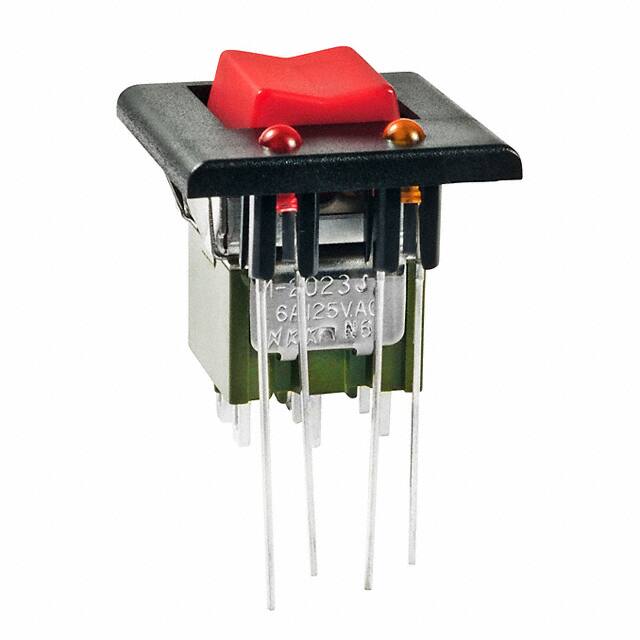

M2023TJW01-FC-3A-CESWITCH ROCKER DPDT 6A 125V |
0 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount, Snap-In | DPDT | On-Off-On | 6A (AC), 3A (DC) | 125 V | 30 V | Concave (Standard V) - Illuminated | Red | No Marking | LED, Red/Yellow | 2 VDC | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 18.70mm x 15.90mm | -30°C ~ 85°C | CSA, UL |
|
|
M2023TJW01-FC-3A-CFSWITCH ROCKER DPDT 6A 125V |
0 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount, Snap-In | DPDT | On-Off-On | 6A (AC), 3A (DC) | 125 V | 30 V | Concave (Standard V) - Illuminated | Red | No Marking | LED, Green/Red | 2.0, 2.25 VDC | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 18.70mm x 15.90mm | -30°C ~ 85°C | CSA, UL |
|
|
M2023TJW01-GC-3A-FFSWITCH ROCKER DPDT 6A 125V |
0 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount, Snap-In | DPDT | On-Off-On | 6A (AC), 3A (DC) | 125 V | 30 V | Paddle - Illuminated | Red | No Marking | LED, Green | 2.25 VDC | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 18.70mm x 15.90mm | -30°C ~ 85°C | CSA, UL |
|
|
M2023TJW01-FC-4A-FFSWITCH ROCKER DPDT 6A 125V |
16 |
|
Datasheet |
M | Tray | Obsolete | Panel Mount, Snap-In | DPDT | On-Off-On | 6A (AC), 3A (DC) | 125 V | 30 V | Concave (Standard V) - Illuminated | Red | No Marking | LED, Green | 2.1 VDC | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 18.70mm x 15.90mm | -30°C ~ 85°C | CSA, UL |
|

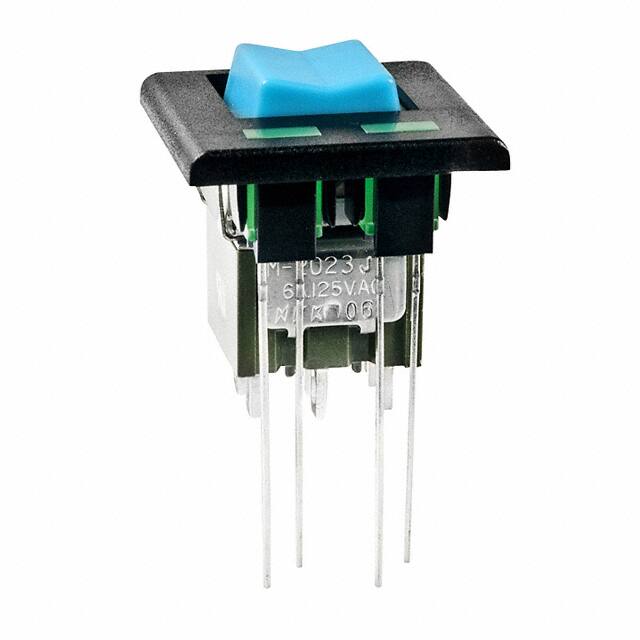

M2023TJW01-FG-4A-FFSWITCH ROCKER DPDT 6A 125V |
0 |
|
Datasheet |
M | Tray | Obsolete | Panel Mount, Snap-In | DPDT | On-Off-On | 6A (AC), 3A (DC) | 125 V | 30 V | Concave (Standard V) - Illuminated | Blue | No Marking | LED, Green | 2.1 VDC | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 18.70mm x 15.90mm | -30°C ~ 85°C | CSA, UL |
|
|
M2023TJW01-FA-4A-CFSWITCH ROCKER DPDT 6A 125V |
16 |
|
Datasheet |
M | Box | Obsolete | Panel Mount, Snap-In | DPDT | On-Off-On | 6A (AC), 3A (DC) | 125 V | 30 V | Concave (Standard V) - Illuminated | Black | No Marking | LED, Green/Red | 1.9, 2.1 VDC | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 18.70mm x 15.90mm | -30°C ~ 85°C | CSA, UL |
|
|
M2023TJW01-GA-4A-CFMINIATURE ROCKER/MULTI-FUNCTION |
16 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount, Snap-In | DPDT | On-Off-On | 6A (AC), 3A (DC) | 125 V | 30 V | Paddle - Illuminated | Black | No Marking | LED, Green/Red | 2.2, 2.25 VDC | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 18.70mm x 15.90mm | -30°C ~ 85°C | CSA, UL |
|
|
M2023TJW01-FA-4A-ECSWITCH ROCKER DPDT 6A 125V |
8 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount, Snap-In | DPDT | On-Off-On | 6A (AC), 3A (DC) | 125 V | 30 V | Concave (Standard V) - Illuminated | Black | No Marking | LED, Red/Yellow | 1.9, 2 VDC | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 18.70mm x 15.90mm | -30°C ~ 85°C | CSA, UL |
|
|
M2112NFW13SWITCH ROCKER SPDT 6A 125V |
35 |
|
Datasheet |
M2100 | Bulk | Obsolete | Through Hole | SPDT | On-On | 6A (AC), 3A (DC) | 125 V | 30 V | Concave (Standard V) - Illuminated | Black | No Marking | LED, Green | 2.2 VDC | PC Pin | - | - | - | -10°C ~ 55°C | CSA, UL |
|
|
M2112JEW13SWITCH ROCKER SPDT 6A 125V |
32 |
|
Datasheet |
M2100 | Bulk | Obsolete | Through Hole | SPDT | On-On | 6A (AC), 3A (DC) | 125 V | 30 V | Paddle - Illuminated | Black | No Marking | LED, Yellow | 2 VDC | PC Pin | - | - | - | -25°C ~ 70°C | CSA, UL |
|
7201J3W3BE2SWITCH ROCKER DPDT 0.4VA 20V |
0 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount, Flange | DPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Concave (Standard V) | Black | No Marking | - | - | Wire Wrap | - | Epoxy Sealed Terminals | Rectangular - 27.81mm x 16.46mm | -30°C ~ 85°C | cULus |
|
|
M2112JEW01-ASWITCH ROCKER SPDT 6A 125V |
30 |
|
Datasheet |
M2100 | Bulk | Obsolete | Panel Mount, Snap-In | SPDT | On-On | 6A (AC), 3A (DC) | 125 V | 30 V | Paddle - Illuminated | Black | No Marking | LED, Yellow | 2 VDC | Solder Lug | - | - | Rectangular - 15.90mm x 13.10mm | -25°C ~ 70°C | CSA, UL |
